Winmate W12L100-GCB1 12.3″ G-WIN Front IP65 PCAP Touch Monitor with MIL-STD-810G and 1000 Nit 1920 x 720 Display

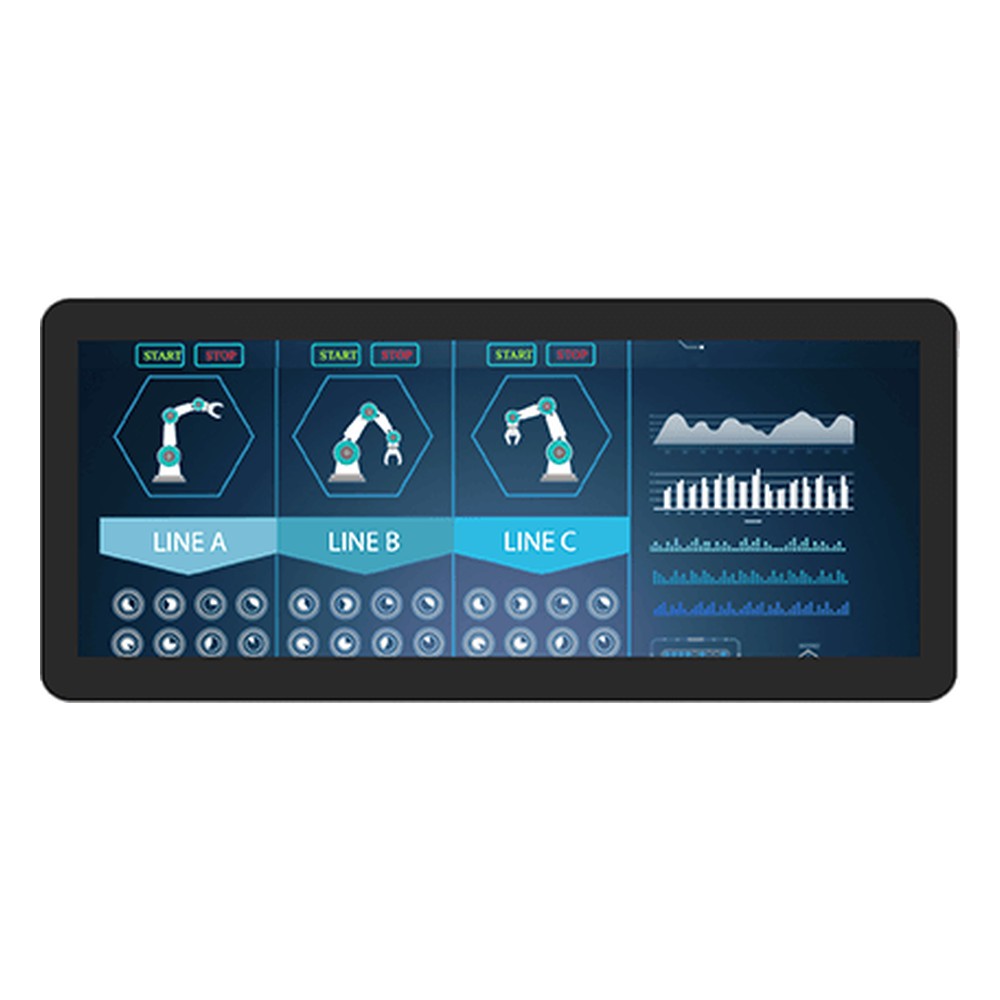

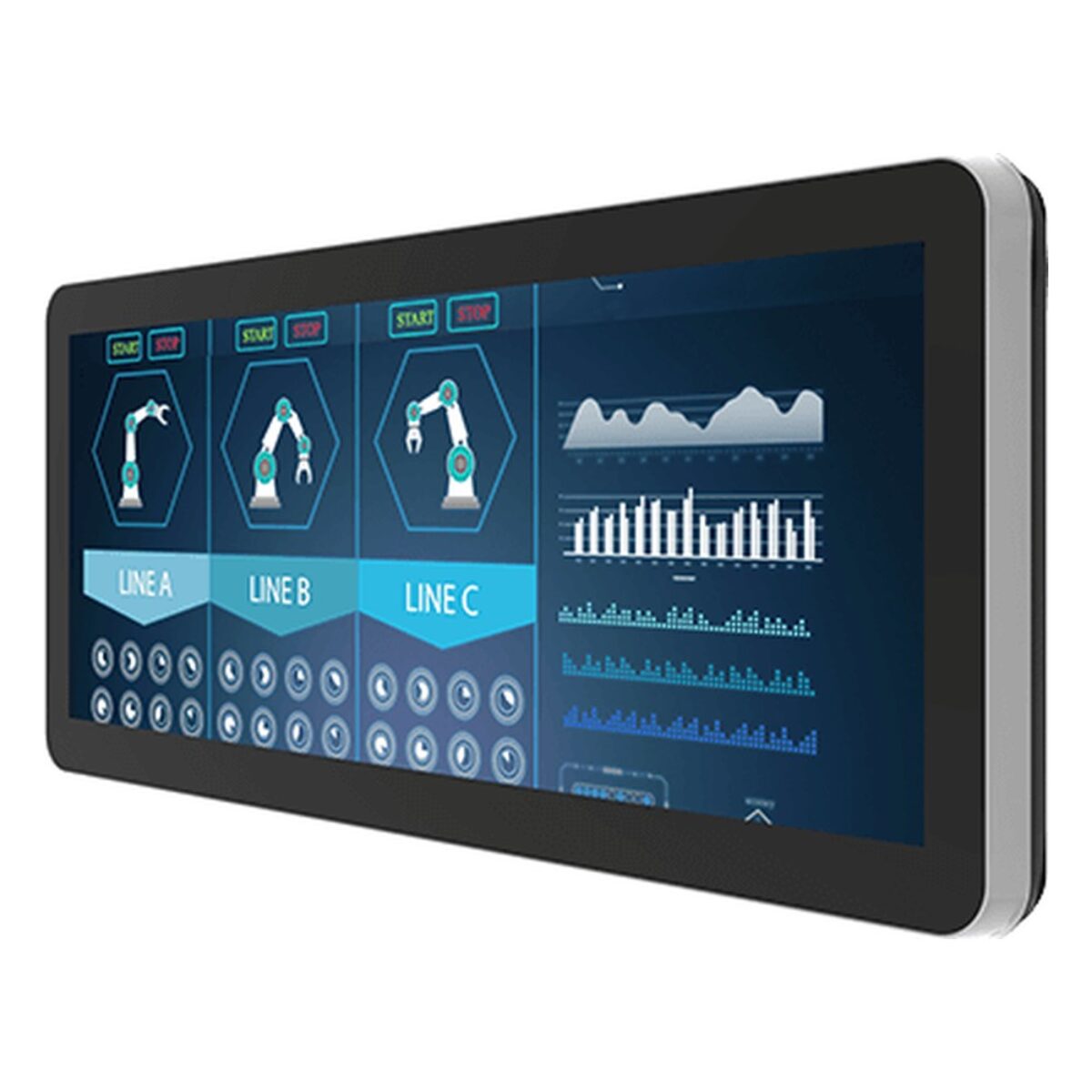

Some machine fronts and control desks have room for a long, shallow screen rather than a conventional one, for a status bar, a menu strip or a process overview. The W12L100-GCB1 is Winmate’s 12.3 inch G-WIN GC series monitor for that space: a 1920 x 720 bar display with projected capacitive multi-touch and front IP65 sealing. Winmate aims it at industrial visualization, control rooms and equipment monitoring, and it connects to a separate industrial computer.

The 12.3″ panel runs at 1000 nits with 1000:1 contrast and 176 degree viewing angles, so it stays readable in sunlight and in bright halls. Projected capacitive multi-touch supports swipe and pinch gestures and connects over USB. Shock is tested to MIL-STD-810G Method 516.6 and vibration to Method 514.6, which helps on machines that move or shake.

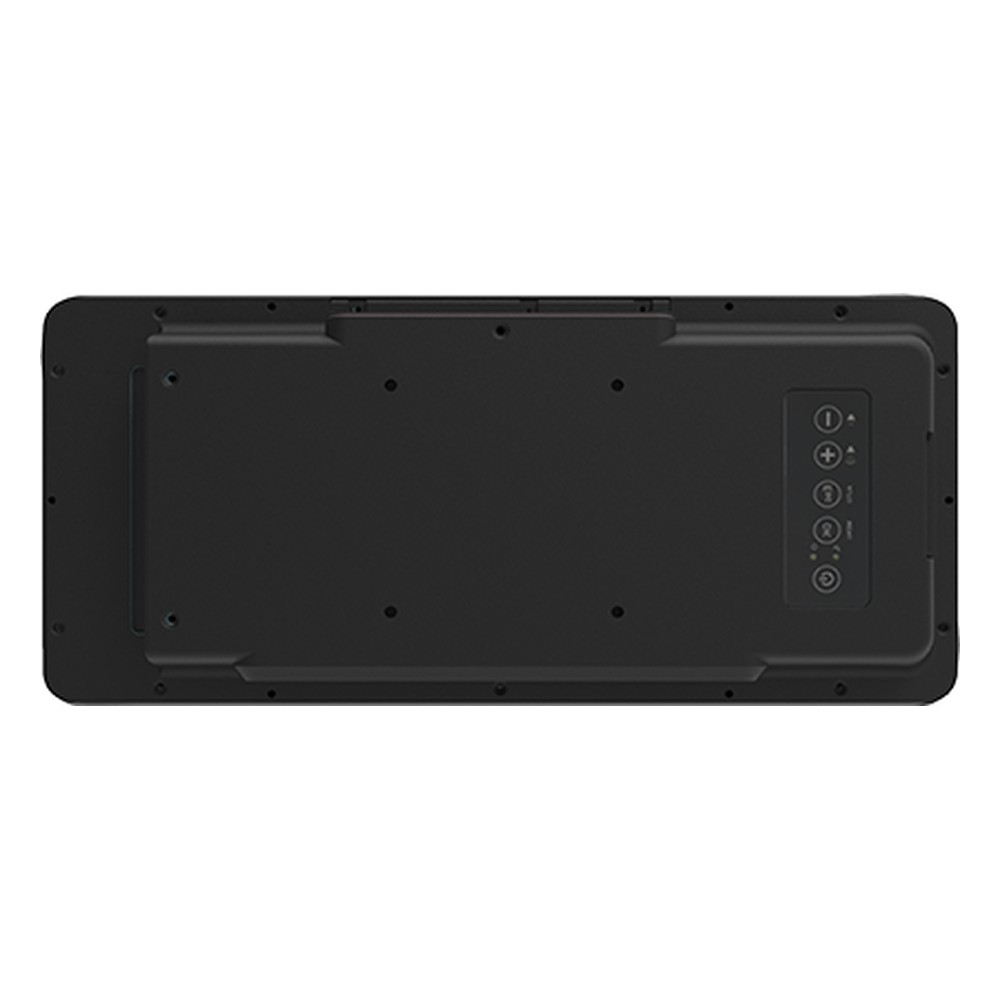

Video comes in over VGA as standard, with HDMI or DVI inputs as options, and a five-key OSD handles set-up. A remote controller is optional. VGA and HDMI cables, a power cord and VESA screws come in the box. The W12L100-GSB1 is the 12.3 inch G-WIN GS model with a fully sealed IP65 housing, M12 connectors and a 9 to 36 V DC input, and the W12MG3S-GCB1 is the panel PC on this front with a MediaTek Genio 510 built in.

The 12.3 inch monitor is rated IP65 at the front and mounts into a panel cut-out or on VESA. The fanless design pairs a plastic bezel with a metal back cover. It runs from 12 V DC, with a 24 V DC input as an option and a 100 to 240 V AC adapter supplied, operates from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -20 °C to 60 °C and carries CE and FCC marks. We supply the W12L100-GCB1 configured and tested before dispatch.
