Winmate W15L100-PPA4 15.6″ PCAP Panel Mount Monitor with FHD LCD and 800:1 Contrast
PCAP
Front IP65
CE
FCCW15L100-PPA4 Overview

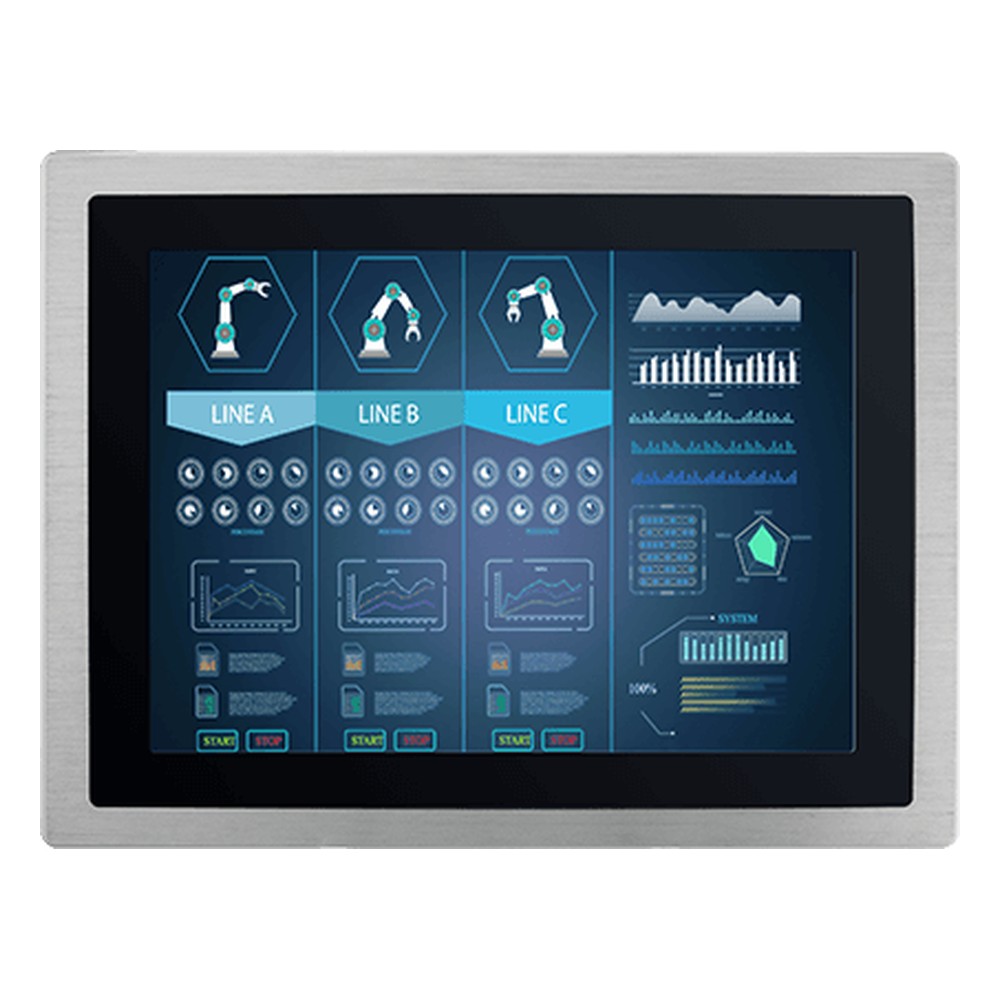

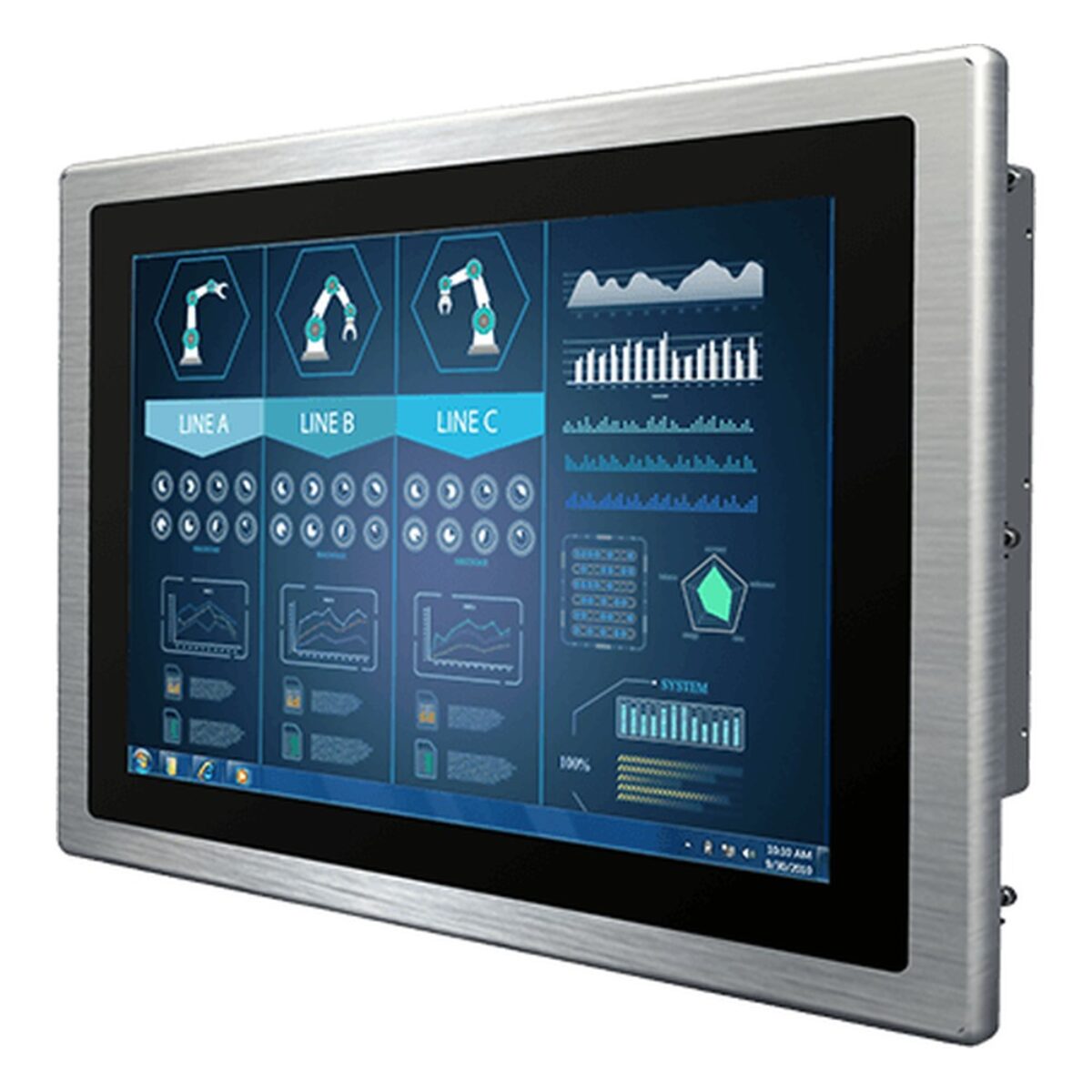

On an automation panel or a kiosk front, the display usually has to fit a cut-out, cope with splashes at the front and connect to a separate industrial PC or controller. The W15L100-PPA4 is Winmate’s 15.6 inch panel mount touch monitor for that installation: a 15.6″ 1920 x 1080 FHD projected capacitive touchscreen in an aluminum housing, sealed to IP65 at the front.
The 1920 x 1080 panel runs at 400 nits with 800:1 contrast and 170 degree viewing angles. Full HD gives current HMI, dashboard and web-based software a native canvas. Projected capacitive multi-touch reports to the host computer over USB, so swipe and pinch gestures work through the glass.
Video comes in over VGA as standard, with HDMI and DVI as options, and a single USB port carries touch back to the computer. An audio line-in and two speakers are optional. Five keys (minus, plus, power, Esc and Enter) run the on-screen menu for brightness and input settings. Within the Winmate range, the W15IT3S-PPA4 is the panel PC version of this housing with an 11th Gen Intel Core i5, and the W15L100-PPA2HB is the 1300 nit 1366 x 768 high-brightness version.
Power is 12 V DC, with a 24 V DC input as an option, and the monitor comes with VGA and HDMI cables, a 100 to 240 V AC to DC adapter and a power cord. The 15.6 inch monitor runs fanless from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, stores from -10 °C to 60 °C and carries CE and FCC marks. It fits a panel cut-out or a VESA mount. We supply the W15L100-PPA4 configured and tested before dispatch, and we can help pair it with the right industrial PC for the job.
W15L100-PPA4 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W15L100-PPA4 |
| Features | Fanless Industrial |
| Display | |
| Display | 15.6"[16:9, 1920 x 1080, FHD] |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 400 Nits |
| Viewing Angle | Wide Viewing Angle |
| 170° Horizontal, 170° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 800:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC AC Power Supply Included |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
- W15L100-PPA4 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W15L100-PPA4 configured and tested for USA industrial and commercial display projects. Within the Winmate range the W15IT3S-PPA4 is the panel PC version of this housing with an 11th Gen Intel Core i5, and the W15L100-PPA2HB is the 1300 nit 1366 x 768 high-brightness version.
The W15L100-PPA4 sits among our 15 inch industrial monitors, our panel mount monitors and our front IP65 monitors. Where an automation panel needs a 15.6 inch touchscreen that fits a cut-out and seals at the front, it is a sensible model to shortlist.
