Winmate W22L100-67A3POD 21.5″ Full IP67 Rugged Monitor with MIL-STD-810G and 1500 Nit FHD Display
PCAP
High Bright
Fanless
Extended Temp
CE
FCCW22L100-67A3POD Overview

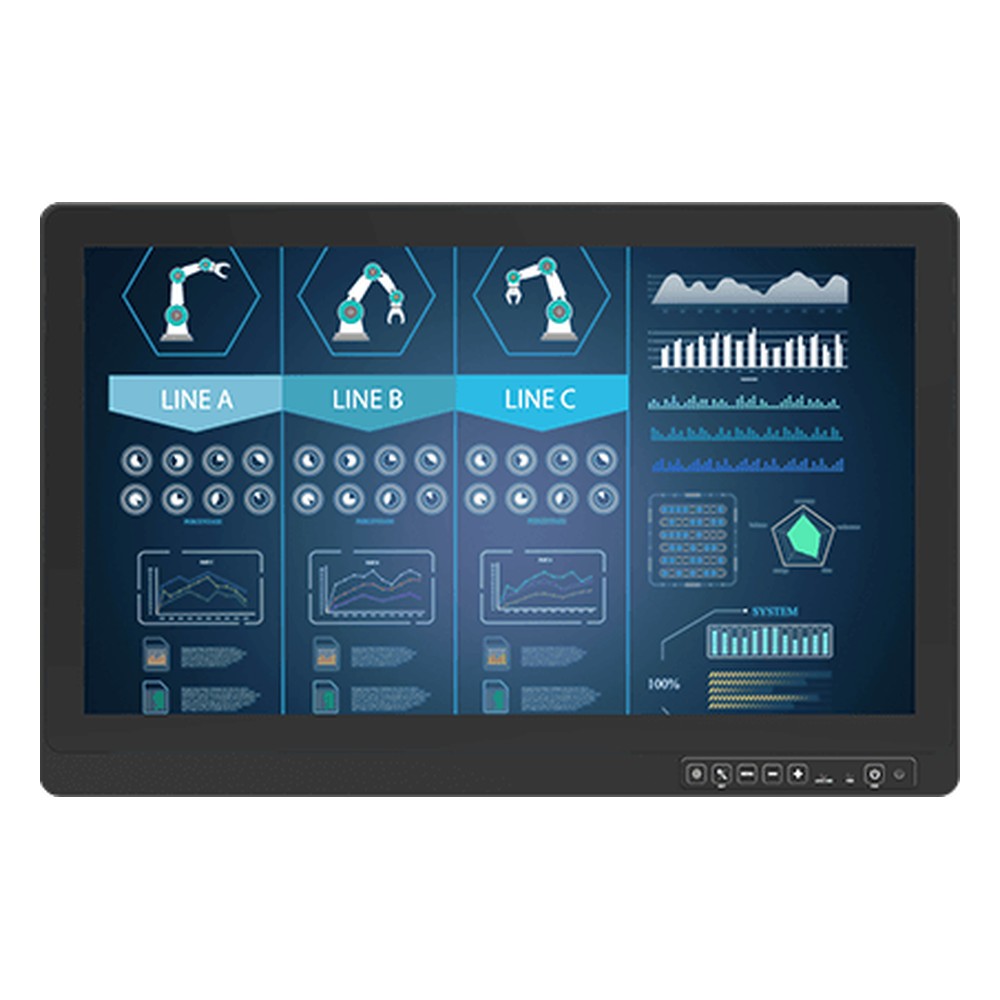

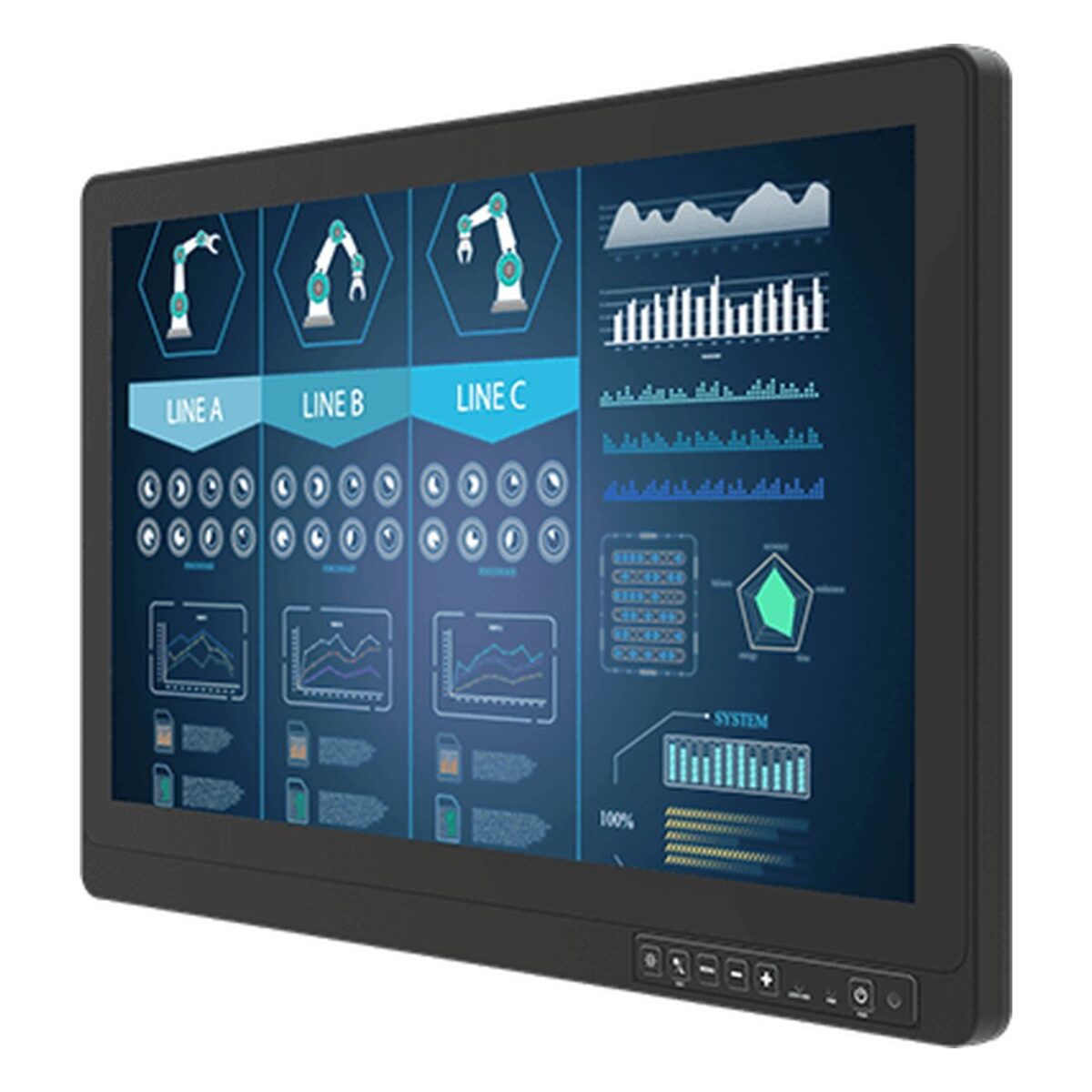

Outdoor kiosks, public information points and industrial monitoring screens take rain, dust and knocks, and often run from a DC supply. The W22L100-67A3POD is Winmate’s 21.5 inch full IP67 rugged monitor for those sites, with a 21.5″ Full HD panel at 1500 nits behind bonded PCAP multi-touch, in an aluminum housing tested to MIL-STD-810G for shock and vibration.
The 21.5″ Full HD panel runs at 1500 nits with 1000:1 contrast, 16.7 million colors and 178 degree viewing angles in both directions, so the picture typically stays readable in direct light. Projected capacitive multi-touch is optically bonded to the panel for clarity, and true flat protection glass bonded to the panel is an option. A built-in ambient light sensor and a menu key adjust brightness automatically or by hand, with a day/night mode button for night shifts.

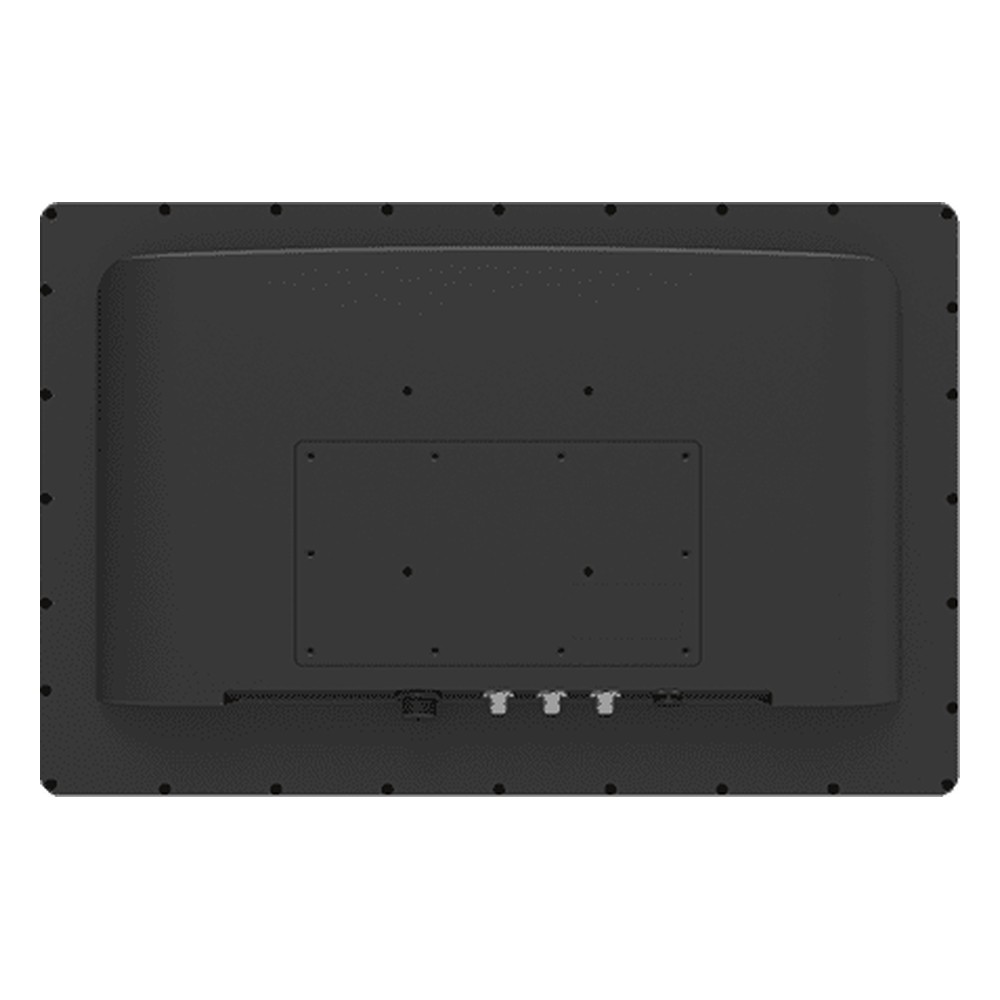

Video comes in on an M12 VGA connector and a waterproof HDMI connector, and touch runs over USB on its own M12 connector, with RS-232 touch and RS-232 remote control available as M12 options. Waterproof external VGA, HDMI, USB and power cables are supplied with three waterproof caps, and LEDs show power and lock status. Within the Winmate range the R15L100-67C3POD is the 15 inch 1024 x 768 version of this full IP67 design at 1000 nits, and the W22L100-67B2-P(HB) is the 21.5 inch full IP67 rugged model with a 1000 nit Full HD display.
Power is a wide 9 to 36 V DC input with isolation on an M12 waterproof connector, with an AC adapter as an optional accessory. The fanless aluminum housing with a polyester powder coat runs from -10 °C to 55 °C, or from -25 °C to 60 °C with the intelligent heater, and stores from -30 °C to 70 °C, and the unit is sealed to IP67 as a full IP67 monitor, with MIL-STD-810G Method 516.6 shock and Method 514.6 vibration testing listed. It mounts on VESA arms, brackets or stands, and it carries CE and FCC marks. We supply the W22L100-67A3POD configured and tested before dispatch.
W22L100-67A3POD Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W22L100-67A3POD |
| Features | Fanless Industrial M12 Connectors Rugged Waterproof |
| Display | |
| Display | 21.5"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Optical Bonding |
| Touch Interface | USB |
| Touch Controller | Multi Touch PCAP |
| Brightness | 1,500 nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 2x Display Ports |
| Video Inputs | 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 9-36V DC Input [M12] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -10°C to 55°C [14°F to 131°F] -25°C to 60°C [-13°F to 140°F] |
| Storage Temperature | -30°C to 70°C [-22°F to 158°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | IP67 IP67 [Dustproof, Protection against immersion in water up to 1 meter for 30 minutes] |
| Shock | MIL-STD-810G, Method 516.6, Procedure I |
| Vibration | MIL-STD-810G, Method 514.6 |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 8.7 Kg (19.1 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 530mm x 343mm x 58mm (20.85" x 13.50" x 2.28") |
- W22L100-67A3POD Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W22L100-67A3POD configured and tested for USA outdoor kiosk, public information and industrial monitoring projects. Within the Winmate range the R15L100-67C3POD is the 15 inch 1024 x 768 version of this full IP67 design at 1000 nits, and the W22L100-67B2-P(HB) is the 21.5 inch full IP67 rugged model with a 1000 nit Full HD display.
The W22L100-67A3POD sits among our IP67 monitors, our rugged monitors and our sunlight readable monitors. Where a 21.5 inch touchscreen has to stay sealed against dust and water and cope with vibration outdoors, this is a sensible model to shortlist.
