Winmate W22L100-STA3 21.5″ Stainless Front Panel Mount Monitor with Resistive Touch and Front IP65
Resistive
Fanless
Front IP65
CE
FCCW22L100-STA3 Overview

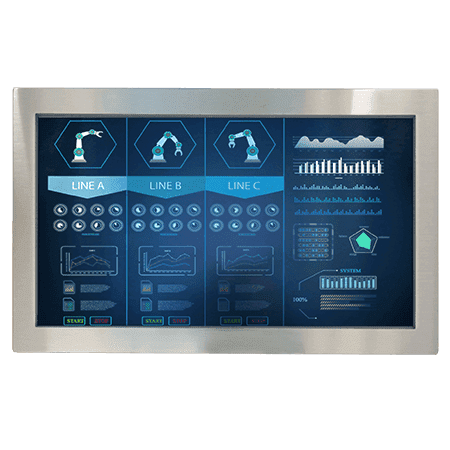

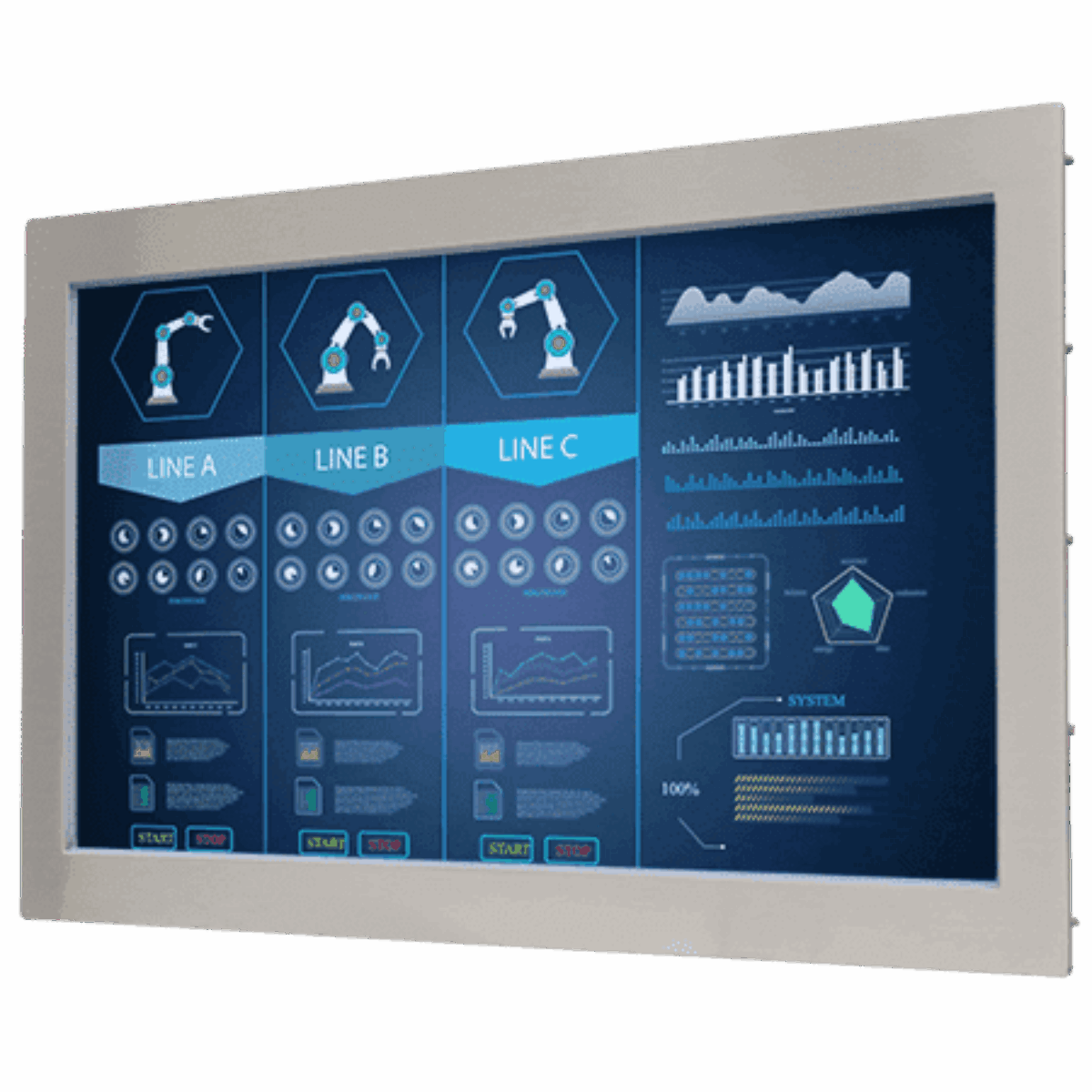

Where a screen goes into a control cabinet door rather than hanging from an arm, only the front sees the cleaning, and a fully sealed stainless monitor can be more than the job needs. The W22L100-STA3 is Winmate’s 21.5 inch stainless panel mount monitor, with a stainless steel front bezel rated front IP65 and resistive touch for gloved operators.
The 1920 x 1080 panel runs at 250 nits with a 3000:1 contrast ratio, 16.7 million colors and 178° viewing angles. Resistive touch is listed, with a protection glass without touch as an alternative, and the touch link runs over an optional USB Type-A port or an optional RS-232 port. Winmate names food and beverage and chemical processing among the hygienic applications it targets.
Video enters over VGA, with HDMI and DVI inputs as options, and five buttons handle the OSD with LEDs for power and status. Where the whole monitor is washed down, the W22L100-SPA3 is the fully sealed IP65 SUS 316 version with PCAP touch, and the W22L100-SPA369 takes that sealing to IP69K for high-pressure cleaning.

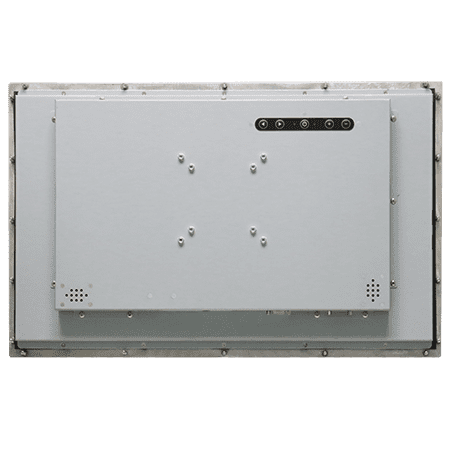

Power is 12 V DC on a 2.5 mm DC jack, with a 100 to 240 V AC adapter and external USB, VGA and HDMI cables supplied. The fanless unit measures 544 x 340 x 68 mm and panel mounts into a cabinet door, with 75 x 75 and 100 x 100 mm VESA holes as an alternative. It operates from 0 °C to 50 °C at 10 to 90% humidity and carries CE and FCC marks. Only the stainless front is exposed to cleaning, which keeps the cabinet door design simple.
W22L100-STA3 Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W22L100-STA3 |
| Features | Fanless Industrial |
| Display | |
| Display | 21.5"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Protective Glass |
| Touch Interface | USB |
| Touch Controller | Resistive Touch |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x Optional DVI Input 1x Optional HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -20°C to 60°C [-4°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | Front IP65 Front IP65 [Dustproof, Protection against low pressure water jets spraying from the front side] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 544mm x 340mm x 68mm (21.42" x 13.39" x 2.68") |
- W22L100-STA3 Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W22L100-STA3 configured for USA food, beverage and chemical processing projects. Within the Winmate range the W22L100-SPA3 is the fully sealed IP65 stainless version, and the W22L100-SPA369 is the IP69K version.
With its stainless front the W22L100-STA3 sits among our front IP65 displays, our panel mount industrial monitors and our resistive touch monitors. Where a cabinet door needs a washable stainless front, this is the model to specify.
