Winmate W24L100-OFA2TR 23.8″ Transflective Open Frame Monitor with FHD Display and Optional Touch
Resistive
Fanless
CE
FCCW24L100-OFA2TR Overview

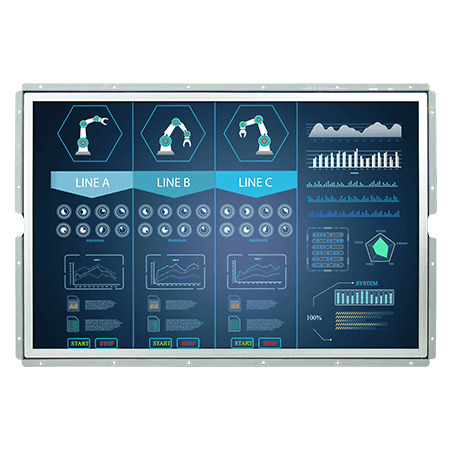

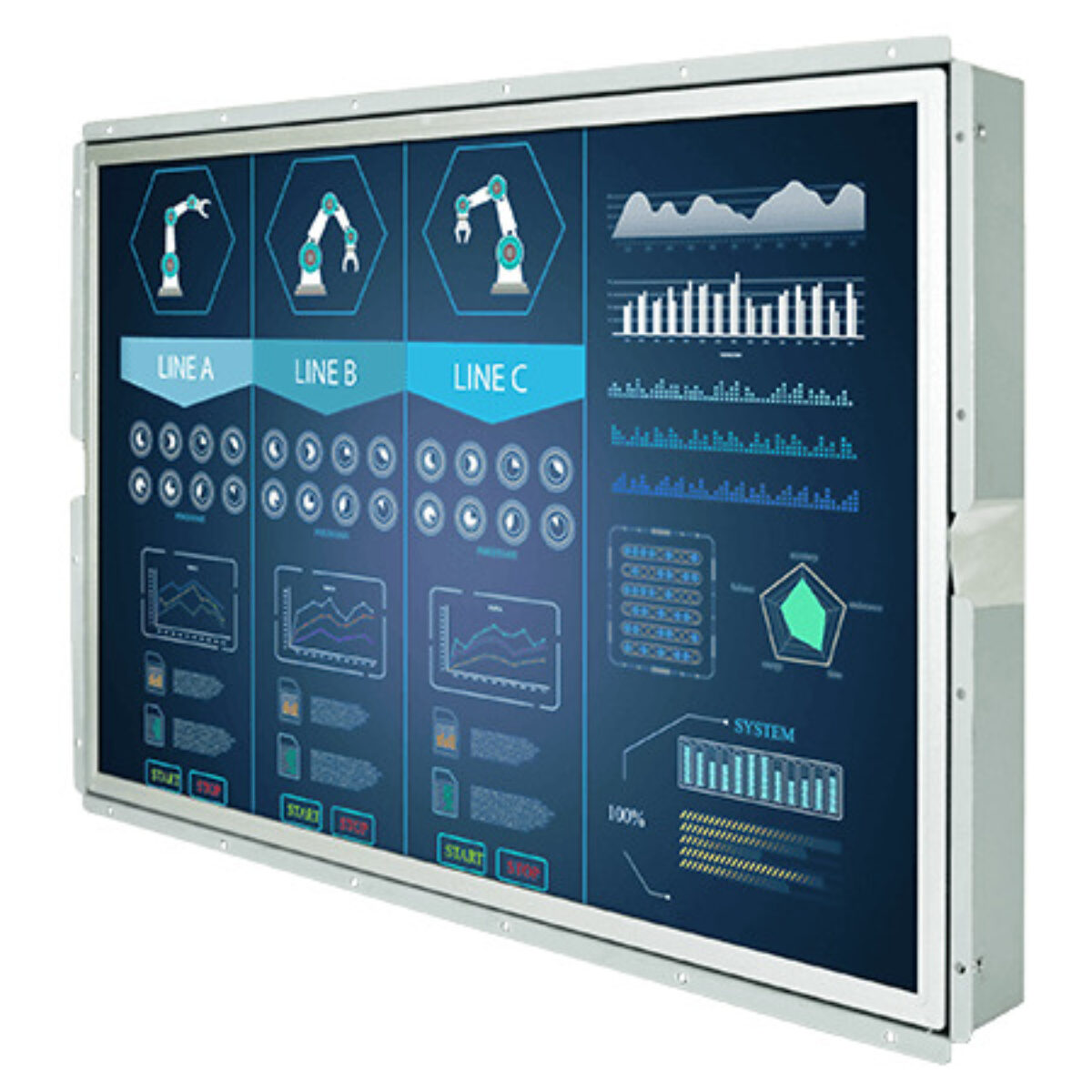

Some kiosk and machine projects specify a transflective panel rather than a standard transmissive one, and still want a bare frame to build around. The W24L100-OFA2TR is Winmate’s 23.8 inch transflective open frame monitor, with a 1920 x 1080 panel in a fanless metal frame for panel or VESA mounting.
The transflective panel is rated at 250 nits with a 3000:1 contrast ratio, 16.7 million colors and 178° viewing angles. Touch is not fitted as standard: resistive touch, SAW touch or a protection glass without touch are offered as options, with a USB port for the touch link. The same frame can therefore run as a view-only screen or as an operator or customer touch point.
Video comes in over VGA as standard, with HDMI and DVI inputs available as options, plus an optional 3.5 mm audio line-in and two optional speakers. A five-key OSD panel sits on the rear, with an optional remote controller listed. The W24L100-OFA2 is the standard 250 nit version of this frame, and the W24L100-OFA2HB raises brightness to 1000 nits for bright foyers and windows.
Power is 12 V DC, with a 100 to 240 V AC adapter supplied. The fanless unit measures 576 x 343 x 58 mm and mounts into a panel or onto 75 x 75, 100 x 100 and 200 x 100 mm VESA holes. It operates from 0 °C to 50 °C at 10 to 90% humidity and carries CE and FCC marks. Winmate does not publish further transflective panel data on the datasheet, so we confirm panel behavior with Winmate for each project.
W24L100-OFA2TR Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W24L100-OFA2TR |
| Features | Fanless Industrial |
| Display | |
| Display | 23.8"[16:9, 1920 x 1080, FHD] |
| Display Treatment | Protective Glass Transflective |
| Touch Interface | USB |
| Touch Controller | Optional Resistive Touch Optional Surface Acoustic Wave Touch |
| Brightness | 250 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 3000:1 |
| Number of Display Inputs | 3x Display Ports |
| Video Inputs | 1x DVI Input 1x HDMI Input 1x VGA Input |
| Power | |
| Power Input | 12V DC |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 576mm x 343mm x 58mm (22.68" x 13.5" x 2.28") |
- W24L100-OFA2TR Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W24L100-OFA2TR configured for USA kiosk and machine building projects. Within the Winmate range the W24L100-OFA2 is the standard version, and the W24L100-OFA2HB is the 1000 nit version.
As a transflective frame the W24L100-OFA2TR sits among our open frame displays, our 24 inch monitors and our resistive touch screen monitors. Where a build calls for a transflective 23.8 inch panel, this is the model to specify.
