Winmate W27L100-MLA3FG 27″ Rack Mount Defense Monitor with 3840 x 2160 UHD and AR Protection Glass
CE
FCCW27L100-MLA3FG Overview

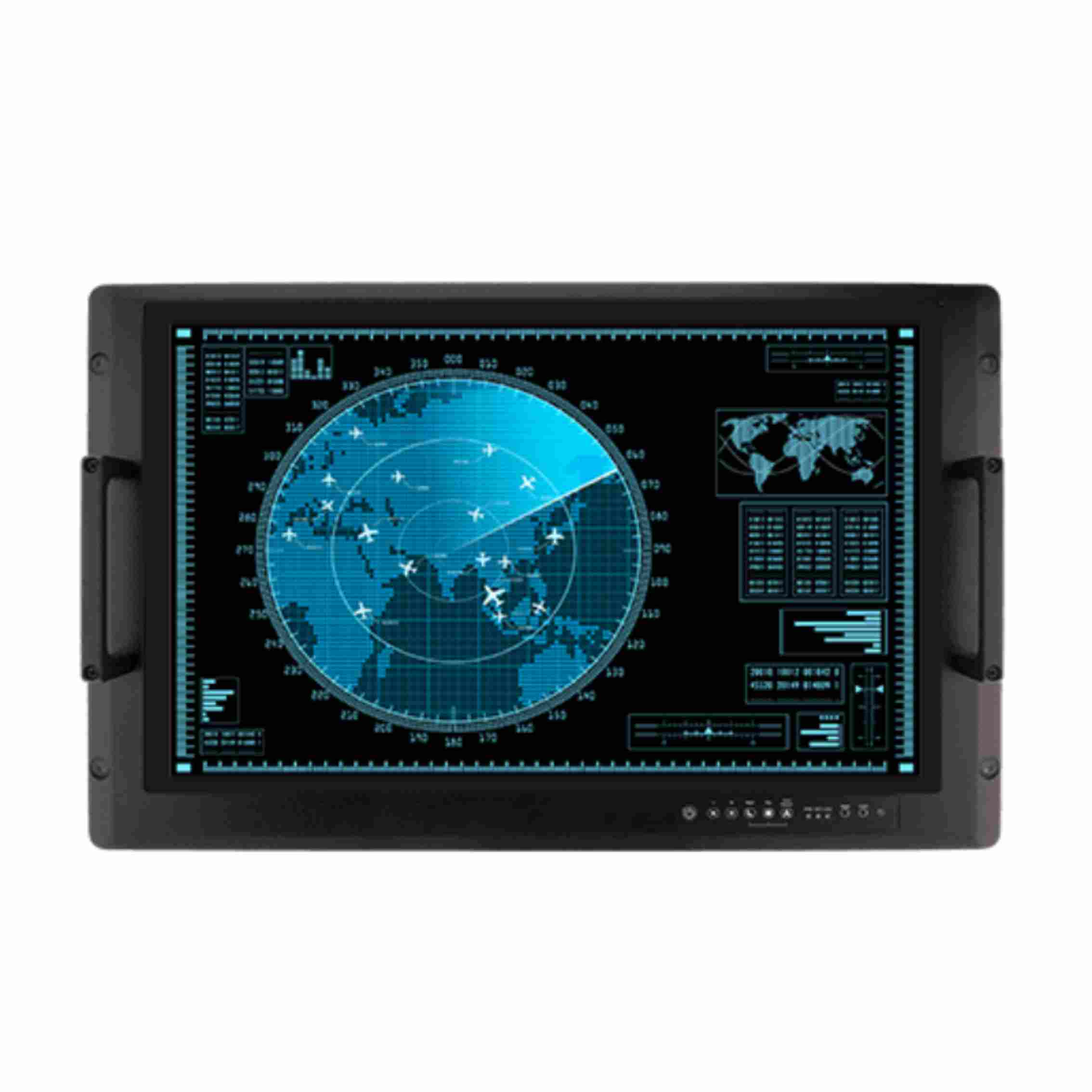

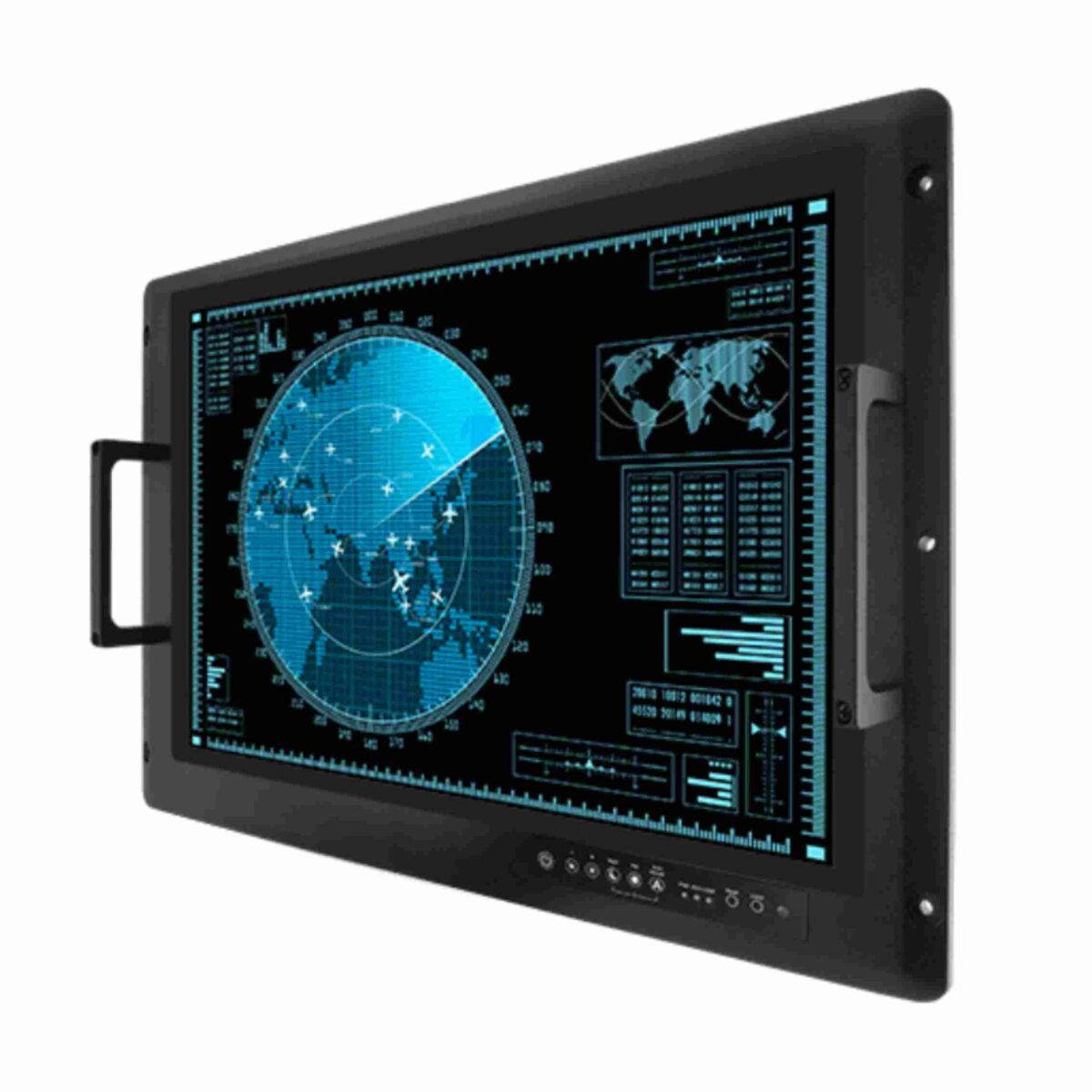

Command teams working with satellite imagery and dense tactical overlays need more pixels than a 1920 x 1080 screen gives, in a unit that survives transport and power from a shelter. The W27L100-MLA3FG is Winmate’s 27 inch rack mount defense monitor: a fanless 3840 x 2160 display with a defence-grade power connector and AR protection glass.
The 16:9 panel runs at 3840 x 2160 with 400 nits brightness, a 1000:1 contrast ratio, 178° viewing angles and 1.07 billion colors. AR protection glass covers the panel to cut reflections, and EMI ITO glass is an option where the installation needs extra emissions shielding. A seven-key panel on the bezel handles power, brightness, menu, auto adjust, day/night mode and a control lock.
Video inputs are VGA, DVI and DisplayPort 1.2 as standard, with HDMI 1.4 and HDMI 2.0 as options, plus an optional RS-232 port for remote control and an optional audio line in. The W27L100-MLA3FP is the PCAP touch version of this monitor, and the W32L100-MLA1FP gives the same 3840 x 2160 resolution at 32 inches.
Power is 100 to 240 V AC universal on a MIL-DTL-38999/1 defence-grade connector, with 9 to 36 V DC as an ordering option for vehicle and shelter supplies. Winmate lists compliance with MIL-STD-810G/H methods for vibration (514.6), humidity (507.5) and transit drop (516.6) and with MIL-STD-461 emissions and susceptibility tests including RE101/RE102, CE101/CE102 and RS101/RS103. The monitor measures 697.2 x 442 x 73.9 mm, runs from 0 to 50 °C at 10 to 95% humidity and carries CE and FCC marks. It mounts in a rack on its handles or on a VESA arm.
W27L100-MLA3FG Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W27L100-MLA3FG |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 27"[16:9, 3840 x 2160, UHD] |
| Display Treatment | Anti-reflective glass |
| Touch Interface | USB |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 5x Display Ports |
| Video Inputs | 1x Display Port Input 1x DVI Input 1x VGA Input 2 x Optional HDMI |
| Power | |
| Power Input | 9-36V DC Input [MIL-STD] Optional AC Power Supply |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -25°C to 60°C [-13°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 697mm x 442mm x 74mm (27.44" x 17.4" x 2.91") |
- W27L100-MLA3FG Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W27L100-MLA3FG configured for USA defense programs. Within the Winmate range the W27L100-MLA3FP adds PCAP multi-touch to the same 27 inch panel, and the W32L100-MLA1FP gives 3840 x 2160 PCAP touch at 32 inches for larger consoles.
With a 3840 x 2160 panel and MIL-STD compliance, the W27L100-MLA3FG sits among our defense and military monitors, our rugged monitors and our 27 inch industrial monitors. Where a command console needs UHD detail behind protective glass, this is the model to specify.
