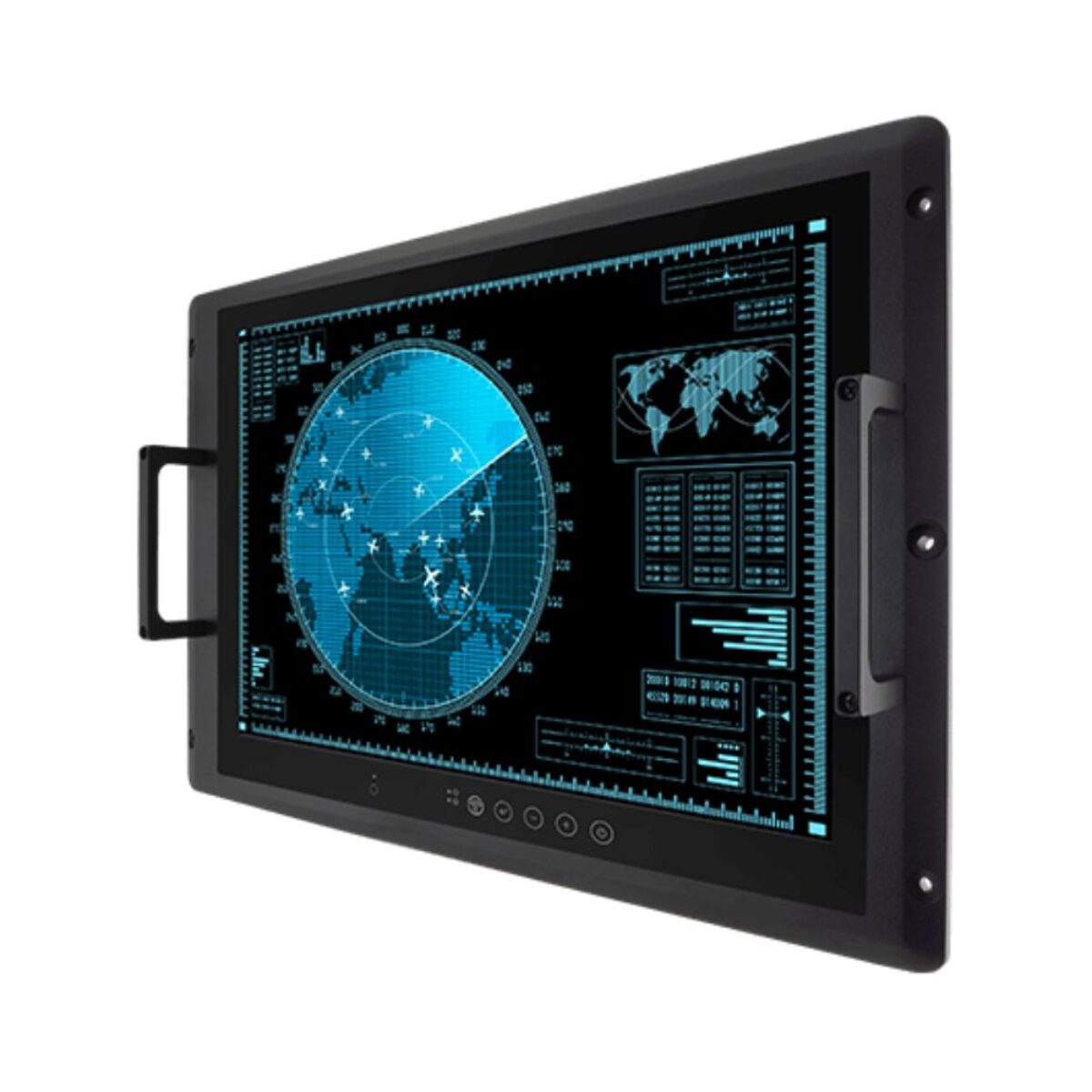

Winmate W27L100-MLA3FP 27″ Rack Mount PCAP Touch Defense Monitor with 3840 x 2160 UHD Display
PCAP
CE
FCCW27L100-MLA3FP Overview
Command teams working with satellite imagery and dense tactical overlays need more pixels than a 1920 x 1080 screen gives, in a unit that survives transport and power from a shelter. The W27L100-MLA3FP is Winmate’s 27 inch rack mount defense monitor with PCAP multi-touch: a fanless 3840 x 2160 display with a defence-grade power connector.

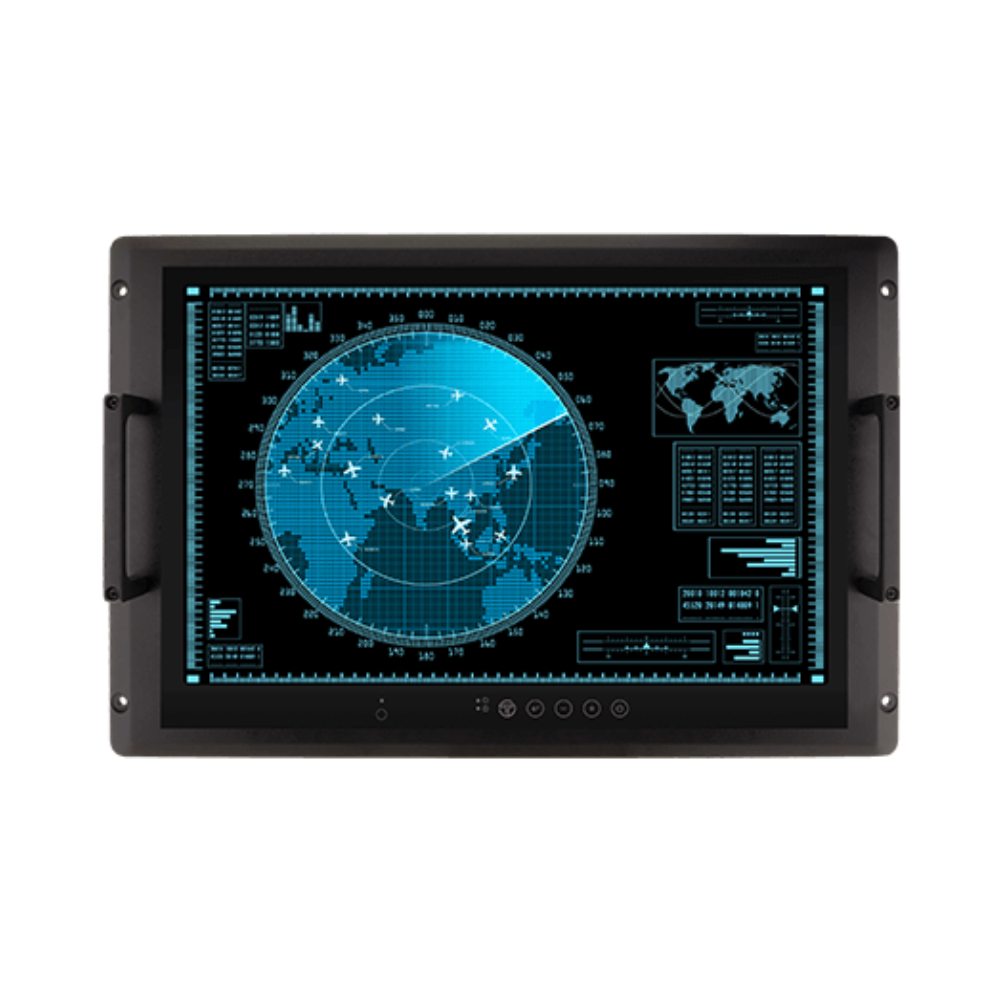

The 16:9 panel runs at 3840 x 2160 with 400 nits brightness, a 1000:1 contrast ratio, 178° viewing angles and 1.07 billion colors. Projected capacitive multi-touch sits over the panel so operators can pan, zoom and select on the display itself, and a PCAP build with ITO film is an option. Five capacitive keys on the bezel handle power, brightness, OSD and escape.
Video inputs are VGA, DVI and DisplayPort 1.2 as standard, with HDMI 1.4 and HDMI 2.0 as options, plus an optional RS-232 port for remote control and an optional audio line in, and USB carries the touch signal. The W27L100-MLA3FG is the protective glass version without touch, and the W32L100-MLA1FP gives the same 3840 x 2160 resolution at 32 inches.
Power is 100 to 240 V AC universal on a MIL-DTL-38999/1 defence-grade connector, with 9 to 36 V DC as an ordering option for vehicle and shelter supplies. Winmate lists compliance with MIL-STD-810G methods for vibration (514.6), humidity (507.4) and transit drop (516.5) and with MIL-STD-461 emissions and susceptibility tests including RE101/RE102, CE101/CE102 and RS101/RS103. The monitor measures 697.2 x 442 x 73.8 mm and weighs 15.9 kg, runs from 0 to 50 °C at 10 to 95% humidity and carries CE and FCC marks. It mounts in a rack on its handles or on a VESA arm.
W27L100-MLA3FP Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate W27L100-MLA3FP |
| Features | Fanless Industrial Rugged |
| Display | |
| Display | 27"[16:9, 3840 x 2160, UHD] |
| Touch Controller | Multi Touch PCAP |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 178° Horizontal, 178° Vertical | |
| Aspect Ratio | 16:9 |
| Format | Widescreen |
| Contrast | 1000:1 |
| Number of Display Inputs | 5x Display Ports |
| Video Inputs | 1x Display Port Input 1x DVI Input 1x VGA Input 2 x Optional HDMI |
| Power | |
| Power Input | 9-36V DC Input [MIL-STD] Optional AC Power Supply |
| Environmental Conditions | |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -25°C to 60°C [-13°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 697mm x 442mm x 74mm (27.44" x 17.4" x 2.91") |
- W27L100-MLA3FP Datasheet Download
Official Winmate USA Distributor
Things Embedded is an official Winmate USA distributor, supplying the W27L100-MLA3FP configured for USA defense programs. Within the Winmate range the W27L100-MLA3FG is the protective glass version without touch, and the W32L100-MLA1FP gives 3840 x 2160 PCAP touch at 32 inches for larger consoles.
With a 3840 x 2160 panel and MIL-STD compliance, the W27L100-MLA3FP sits among our military displays, our rugged monitors and our 27 inch industrial monitors. Where a command console needs UHD detail under the operator's finger, this is the model to specify.
