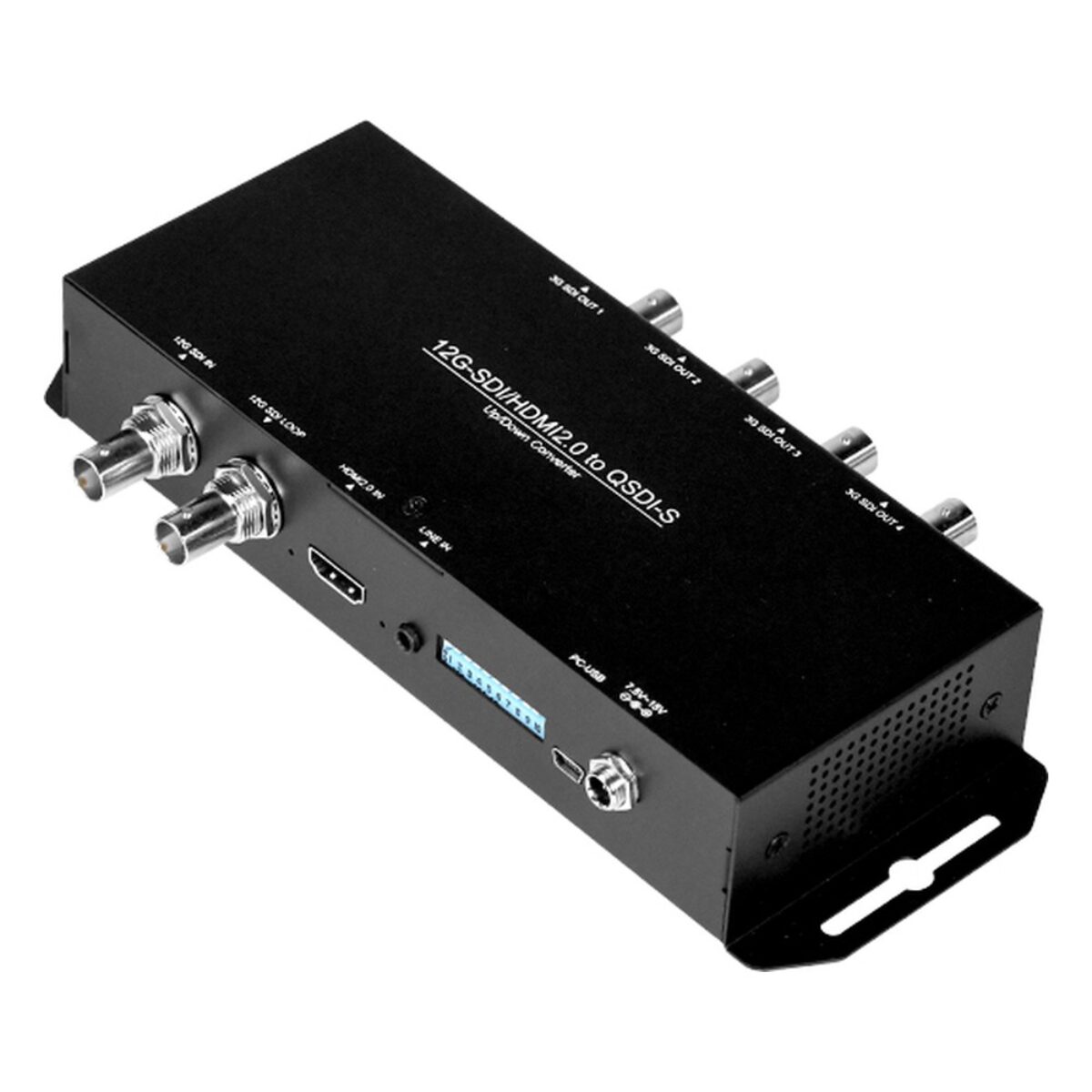

Yuan 12G-SDI/HDMI2.0 to QSDI-S 12G-SDI Converter with HDMI 2.0 Input, Quad-Link SDI Output and Up/Down Scaling
12G-SDI/HDMI2.0 to QSDI-S Overview
Many switchers, recorders and monitors built for 4K still take quad-link 3G-SDI rather than a single 12G-SDI cable. The Yuan 12G-SDI/HDMI2.0 to QSDI-S is a 12G-SDI converter that turns a 12G-SDI or HDMI 2.0 source into quad-link SDI, typically for broadcast and live production systems that mix generations of SDI kit.

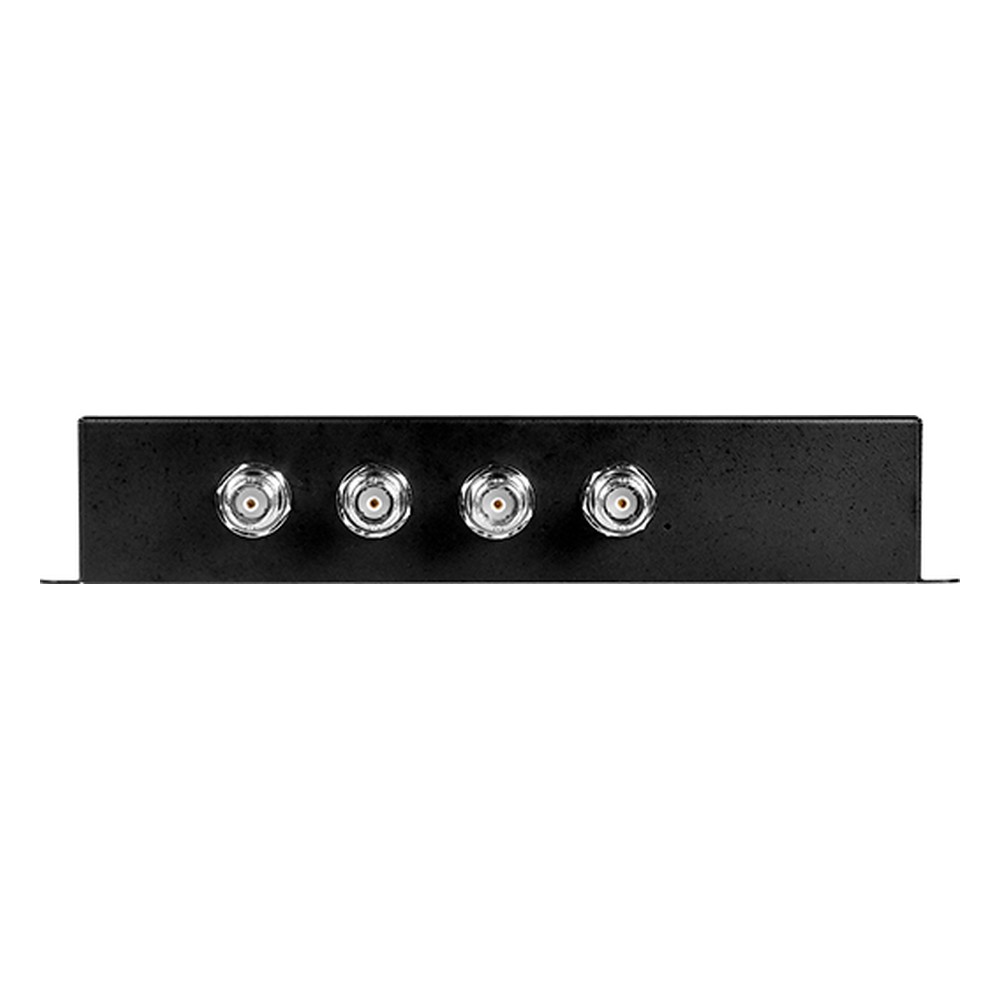

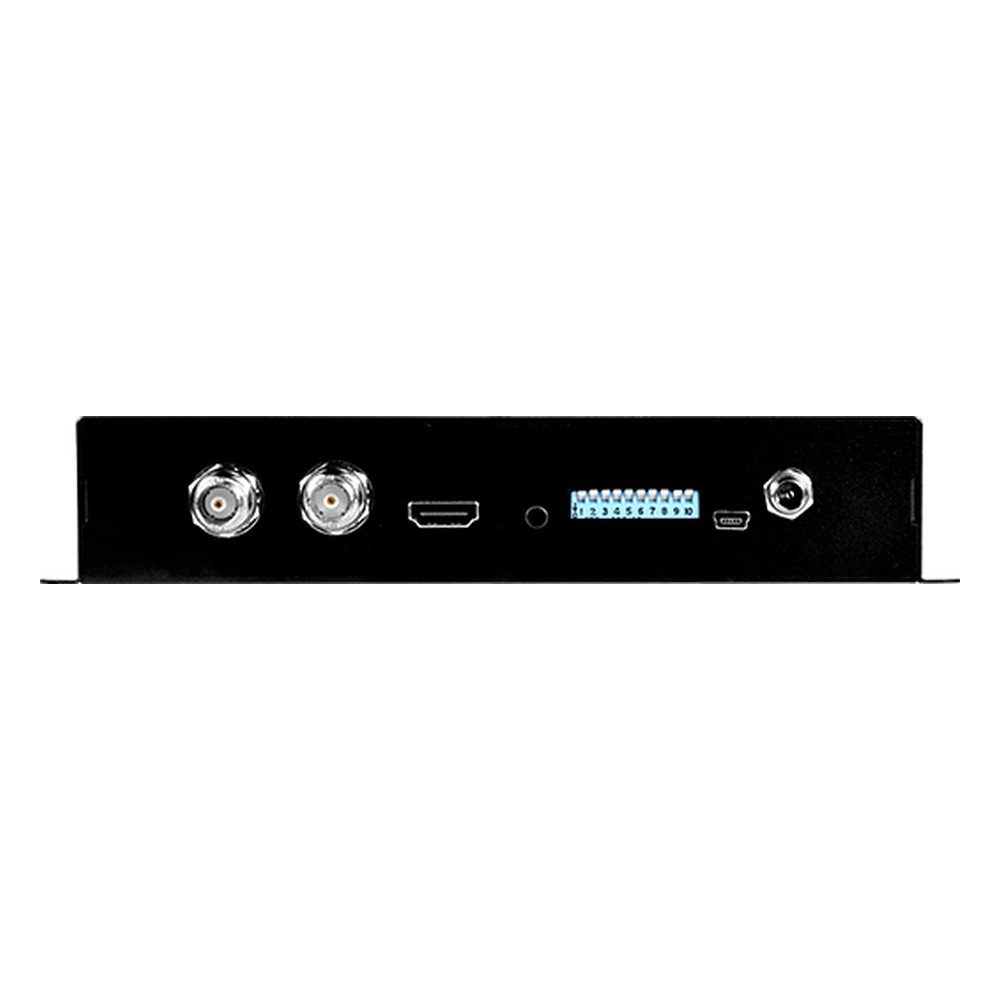

Inputs are one HDMI 2.0 and one 12G-SDI, plus a stereo jack for analog L/R audio. 12G-SDI and HDMI 2.0 are accepted at 4096×2160 and 3840×2160 at 60/50 fps, 6G-SDI at 4K30, and HD and SD formats below. Outputs are four SDI connections carrying quad-link SDI at 4K60 or dual-link at 4K30, in two-sample interleave or square division, or single-link 3G, HD and SD-SDI after scaling. A 12G-SDI loop-through repeats the input. Audio: HDMI eight channels up to 192 kHz, SDI up to eight channels at 48 kHz, and two analog channels.
The 12G-SDI/HDMI2.0 to QSDI-S runs from a 7.5 to 15 V DC input with auto source format detection. For the reverse path, the QSDI to 12G-SDI/HDMI2.0-S takes quad-link SDI back to 12G-SDI and HDMI 2.0. Where you only need SDI to SDI conversion without scaling, the 12G-SDI to QSDI handles it with 16-channel audio.
Yuan publishes no operating temperature or certification for this converter, so plan for an indoor rack. We can also supply spare units for critical signal paths and advise on mounting and power in the rack, so the installation is ready before you go live. We supply the 12G-SDI/HDMI2.0 to QSDI-S configured and tested with the sources, displays and routing it will connect to.
12G-SDI/HDMI2.0 to QSDI-S Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan 12G-SDI/HDMI2.0 to QSDI-S |
| Video Capture | |
| Video Input | 1x 12G-SDI 1x HDMI2.0 |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Output | 4x SDI |
| Video Resolution Output | 4K60 [4096x2160p @ 60/50/30/25/24fps] |
| Audio Input | 1x 3.5mm Audio Input 1x HDMI Embedded Audio Input 1x SDI Embedded Audio Input |
| Audio Output | 1x SDI Embedded Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 180mm x 76mm x 36mm (7.09" x 2.99" x 1.42") |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the 12G-SDI/HDMI2.0 to QSDI-S configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the QSDI to 12G-SDI/HDMI2.0-S does the opposite conversion, and the 12G-SDI to QSDI splits 12G-SDI to quad-link without an HDMI input or scaling.
Across our range, the 12G-SDI/HDMI2.0 to QSDI-S sits with our SDI and HDMI converters, our 12G-SDI capture cards and our SDI video capture cards.
