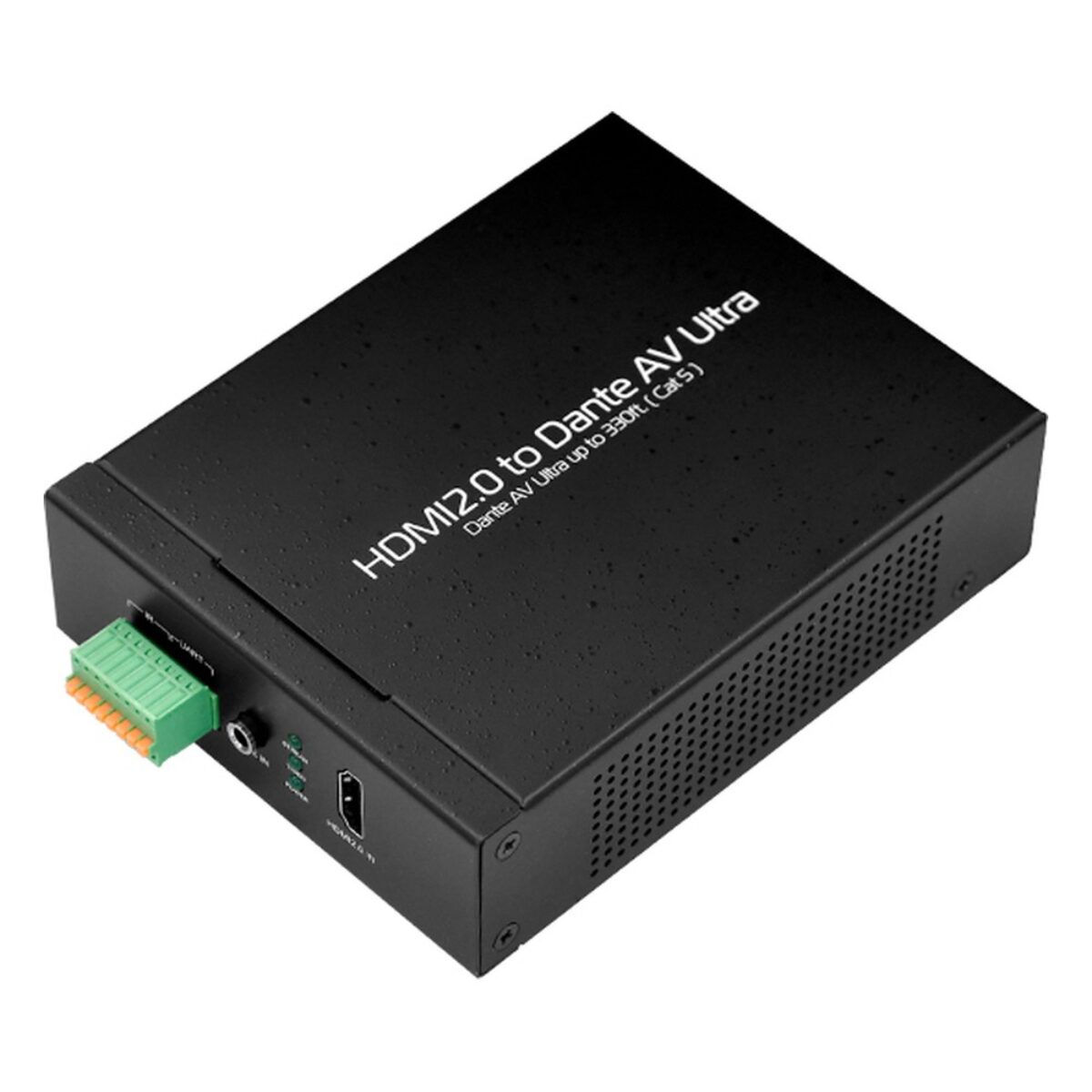

Yuan HDMI2.0 to Dante AV Ultra HDMI 2.0 Dante AV Encoder with Dante AV Ultra, 8-Channel Audio and PoE at 4K60
HDMI2.0 to Dante AV Ultra Overview
Getting an HDMI source onto a Dante network lets video follow the same routing and control as the audio. The Yuan HDMI2.0 to Dante AV Ultra is the sending end of that link: an HDMI 2.0 Dante AV encoder that turns a camera, media player or presentation PC into a Dante AV Ultra source, which can suit pro AV installs in venues, lecture theatres and corporate spaces.

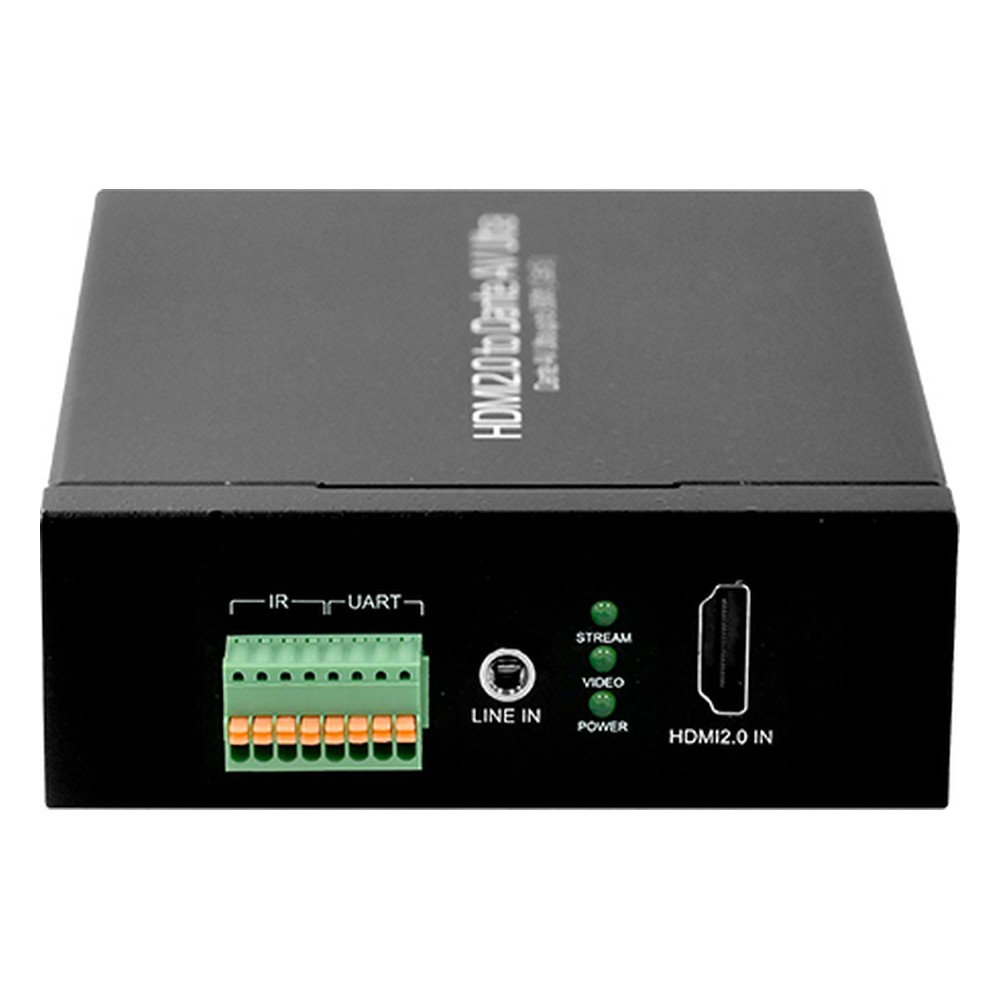

Input is one HDMI 2.0 port from 4096×2160 and 3840×2160 at 60fps down to 1080p, 720p, PC modes and 480i or 576i, with a stereo analog audio input. HDMI audio is taken as up to eight channels of 24-bit audio at 32 to 192kHz, and the analog input as two channels at 48kHz. The HDMI2.0 to Dante AV Ultra sends video and up to eight audio channels as Dante AV Ultra on one gigabit RJ45 port, and supports Dante AV Ultra only.

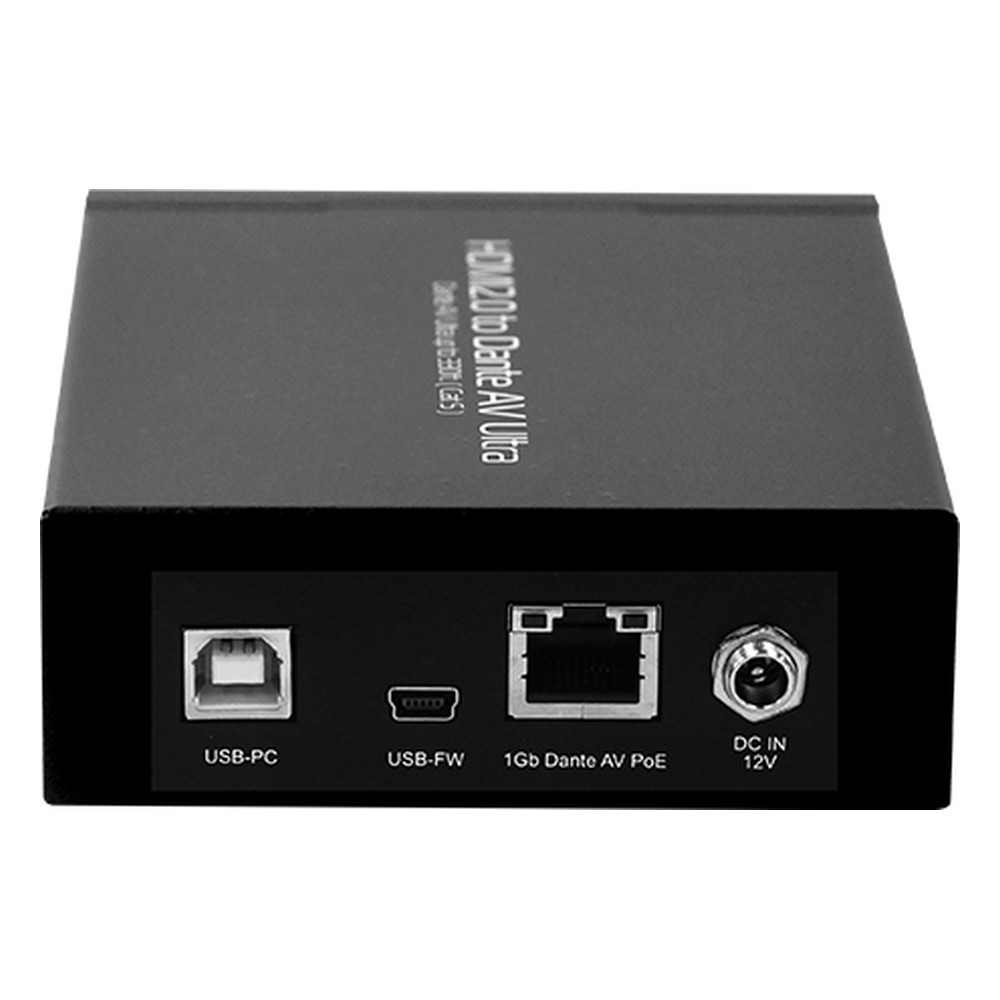

A web interface covers setup and firmware updates, with an LED indicator and DHCP, and a USB 2.0 Type-B port connects to a PC. Power comes from PoE or a 7.5 to 15V DC input. The matching receiver is the Dante AV Ultra to HDMI2.0, and where NDI, SRT or RTSP is needed with an optional Dante AV-H license the SC6F0N1 HDMI2.0+ is an HDMI 2.0 encoder with a wider protocol list.
Plan Dante subscriptions and switch settings before installation, as they decide how sources reach each display. We supply the HDMI2.0 to Dante AV Ultra configured and tested with the sources, receivers and network it will connect to.
HDMI2.0 to Dante AV Ultra Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan HDMI2.0 to Dante AV Ultra |
| Features | PoE Powered |
| I/O | |
| Ethernet | 1x Ethernet Ports |
| 1x GbE LAN [RJ45] [PoE-PD] | |
| USB | 1x USB Ports |
| 1x USB 2.0 [Type B] | |
| Video Capture | |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI2.0 |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Output | 1x RJ45 (1G) |
| Recording Mode | Hardware Compression |
| Streaming Protocols | Dante AV Ultra |
| Audio Input | 1x 3.5mm Audio Input 1x HDMI Embedded Audio Input |
| Power | |
| Power Input | 7.5-15V DC PoE Powered Device (PD) [RJ45] |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the HDMI2.0 to Dante AV Ultra configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the Dante AV Ultra to HDMI2.0 is the receiver that turns this stream back into HDMI 2.0, and the SC6G0N1 HDMI2.0 to IP/UVC V2 encodes HDMI 2.0 to SRT, RTSP, NDI and Dante AV-H with a USB UVC output.
Across our range, the HDMI2.0 to Dante AV Ultra sits with our Dante AV encoders and decoders, our AV over IP and our video encoders and decoders.
