Yuan Pandora Health NX Super AIO NVIDIA Jetson Orin NX Super Medical Edge AI Computer with HDMI and 3G-SDI Capture
Linux
Type C
USB3
3x M.2
1x SIM
4G
5G
Wi-Fi
NVMe SSDPandora Health NX Super AIO Overview

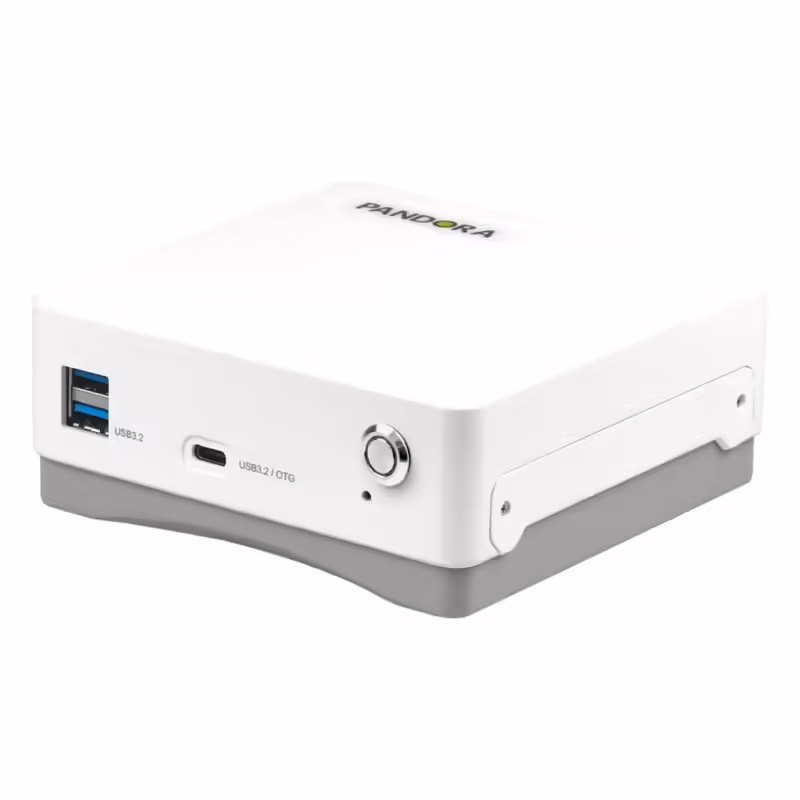

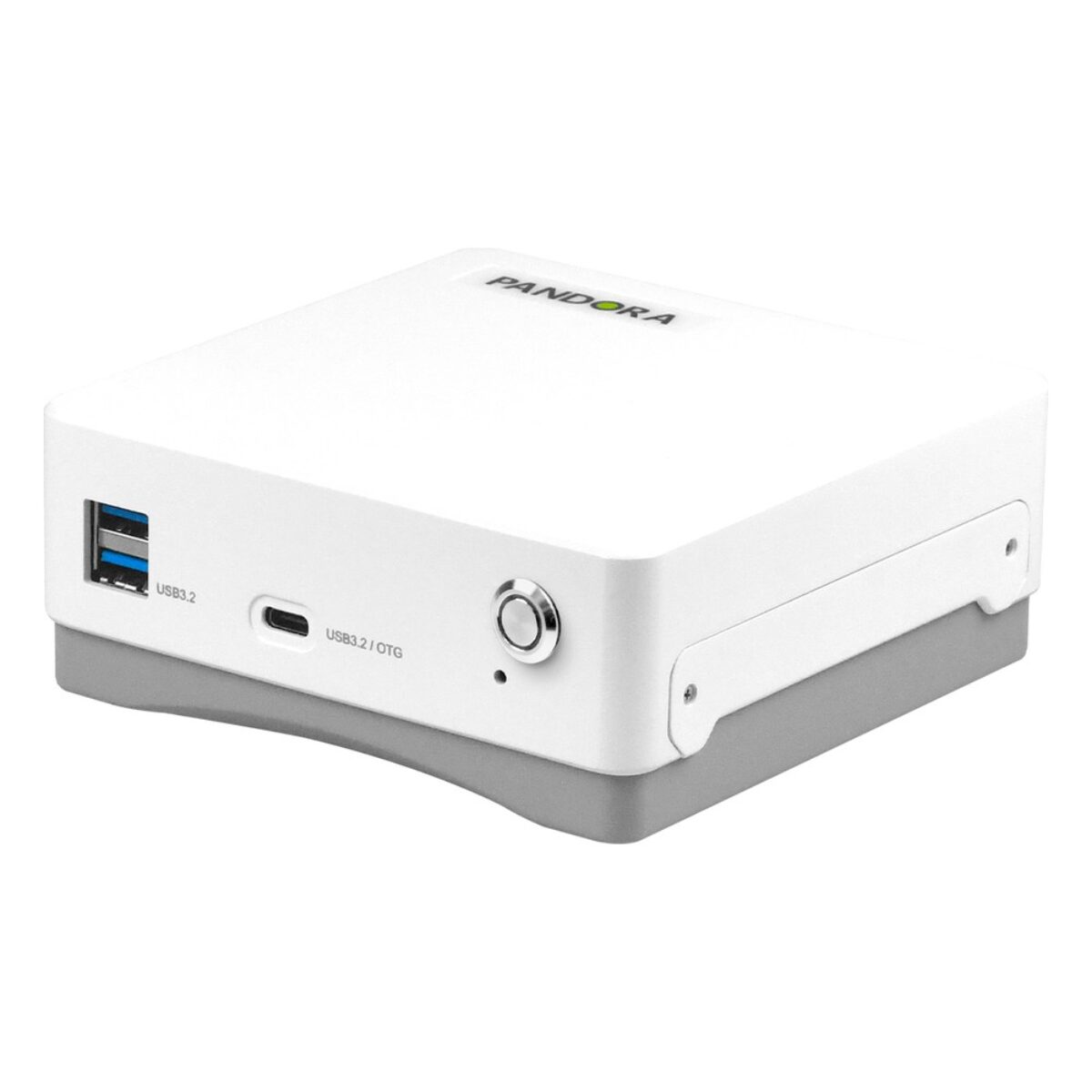

Clinical and lab video, such as scopes, cameras and imaging displays, increasingly passes through AI before it reaches a screen or a recorder. The Pandora Health NX Super AIO from Yuan is a medical edge AI computer that takes either HDMI or 3G-SDI sources, built on the NVIDIA Jetson Orin NX 16GB or 8GB Super module. It may suit AI-assisted viewing and recording projects in medical and other imaging settings where source types vary from room to room.

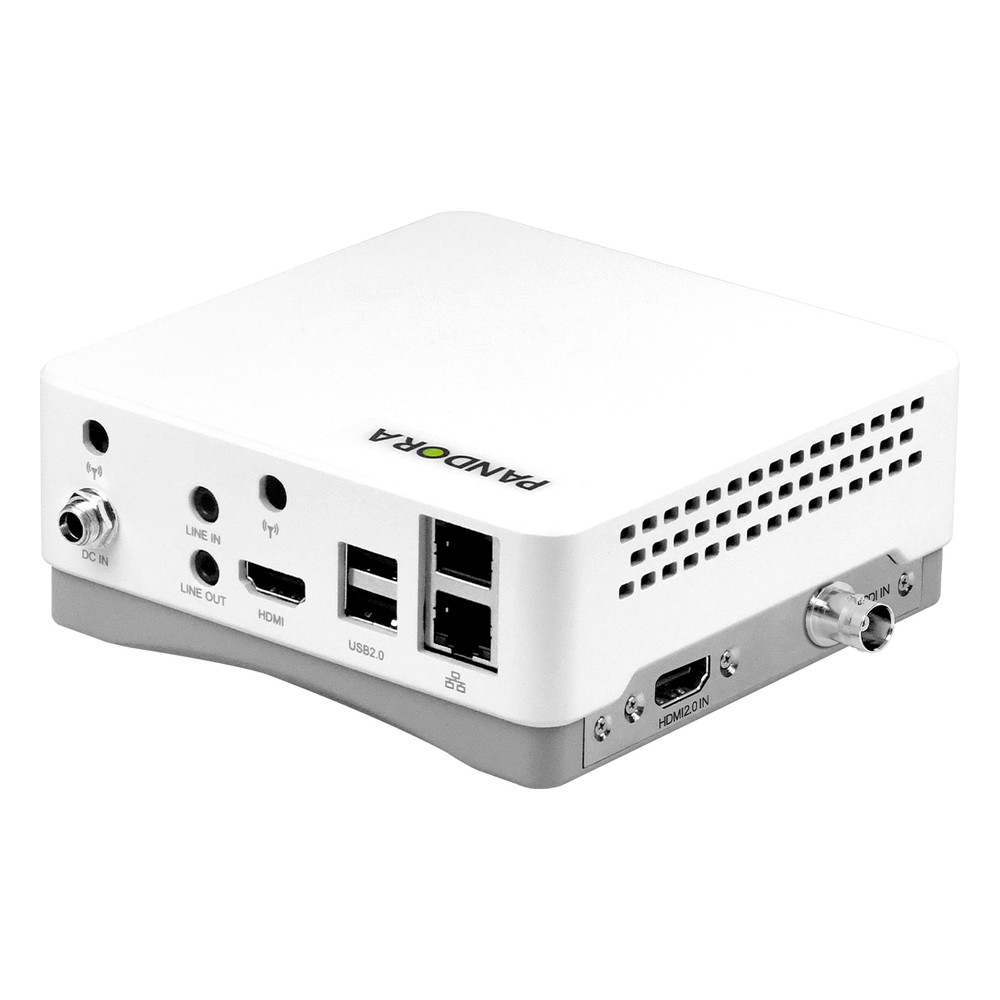

The Jetson Orin NX 16GB Super gives up to 157 TOPS from an eight-core Cortex-A78AE CPU and a 1024-core Ampere GPU; the 8GB Super gives 117 TOPS with six cores. Capture is one HDMI input and one 3G-SDI input, so the same unit can be used with HDMI or SDI sources. The module can encode one 4K60 stream in AV1 or H.265, or six 1080p60 streams, for recording or streaming the analyzed video. Display is one HDMI 2.0 output at up to 4K60 and networking is two GbE ports.

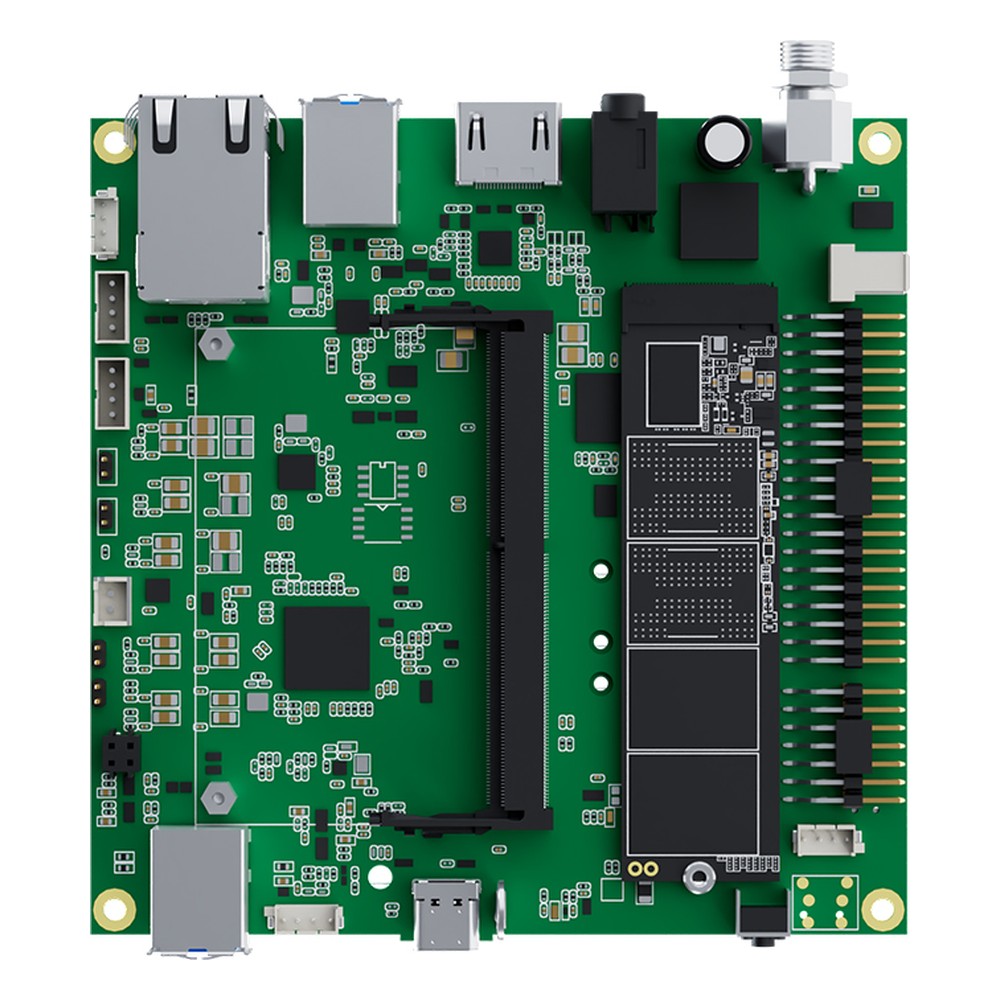

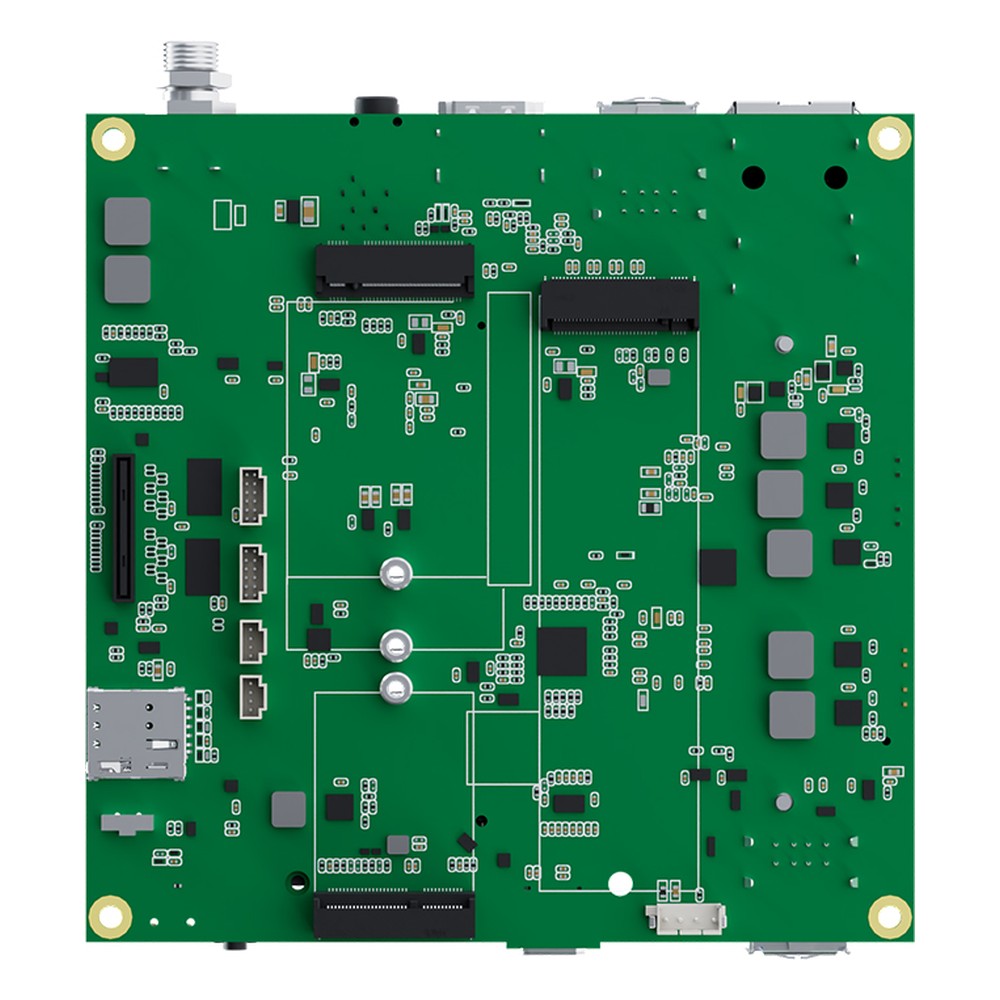

Storage is a pre-installed 128GB SSD in an M key slot at PCIe Gen4 x2, with an E key slot for WiFi and a B key slot with nano SIM for 5G or 4G. USB is two USB 3.2 Gen2 Type-A, one Type-C OTG and two USB 2.0 ports, alongside eight MIPI CSI-2 lanes, line in and out, and headers for I2S, I2C, SPI, UART, GPIO and CAN. A TPM is optional and Yuan rates maximum power at 55.2W. If the source display must stay connected, the Pandora Health NX Super HDMI2.0 and Pandora Health NX Super SDI each add a loop output.
The Pandora Health NX Super AIO supports JetPack 6.2, takes 12 to 36V DC and operates from 0 to 60°C with airflow. Yuan does not list medical certification, so approvals for a finished system are assessed project by project. We supply it configured and tested, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
Pandora Health NX Super AIO Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan Pandora Health NX Super AIO |
| Features | Compact Embedded GPU |
| Performance | |
| AI Performance | 70–100 TOPS |
| Memory | 16GB Soldered On-board 8GB Soldered On-board |
| System-on-Module | NVIDIA Jetson Orin NX 16GB: 100 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 8-core Arm Cortex-A78AE 2.0GHz, 16GB 128-bit LPDDR5, 10-25W NVIDIA Jetson Orin NX 8GB: 70 TOPS, 1024-core Ampere GPU with 32 Tensor Cores, 6-core Arm Cortex-A78AE 2.0GHz, 8GB 128-bit LPDDR5, 10-20W |
| PCIe Gen Support | PCIe 4.0 |
| Operating System | Linux Linux Ubuntu 22.04 |
| Jetpack Version | JetPack 6.2 |
| Graphics | |
| Display Standards | HDMI 2.0 |
| Multi Display Support | Single Display Support |
| Display Outputs | 1x HDMI |
| Audio | |
| Interface | Line-In Line-Out |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x GbE LAN [RJ45] | |
| USB | 5x USB Ports |
| 1x USB 3.2 Gen 2 [Type C] 2x USB 2.0 [Type A] 2x USB 3.2 Gen 2 [Type A] | |
| CANbus | 1x CANbus Ports |
| 1x CANbus [Board] | |
| GPIO | GPIO [3-lines] |
| MIPI Interface | 2x 4 Lane MIPI CSI-2 |
| Video Capture | |
| Video Input | 1x 3G-SDI 1x HDMI |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [USB] [3042/3052] 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230] 1x M.2 M-Key [PCIe x2 Gen4] [2280] | |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G/5G Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12-36V DC [Barrel Connector] |
| Environmental Conditions | |
| Operating Temperature | 0°C to 60°C [32°F to 140°F] |
| Storage Temperature | -20°C to 80°C [-4°F to 176°F] |
| Mechanical Properties | |
| Dimensions | 123mm x 123mm x 49mm (4.84" x 4.84" x 1.95") |
- Pandora Health NX Super AIO Datasheet Download
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the Pandora Health NX Super AIO configured and tested, with the Jetson module, NVMe storage and JetPack image fitted before it ships. Within the Yuan range, the Pandora Health NX Super HDMI2.0 uses a single HDMI 2.0 input with loop-out, and the Pandora Health NX Super SDI×4 takes four SDI inputs.
Across our range, the Pandora Health NX Super AIO sits with our SDI video capture, our edge AI computers and our NVIDIA Jetson Orin NX.
