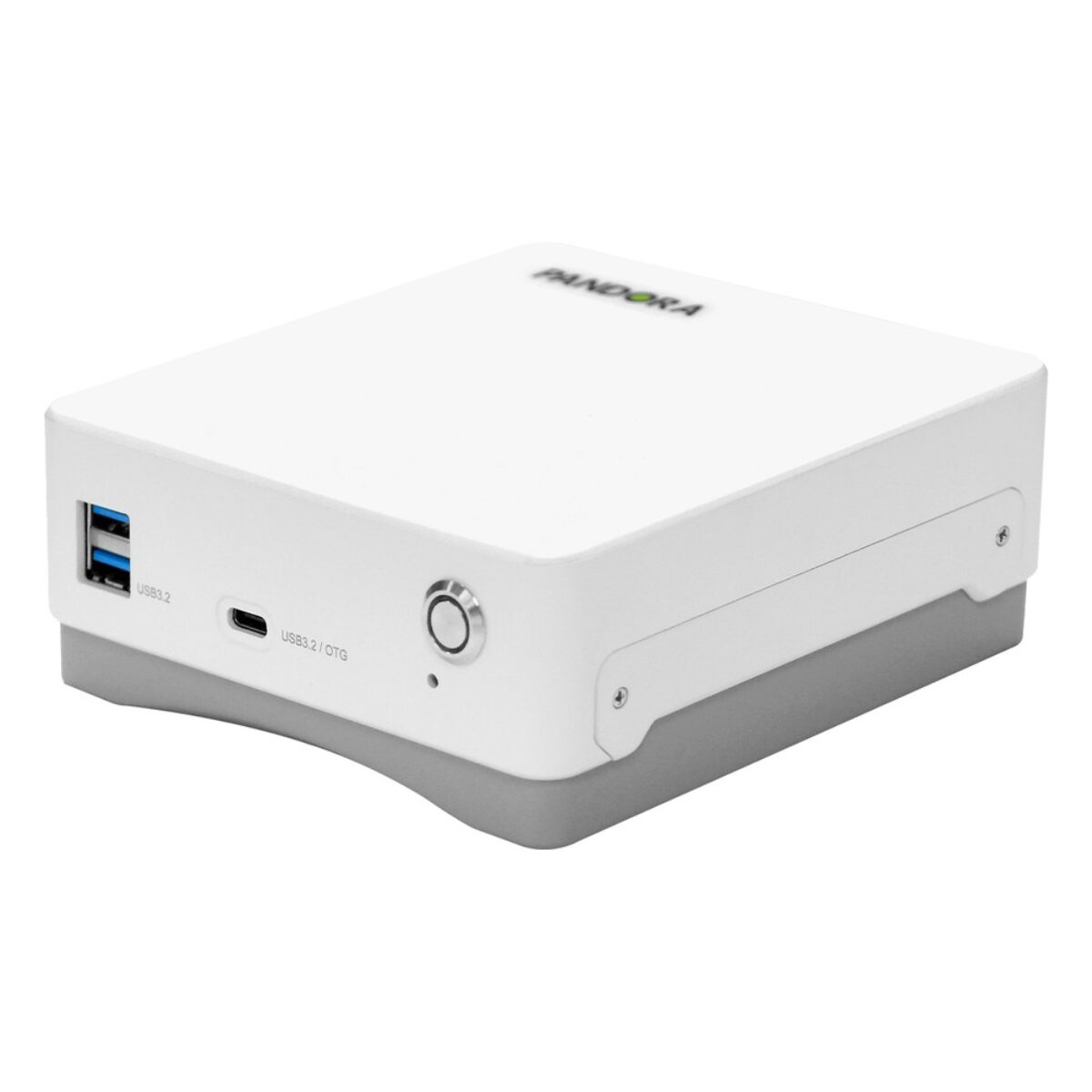

Yuan Pandora Health NX Super SDI×4 NVIDIA Jetson Orin NX Super Edge AI Computer with 4x SDI Video Capture Inputs

Multi-camera rooms, from imaging suites to production and inspection areas, often need several SDI feeds analyzed together rather than one at a time. The Pandora Health NX Super SDI×4 from Yuan is an edge AI computer built on the NVIDIA Jetson Orin NX 16GB or 8GB Super module, with four SDI capture inputs in one compact unit. It may suit AI-assisted viewing and recording across several sources in medical and other video settings.

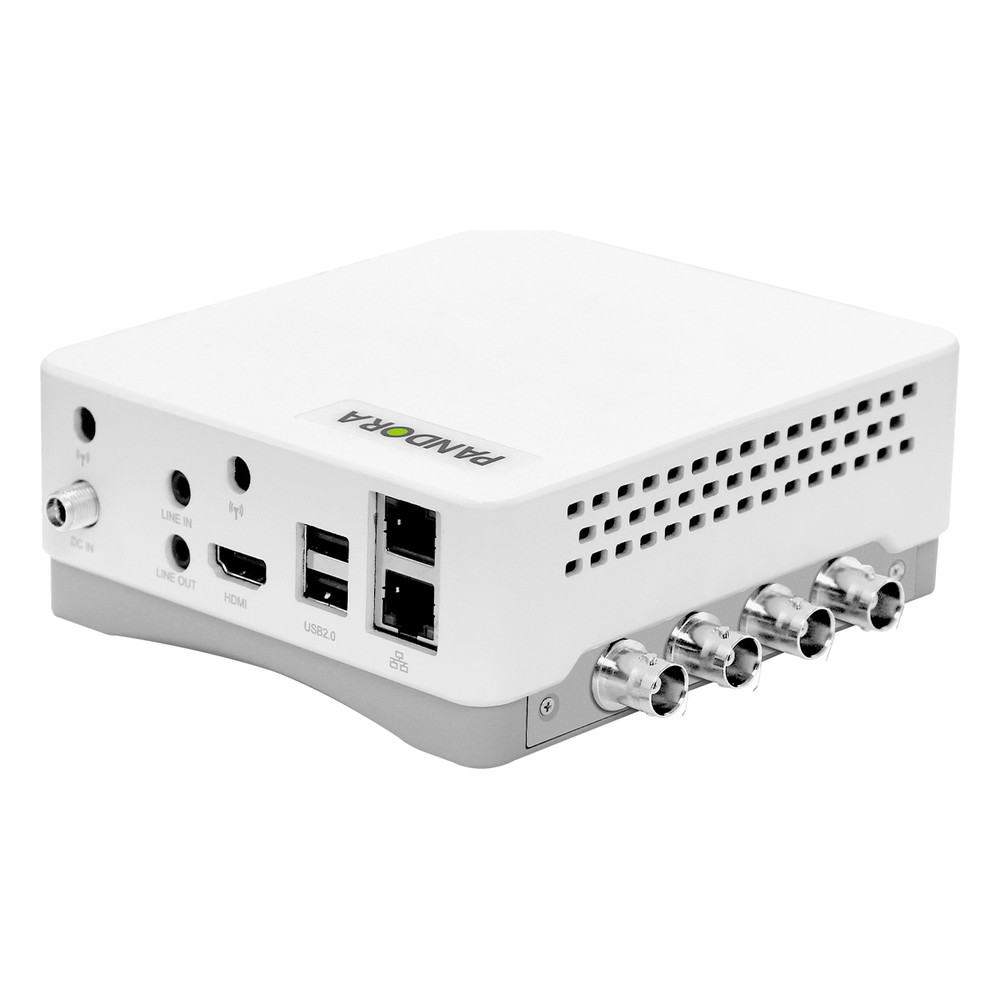

The Jetson Orin NX 16GB Super gives up to 157 TOPS from an eight-core Cortex-A78AE CPU and a 1024-core Ampere GPU; the 8GB Super gives 117 TOPS with six cores. Capture is four SDI inputs, so several cameras or sources can be analyzed and recorded by one module. The module can encode one 4K60 stream in AV1 or H.265, or six 1080p60 streams, for recording or streaming the analyzed video. Display is one HDMI 2.0 output at up to 4K60 and networking is two GbE ports.

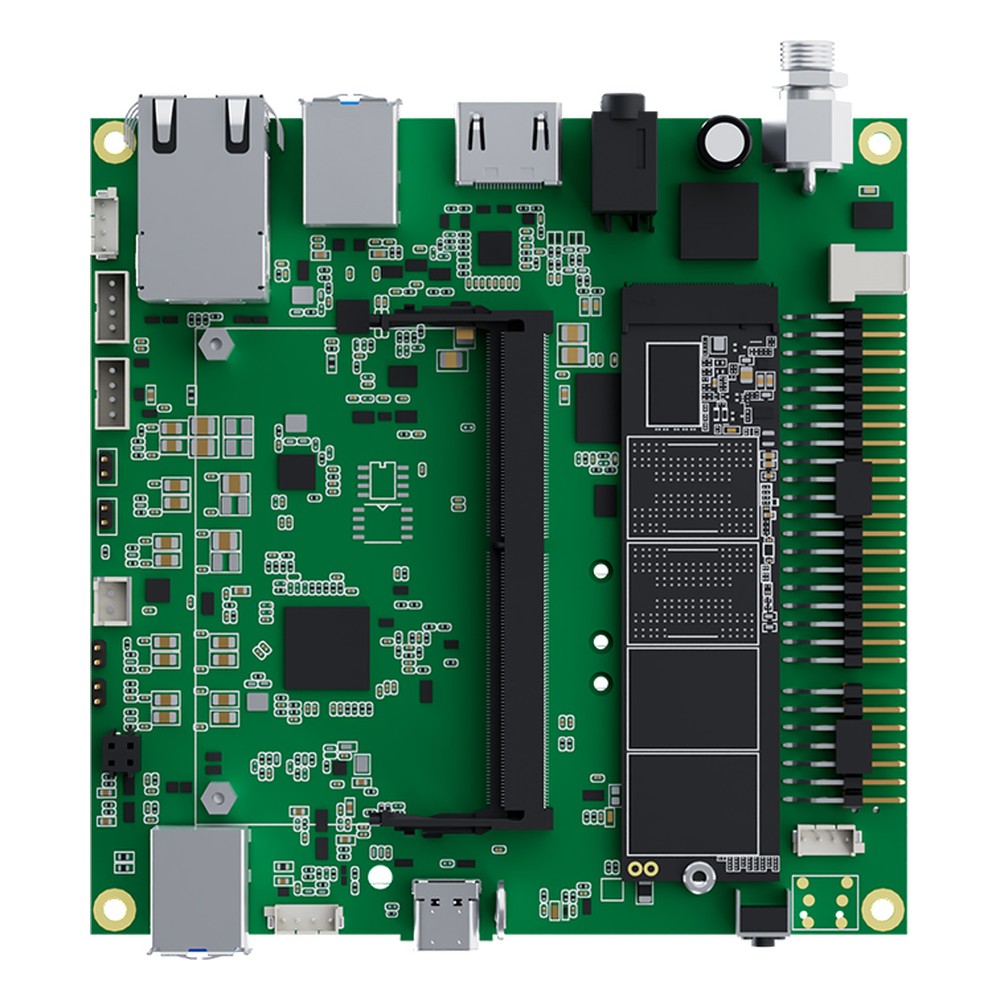

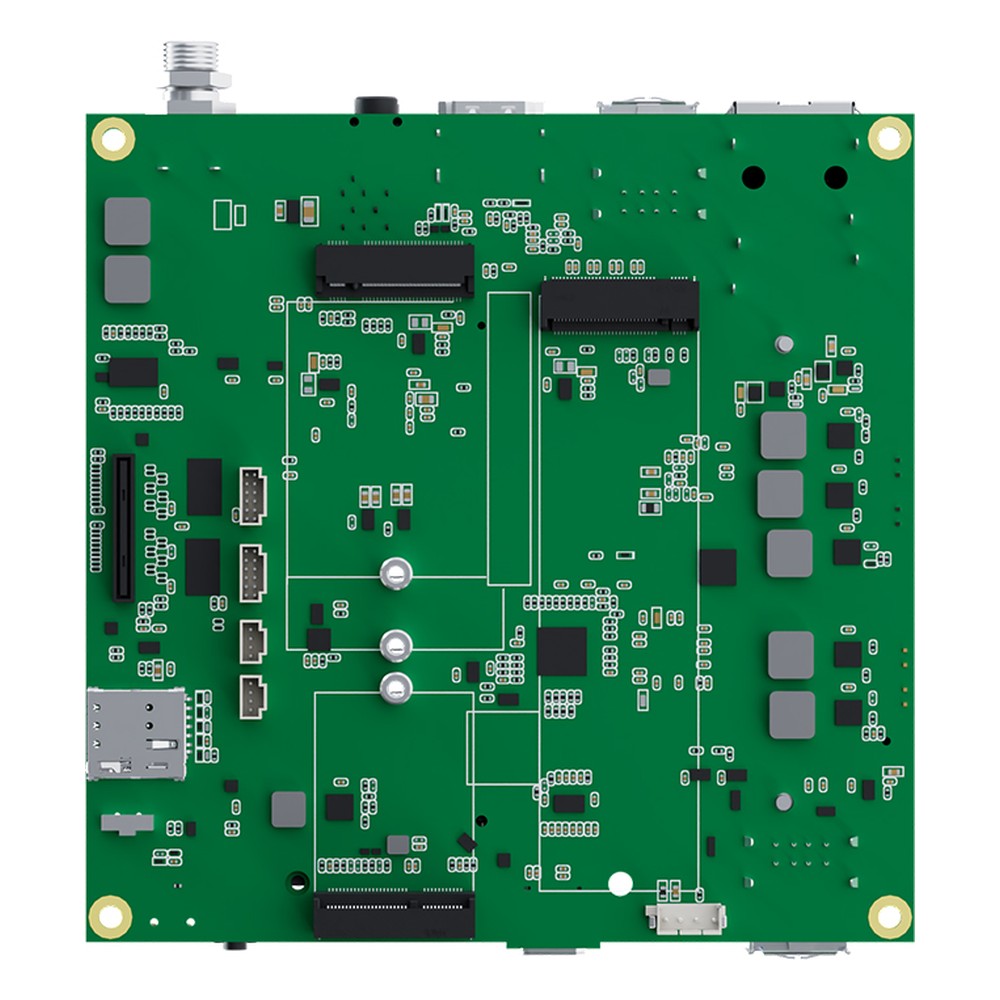

Storage is a pre-installed 128GB SSD in an M key slot at PCIe Gen4 x2, with an E key slot for WiFi and a B key slot with nano SIM for 5G or 4G. USB is two USB 3.2 Gen2 Type-A, one Type-C OTG and two USB 2.0 ports, alongside eight MIPI CSI-2 lanes, line in and out, and headers for I2S, I2C, SPI, UART, GPIO and CAN. A TPM is optional and Yuan rates maximum power at 56.2W. For a single SDI source with loop-out, see the Pandora Health NX Super SDI, and for mixed sources the Pandora Health NX Super AIO.

The Pandora Health NX Super SDI×4 supports JetPack 6.2, takes 12 to 36V DC and operates from 0 to 60°C with airflow. Yuan does not list medical certification, so approvals for a finished system are assessed project by project. We supply it configured and tested, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
