Yuan SC400N1-L SDI PCIe SDI Capture Card with 1080p60 Input
PCI ExpressSC400N1-L SDI Overview

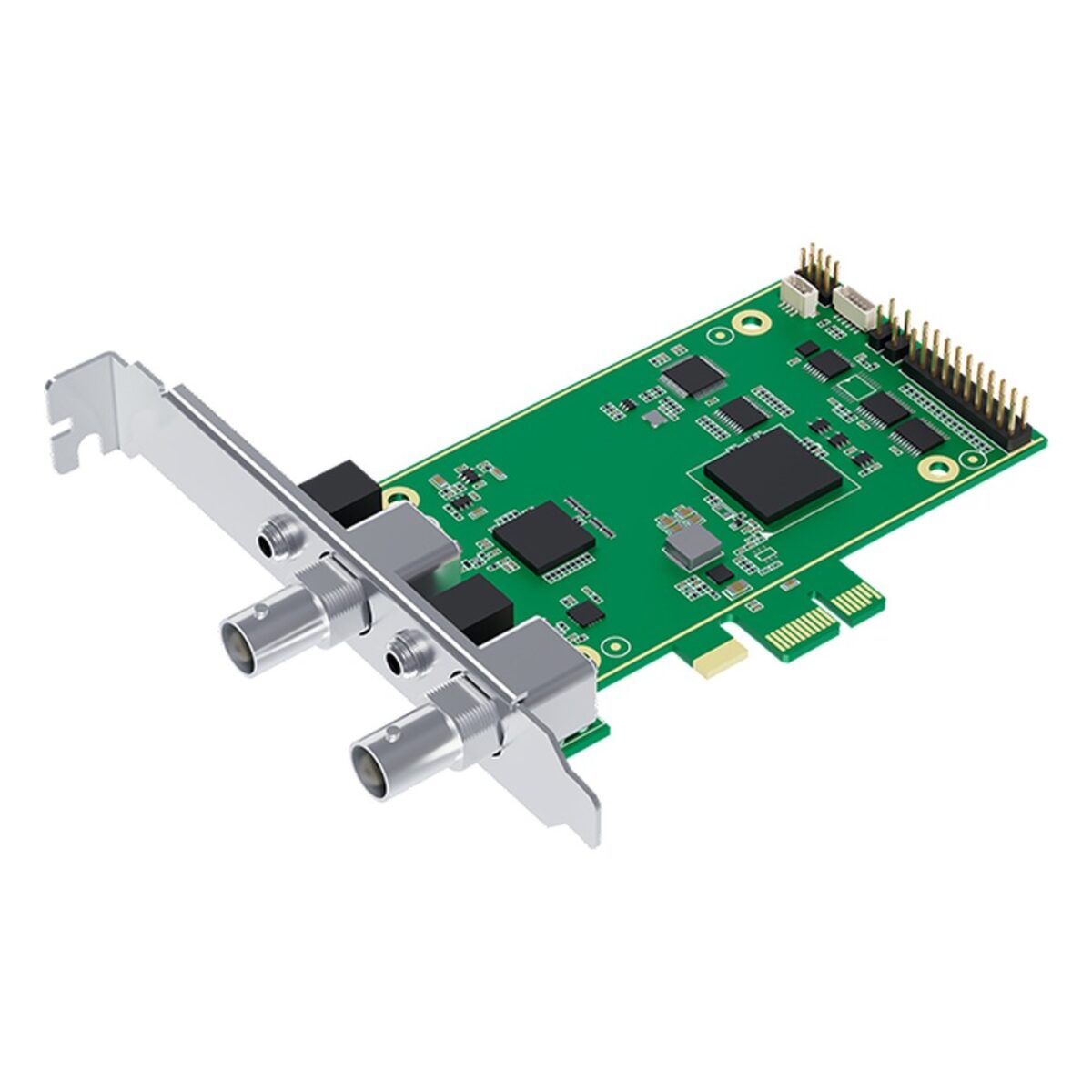

Where an SDI camera or router feed needs to be recorded and still reach its monitor, a capture card with loop-through can save adding a distribution amplifier. The SC400N1-L SDI is Yuan’s low profile PCIe SDI capture card with one SDI input at up to 1920 x 1080 at 60/50 fps and an SDI loop-through output. It is a good fit for compact recorders, monitoring stations and inspection systems that handle one SDI source.
The input covers SDI at 1080p60/50, HD-SDI at 1080p30/25/24, 1080i60/50 and 720p60/50, and SD-SDI at 480i and 576i. Capture formats are 8-bit RGB24, RGB32, YUY2, YV12 and NV12. Audio comes from the SDI embedded stream or from a separate analog stereo input on a mini-jack, at 16-bit, 32 to 48 kHz, so a separate audio source can be recorded with the picture.
It connects over PCIe x1 Gen2. Hardware cropping and scaling, auto signal detection and a deinterlace engine run on the card, which also carries 16 GPIO and a watchdog and supports multiple instances and multiple cards. YUAN provides a Windows and Linux SDK, and vMix, OBS and other DirectShow or V4L2 software is supported. The SC400N1-L SDI / HDMI adds an HDMI input next to SDI, and the SC400N2-L SDI takes two SDI inputs at 1080p60.
Driver support covers Windows and Linux 2.6.14 or higher, 32-bit and 64-bit, plus Linux ARM on NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX. We supply the SC400N1-L SDI fitted and tested in the host system it goes into, with drivers installed and the loop-through output checked before delivery.
SC400N1-L SDI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC400N1-L SDI |
| Video Capture | |
| Host Interface | PCIe [x1, Gen2] |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x SDI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x SDI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Color Format | NV12 4:2:0 8Bit RGB24 4:4:4 8Bit RGB32 4:4:4 8Bit YUY2 4:2:2 8Bit YV12 4:2:0 8Bit |
| Audio Input | 1x 3.5mm Audio Input 1x SDI Embedded Audio Input |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, and we supply the SC400N1-L SDI tested in the host system it goes into, with drivers installed. Within the Yuan range, the SC550N1-L SDI is another single-input SDI card at 1080p60, and the SC400N1 M2 SDI brings 1080p60 SDI capture to an M.2 socket.
Across our range, the SC400N1-L SDI sits with our 3G-SDI and HD-SDI capture cards, our SDI video capture cards and our PCIe video capture cards.
