Yuan SC550N2 M2 SDI M.2 SDI Frame Grabber with 2 x SDI Inputs at 1080p60

The SC550N2 M2 SDI is Yuan's M.2 SDI frame grabber with two 3G-SDI channels, each taking up to 1920 x 1080p at 60/50 fps with SDI embedded audio. It suits compact PCs and NVIDIA Jetson systems that need two SDI cameras or production feeds brought in through a single M.2 socket.

  • Inputs: Two SDI inputs capture two feeds at the same time, each with its own SDI embedded audio.
  • Resolution: 3G-SDI at up to 1920 x 1080p at 60/50 fps plus HD-SDI and SD-SDI formats, so one card takes current and older SDI feeds.
  • Audio: Two SDI embedded audio inputs, stereo 16-bit at 32 to 48 kHz, keep each sound track with its own camera.
  • Host Interface: An M.2 Type B/M card of 22 x 80 mm on a PCIe x1 link, for compact embedded PCs with a free M.2 socket.
  • Software and OS Support: Windows and Linux SDKs, DirectShow and V4L2 support for tools such as vMix and OBS, and Linux on ARM including NVIDIA Jetson.
Form Factor: M.2M.2
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications

SC550N2 M2 SDI Overview

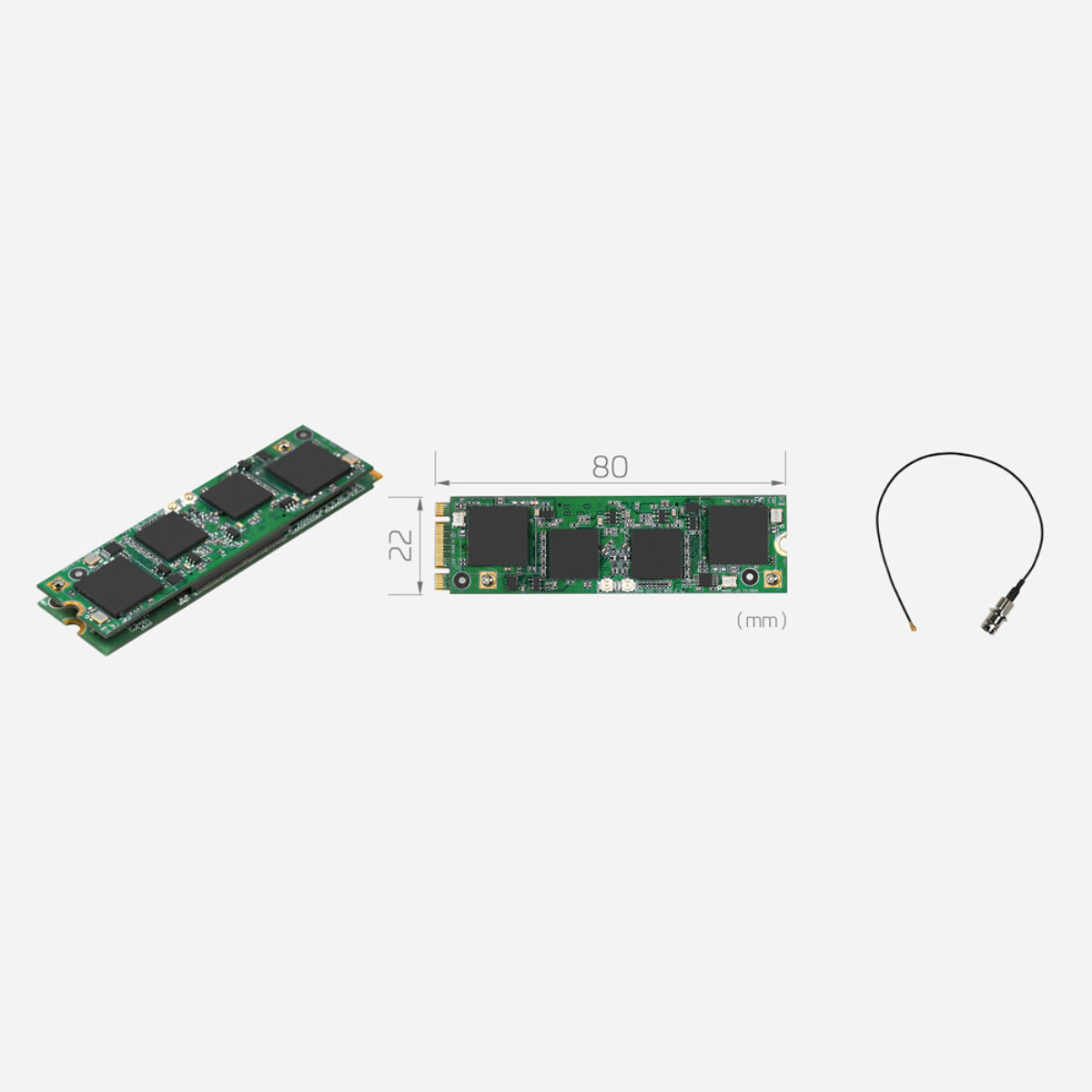

Two SDI cameras on a vehicle, a small studio kit or an inspection rig often feed a computer with no room for a PCIe card. The SC550N2 M2 SDI is Yuan’s 2-channel M.2 SDI frame grabber, taking both 3G-SDI feeds through one 22 x 80 mm card in an M.2 socket.

Two SDI inputs run as separate capture channels. It accepts 3G-SDI at up to 1920 x 1080p at 60/50 fps, HD-SDI at 1080p 30/25/24 fps, 1080i 60/50 fps and 720p 60/50 fps, and SD-SDI at 480i and 576i. Color formats cover 4:4:4 RGB24 and RGB32, 4:2:2 YUY2 and 4:2:0 YV12 and NV12 at 8 bits, giving software a choice between full color detail and lighter frames. The card also crops, scales and deinterlaces on board and detects the incoming signal automatically. Each channel carries SDI embedded audio, sampled as 16-bit stereo at 32 to 48 kHz.

The card fits an M.2 Type B/M socket at 2280 length and runs over a PCIe x1 link, with no on-board encoder. Windows and Linux SDKs cover custom applications, and DirectShow and V4L2 support lets vMix, OBS, Zoom, Teams and similar software open it directly. The SC550N1 M2 SDI is the single-input 2260 card, and the SC550N4 M2 SDI takes four SDI feeds on the same 22 x 80 mm size.

Supported systems are Windows 7, 8, 8.1 and 10, 32-bit and 64-bit Linux from kernel 2.6.14, Linux on ARM, and NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX. The board measures 22 x 80 mm and brings each SDI input out on a cable to a BNC connector. Yuan lists multi-device and multi-instance support for hosts that take more than one card.

SC550N2 M2 SDI Specifications

Overview
Brand & ModelYuan SC550N2 M2 SDI
Video Capture
Host InterfaceM.2 [2280, B-Key/M-Key]
Simultaneous Video Inputs2
Video Input2x 3G-SDI
Video Resolution InputHD60 [1920x1080p @ 60/50fps]
Video Resolution OutputHD60 [1920x1080p @ 60/50fps]
Color FormatNV12
RGB24
RGB32
YUY2
YV12
Audio Input2x SDI Embedded Audio Input

Official Yuan USA Distributor

Things Embedded is an official Yuan USA distributor, supplying the SC550N2 M2 SDI for USA broadcast and embedded video projects. Within the Yuan range the SC550N1 M2 SDI is the shorter single-input card, and the SC550N4 M2 SDI doubles the channel count for multi-camera systems.

With two SDI channels the SC550N2 M2 SDI sits among our M.2 video capture cards and our SDI video capture cards. Where two SDI cameras feed a compact PC with a free M.2 socket, this is the model to specify.

Shop Yuan
