Yuan SDI 4×1 Switch 4×1 SDI Switcher with Frame Synchroniser, Genlock and Up/Down Conversion at 1080p60

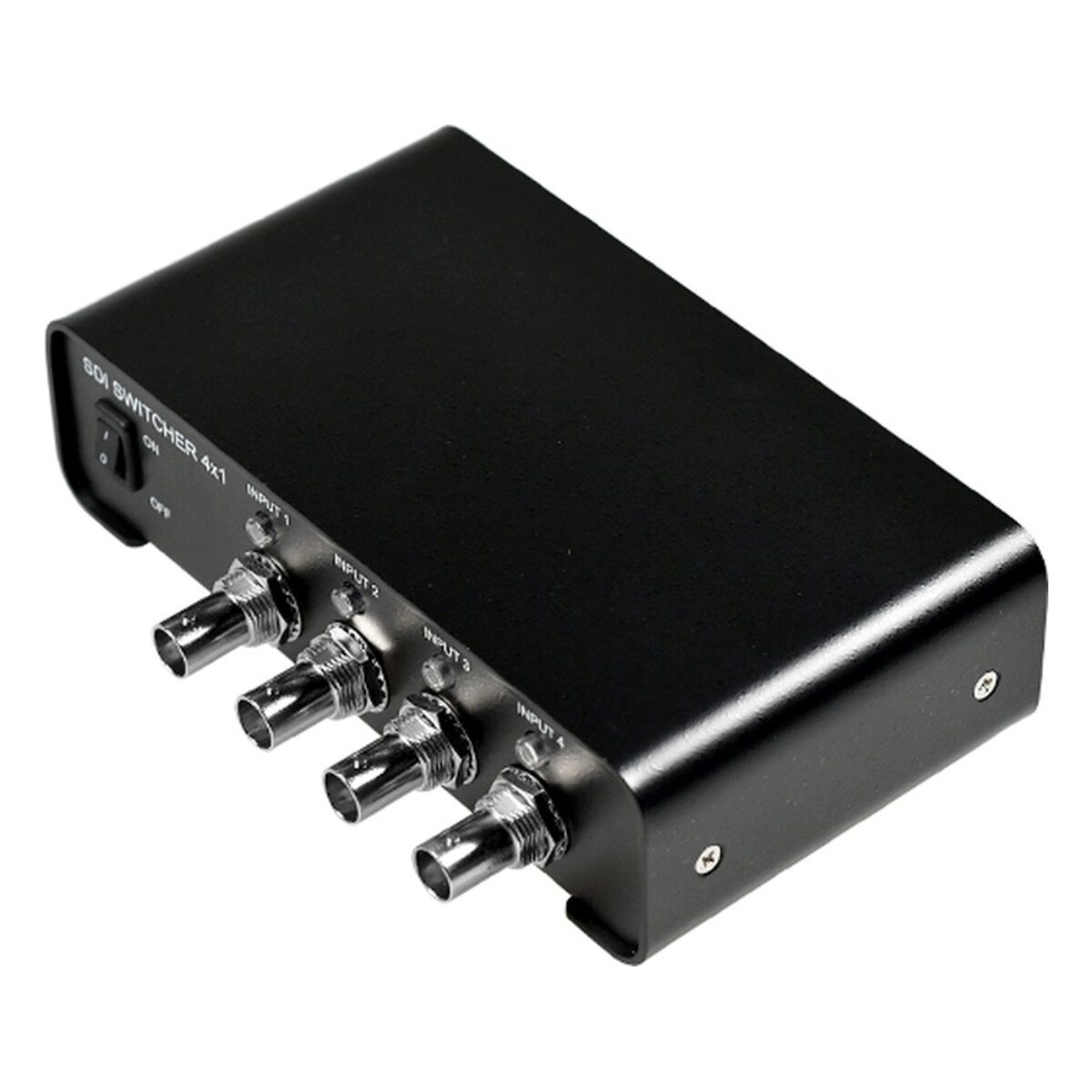

Small studios, OB racks, lecture capture and control rooms often need to pick one of several SDI sources for a recorder, stream encoder or program monitor without a full production switcher. The SDI 4×1 Switch from Yuan covers that job in broadcast and pro AV systems. It is a four-input SDI switcher with a built-in frame synchroniser, so the output is designed to stay stable when the selected source changes.

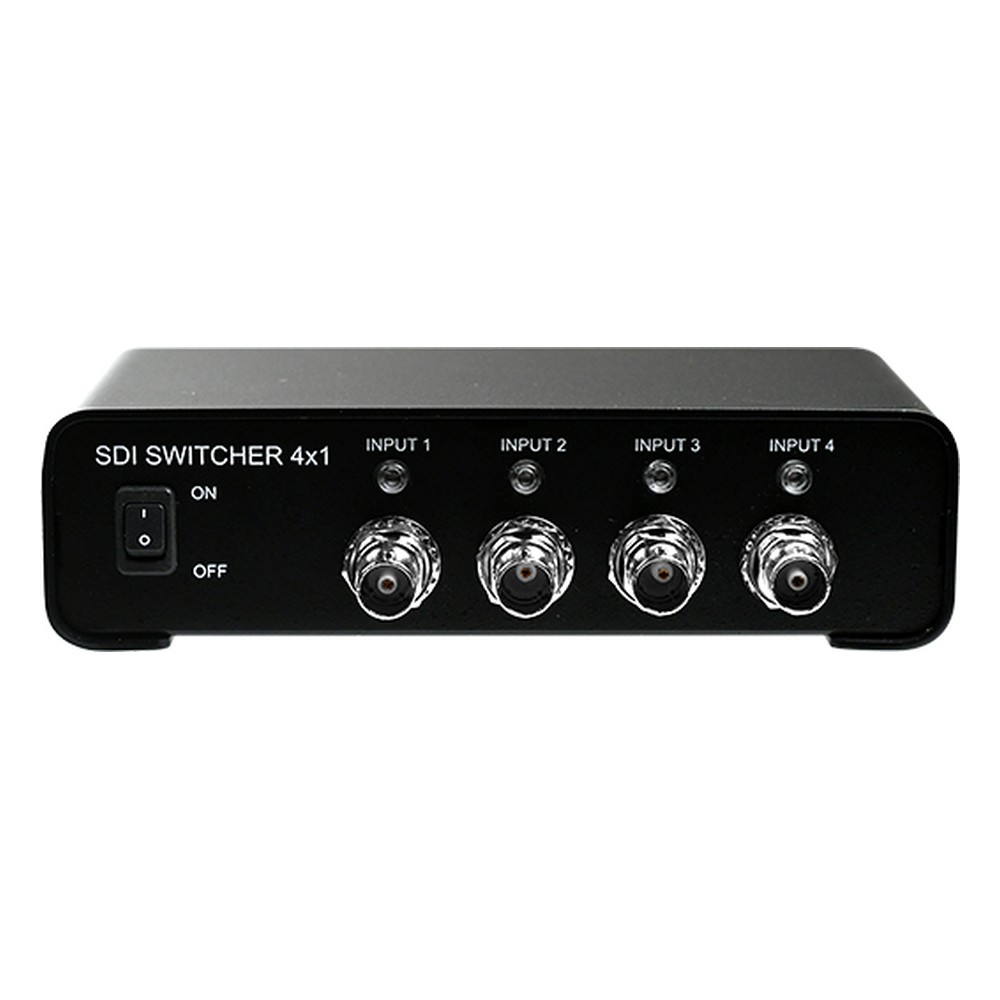

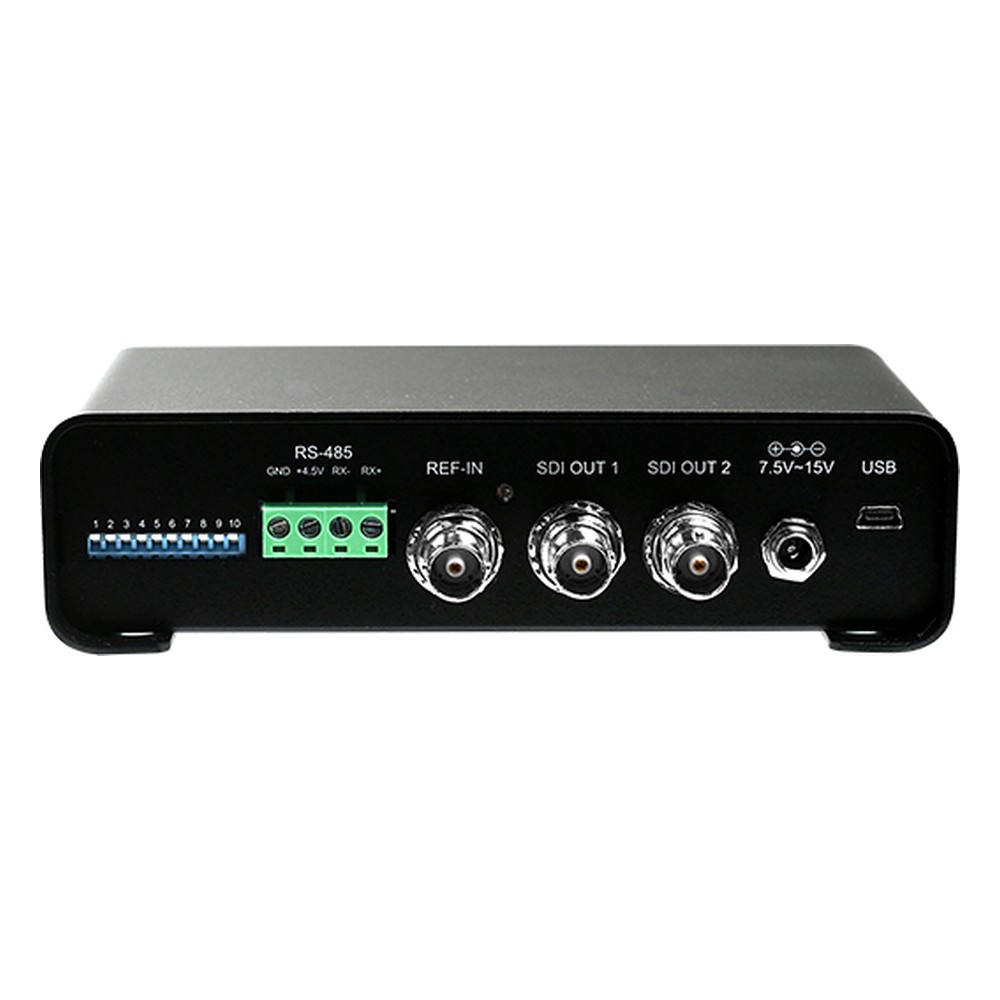

The SDI 4×1 Switch has four SDI inputs, one reference input for black burst or tri-level sync, and two SDI outputs carrying up/down-converted video. Inputs and outputs support 3G-SDI at 1080p60/50, HD-SDI at 1080p30/25/24, 1080i60/50 and 720p60/50, and SD-SDI at 480i and 576i, with the output format set independently of the input. Genlock runs in free-run or external sync mode. Up to eight channels of 24-bit, 48 kHz embedded audio pass through, and audio is muted during switching.

Control is by DIP switch, USB, front-panel button or RS485, so the switch can be operated by hand or from a control system. Power comes from a 7.5V to 15V DC input. When operators need to watch all four sources at once, the Multiviewer QUAD SDI shows them on one screen. For a single source that needs genlocking and format conversion, the SDI to SDI Genlock converter does that without the switching.

In practice the switch sits in the rack between cameras or playback sources and the recorder or encoder. We supply it configured and tested with the sources, reference and destinations it will connect to, including the output format and control method you plan to use.
