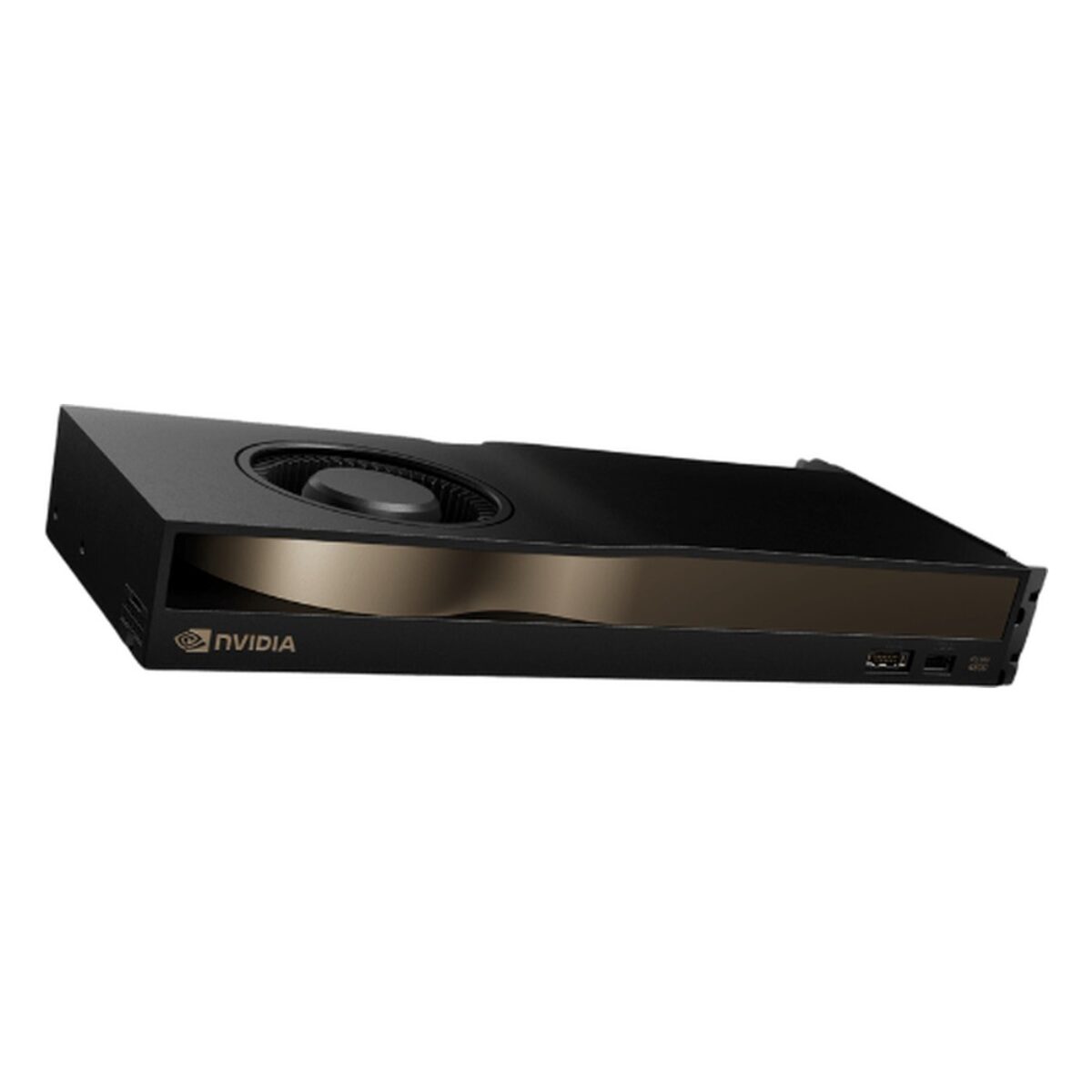

Advantech SKY-QUAD-4500B-32 NVIDIA RTX PRO 4500 Blackwell 32GB Dual-Slot Workstation Graphics Card with 4x DisplayPort 2.1
PCI Express
Quad Display SupportSKY-QUAD-4500B-32 Overview
Many design and AI teams need more memory than a single-slot card offers without the power draw of a 300 W card. The SKY-QUAD-4500B-32 is the NVIDIA RTX PRO 4500 Blackwell from Advantech, a workstation graphics card with 32 GB of GDDR7 and ECC at a 200 W maximum. Advantech describes the RTX PRO 4500 as the card that balances memory and performance, for AI, design and visualization.
The Blackwell GPU has 10,496 CUDA cores, 328 fifth-generation Tensor Cores with FP4 acceleration and 82 RT Cores, with single-precision performance rated at 55 TFLOPS. Memory runs on a 256-bit interface at 896 GB/s. Family features include DLSS 4 with Multi-Frame Generation, ninth-generation NVENC and sixth-generation NVDEC engines for video work, and NVIDIA Mosaic for multi-display setups. The datasheet does not list Multi-Instance GPU support for this card, so it suits one user or one workload per GPU.
The SKY-QUAD-4500B-32 connects over PCI Express 5.0 x16 and has four DisplayPort 2.1b outputs, driving four 3840 x 2160 displays at 165 Hz or two 7680 x 4320 displays at 100 Hz. It supports DirectX 12, Shader Model 6.6, OpenGL 4.6 and Vulkan 1.3, with CUDA 12.8, OpenCL 3.0 and DirectCompute. Power comes through one 16-pin PCIe connector, with a 2x PCIe 8-pin adapter cable included. An active blower cools the dual-slot, full-height card and pushes heat out through the bracket.
We supply each card tested, and we fit, configure and burn-in test the SKY-QUAD-4500B-32 in the GPU computers and servers we build, so power and cooling are checked in the final chassis. The SKY-QUAD-5000B-48 steps up to 48 GB at 300 W, the SKY-QUAD-4000B-24 offers 24 GB on a single-slot card at 140 W, and the SKY-QUAD-4500A-24 is the Ada generation RTX 4500.
SKY-QUAD-4500B-32 Specifications
| Overview | |
|---|---|
| Brand & Model | Advantech SKY-QUAD-4500B-32 |
| Performance | |
| GPU / AI Accelerator | Discrete GPU (PCIe) |
| Supported GPUs | NVIDIA RTX PRO 4500 Blackwell: 10496 CUDA Cores, 32GB GDDR7 ECC, 200W |
| AI Performance | 1,617 TOPS |
| GPU Family | NVIDIA RTX PRO Blackwell |
| GPU Architecture | NVIDIA Blackwell |
| PCIe Gen Support | PCIe 5.0 |
| Graphics | |
| Display Standards | DisplayPort 2.1 |
| Multi Display Support | Quad Display Support |
| Display Outputs | 4x Display Ports |
| Environmental Conditions | |
| Thermal Dissipation | Onboard Fan |
| Mechanical Properties | |
| Dimensions | 267mm x 112mm (10.50" x 4.40") |
- SKY-QUAD-4500B-32 Datasheet Download
Official Advantech USA Distributor
Things Embedded is an official Advantech USA distributor, and we supply the SKY-QUAD-4500B-32 tested, and fit, configure and burn-in test it in the GPU computers and servers we build. Within the Advantech range, the SKY-QUAD-4000B-24 fits 24 GB of GDDR7 ECC memory on a single-slot, full-height card at 140 W.
Across our range, the SKY-QUAD-4500B-32 sits with our workstation graphics cards, RTX PRO Blackwell computers and industrial GPU computers.
