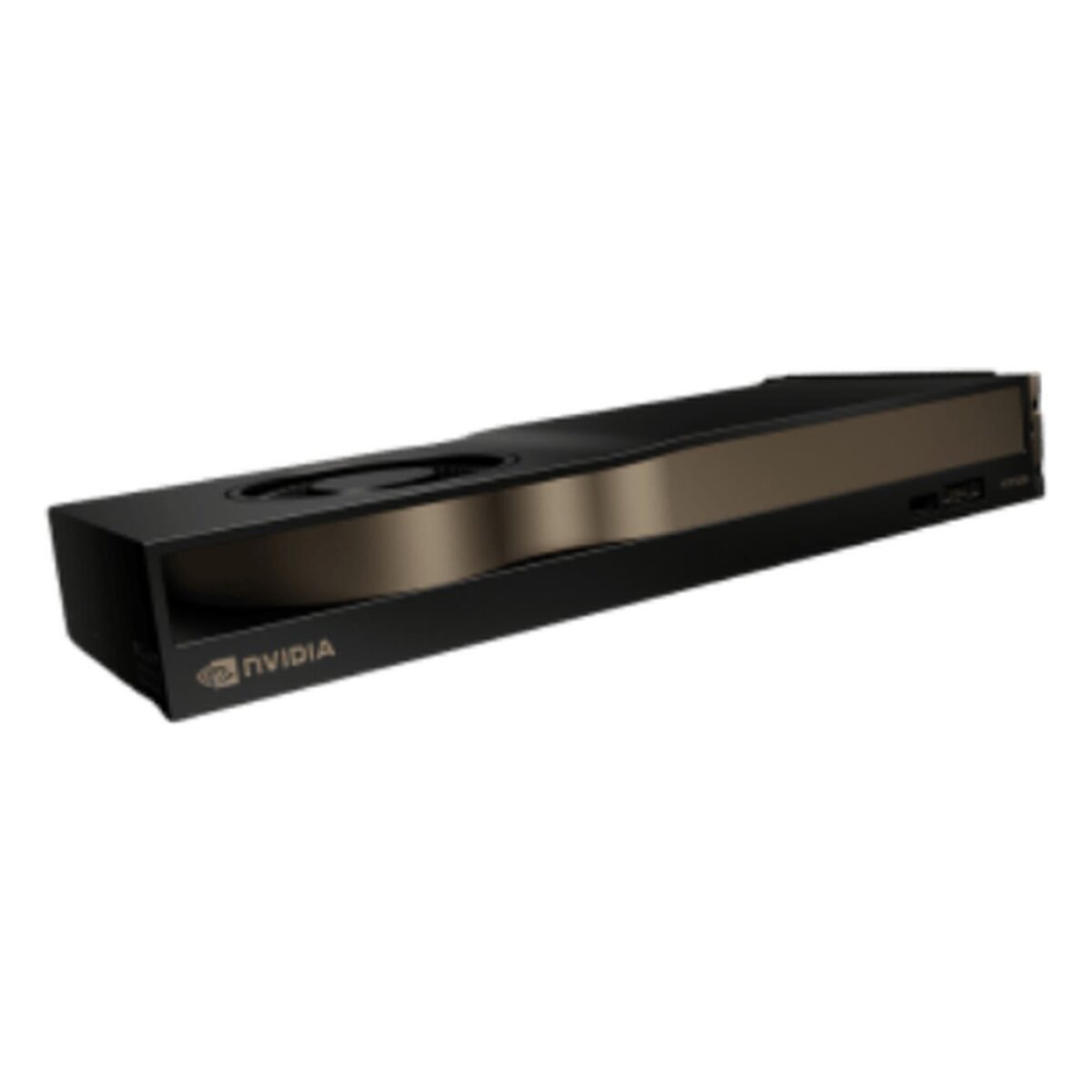

Advantech SKY-QUAD-5000B-72 NVIDIA RTX PRO 5000 Blackwell 72GB GDDR7 Professional Graphics Card with 4x DisplayPort 2.1

Some AI and visualization jobs are limited by memory before they are limited by compute. The SKY-QUAD-5000B-72 is the NVIDIA RTX PRO 5000 72GB Blackwell from Advantech, a professional graphics card with 72 GB of GDDR7 and ECC. Advantech positions the RTX PRO 5000 for massive models and 8K workflows, and the 72 GB build gives more room for large datasets, scenes and model weights on one card.

The Blackwell GPU has 14,080 CUDA cores, 400 fifth-generation Tensor Cores with FP4 acceleration and 100 RT Cores, with single-precision performance rated at 65 TFLOPS. Memory sits on a 512-bit interface at 1,344 GB/s. The family features include DLSS 4 with Multi-Frame Generation, ninth-generation NVENC and sixth-generation NVDEC engines for video work, and NVIDIA Mosaic for multi-display walls. The card also supports two Multi-Instance GPU instances, which can help where two users or inference services share a single GPU.

The SKY-QUAD-5000B-72 connects over PCI Express 5.0 x16 and has four DisplayPort 2.1b outputs, driving four 4096 x 2160 displays at 120 Hz or two 7680 x 4320 displays at 60 Hz. It supports DirectX 12, Shader Model 6.6, OpenGL 4.6 and Vulkan 1.3, with CUDA 12.8, OpenCL 3.0 and DirectCompute. Maximum power is 300 W through one 16-pin PCIe connector, with a 2x PCIe 8-pin adapter cable included. An active blower cools the dual-slot, full-height card, exhausting heat out of the chassis.

We supply each card tested, and we fit, configure and burn-in test the SKY-QUAD-5000B-72 in the GPU computers and servers we build. The SKY-QUAD-5000B-48 is the same GPU with 48 GB for workloads that fit in less memory, and the SKY-QUAD-6000QB-96 offers 96 GB at the same 300 W limit.
