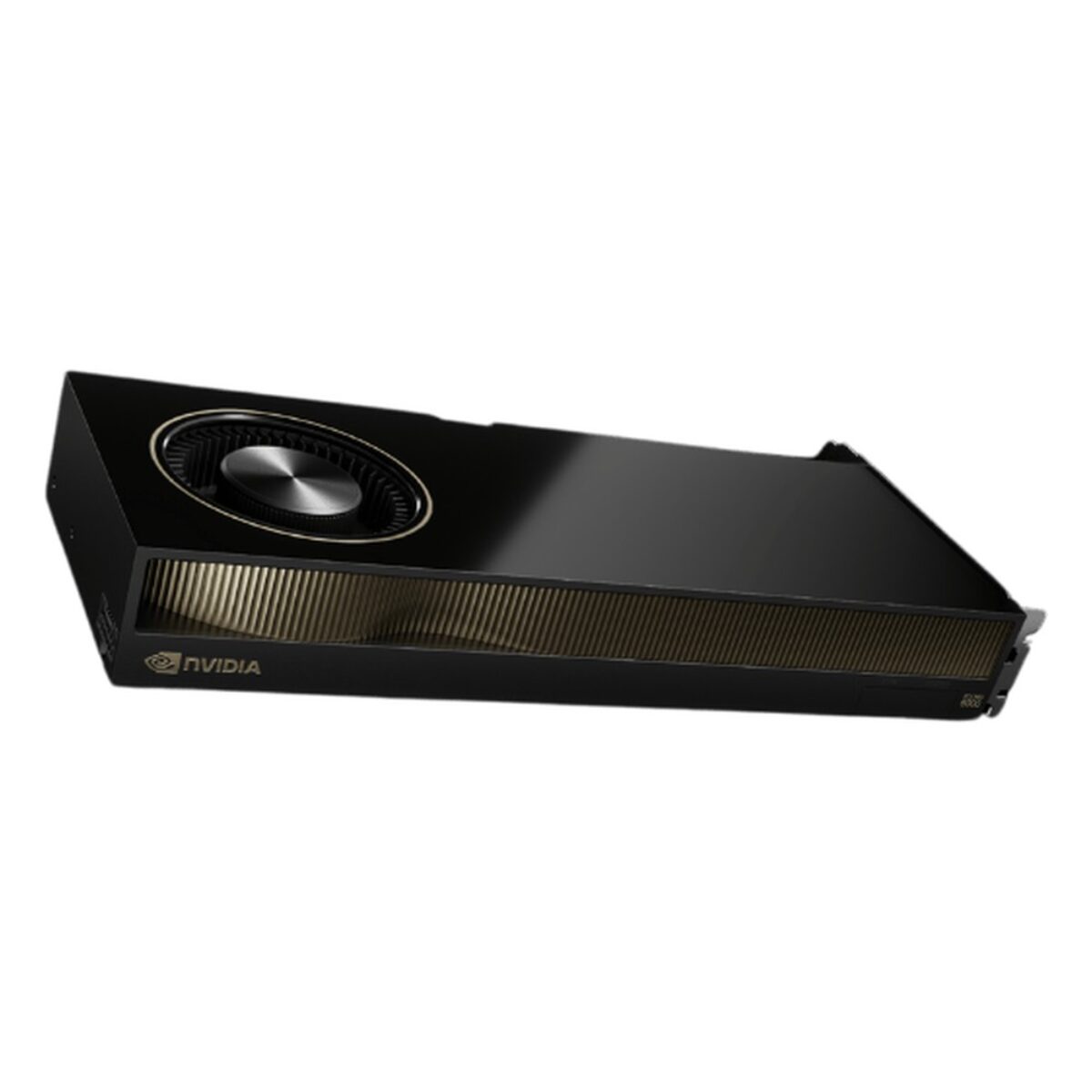

Advantech SKY-QUAD-6000QB-96 NVIDIA RTX PRO 6000 Blackwell Max-Q 96GB Workstation Graphics Card with 300W Active Cooling

Large models and scenes need memory, but many chassis cannot give one card 600 W of power and the airflow that goes with it. The SKY-QUAD-6000QB-96 is the NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition from Advantech, a workstation graphics card that keeps the full 96 GB of GDDR7 with ECC while capping power at 300 W. Advantech lists the card for fine-tuning LLMs, real-time rendering and large-scale simulation, and notes multi-GPU scalability.

The Blackwell GPU has 24,064 CUDA cores, 752 fifth-generation Tensor Cores with FP4 support and 188 fourth-generation RT Cores. At the lower power limit, single-precision performance is rated at 110 TFLOPS. Memory runs on a 512-bit interface at 1,792 GB/s, so big datasets and scenes can stay on the card. An AI Management Processor is built in, and the card supports up to four Multi-Instance GPU instances, which can help where several users or inference services share one GPU.

The SKY-QUAD-6000QB-96 connects over PCI Express 5.0 x16 and has four DisplayPort 2.1 outputs, driving four 3840 x 2160 displays at 165 Hz or two 7680 x 4320 displays at 100 Hz. It supports DirectX 12, Shader Model 6.6, OpenGL 4.6 and Vulkan 1.3, with CUDA, OpenCL 3.0 and DirectCompute. Power comes through one PCIe CEM5 16-pin connector, with a 2x PCIe 8-pin adapter cable included. Cooling is active, on a dual-slot, full-height card that fits standard full-height slots.

We supply each card tested, and we fit, configure and burn-in test the SKY-QUAD-6000QB-96 in the GPU computers and servers we build, with power and airflow checked for the full card count. Where the chassis can take 600 W and extra height, the SKY-QUAD-6000B-96 runs the same GPU at 125 TFLOPS. The SKY-QUAD-5000B-72 is a 300 W card with 72 GB, and the SKY-QUAD-6000A-48 is the 300 W Ada generation card with 48 GB.
