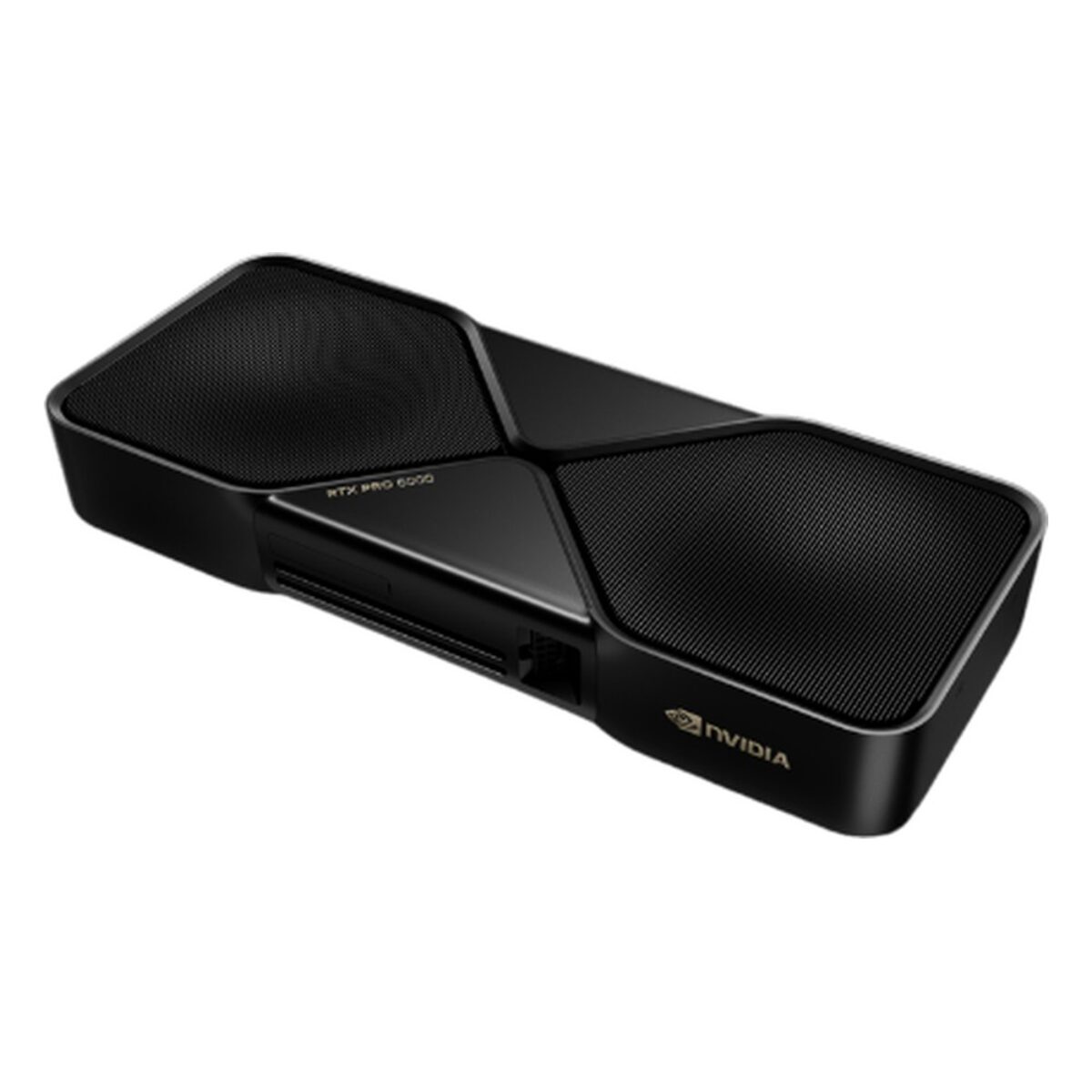

Advantech SKY-QUAD-6000B-96 NVIDIA RTX PRO 6000 Blackwell Workstation Edition 96GB GDDR7 Workstation GPU with 600W Double Flow-Through Cooling

Training and fine-tuning large models, real-time rendering and big simulations all ask for as much memory as possible on a single GPU. The SKY-QUAD-6000B-96 is the NVIDIA RTX PRO 6000 Blackwell Workstation Edition as supplied by Advantech, a workstation GPU with 96 GB of GDDR7 and ECC. The datasheet points it at AI model training, neural rendering and scientific computing for research, engineering and content creation teams.

The Blackwell GPU carries 24,064 CUDA cores, 752 fifth-generation Tensor Cores with FP4 support and 188 fourth-generation RT Cores, and Advantech rates single-precision performance at 125 TFLOPS. Memory runs on a 512-bit interface at 1,792 GB/s, and ECC protects long training and simulation runs. The card also has an AI Management Processor and supports up to four Multi-Instance GPU instances, so one card can be shared between several users or inference services where that suits the workload.

The SKY-QUAD-6000B-96 connects over PCI Express 5.0 x16 and has four DisplayPort 2.1 outputs, driving four 4096 x 2160 screens at 120 Hz, four at 5120 x 2880 at 60 Hz or two 7680 x 4320 panels at 60 Hz. Graphics APIs are DirectX 12, Shader Model 6.6, OpenGL 4.6 and Vulkan 1.3, with CUDA, OpenCL 3.0 and DirectCompute for compute. Maximum power is 600 W through one PCIe CEM5 16-pin connector, with a 4x PCIe 8-pin adapter cable included. The double flow-through cooler sits on a dual-slot, extra-height card, so the chassis needs the clearance, power budget and airflow to match.

We supply each card tested, and we fit, configure and burn-in test the SKY-QUAD-6000B-96 in the GPU computers and servers we build, checking power, cooling and drivers together. Where the enclosure suits a lower power budget, the SKY-QUAD-6000QB-96 runs the same 96 GB GPU at 300 W with active cooling, and the SKY-QUAD-5000B-72 offers 72 GB at 300 W. Ask us for current lead times.
