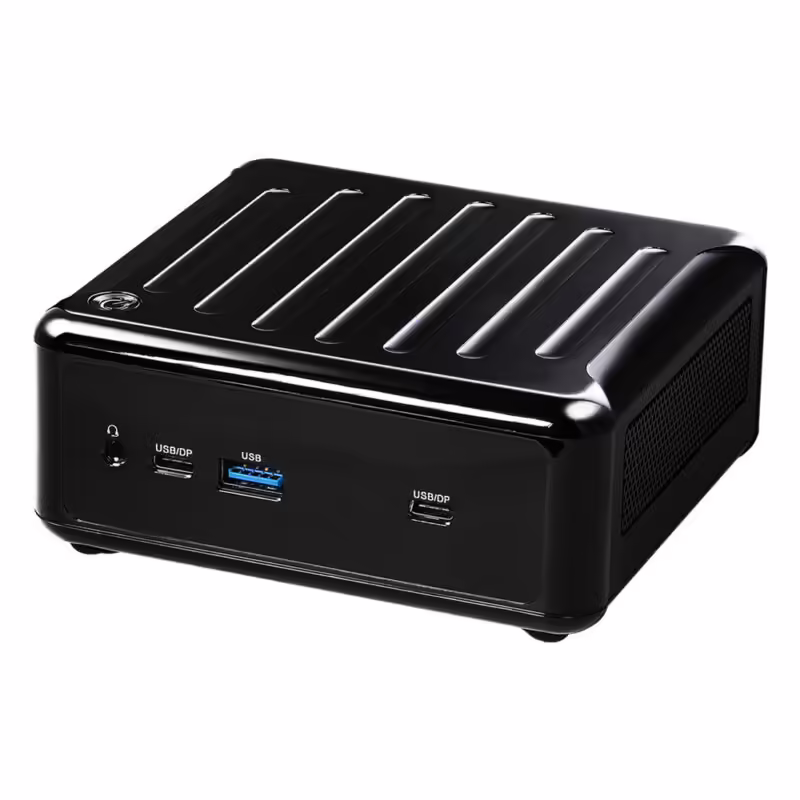

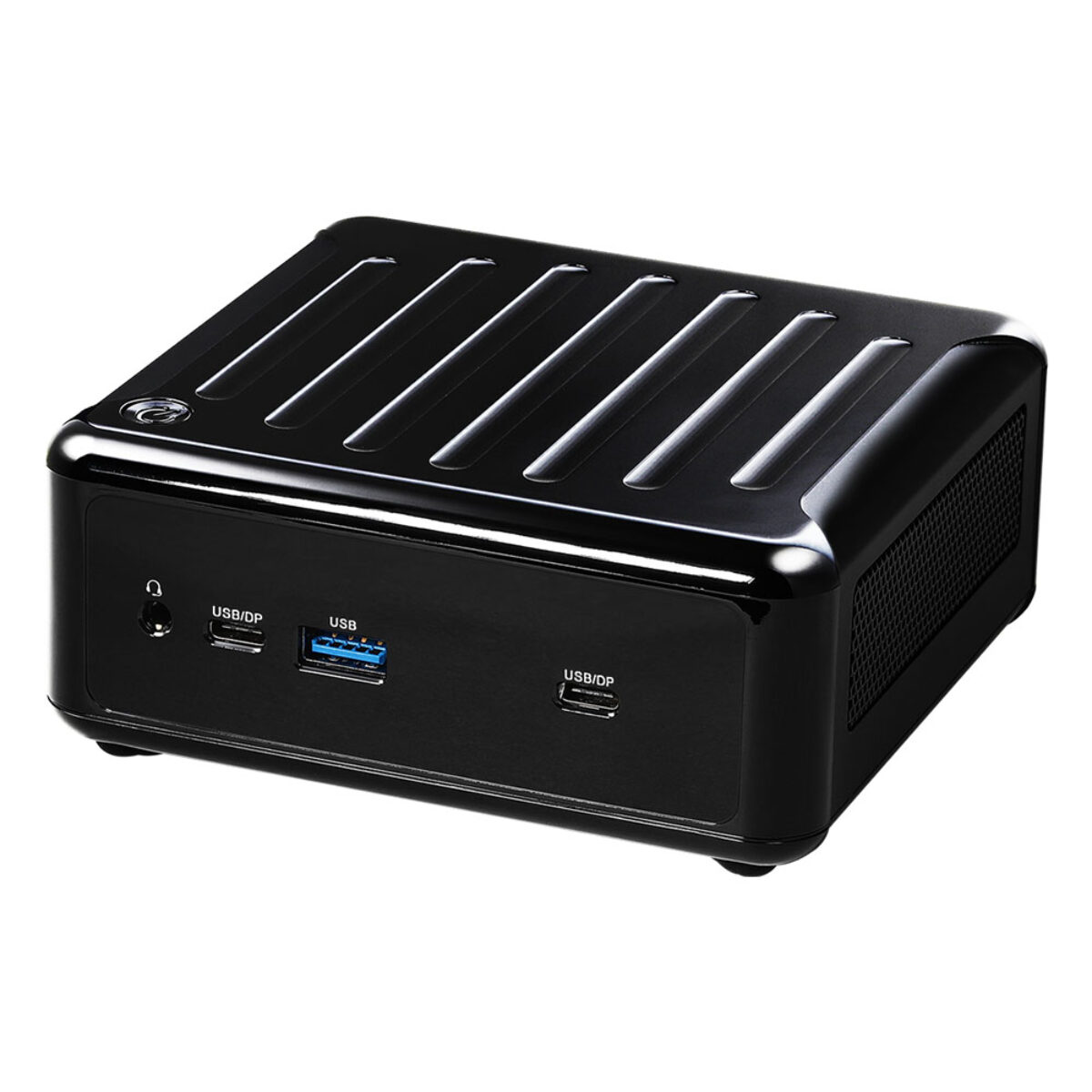

ASRock Industrial NUC BOX-1360P/D5 Intel Core i7-1360P 13th Gen NUC Computer with Dual 2.5GbE and USB4

A video wall controller or a four-screen operator desk asks a lot of a small computer: several high-resolution streams, a busy browser and a remote session, all at once. The ASRock Industrial NUC BOX-1360P/D5 puts the Core i7 end of the 13th Gen range into a 110 x 117.5 x 47.85 mm industrial mini PC, with four 4K outputs and two 2.5GbE ports to keep that workload on one box.

The Intel Core i7-1360P in the NUC BOX-1360P/D5 is a Raptor Lake-P processor with four Performance-cores and eight Efficient-cores, and its Intel Iris Xe graphics handle the decoding and composition that multi-screen work demands. Memory is up to 32 GB of dual-channel DDR5 at 4800 MHz in two SO-DIMM sockets. An M.2 Key M slot with PCIe Gen4 x4 takes an NVMe SSD, a SATA3 port adds a second drive, and TPM 2.0 is on board for disk encryption.

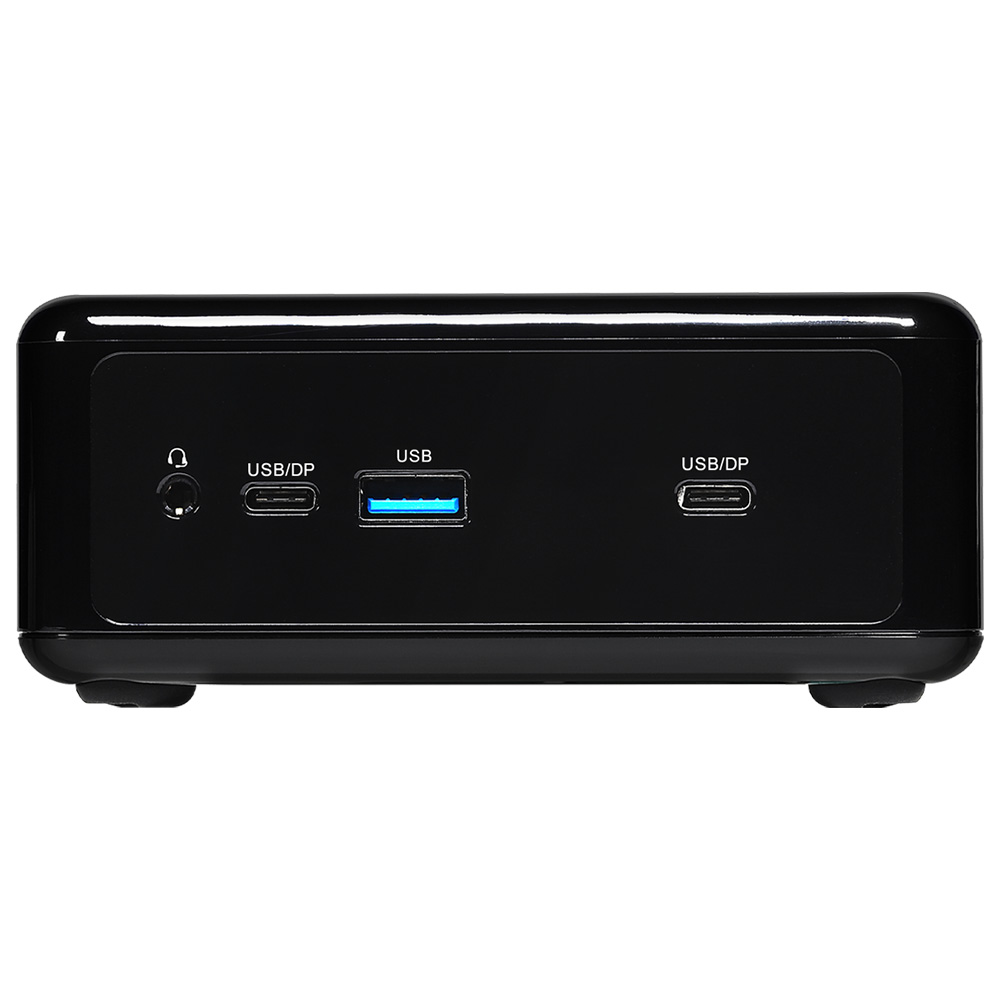

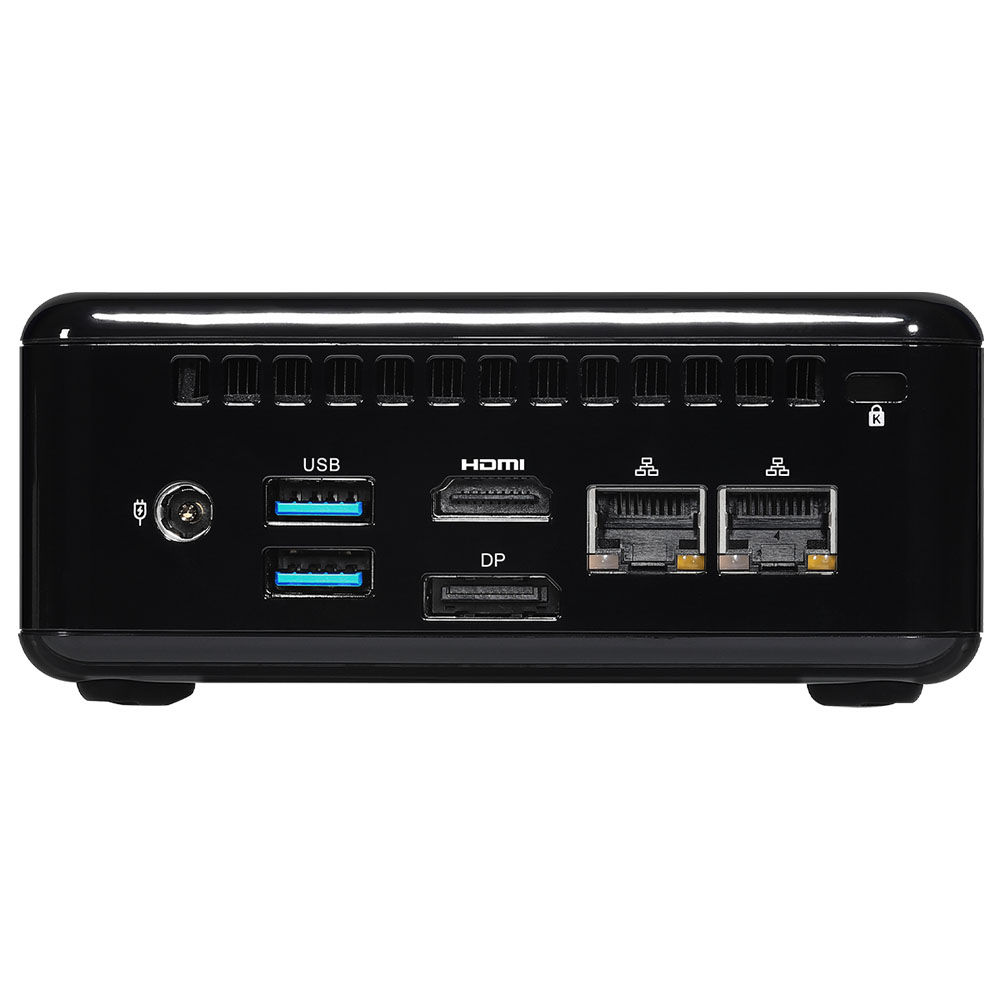

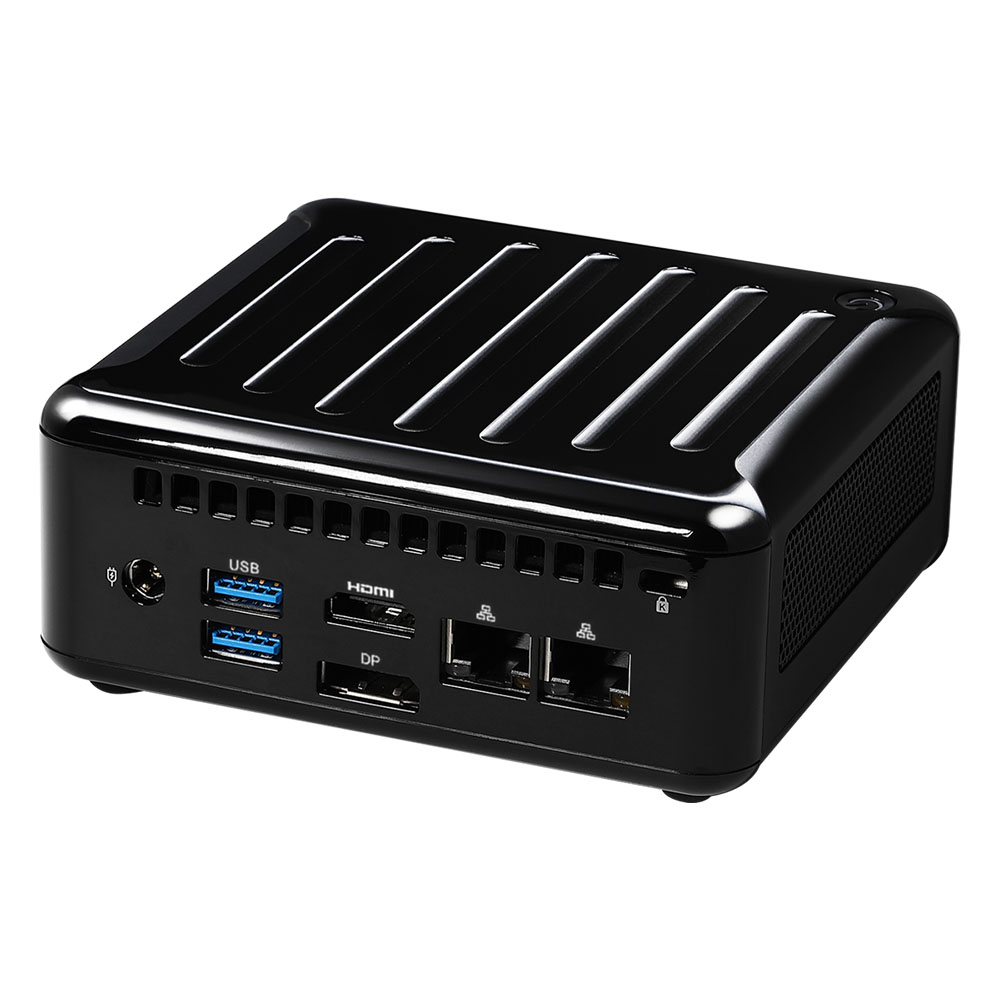

Displays connect through HDMI 2.0b and DP 1.4a on the rear, a USB4/Thunderbolt 4 port with DP 2.1 on the front and a USB 3.2 Gen2 Type-C port with DP 1.4a, each up to 4096 x 2160 at 60 Hz. Three USB 3.2 Gen2 Type-A ports and an audio jack cover peripherals. Networking is two 2.5GbE ports, LAN1 on an Intel I226LM with AMT and vPro support, and an M.2 Key E slot carries a Wi-Fi 6E and Bluetooth 5.2 module. Because the i7 draws more, it ships with a 19 V, 120 W adapter feeding the 12 to 19 V DC jack.

This NUC BOX-1360P/D5 is fan-cooled and rated for 0 °C to 40 °C, so it suits control rooms, retail back offices and signage cabinets with ventilation. ASRock Industrial lists CE and FCC compliance and Windows 10 and 11 support, with a watchdog timer and AT or ATX power-on. For lighter loads, the NUC BOX-1340P/D5 is the Core i5-1340P version of this industrial mini PC, while the NUCS BOX-1360P/D4 keeps the same processor in a slimmer DDR4 case.
