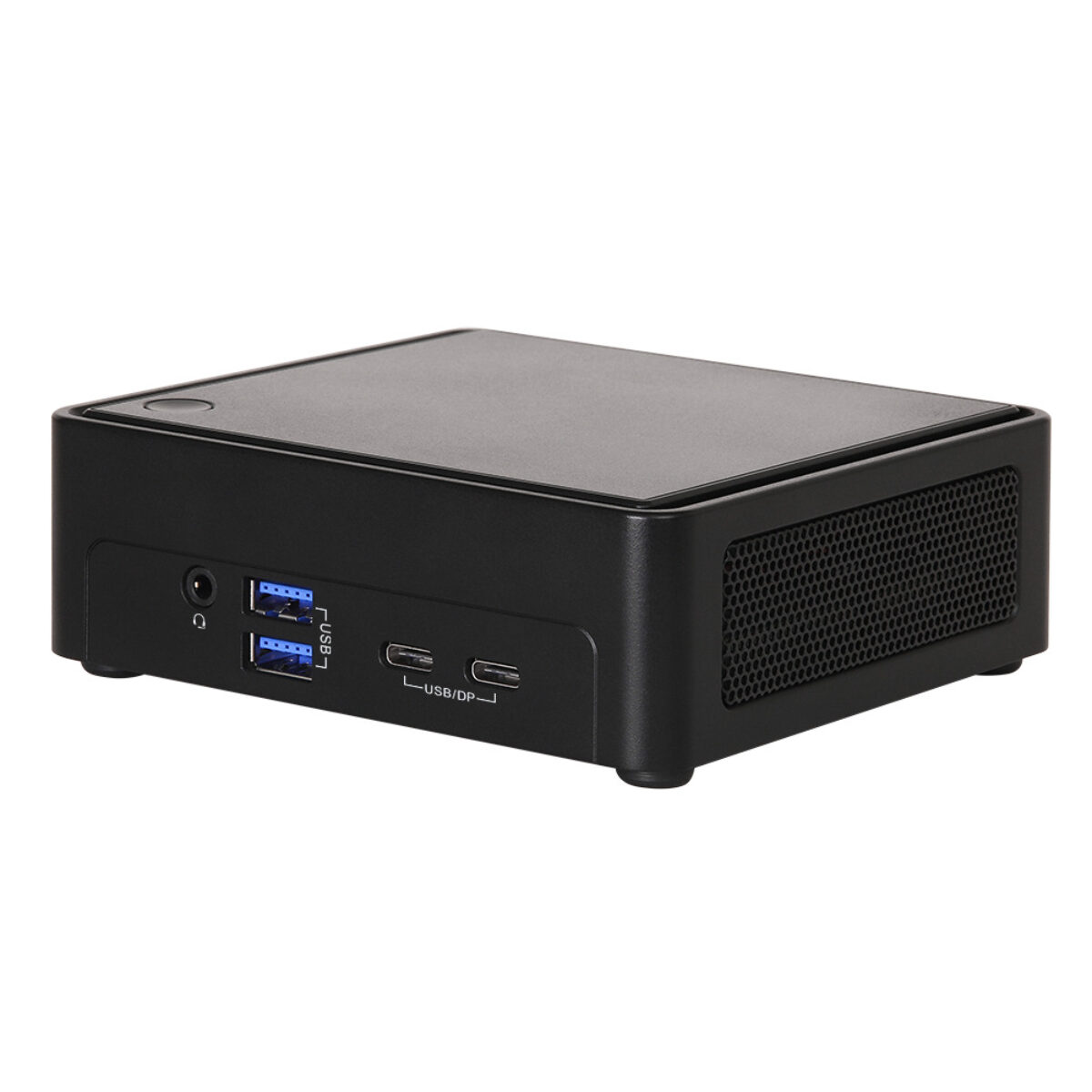

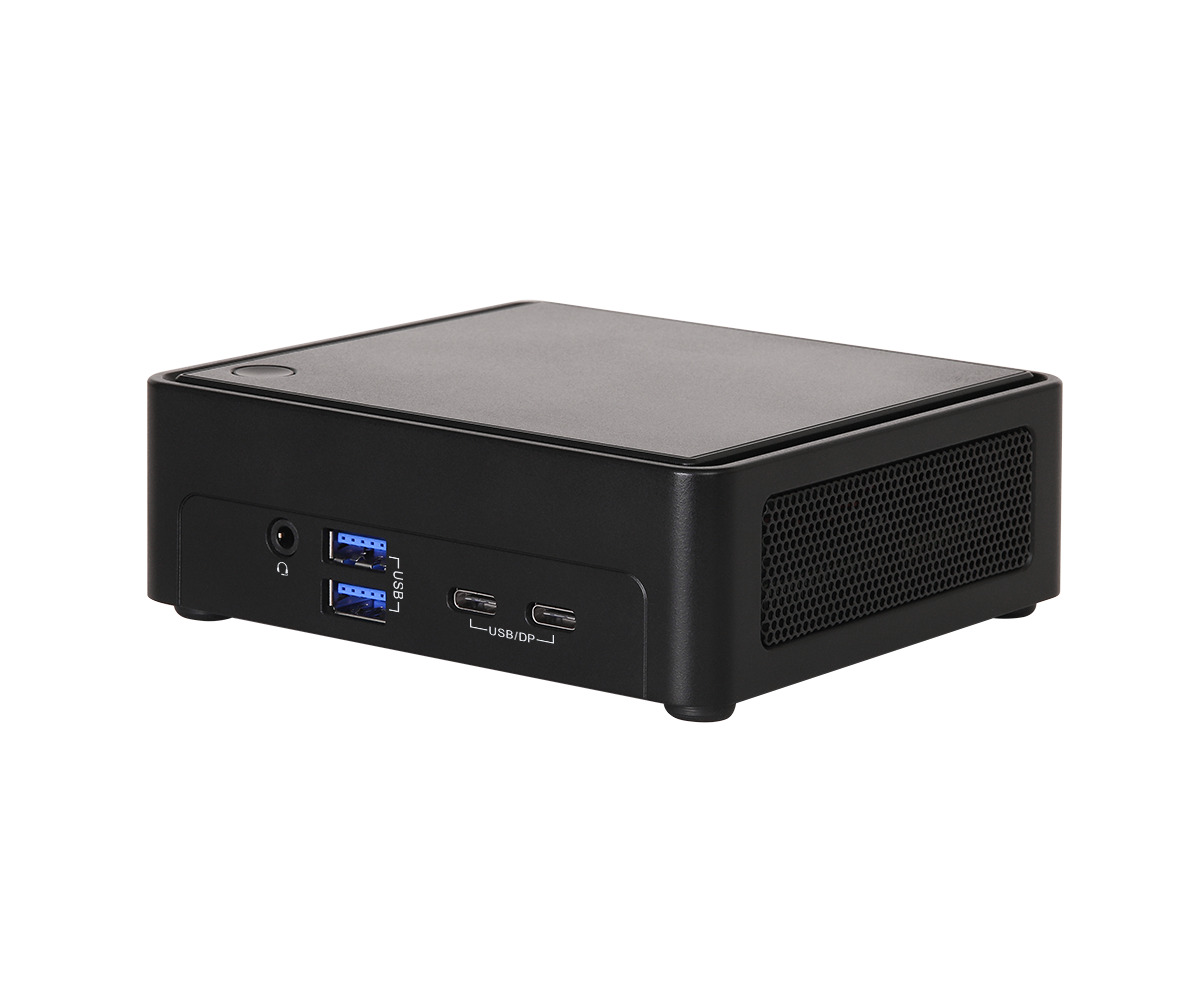

ASRock Industrial NUCS BOX-1360P/D4 Intel Core i7-1360P Raptor Lake Slim NUC Computer with Dual HDMI

Menu boards, meeting-room screens and analyst desks often run several displays from a computer that has to stay out of sight. The ASRock Industrial NUCS BOX-1360P/D4 is a 38 mm tall industrial mini PC that does exactly that, putting an Intel Core i7-1360P and four display outputs into a case that fits on a VESA bracket behind the screen.

The Core i7-1360P inside the NUCS BOX-1360P/D4 is a 13th Gen Raptor Lake-P processor with four Performance-cores and eight Efficient-cores. Its Intel Iris Xe graphics handle 4K playback and multi-window desktops, and the CPU headroom suits local analytics, remote desktops and browser-heavy dashboards. Two SO-DIMM sockets take dual-channel DDR4-3200 up to 64 GB, and an M.2 Key M slot with PCIe Gen4 x4 holds an NVMe SSD in 2242 or 2280 length. TPM 2.0 is on board.

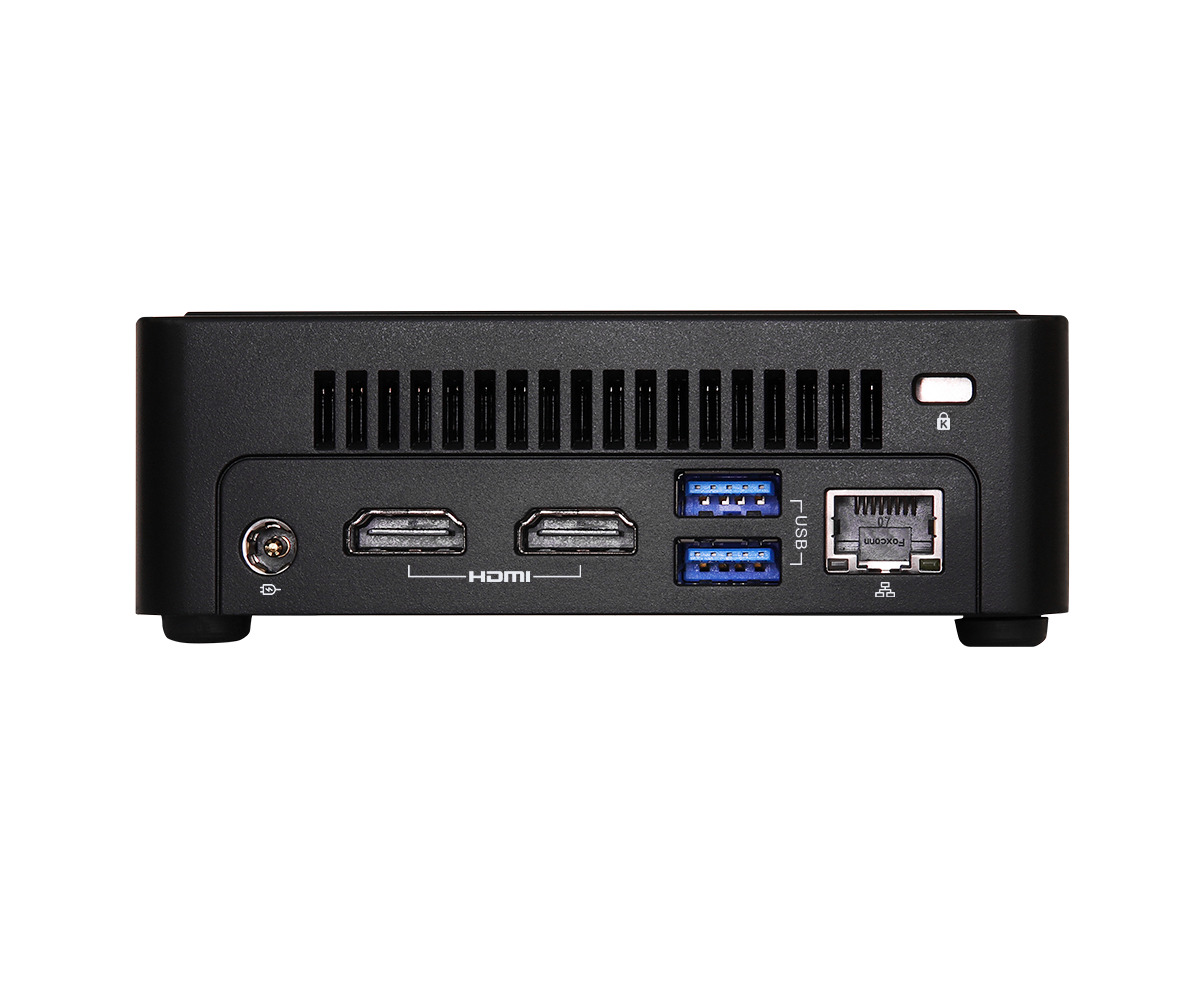

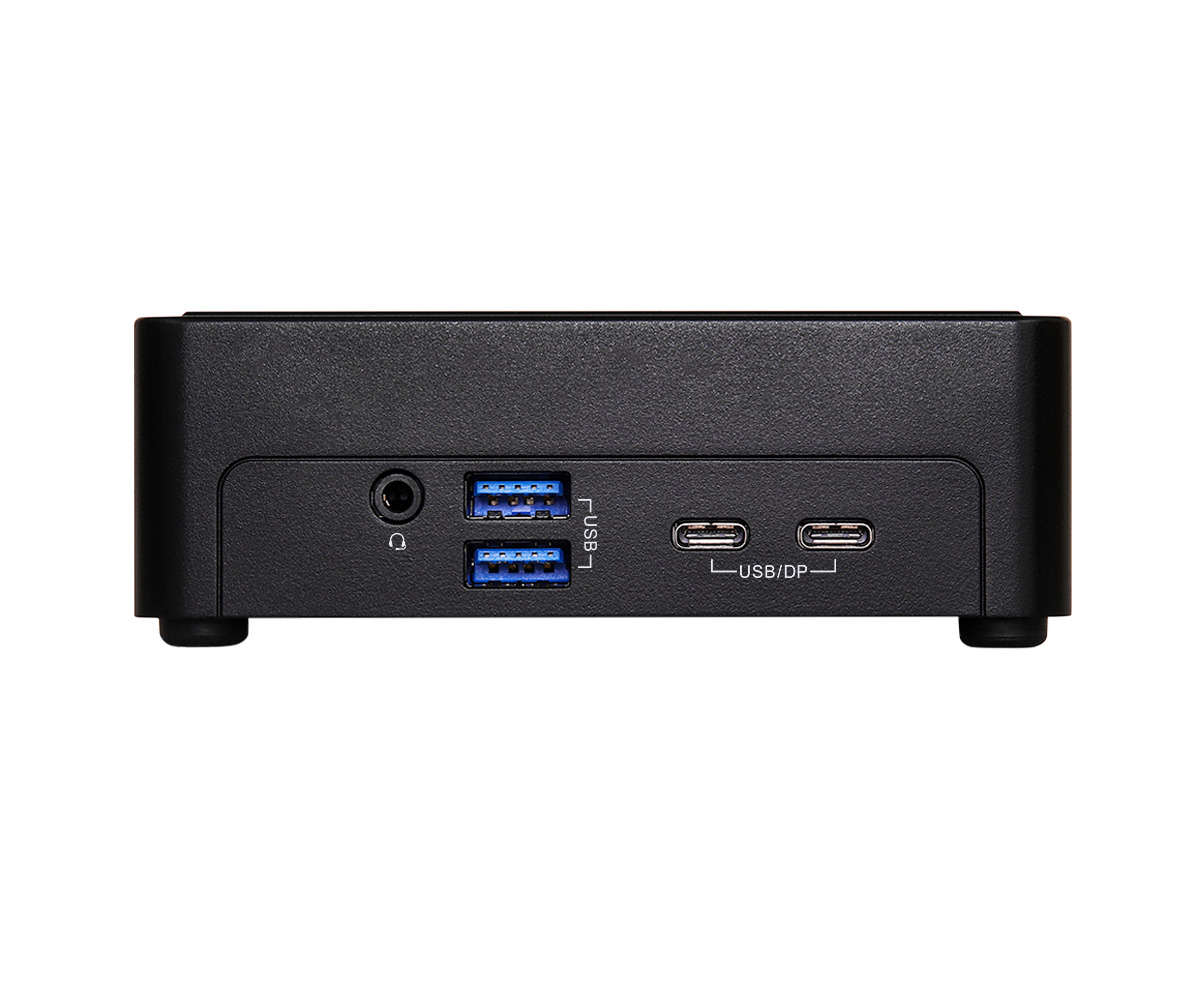

Display connections are two HDMI 2.0b ports on the rear plus a USB4 port and a USB 3.2 Gen2 Type-C port on the front, both of which carry DP 1.4a, so four screens run at up to 4096 x 2160 at 60 Hz. Four USB 3.2 Gen2 Type-A ports and a headset jack handle peripherals. Networking is one 2.5GbE port on an Intel I226LM, and the M.2 Key E slot carries a Wi-Fi 6E and Bluetooth 5.2 module. Power enters through a 12 to 19 V DC jack, with a 19 V, 90 W adapter supplied.

The NUCS BOX-1360P/D4 is fan-cooled with an operating range of 0 °C to 40 °C, so it suits retail, hospitality and office installations. ASRock Industrial lists CE and FCC compliance, Windows 10 and 11 support and a watchdog timer. The NUCS BOX-1340P/D4 is the Core i5 version of this slim industrial mini PC, and the NUC BOX-1360P/D5 keeps the i7-1360P but adds DDR5, SATA and a second 2.5GbE port.
