Diamond Systems SabreCom-JRS Intel Core i7 or Xeon W Compact Military Grade PC with Flex I/O and IP67

The SABRECOM-JRS is a compact military grade PC from Diamond Systems: a COM Express Intel Core i7, Core 5 or Xeon W in a sealed IP67 enclosure of 200 x 186 x 80 mm. Standard I/O sits on MIL-DTL-38999 connectors, and a fourth connector carries one of ten predefined I/O configurations, from CAN and serial to 2.5GbE.

  • Ten Predefined Flex I/O Configurations: The J4 connector carries one of ten tested builds, including data acquisition, 4x CAN, 8x serial, 2.5GbE and USB 3.0, with cables held in stock.
  • COM Express Intel Core or Xeon W Processors: Choose an 11th or 13th Gen Intel Core i7, a Core 5 120U or a Xeon W-11865MRE with up to 64 GB, or 32 GB with ECC.
  • Sealed, Fanless IP67 Enclosure: Conduction cooled and fanless, it is 29% smaller and 20% lighter than the SABRECOM-JSP, at about 2.5 kg.
  • 10 to 60 V DC MIL Isolated Power: The standard JMM-7500 supply provides 80 W of isolated power to MIL-STD-461, MIL-STD-704 and MIL-STD-1275, with a lower-cost MIL-STD-461 filter option.
  • Rated -40 to +80 °C, Designed to MIL-STD-810H: Diamond designs the enclosure to meet MIL-STD-810H shock and vibration, with the internal electronics qualified to MIL-STD-202H.
Configure and Add to Quote
Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
M.2: 11x M.2
mPCIe: 22x mPCIe
Connectivity: 4G4G
Connectivity: 5G5G
Connectivity: WirelessWi-Fi
NVMe: NVMe SSD SupportNVMe SSD
Thermal Dissipation: FanlessFanless
Operating Temperature: Extended TemperatureExtended Temp
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Configure
  • Downloads

SABRECOM-JRS Overview

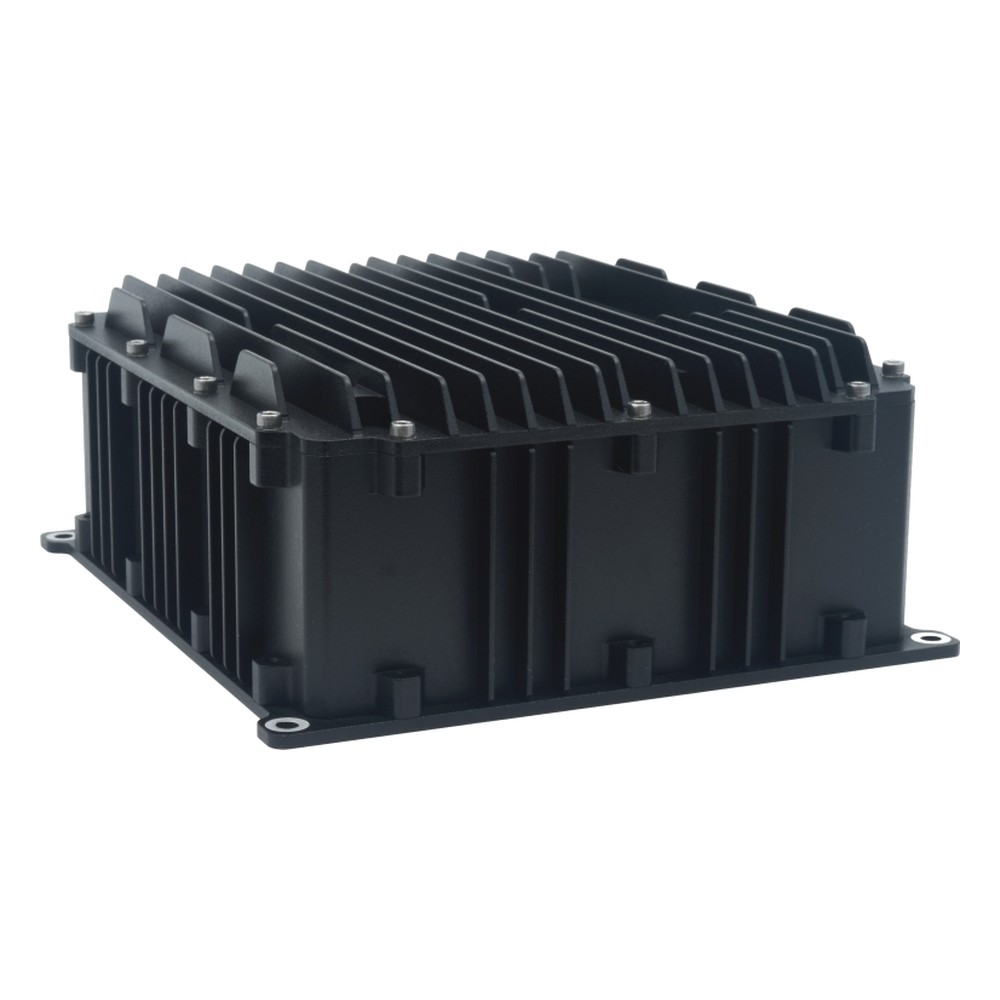

The Diamond Systems SABRECOM-JRS is a compact military grade PC for vehicles, aircraft, unmanned systems and other installations where space is tight and every connector has to seal. The enclosure measures 200 x 186 x 80 mm and weighs about 2.5 kg, 29% smaller and 20% lighter than the SABRECOM-JSP by Diamond’s figures, yet it keeps the same processor options and IP67 rating. Inside is Diamond’s Jasper carrier board on a 2.3 mm PCB, conduction cooled into the lid with no fan.

Compute comes from a COM Express Type 6 module, so the processor can be changed later without mechanical changes when a part reaches end of life. Standard options are the Intel Core i7-1185GRE (11th Gen Tiger Lake, 32 GB), the Core i7-1365URE and i7-1370PRE (13th Gen Raptor Lake, 32 or 64 GB), the Core 5 120U, and the Xeon W-11865MRE with 64 GB or 32 GB of ECC memory. Storage is an M.2 SATA SSD from 128 GB to 2 TB, with Windows 11 or 64-bit Linux and a TPM 2.0 module on the board.

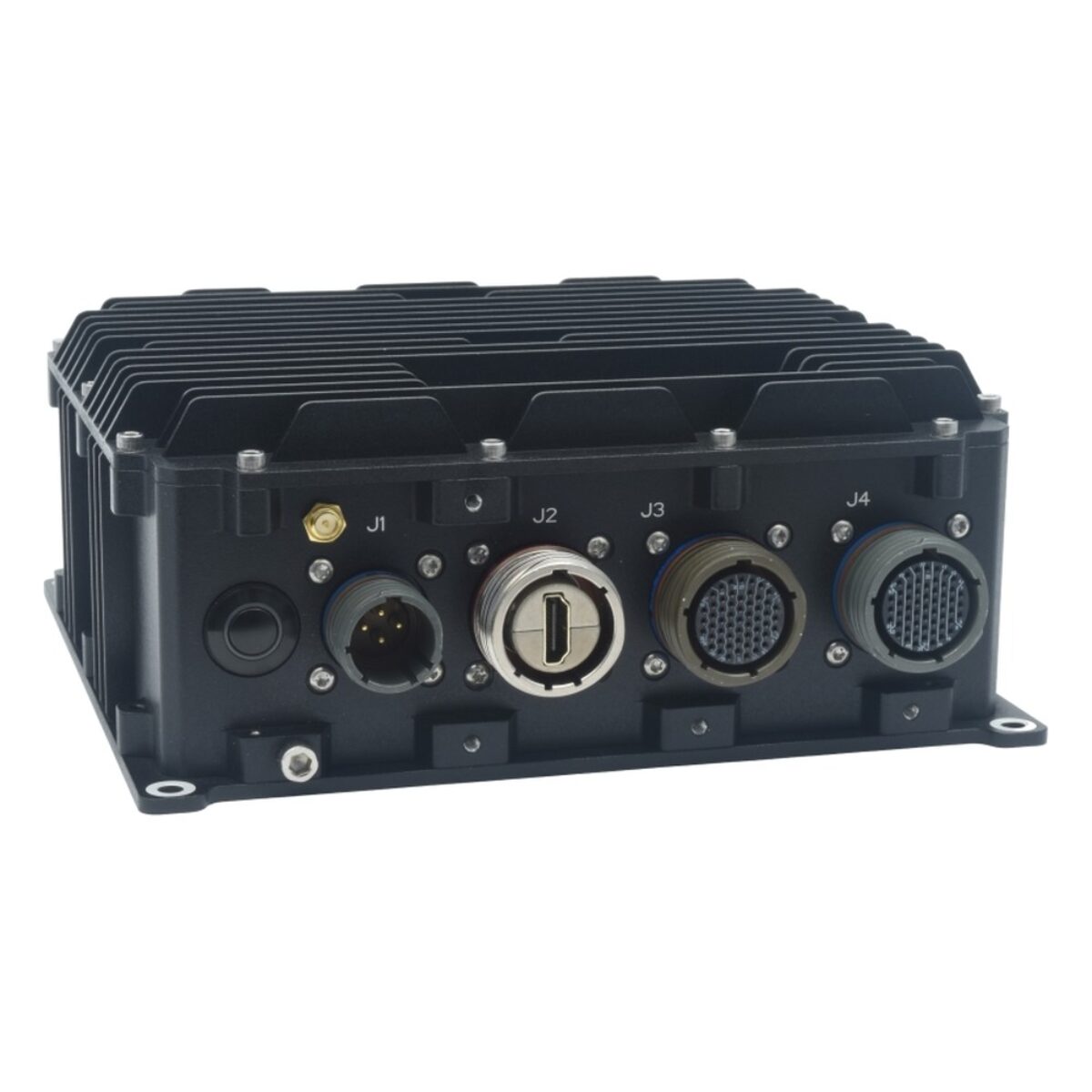

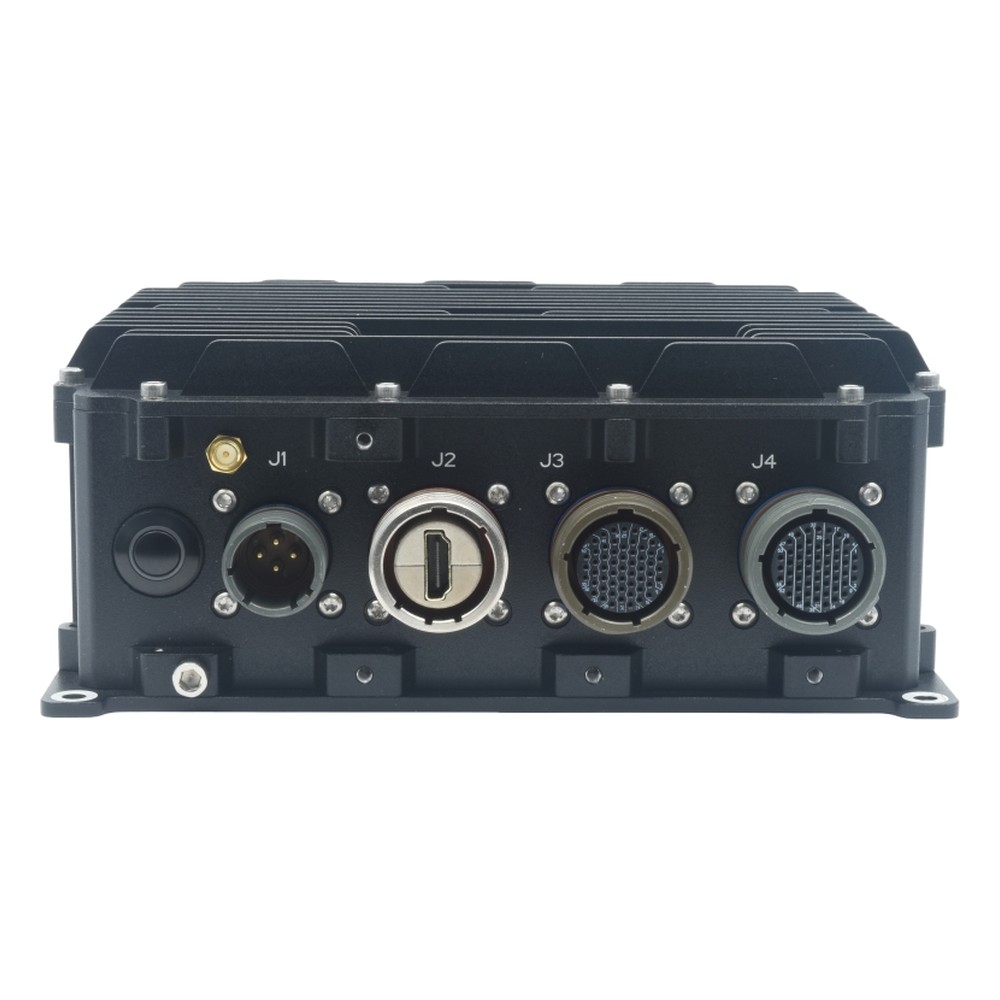

Fixed I/O is on three front panel connectors: power on a D38999 shell, HDMI on a rugged sealed receptacle, and a 66-contact D38999 carrying two GbE ports, two USB 2.0, four RS-232/422/485 ports, audio and utility signals. The fourth connector, J4, is the Flex I/O position. It carries one of ten predefined configurations built from two PCIe Mini Card sockets or the Jasper data acquisition circuit (16 analog inputs, four analog outputs and 22 digital I/O), adding CAN, extra serial, GPIO, 2.5GbE, VGA or USB 3.0. Custom I/O is available as an engineered option.

Power uses Diamond’s JMM-7500 isolated supply, accepting 10 to 60 V DC with MIL-STD-461, MIL-STD-704 and MIL-STD-1275 compliance, or a MIL-STD-461 filter board where the input is a fixed 12 V or a known DC range. The system is rated -40 to +80 °C, sealed to IP67 at every joint, and designed to meet MIL-STD-810H shock and vibration requirements, with plastic or metal sealing caps for each connector.

SABRECOM-JRS Specifications

Overview
Brand & ModelDiamond Systems SabreCom-JRS
FeaturesExpandable
Fanless
Rugged
Waterproof
Performance
Processor SeriesCore Series 1 Raptor Lake
Intel Xeon W Series Tiger Lake
Intel Core 11th Gen Tiger Lake
Intel Core 13th Gen Raptor Lake
Processor ModelsCore 5 120U
Intel Xeon W-11865MRE: 2.6~4.7GHz, 8 Cores, 16 Threads, 24MB Cache, 45W
Intel Core i7-1185GRE: 1.8~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 15W
Intel Core i7-1365URE: 1.7~4.9GHz, 10 Cores, 12 Threads, 12MB Cache, 15W
Intel Core i7-1370PRE: 1.9~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 28W
Performance Cores4 Cores
8 Cores
10 Cores
14 Cores
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux
Windows 11
Graphics
Integrated GPUIntel Graphics
Intel Iris Xe Series
Intel UHD Series
Multi Display SupportSingle Display Support
Display Outputs1x HDMI
Audio
InterfaceLine-In
Line-Out
Mic-In
I/O
Ethernet2x Ethernet Ports
2x GbE LAN [MIL-STD]
USB2x USB Ports
2x USB 2.0 [MIL-STD]
Serial4x Serial Ports
4x RS232/422/485 [MIL-STD]
Expansion
M.21x M.2 Expansion Slots
1x M.2 M-Key [PCIe x1/SATA] [2242/2280]
mPCIe2x mPCIe Slots
2x mPCIe [PCIe/USB]
Wireless ConnectivityOptional 4G/5G
Optional WiFi/Bluetooth
Storage
Storage1x M.2 SSD
NVMeNVMe SSD Support
Power
Power Input10-60V DC Input [MIL-STD]
Power Support ModesATX: Press Button to Power
Environmental Conditions
Thermal DissipationFanless Passively Cooled Chassis
Operating Temperature-40°C to 80°C [-40°F to 176°F]
Ingress ProtectionIP67
IP67 [Dustproof, Protection against immersion in water up to 1 meter for 30 minutes]
ShockMIL-STD-810H
VibrationMIL-STD-810H
CertificationMIL-STD-1275
MIL-STD-704
MIL-STD-461
Mechanical Properties
Weight2.5 Kg (5.5 Lbs)
Dimensions200mm x 186mm x 80mm (7.87" x 7.32" x 3.15")
Mounting OptionsWall Mount

Configure Your SabreCom-JRS

Choose one option in each step to build your Diamond Systems ordering code. We supply every SabreCom-JRS configured and tested to the code you choose. For I/O outside the ten predefined builds, pick Custom I/O and we will scope it with you.

1Processor and Memory

A COM Express Type 6 module, so the processor can be changed later without mechanical changes.

2Jasper Baseboard

The data acquisition baseboard adds 16 analog inputs, four analog outputs and 22 digital I/O, brought out on Flex I/O 01.

3Power Supply

Isolated MIL power suits vehicle and aircraft supplies; the filter options cost less where the input is known and clean.

4Storage

M.2 SATA SSD holding the operating system.

5Operating System

Installed on the SSD and tested before the system ships.

6Flex I/O

Brought out on the J4 connector, in addition to the standard I/O: two GbE, two USB 2.0, four RS-232/422/485, audio and HDMI.

7Connector Caps

Every connector ships with a cap.

Official Diamond Systems USA Distributor

Things Embedded is an official Diamond Systems USA distributor, supplying the SABRECOM-JRS as a configured system: we help you pick the processor, memory, storage, power option, operating system and Flex I/O configuration to suit your application, then build and test it before it ships. Where a program needs more I/O expansion, the larger SABRECOM-JSP takes up to three expansion connectors on the same Jasper carrier board, and the SABRECOM-CE1 adds a Layer 3 managed Ethernet switch to the same compute.

Across our range, the SABRECOM-JRS sits with our rugged mission computers, our IP67 sealed computers and our wide temperature computers.
