US Android Panel PCs
Android HMIs for Machines, Vehicles and Kiosks
An Android panel PC runs the same apps and frameworks as a phone or tablet on a rugged touch computer, so an Android HMI can share code with your mobile tools and boot straight into one app. Available from 7 to 23.8 inches on low-power Arm processors, with PCAP touch and sealing from a front IP65 bezel to fully sealed IP67.
Options include PoE-powered builds that run from one Ethernet cable, slim panel-mount HMIs, front IP65 chassis builds and in-vehicle panel PCs with CAN, suited to machine control, warehouse terminals, kiosks and vehicle displays where a familiar touch interface matters more than Windows.
Speak to a panel PC specialist to match the screen size, sealing and Android version to your application.
Browse Our Android HMIs
- Display: 15"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 1000, 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [M12]
- USB: 1x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x Micro SD, 32GB eMMC
- Power: 12V DC [M12]
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount

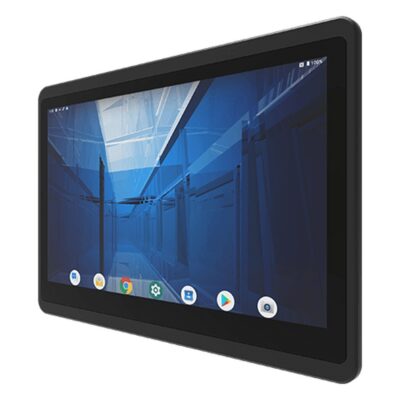

- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB OTG [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x Micro SD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
- IP Rating: IP67
- Certification: CE, FCC
- Mounting Options: VESA Mount

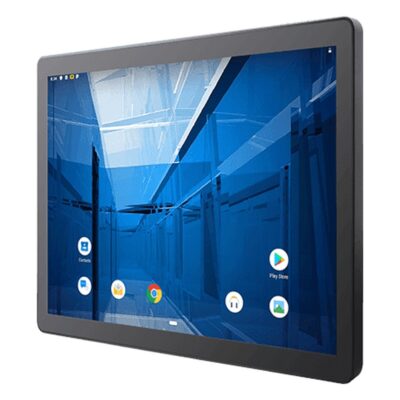

- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Display Outputs: 1x Optional Micro HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232 [M12]
- Storage: 1x Micro SD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 55°C [-40°F to 131°F]
- IP Rating: IP67
- Certification: CE, FCC
- Mounting Options: VESA Mount

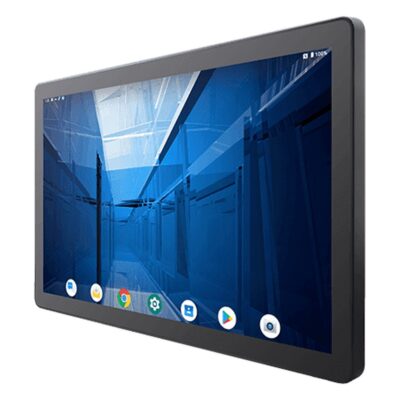

- Display: 21.5"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Display Outputs: 1x Optional Micro HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block]
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Mounting Options: VESA Mount
- Display: 23.8"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Genio 510
- Memory: 4GB Soldered On-board
- OS: Android 13.0, Linux Ubuntu 22.04
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type C], 2x USB 2.0 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- Storage: 1x Micro SD
- Power: 12V DC [Terminal Block], AC Power Supply Included
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
Android Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of Android touch computers, so the ranges below are the ones we specify for machines, kiosks and vehicles. Compare them by size, sealing and power, then browse the models above or ask a panel PC specialist which range suits your application.
Winmate Genio 510 PoE Touch Computers
Slim PCAP touch screens from 7 to 15 inches on the six-core MediaTek Genio 510, powered over Ethernet, for walls, desks and kiosks.
Winmate Genio 510 Panel Mount HMIs
Thin operator terminals from 7 to 15.6 inches with PCAP touch, built into machine and cabinet fronts.
Winmate G-WIN Genio 510 Panel PCs
Rugged Android computers from 7 to 23.8 inches in front IP65 or fully sealed IP65 housings, tested to MIL-STD-810H.
Winmate Full IP67 Genio 510 Panel PCs
Fully sealed IP67 touch computers from 10.1 to 21.5 inches with high-brightness screens, for vehicles and outdoor sites.
DFI VP In-Vehicle Android Panel PCs
In-vehicle 7 and 10.1 inch terminals on NXP i.MX 8M Dual or Quad, with a front IP65 face, -20 to 70 °C operation and 500 or 1200 nit screens.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an Android Touch Panel PC
Our panel PC specialists specify every Android panel PC against the app, the power available and the place it is mounted. These are the choices that decide whether the computer suits the installation, and the ones we work through with you before recommending a range.
Operating System
Confirm the Android version and BSP support for your app and update plan.
Processor
Arm processors such as the MediaTek Genio 510 and NXP i.MX 8M for low-power, fanless operation.
Power Options
PoE builds take power and network over one Ethernet cable; DC builds suit cabinets and vehicles.
Sealing
From a front IP65 bezel to fully sealed IP65 and IP67 housings.
PCAP Touch
Multi-touch glass with the same gestures operators already use on a tablet.
Vehicle Power
In-vehicle builds with wide DC input and CAN for cabs and fleets.
Android Panel PC Innovation & Touch HMI Insights
Speak to a Panel PC Specialist.
Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.
