US 2.5" Pico-ITX SBCs
Pico ITX SBCs for Compact Embedded Systems
A Pico-ITX SBC, also called a Pico ITX motherboard, fits a complete x86 computer onto 100 x 72 mm, which makes it a common choice for compact controllers, thin clients, medical devices and kiosks where space rules out a 3.5 inch board. Available with Intel Atom, Pentium and Celeron processors from Apollo Lake to Elkhart Lake and Amston Lake, and 8th Gen Intel Core Whiskey Lake processors for more demanding software.
Options include PoE-powered versions that run from the network cable, dual 2.5GbE and triple display on selected models, suited to building automation, transport, retail and medical equipment where the board sits in a slim enclosure.
Speak to an embedded board specialist to match the processor, networking and power input to your design.
Browse Our 2.5" Pico-ITX SBCs
-

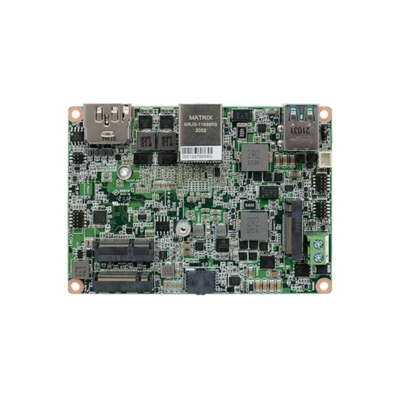

WL053-ECA-4305UE
WL053 with Celeron 4305UE and -30 to 80 °C operation -
WL053-BCA-4305UE
WL053 with Celeron 4305UE and 0 to 60 °C operation -
WL053-BCA-8145UE
WL053 with Core i3-8145UE and 0 to 60 °C operation -
WL053-BCA-8365UE
WL053 with Core i5-8365UE and 0 to 60 °C operation -
WL053-BCA-8665UE
WL053 with Core i7-8665UE and 0 to 60 °C operation -
WL053-ECA-8145UE
WL053 with Core i3-8145UE and -30 to 80 °C operation -
WL053-ECA-8365UE
WL053 with Core i5-8365UE and -30 to 80 °C operation -
WL053-ECA-8665UE
WL053 with Core i7-8665UE and -30 to 80 °C operation
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10
- Display Outputs: 1x Display Port / HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 2x M.2 B-Key [PCIe/USB/SATA] [2242/3042]
- Storage: 2x M.2 SSD
- Power: 9-36V DC Input [Terminal Block]
- Certification: CE, FCC, RoHS, UKCA
- CPU: Intel Celeron 4000 Series Whiskey Lake, Intel Core 8th Gen Whiskey Lake
- Temp: -30°C to 80°C [-22°F to 176°F]
- Memory: 1x DDR4 2666MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10
- Display Outputs: 1x LVDS, 2x Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 2 [Type A], 4x USB 2.0 [Board]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe x1/USB 3.1 Gen 1/USB 2.0/SATA] [2242/2260], 1x M.2 E-Key [USB/PCIe] [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Barrel Connector]
- Certification: CE, FCC, RoHS, UKCA
- CPU: Intel Atom X Series Elkhart Lake
- Temp: -20°C to 60°C [-4°F to 140°F]
- CPU: Intel Atom X Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Board], 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232 [Board], 1x RS232/422/485 [Board]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2280], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
- Storage: 1x SATA Port
- Power: 12V DC [Terminal Block]
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, FCC
Pico-ITX SBC Ranges Configured by Things Embedded
We work with the leading manufacturers of Pico-ITX boards, so the ranges below are the ones we specify for compact controllers, thin clients and kiosks. Compare them by processor, networking and power input, then browse the models above or ask an embedded board specialist which range suits your design.
AL051, AL053 and AL05P DFI Pico-ITX Boards
Intel Atom E3900, Pentium N4200 and Celeron N3350 single board computers at 100 x 72 mm, including the PoE-powered AL05P.
WL051 and WL053 DFI 2.5" Core SBCs
8th Gen Intel Core Whiskey Lake processors on a Pico-ITX board, with Celeron options, for compact designs that need Core-level compute.
WCL051 DFI Wildcat Lake Pico-ITX Boards
Intel Core Series 3 Wildcat Lake processors on a 100 x 72 mm Pico-ITX board with dual 2.5GbE, HDMI and LVDS.
RPP051 DFI 13th Gen Core Pico-ITX SBCs
13th Gen Intel Core and Intel Processor U300E on a Pico-ITX board, with wide and extended temperature builds.
ASL051 DFI Amston Lake Pico-ITX SBCs
Intel Atom x7000RE, N-series and Core i3 processors on a Pico-ITX board with dual 2.5GbE, HDMI and LVDS.
EHL051 DFI Elkhart Lake Pico-ITX SBCs
Intel Atom x6000 and Celeron processors on a Pico-ITX board with dual GbE and -40 to 85 °C builds.
QCS051 DFI Qualcomm Pico-ITX SBCs
Qualcomm Dragonwing QCS6490 and QCS5430 on a 2.5 inch board with 128 GB UFS, CAN FD and up to 12 TOPS of AI performance.
EPX-EHLP Avalue Pico-ITX Boards
Elkhart Lake Atom and Celeron boards at 100 x 72 mm with dual 2.5GbE and triple display.
EPX-TWLP and EPX-ASLP Avalue Twin Lake and Amston Lake Pico-ITX Boards
Intel N150, N250, N97 and Atom x7433RE on 100 x 72 mm boards with dual 2.5GbE, triple display and extended temperature on the x7433RE.
EPX-APLP Avalue Apollo Lake Pico-ITX Boards
Intel Celeron N3350 and J3455 Apollo Lake processors on a Pico-ITX board with dual 2.5GbE and triple display.
ACP-3588 and ACP-Q6490 Avalue Rockchip and Qualcomm SBCs
The eight-core Rockchip RK3588 with dual HDMI, LVDS and eDP, and the Qualcomm QCS6490 on a 2.5 inch board with a 12 TOPS NPU.
EPBC Vecow Pico-ITX Boards
Intel Atom Elkhart Lake and Amston Lake processors on a 100 x 72 mm board.
IB2-281 Giada Alder Lake-N Pico-ITX SBCs
Intel N100 and Atom x7211E on a 100 x 72 mm board with 2.5GbE, HDMI and LVDS.
Not sure which range fits? Tell us the application and we will recommend the right model.
Pico ITX Innovation & Compact System Insights
Speak to a Pico-ITX SBC Specialist.
Tell us what the board will go into, the interfaces you need to connect and how long the design must stay in production. We will recommend the right form factor and processor, then configure and test it before it ships.
