US What IP5X and IP6X mean
IP5X and IP6X are the two highest dust ratings in the IP code defined by IEC 60529. IP5X means dust protected: a limited amount of dust may get inside, but not enough to stop the equipment working properly or to make it unsafe. IP6X means dust tight: no dust gets inside at all.
The first digit of an IP rating covers solid particles, from fingers down to fine dust. Levels 1 to 4 are about objects such as hands, fingers, tools and wires. Only levels 5 and 6 deal with dust, which is why the comparison buyers usually face is IP5X against IP6X.
The X in second place is a placeholder. It means the enclosure has not been tested for water, not that it failed. A product sold as IP6X may in fact be well sealed against water, but nothing in the rating proves it. For a full picture, look for a two-digit rating such as IP65, IP66 or IP67.
How the dust test works
Both ratings are tested in a dust chamber filled with fine talcum powder, kept circulating so that it hangs in the air around the enclosure. The powder is sieved to particles of roughly 75 microns and below, much finer than ordinary household dust.
For IP6X, and for IP5X enclosures whose normal operation causes a pressure drop inside, a vacuum pump holds the inside of the enclosure slightly below the outside pressure. That draws air, and any dust it carries, through every gap in the seals. The test runs until a set volume of air has been drawn through, or for up to eight hours.
The pass criteria differ. An IP5X enclosure passes if the dust that gets in does not build up in a quantity or place that could interfere with operation or safety. An IP6X enclosure passes only if there is no dust deposit inside at all. Ratings apply to the enclosure as tested, so cable glands, connectors and any covers must be fitted the same way in service for the rating to hold.
IP5X and IP6X side by side
| Aspect | IP5X | IP6X |
|---|---|---|
| Name in IEC 60529 | Dust protected | Dust tight |
| Dust allowed inside | A limited amount that does not affect operation | None |
| Test | Talc dust chamber, with vacuum if the enclosure breathes | Talc dust chamber with vacuum, always |
| Pass criterion | No harmful build-up of dust | No dust deposit inside |
| Typical design | Gaskets and filtered or labyrinth vents | Fully sealed, often fanless |
| Typical places | Indoor workshops, warehouses, light dust | Fine or conductive dust such as wood, flour, cement and metal |
| Common full ratings | IP54, IP55 | IP65, IP66, IP67, IP68, IP69K |
For electronics, the gap between the two matters more than it looks. A thin layer of fine dust on a circuit board traps heat and, with moisture or conductive particles, can create leakage paths between components. That is why most industrial computers for dirty sites are specified as IP6X, usually as part of IP65 or higher.
Which rating a computer needs
The right choice depends on the dust, the airflow and whether water is also involved.
-
//
IP5X. Suits most indoor dusty areas where a little ingress is acceptable, such as a light-industrial workshop or a dry warehouse.
-
//
IP6X. Needed for fine or conductive dust, such as wood, flour, cement, carbon or metal, and anywhere a dust build-up would be hard to clean out.
-
//
Water. Check the second digit separately; X means not rated. Sites that are washed or exposed to rain need a full rating.
-
//
Fanless helps. With no fan or vents, a computer is far easier to seal, which is how most IP6X systems are built.
-
//
Whole enclosure or front only. Panel PCs and monitors are often rated at the front only. Check whether the rear is sealed too if it sits in the same dusty air.
Why fine dust matters
Fine dust is one of the commonest reasons computers fail on production lines. A fan pulls dust through the case and onto heatsinks and boards, where it insulates hot components and clogs filters. In time the system overheats, throttles or stops.
Our dustproof computers case study covers a wooden floor production line where fanned PCs kept failing, and our IP rating chart explains every rating from IP65 to IP69K. If a specification is written in North American terms, our NEMA vs IP rating comparison shows how the two systems line up.
Quick answers on IP5X and IP6X
IP5X vs IP6X: common questions
Is IP6X waterproof?
Not on its own. IP6X covers dust only. The X means water was not tested, so look for a second digit such as 5, 6 or 7 for water protection.
Is IP6X better than IP5X?
Yes, for dust. IP6X allows no dust inside, while IP5X allows a limited amount. Whether the extra sealing is needed depends on how fine and conductive the dust is.
What does dust tight mean?
No dust deposit inside after the test. It is the IEC 60529 name for IP6X, proven in a talc dust chamber with the enclosure held under a slight vacuum.
Does IP6X include IP5X?
Yes. Dust ratings are cumulative, so an enclosure that passes IP6X also meets IP5X and the lower solid-object levels.
Is IP5X enough for a computer?
Sometimes. It suits light dust indoors. For fine, abrasive or conductive dust, or for systems that are hard to reach for cleaning, specify IP6X.

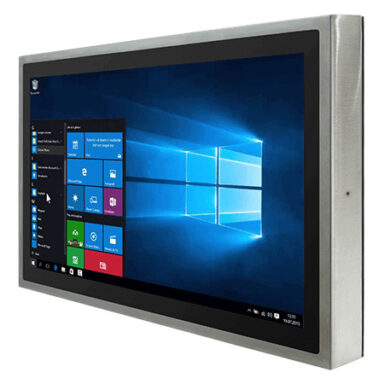

Our IP65 computers combine a dust-tight IP6X enclosure with protection against water jets. We integrate and validate each system as standard, so tell us about the dust, the airflow and the cleaning routine and we will match the rating to the site.
