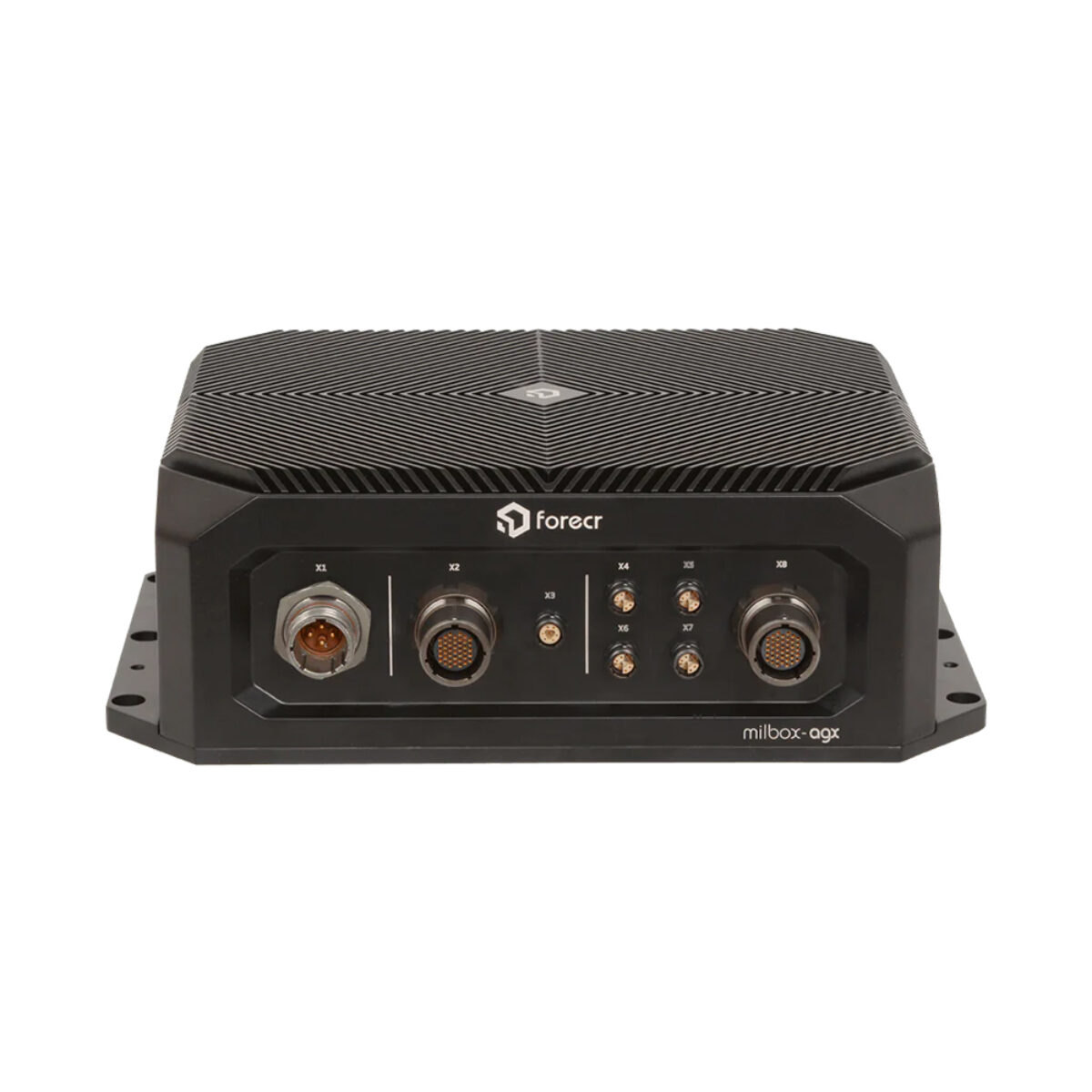

Forecr MILBOX-AGX NVIDIA Jetson AGX Orin Military Computers with IP67 and MIL-STD-810

Military vehicles, vessels and airborne systems are adding AI for perception and decision support, but the computer that runs it has to fit an existing installation: serial and CAN links to legacy equipment, Gigabit networks, a 28 VDC supply and an environment of shock, vibration, dust and water. The Forecr MILBOX-AGX series is built for that job, placing NVIDIA Jetson AGX Orin compute inside a sealed IP67 enclosure designed to meet MIL-STD-810, MIL-STD-461 and MIL-STD-1275/704.

Every MILBOX-AGX military computer shares one carrier design. Networking is 4x Gigabit Ethernet, and field I/O covers 2x CAN bus, 4x RS-232 and 4x RS-422 serial ports, giving eight serial channels for radios, sensors and older subsystems. Peripherals connect through 1x USB 3.1 and 2x USB 2.0, with a further USB 2.0 port as a serial console, and display output is 1x HDMI. Storage combines 64 GB of eMMC 5.1 flash with an M.2 Key-M SSD slot for NVMe drives and an SD card slot. Power comes from a 12-36 VDC input at 28 VDC nominal, and the software stack is Ubuntu Linux 20.04 with JetPack 5.x. The enclosure measures 210mm x 296mm x 92mm and weighs 4750 g.

The two models differ by module. The MILBOX-AGX-64S carries the NVIDIA Jetson AGX Orin 64GB with up to 275 TOPS of AI performance, for deep neural networks, multi-camera analytics and sensor fusion that need the most memory. The MILBOX-AGX-32S uses the NVIDIA Jetson AGX Orin 32GB with the identical I/O, enclosure and environmental envelope, suited to inference workloads that fit in 32GB of LPDDR5x. Because the two models share connectors, mounting and power, a program can design one installation and fit either module as its AI requirements change.

Forecr positions the MILBOX-AGX for defense, aerospace, marine and transportation work, from real-time threat analysis and target tracking to onboard navigation and data processing on ships. Both military computers operate from -25°C to +70°C, have no wireless interfaces, and use a ruggedized enclosure built to withstand extreme temperatures, shock and vibration. IP67 sealing protects against dust and temporary immersion, so the MILBOX-AGX can be mounted outside protected equipment bays as well as within them.
