Neousys Nuvo-7000 Intel 9th/8th Gen Core Industrial Embedded Computers with Cassette Expansion and MezIO

Many machine builders and integrators standardized on Intel 9th and 8th Gen Core processors and still ship systems validated on that hardware. The Neousys Nuvo-7000 series keeps that generation available in a fanless rugged chassis with a patented cassette that holds an add-on card and cools it through the case, so a frame grabber, motion card or fieldbus card can run in a sealed, fanless system from -25 °C to 70 °C.

Every version has an LGA1151 socket for Intel 9th or 8th Gen processors at 35 W or 65 W: Core i7-9700E, i7-9700TE, i7-8700 and i7-8700T, the matching Core i5 and i3 parts, Pentium G5400 or Celeron G4900. The Q370 chipset supports Intel AMT 12.0 for remote management and TPM 2.0, two SO-DIMM sockets take up to 64 GB of DDR4-2666, and Intel UHD Graphics 630 drive VGA, DVI-D and a 4K DisplayPort output together. Storage is two internal SATA ports for 2.5-inch drives with RAID 0 or 1 (a front hot-swappable tray plus one internal bay on the LP), plus the NVMe and mSATA sockets. A MezIO port takes a Neousys module for isolated DIO, more serial ports, ignition control or a 4G socket.

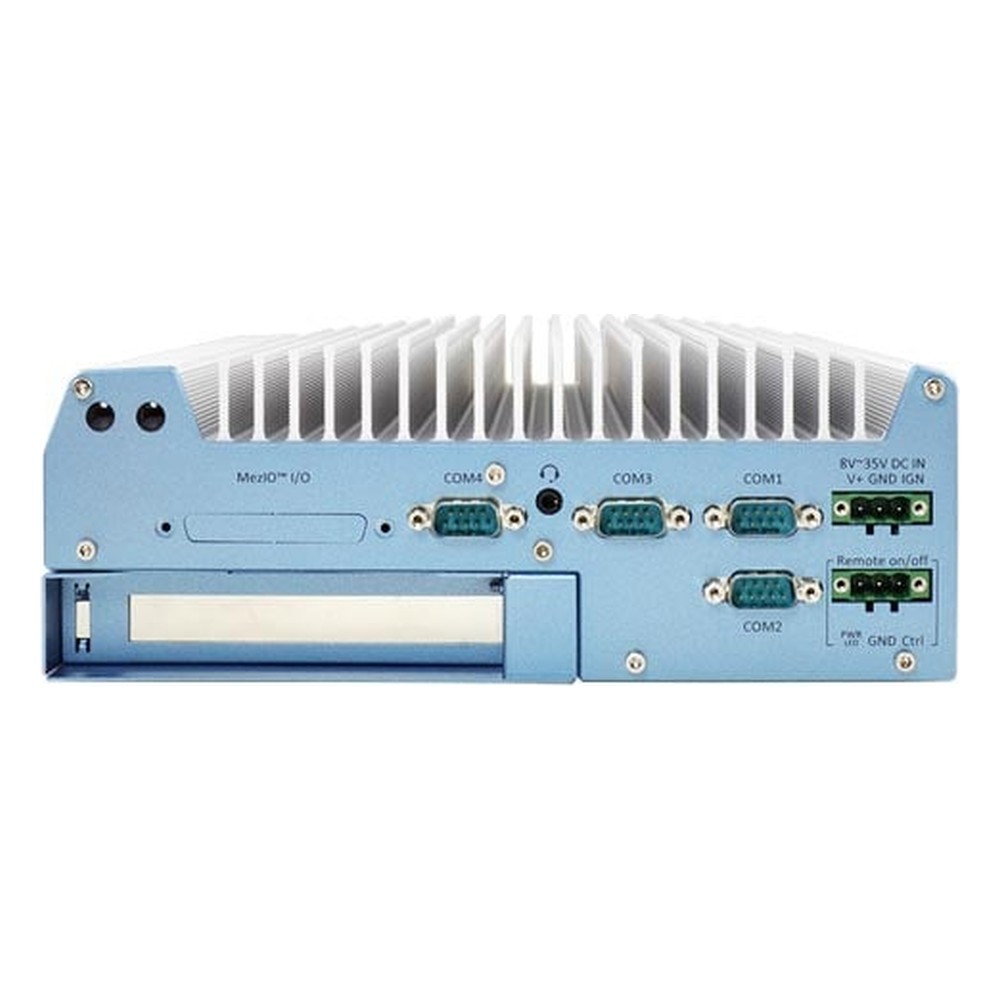

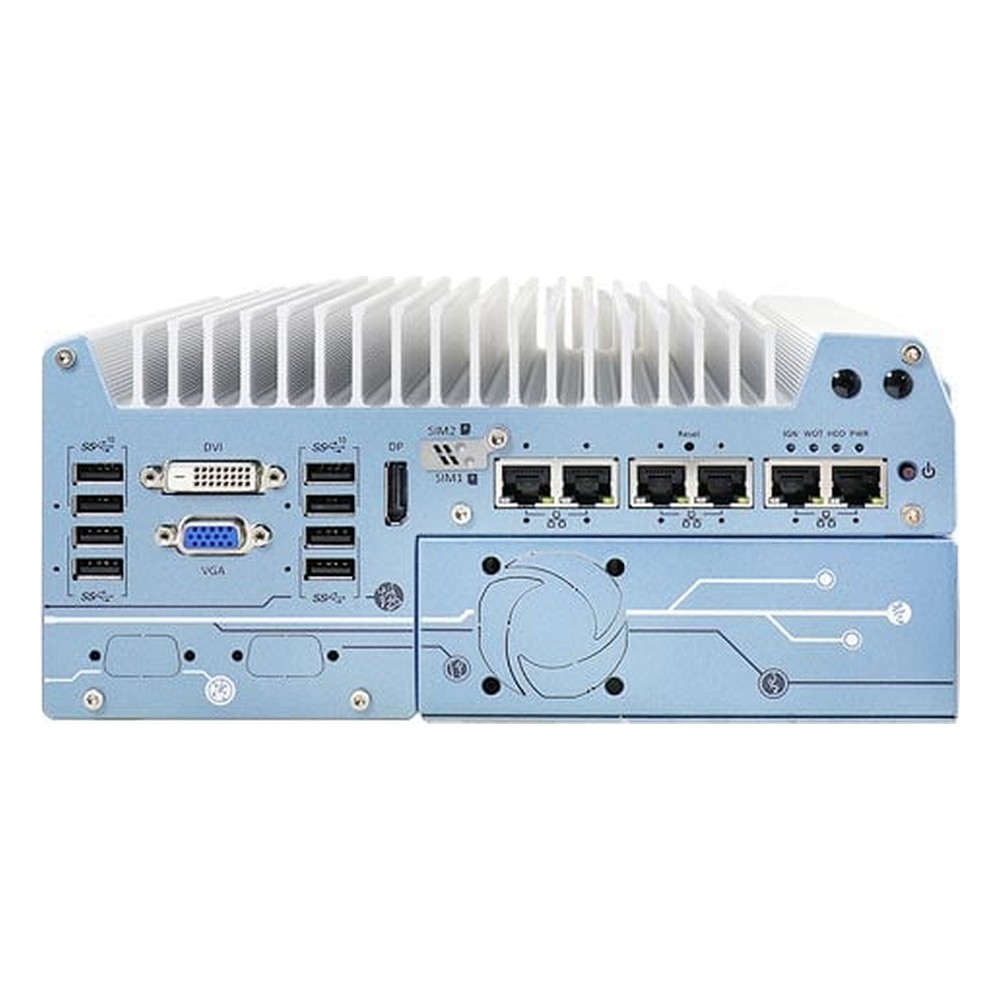

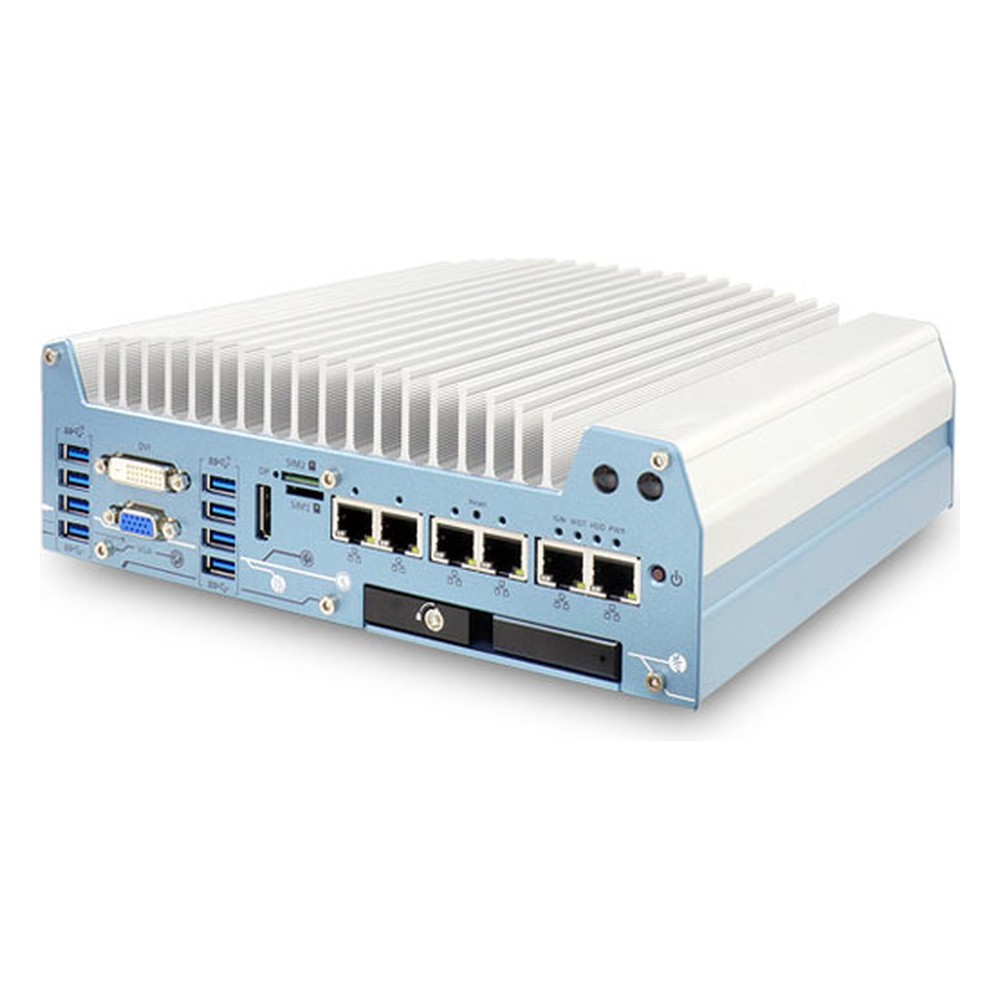

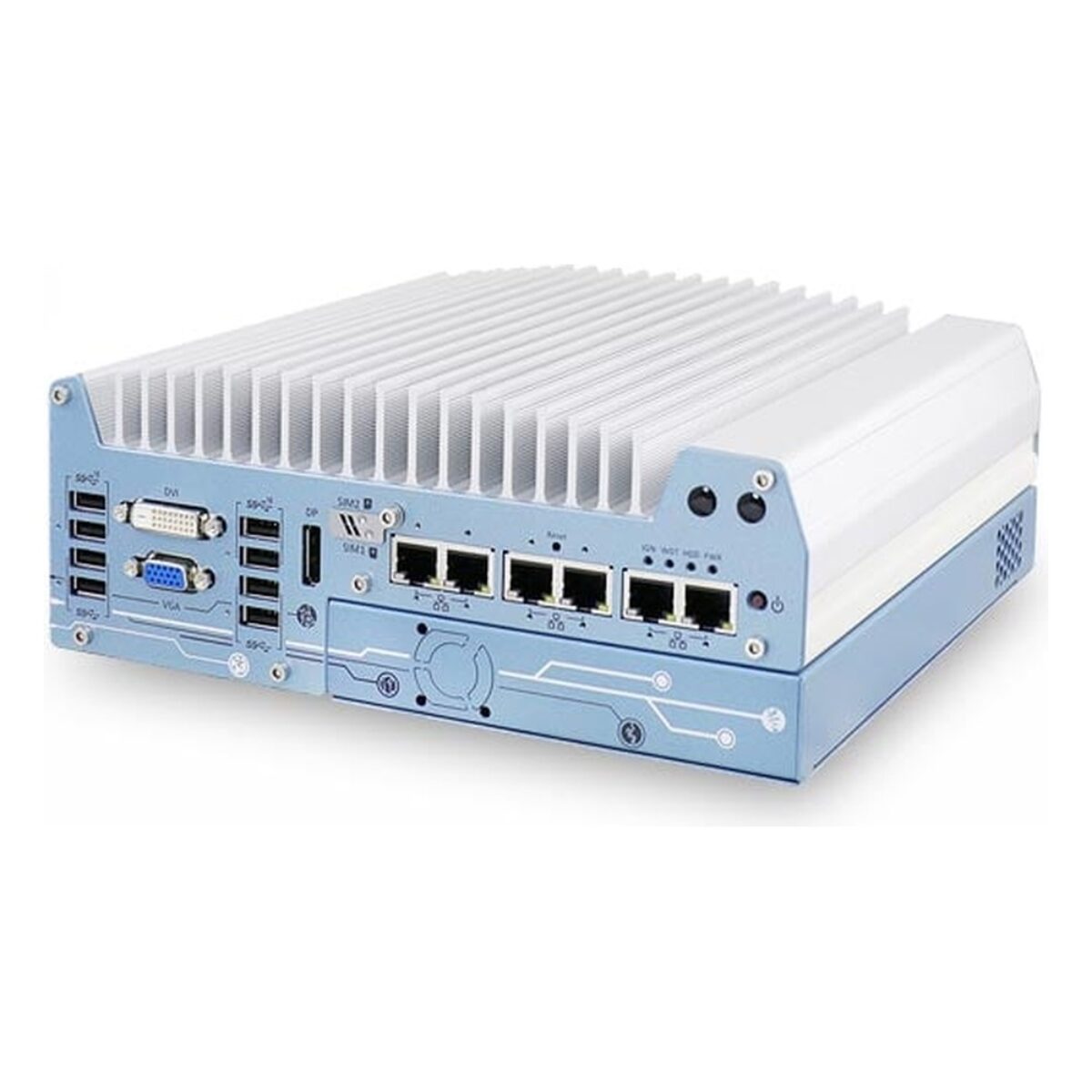

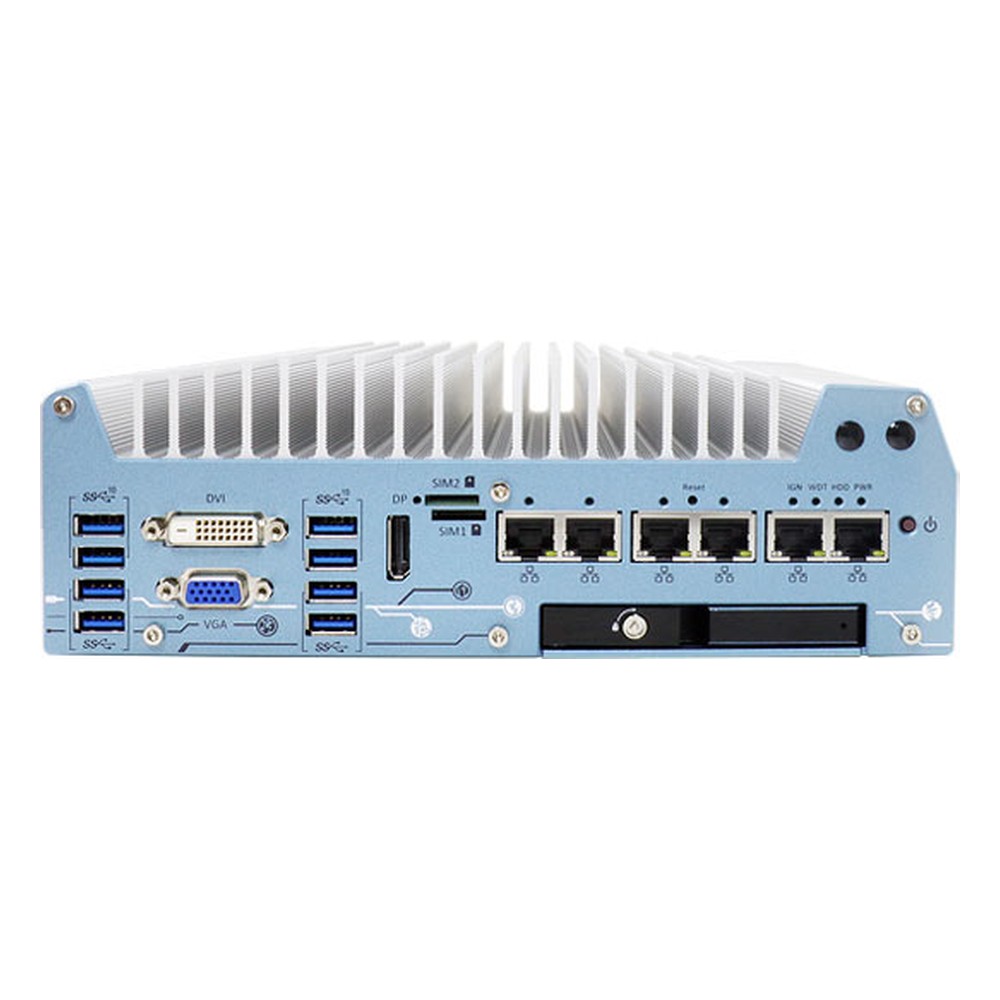

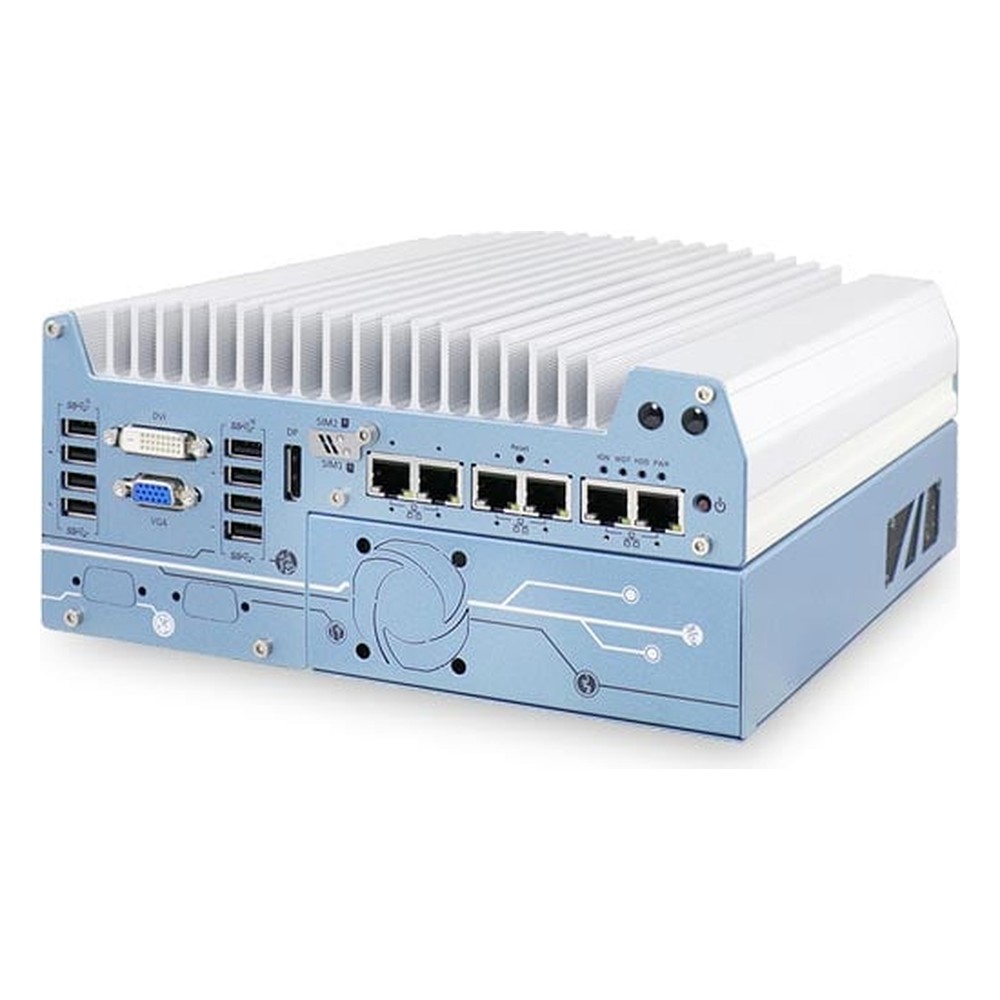

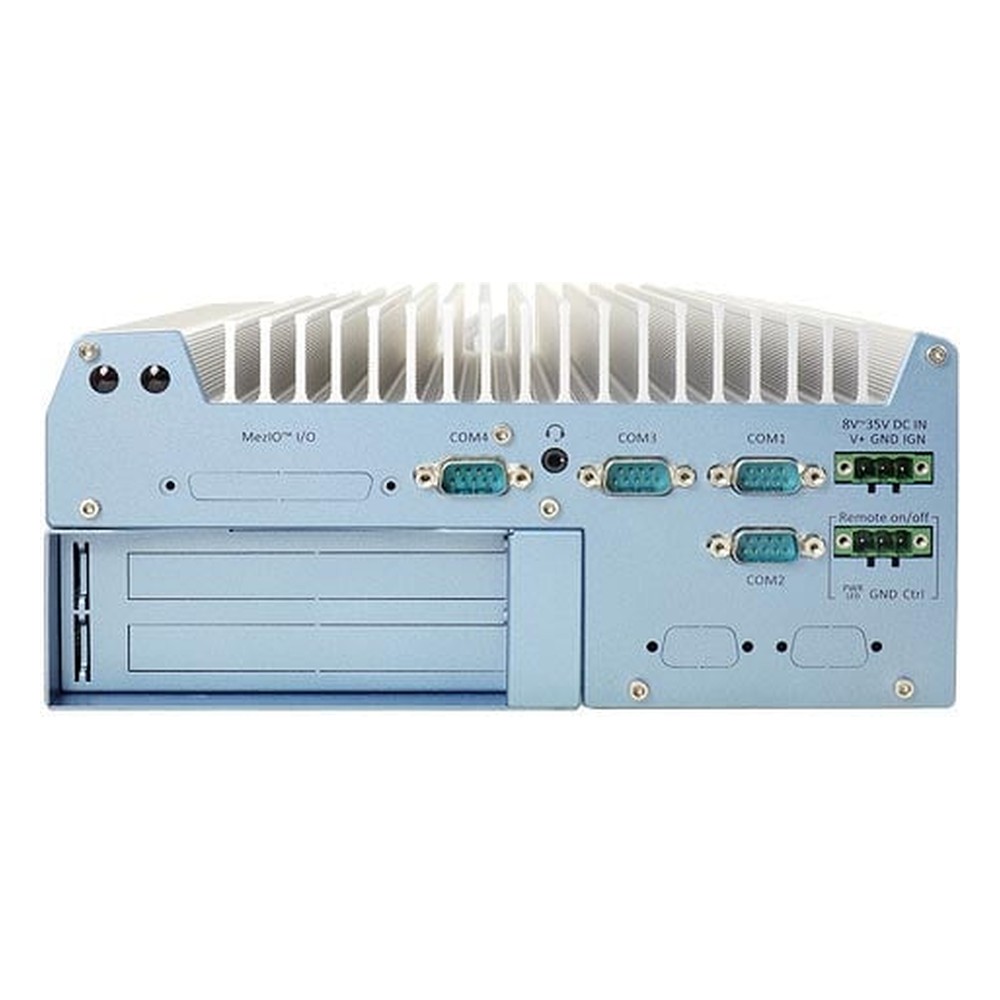

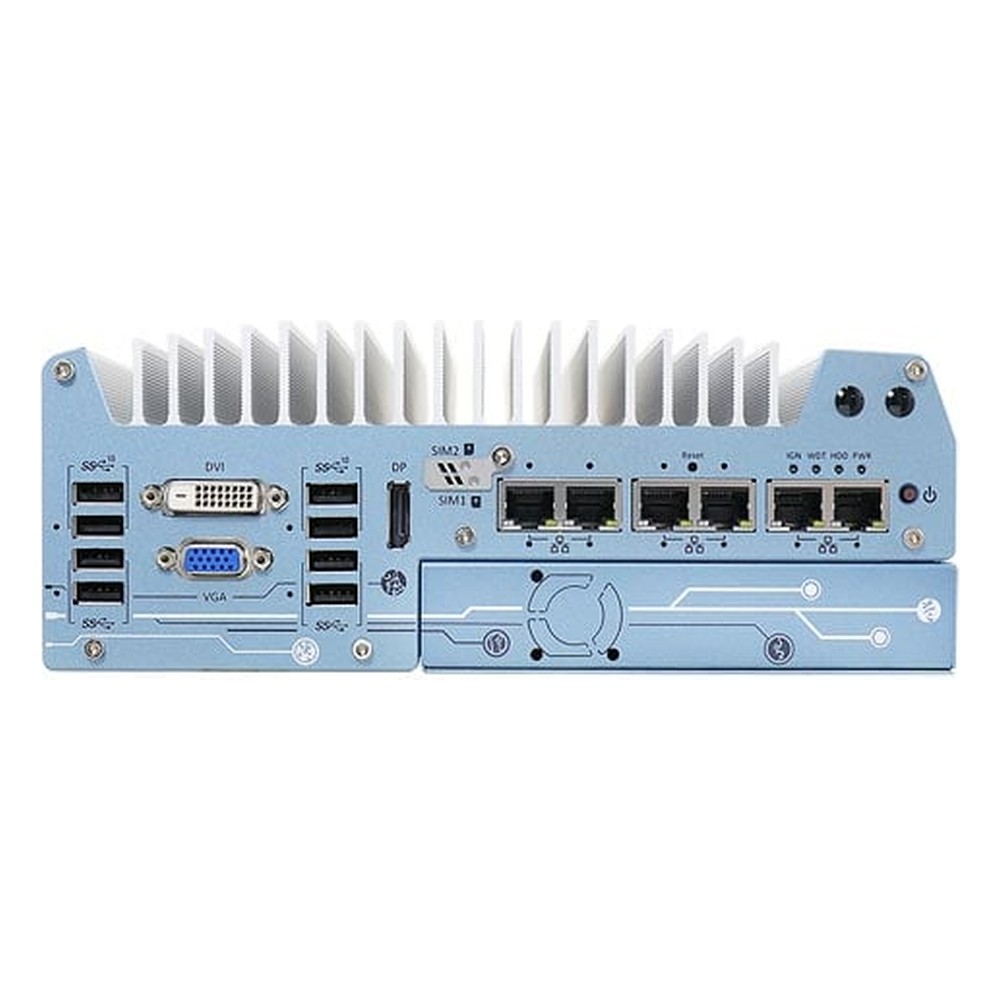

The cassette versions come in three forms: the Nuvo-7002E and Nuvo-7006E take one PCIe x16 card (eight lanes, Gen3), the Nuvo-7002DE and Nuvo-7006DE take two, and the Nuvo-7002P and Nuvo-7006P take a legacy PCI card. The Nuvo-7002LP and Nuvo-7006LP drop the cassette for a low-profile chassis with a hot-swappable 2.5-inch tray. Models ending in 02 have two GbE ports; models ending in 06 have six, with IEEE 802.3at PoE+ on ports three to six from a 100 W budget as a build option.

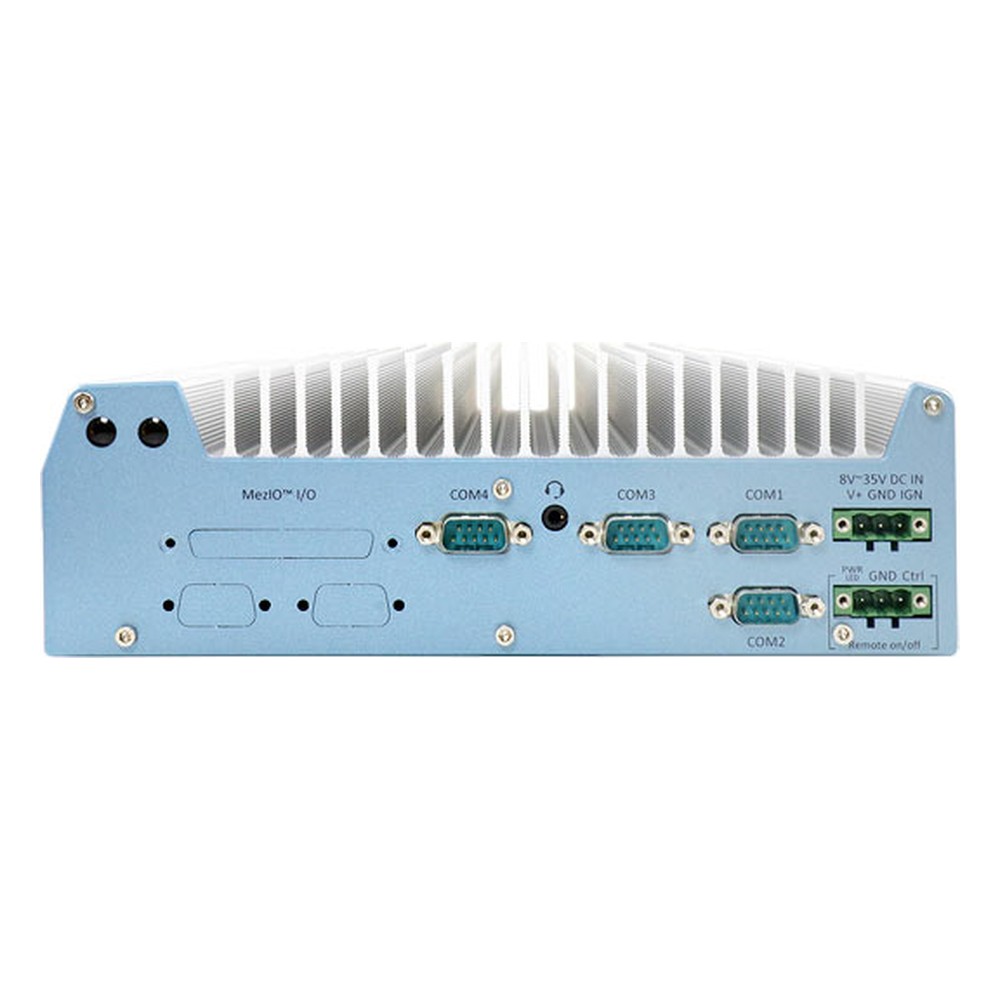

All versions share four USB 3.1 Gen 2 and four USB 3.1 Gen 1 ports, two RS-232/422/485 ports and two RS-232 ports on DB9, a mic-in and speaker-out jack, an M.2 2280 NVMe socket on PCIe Gen3 x4, an mSATA socket shared with a full-size mini PCIe socket, and an M.2 B key socket with two front SIM slots for LTE. Power is 8 to 35 V DC on a terminal block, with a second terminal block for a remote power switch and LED. The unit runs fanless from -25 °C to 70 °C with a 35 W CPU (to 50 °C with a 65 W CPU at full power), meets MIL-STD-810G for vibration and shock, and carries CE and FCC Class A with UL 62368-1 and IEC 62368-1 safety. Wall mounting is standard and DIN rail mounting is optional.
