Neousys Nuvo-8034 Intel Xeon E or 9th/8th Gen Core Expandable Industrial PC with 7 Expansion Slots and Isolated DIO

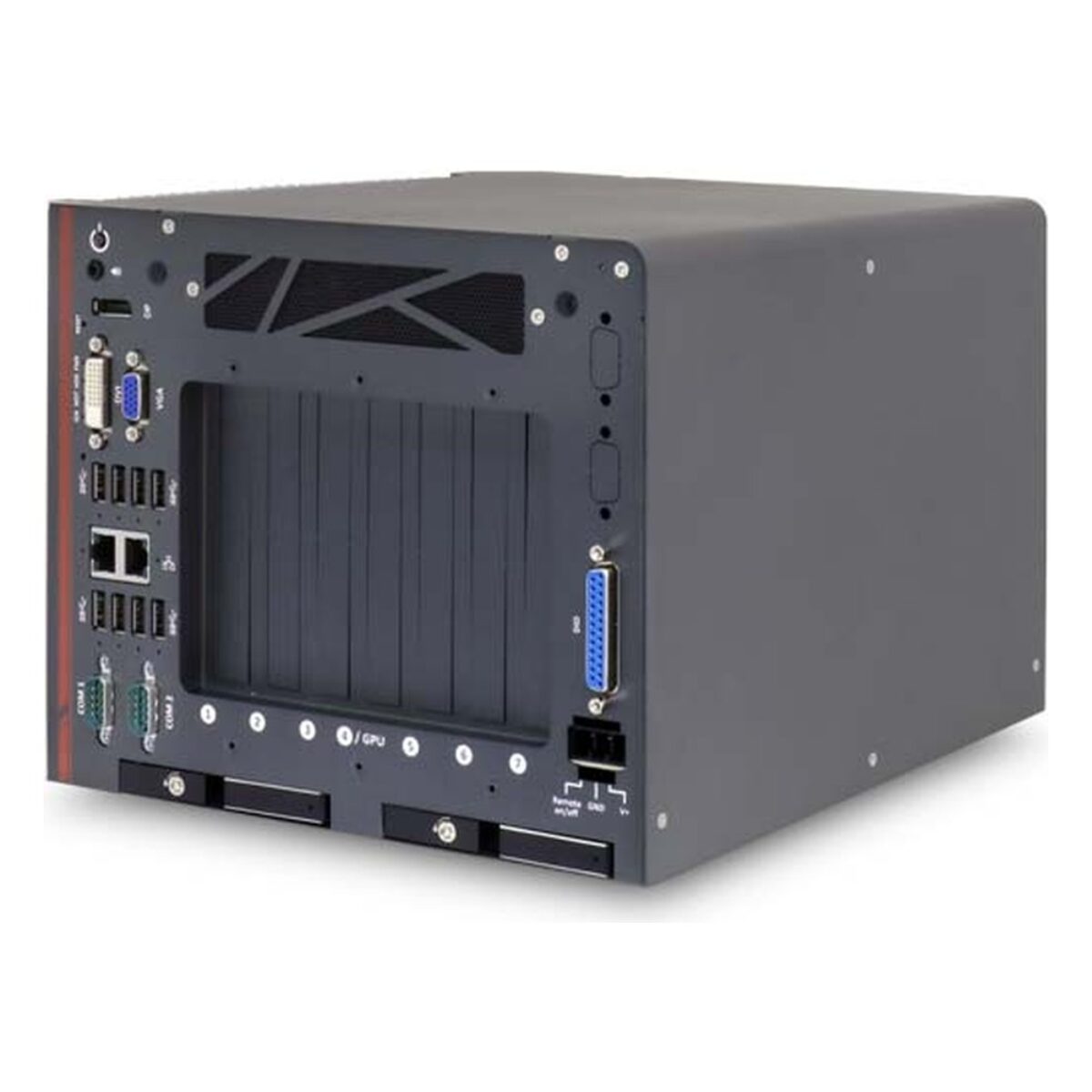

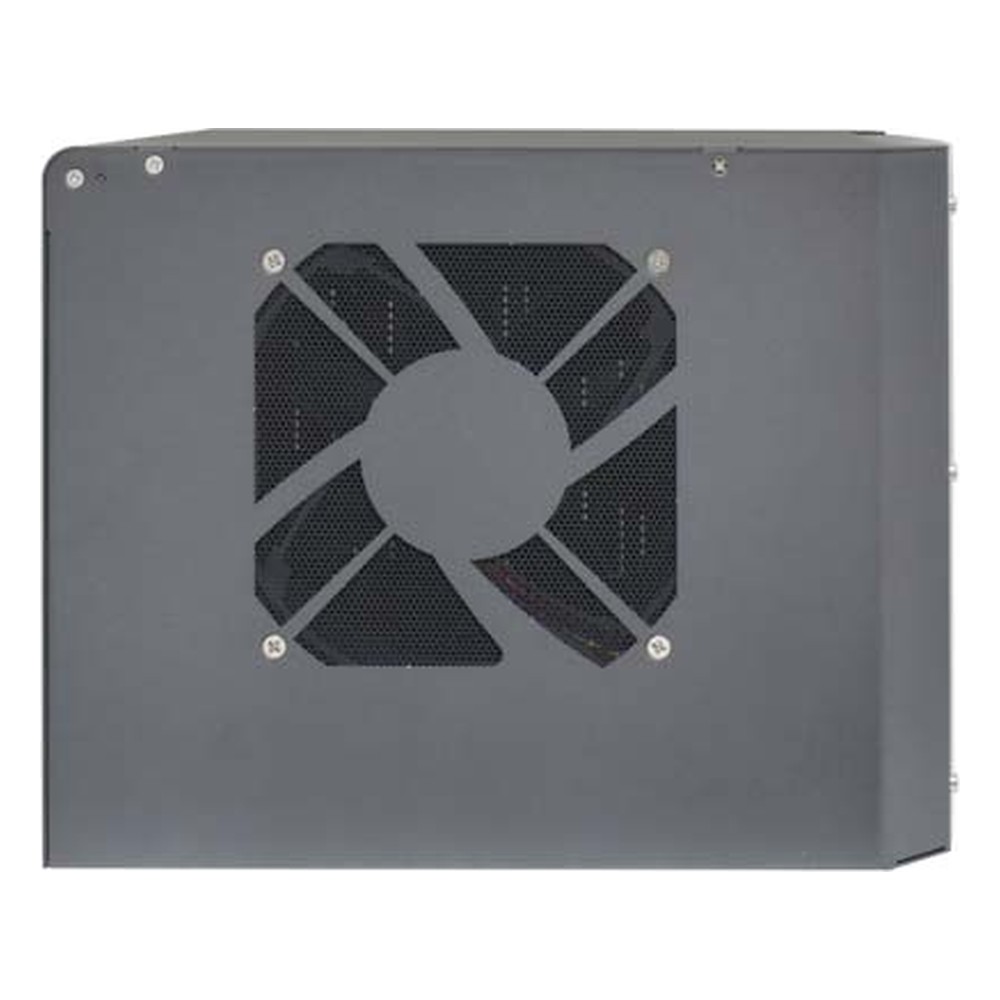

Large test systems and machine controllers can need a GPU, several PCIe cards and a bank of legacy PCI cards in one computer, with server-class memory and RAID storage. The Neousys Nuvo-8034 is an expandable industrial PC for that job, with seven expansion slots, a Xeon E or Core processor and a rear exhaust fan that draws air through a sealed tunnel over the cards.

Inside the Nuvo-8034 is an LGA1151 socket for Intel Xeon E-2176G, E-2124G, E-2278GE or E-2278GEL, or 9th and 8th Gen Core i7, i5 and i3 processors. The C246 chipset supports AMT 12.0 and TPM 2.0, four SO-DIMM sockets take up to 128 GB of DDR4-2133 with or without ECC, and Intel UHD Graphics 630 drive VGA, DVI-D and DisplayPort outputs, or a GPU can sit on the PEG slot.

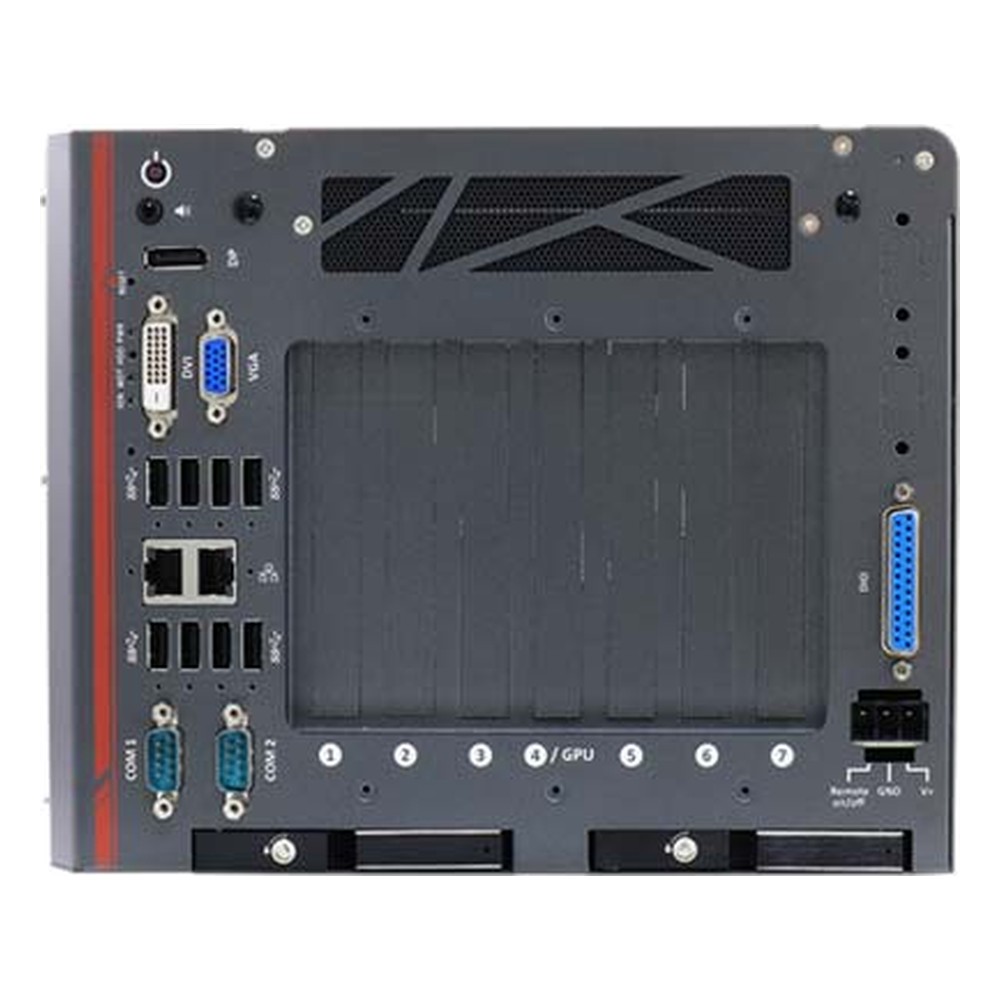

The slots are two PCIe x16 Gen3 with eight lanes, two PCIe x8 Gen3 with four lanes and three 33 MHz, 32-bit PCI. The Nuvo-8034 also carries two GbE ports with screw locks, four USB 3.1 Gen 2 and four Gen 1 ports, two RS-232/422/485 ports, eight isolated inputs and eight isolated outputs, two hot-swappable 2.5-inch trays with RAID 0 or 1, an M.2 NVMe socket, two mSATA and mini PCIe sockets with SIM, and an M.2 LTE socket.

Power is 8 to 35 V DC on a terminal block, with a remote power terminal. The system runs from -25 °C to 60 °C under full CPU and GPU load, meets MIL-STD-810G for vibration and shock, and carries CE and FCC Class A. For fanless expansion, see the Nuvo-8000 series, and for a GPU-first chassis, the Nuvo-8108GC series.
