Neousys Nuvo-8108GC Intel Xeon E and 9th/8th Gen Core GPU Edge Computers with 250W NVIDIA GPUs

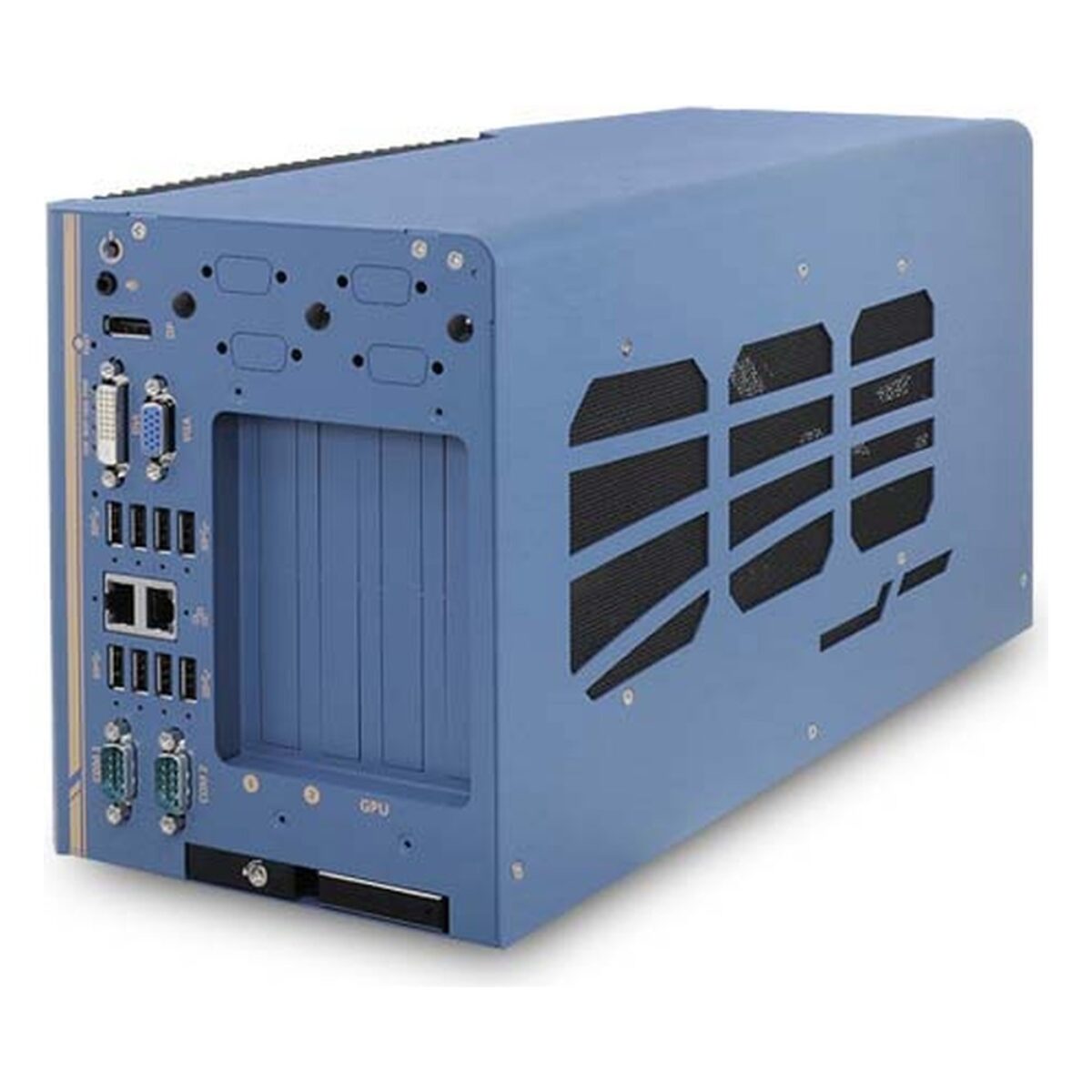

Autonomous driving tests, mobile mapping and AI vision in vehicles need a full-size NVIDIA GPU, a Xeon processor and a power input that survives a vehicle supply. The Neousys Nuvo-8108GC series is a GPU edge computer for that work: a fanless CPU section beside a sealed air tunnel, cooled by an exhaust fan, that keeps a 250 W graphics card at full load, with ignition control and patented damping brackets as standard.

Every model has an LGA1151 socket for Intel Xeon E-2176G, E-2278GE or E-2278GEL, or 9th and 8th Gen Core i7, i5 and i3 processors. The C246 chipset supports AMT 12.0 and TPM 2.0, four SO-DIMM sockets take up to 128 GB of DDR4-2133 with or without ECC, and Intel UHD Graphics 630 drive VGA, DVI-D and a 4K DisplayPort output. The expansion area has two PCIe x16 slots and two PCIe x8 slots, all Gen3 (eight and four lanes), so the GPU can sit beside a frame grabber, 10GbE or CAN card. Storage is a hot-swappable 2.5-inch tray and an internal bay with RAID 0 or 1, plus the NVMe socket.

There are three versions. The Nuvo-8108GC takes a 250 W NVIDIA card of your choice. The Nuvo-8108GC-QD is built for the NVIDIA RTX A6000 or A4500 professional GPUs. The Nuvo-8108GC-XL has a longer chassis for an NVIDIA GeForce RTX 30 card up to the RTX 3080, although a large card can block one PCIe x8 slot.

All versions share two GbE ports by Intel I219-LM and I210-IT controllers, four USB 3.1 Gen 2 and four Gen 1 ports, two RS-232/422/485 ports, a mic-in and speaker-out jack, an M.2 NVMe socket on PCIe Gen3 x4, two mSATA sockets shared with two full-size mini PCIe sockets, and an M.2 B key socket with dual SIM for LTE. Power is 8 to 48 V DC on two terminal blocks with ignition control (18 to 48 V above 100 W of system load). The systems run from -25 °C to 60 °C with a 35 W CPU and the GPU at full load, meet MIL-STD-810G and 3 Grms for vibration and shock, and carry CE and FCC Class A.
