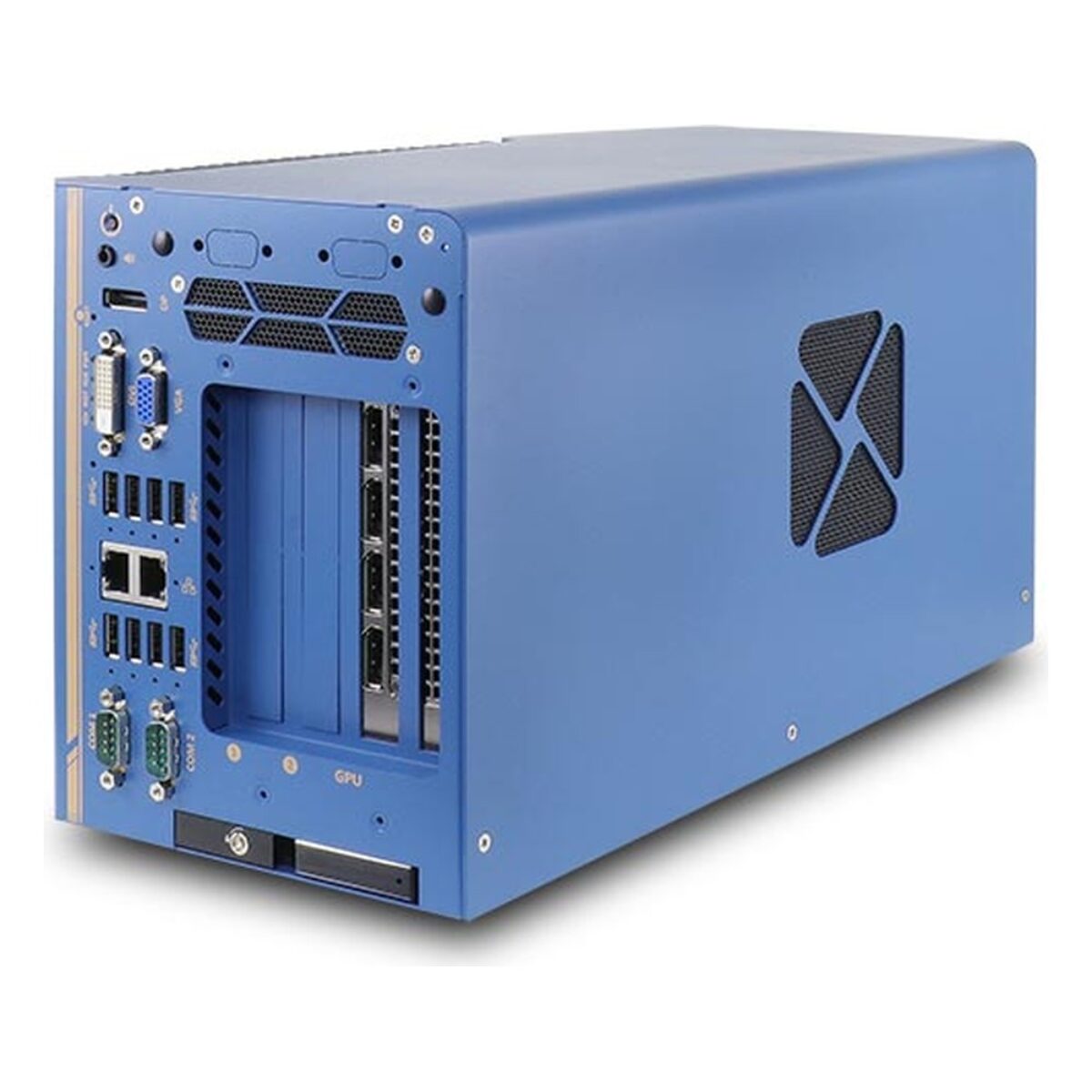

Neousys Nuvo-8108GC-QD Intel Xeon E or 9th/8th Gen Core GPU Edge Computer with NVIDIA RTX A6000 or A4500

Large AI models, 3D perception and simulation at the edge need the memory of a professional GPU, not a gaming card. The Neousys Nuvo-8108GC-QD is built for the NVIDIA RTX A6000 or A4500, with an air tunnel and exhaust fan that keep the card at full load beside a fanless CPU section. It is the RTX A6000/A4500 version of the Nuvo-8108GC series.

Inside the Nuvo-8108GC-QD is an LGA1151 socket for Intel Xeon E-2176G, E-2278GE or E-2278GEL, or 9th and 8th Gen Core i7, i5 and i3 processors. The C246 chipset supports AMT 12.0 and TPM 2.0, four SO-DIMM sockets take up to 128 GB of DDR4-2133 with or without ECC, and Intel UHD Graphics 630 drive VGA, DVI-D and a 4K DisplayPort output.

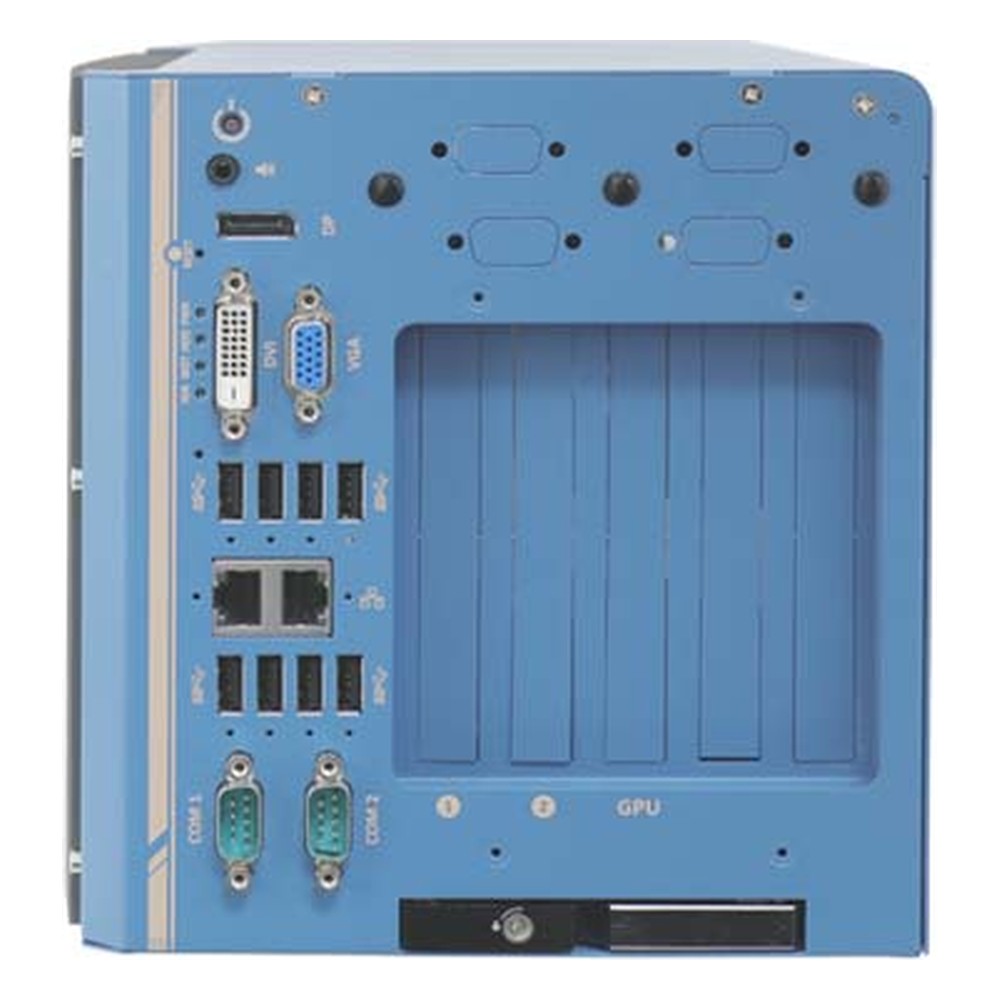

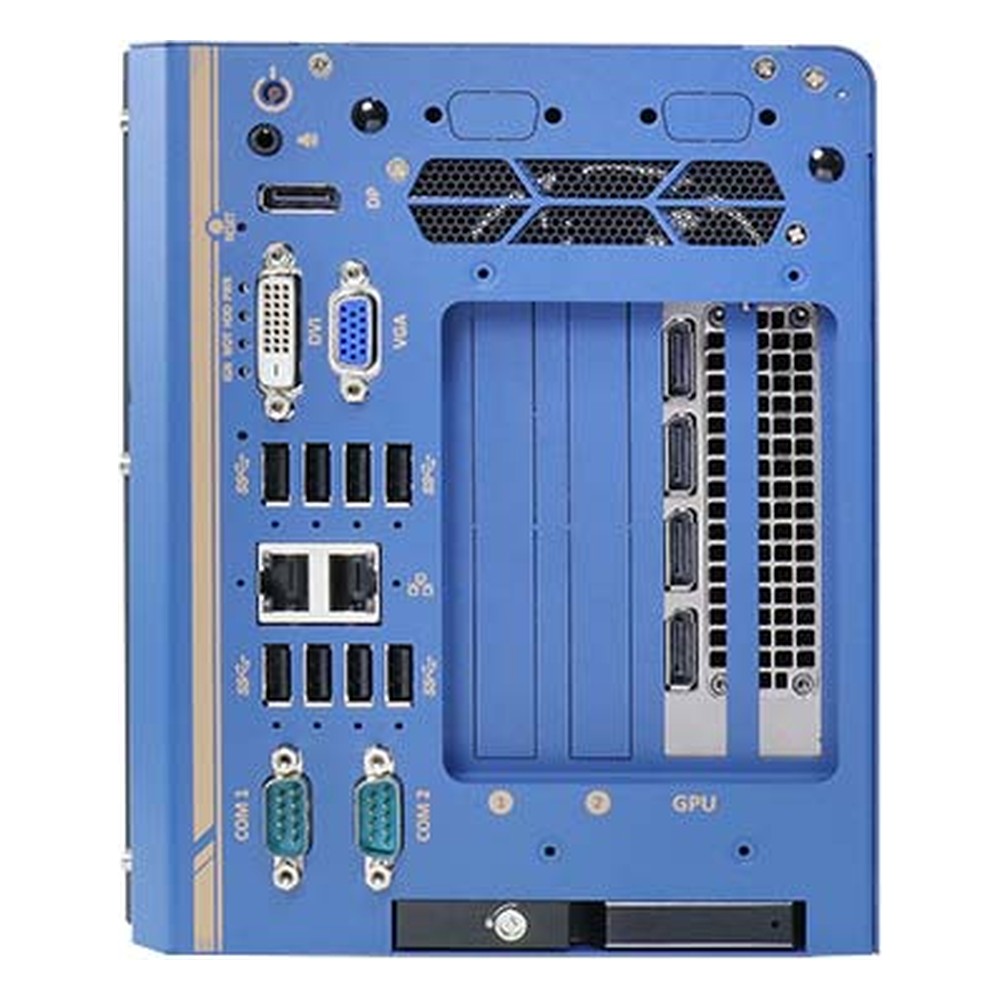

The GPU sits in one of two PCIe x16 Gen3 slots with eight lanes, beside two PCIe x8 Gen3 slots with four lanes for frame grabbers or network cards in the Nuvo-8108GC-QD. The panel also carries two GbE ports by Intel I219-LM and I210-IT controllers, four USB 3.1 Gen 2 and four Gen 1 ports, two RS-232/422/485 ports, a mic-in and speaker-out jack, an M.2 NVMe socket on PCIe Gen3 x4, two mSATA sockets shared with two full-size mini PCIe sockets, and an M.2 B key socket with dual SIM for LTE, with a hot-swappable 2.5-inch tray and an internal bay (RAID 0 or 1).

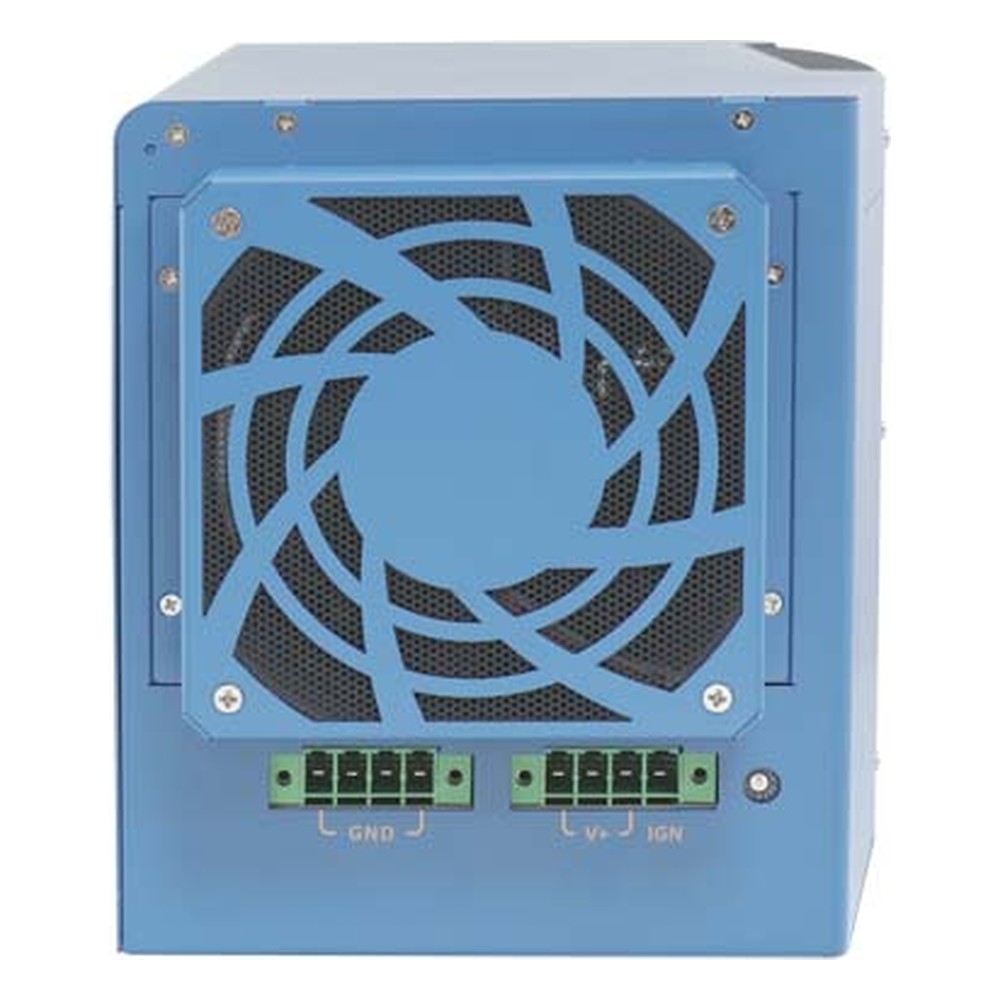

Power is 8 to 48 V DC on two terminal blocks with ignition control (18 to 48 V above 100 W of system load), and patented damping brackets come as standard. The system runs from -25 °C to 60 °C with a 35 W CPU and the GPU at full load, meets MIL-STD-810G and 3 Grms for vibration and shock, and carries CE and FCC Class A. The Nuvo-8108GC takes any 250 W card, and the Nuvo-8108GC-XL a GeForce RTX 30.
