Neousys Nuvo-8240GC Intel Xeon E or 9th/8th Gen Core AI Inference Server with Dual NVIDIA L4, T4 or A2

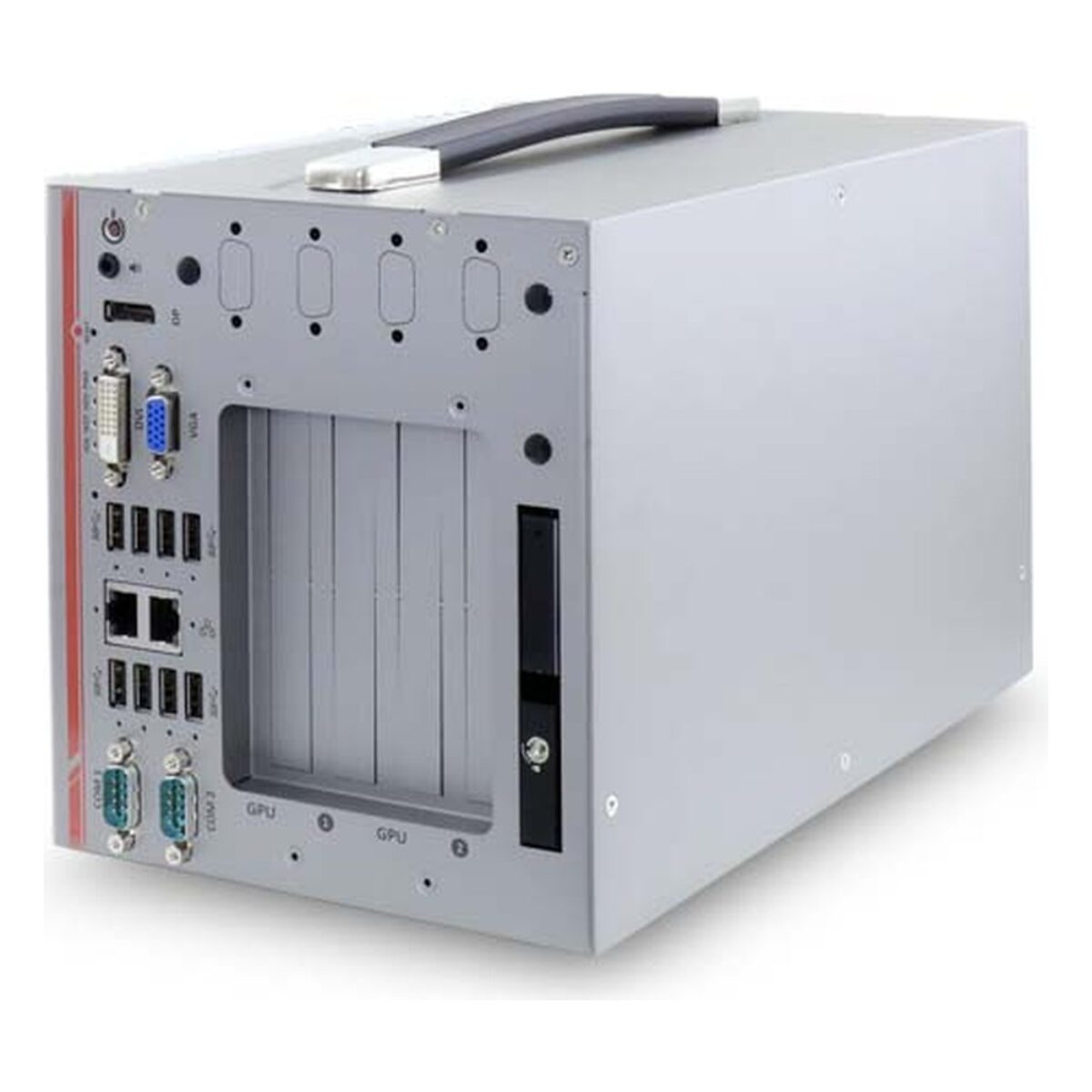

Running several AI models at once, or many video streams, at a site with no server room needs more than one GPU in a rugged box. The Neousys Nuvo-8240GC carries two NVIDIA L4, T4 or A2 data centre GPUs in a sealed air tunnel cooled by an exhaust fan, with ignition control, damping brackets and a carry handle.

Inside the Nuvo-8240GC is an LGA1151 socket for Intel Xeon E-2176G, E-2278GE or E-2278GEL, or 9th and 8th Gen Core i7, i5 and i3 processors. The C246 chipset supports AMT 12.0 and TPM 2.0, four SO-DIMM sockets take up to 128 GB of DDR4-2133 with or without ECC, and Intel UHD Graphics 630 drive VGA, DVI-D and a 4K DisplayPort output.

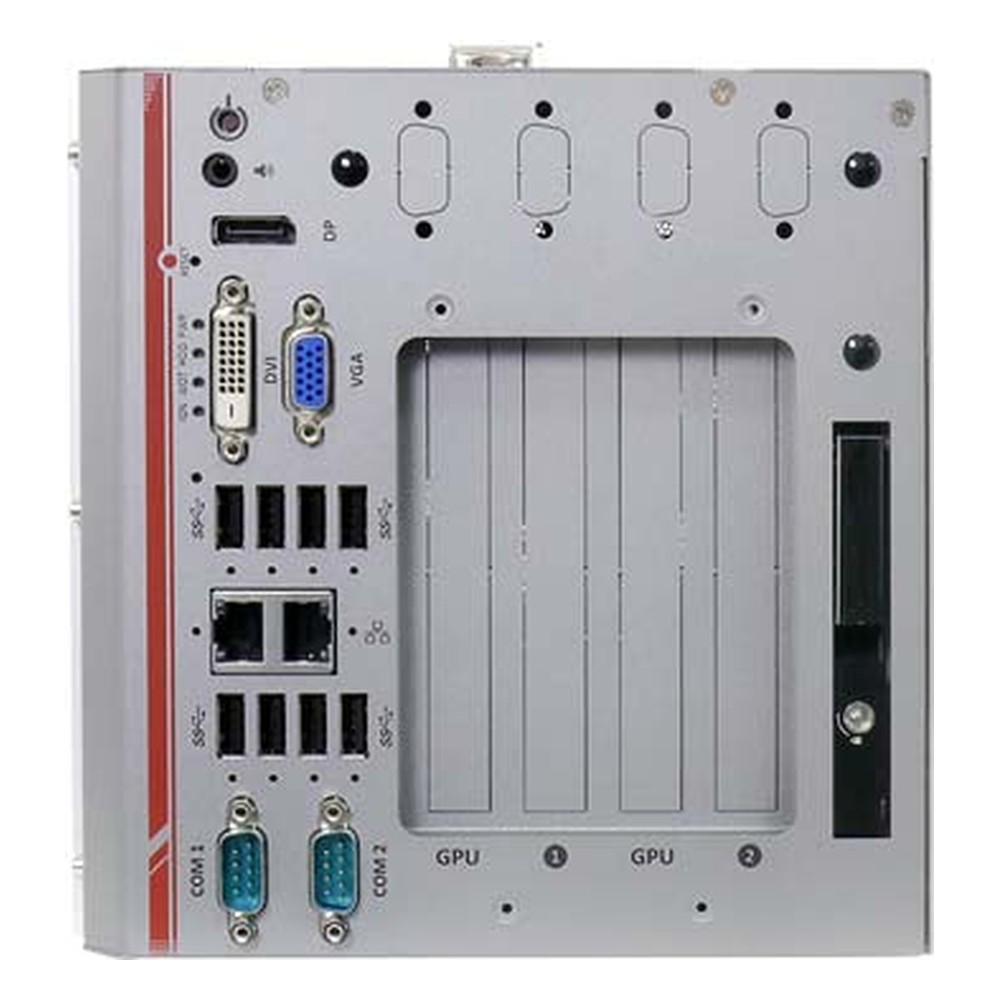

The expansion area has two PCIe x16 Gen3 slots with eight lanes for the GPUs and two PCIe x8 Gen3 slots with four lanes. The Nuvo-8240GC also carries two GbE ports by Intel I219-LM and I210-IT controllers, four USB 3.1 Gen 2 and four Gen 1 ports, two RS-232/422/485 ports, a mic-in and speaker-out jack, an M.2 NVMe socket on PCIe Gen3 x4, two mSATA sockets shared with two full-size mini PCIe sockets, and an M.2 B key socket with dual SIM for LTE, with a hot-swappable 2.5-inch tray and an internal bay (RAID 0 or 1).

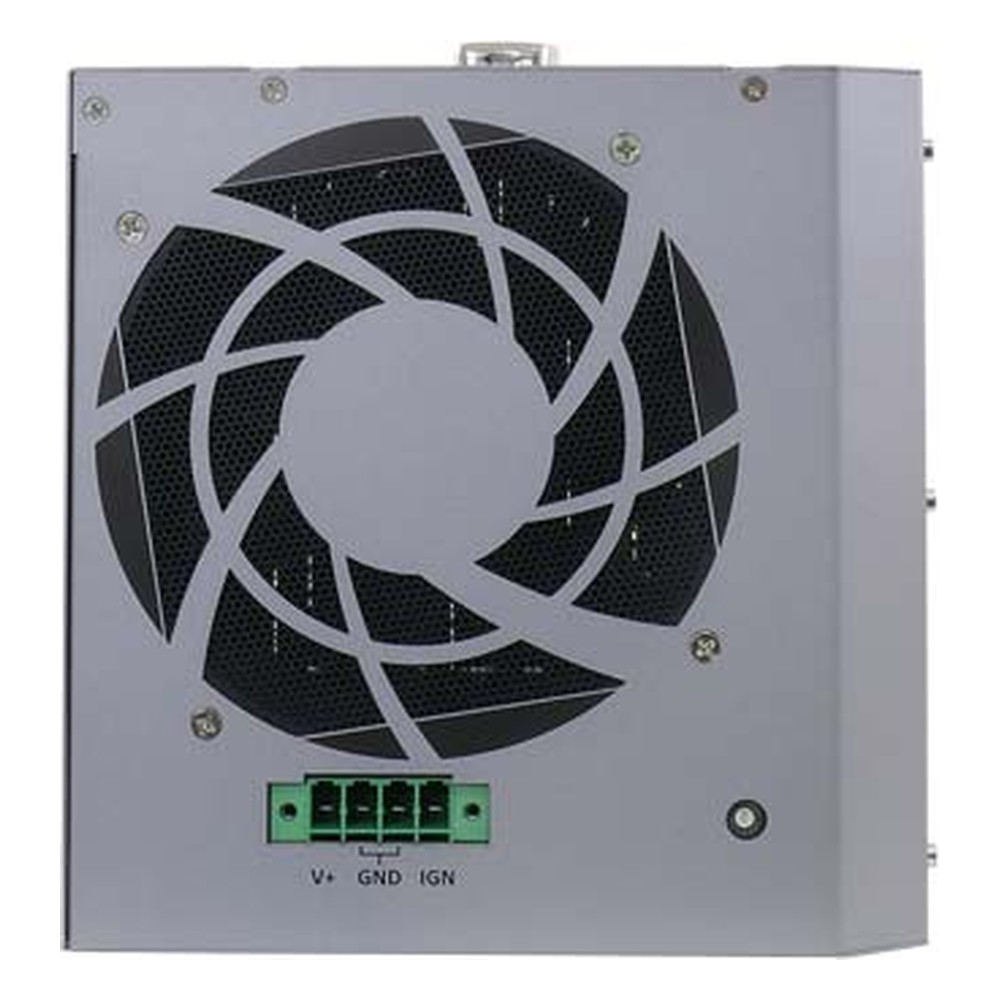

Power is 8 to 48 V DC on a terminal block with ignition control. The system runs from -25 °C to 60 °C with a 35 W CPU, although NVIDIA requires 0 °C to 50 °C for systems with an L4, T4 or A2 under its warranty policy. It meets MIL-STD-810G and 3 Grms for vibration and shock and carries CE and FCC Class A. For a single data centre GPU, see the Nuvo-7164GC/7166GC series, and for two 250 W cards, the Nuvo-8208GC series.
