Neousys Nuvo-8208GC Intel Xeon E or 9th/8th Gen Core Dual GPU Computer with Two 250W NVIDIA GPUs

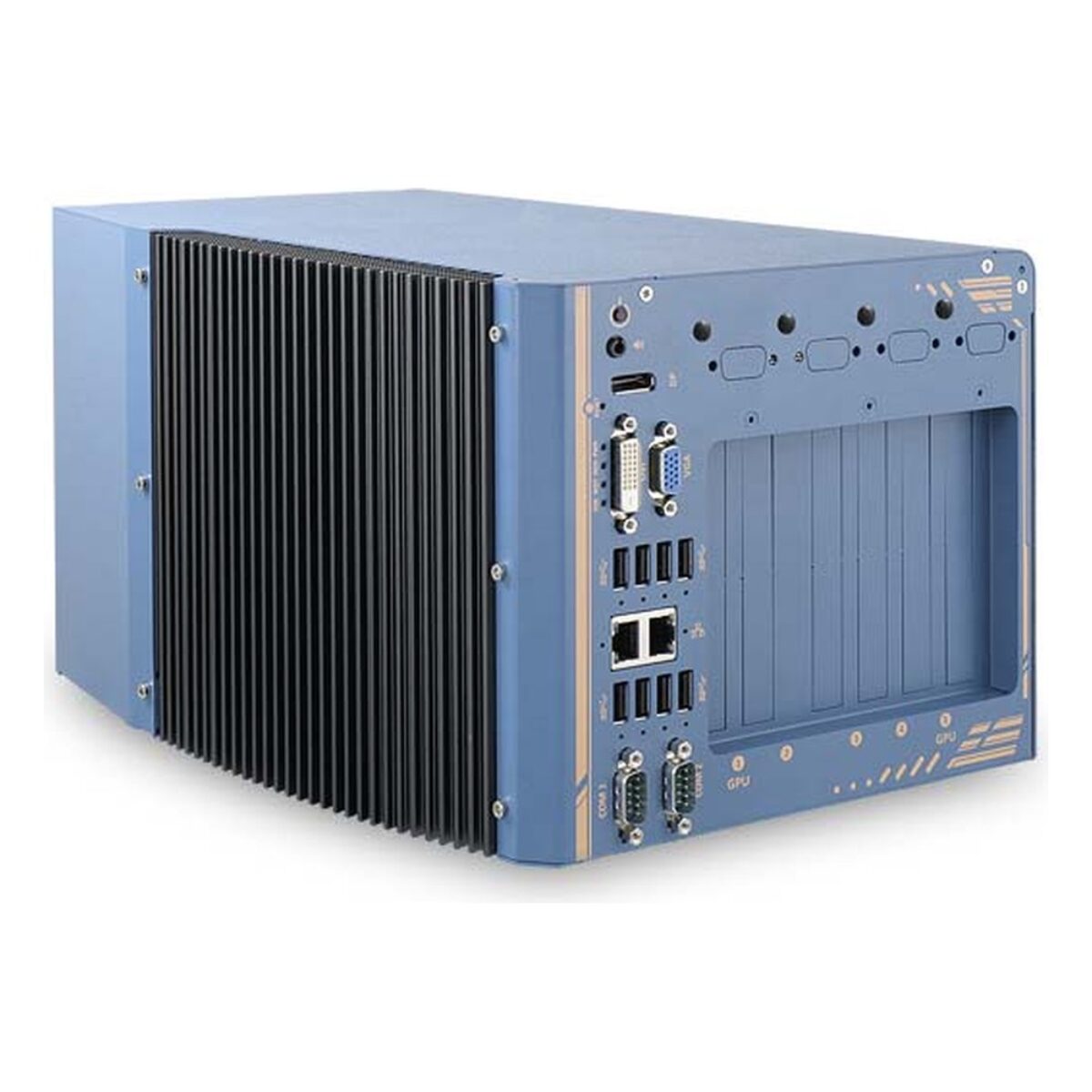

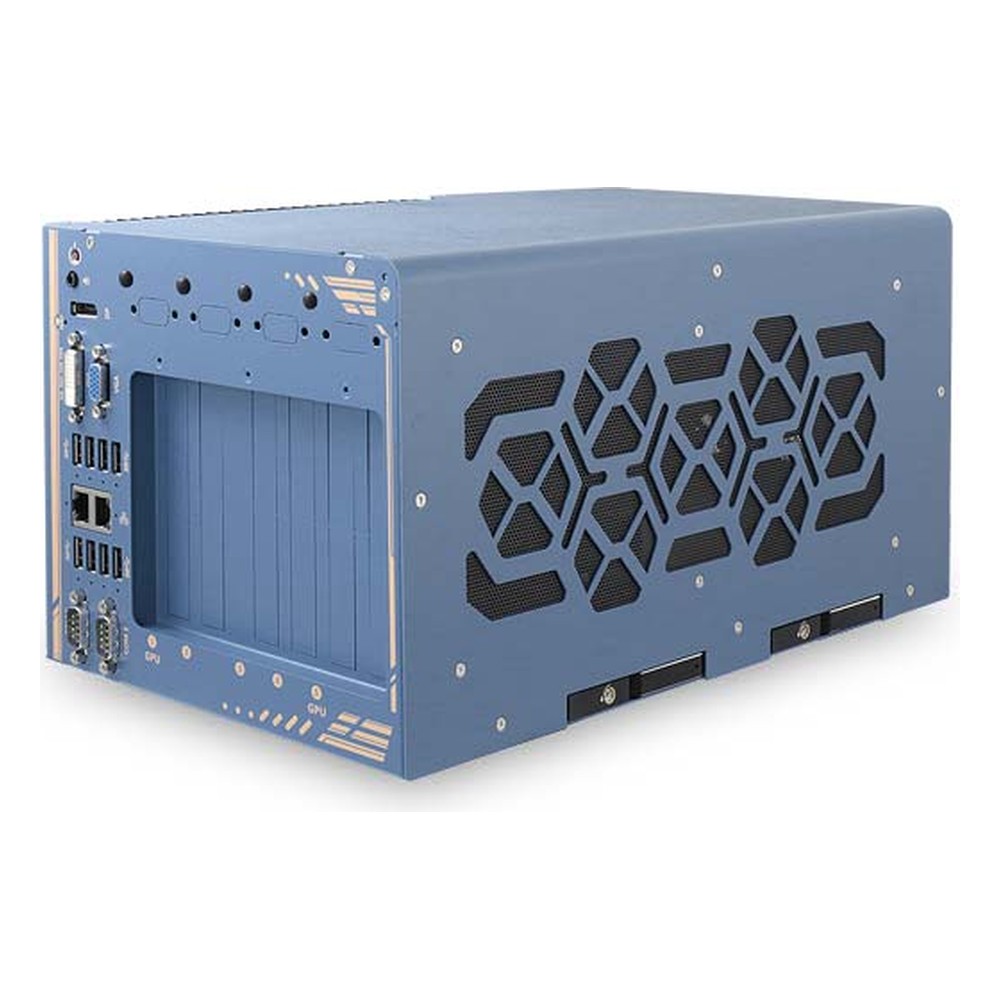

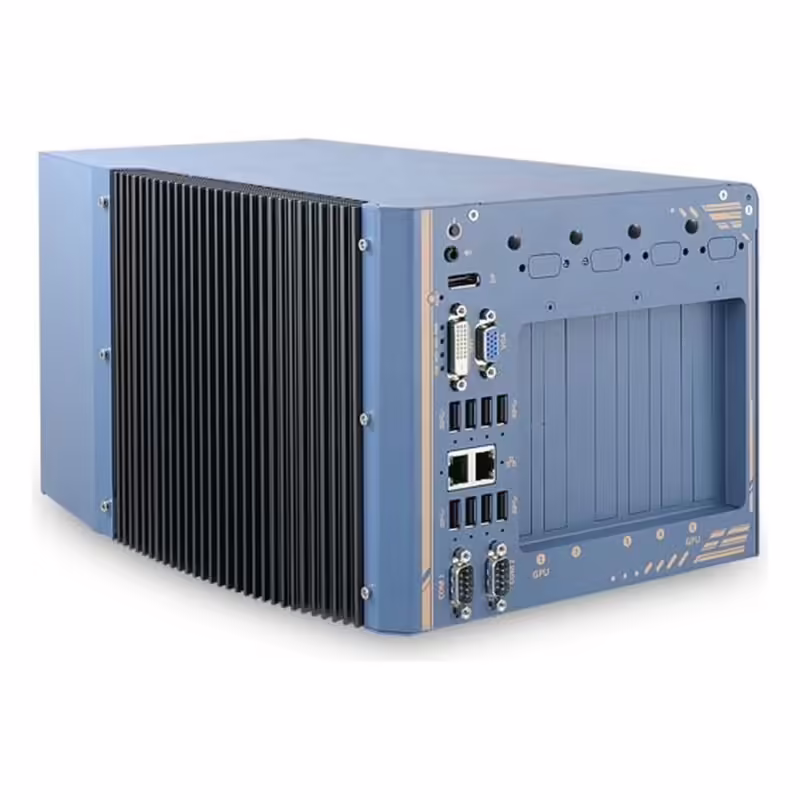

Training at the edge, multi-model inference and sensor fusion can need more than a single GPU. The Neousys Nuvo-8208GC carries two 250 W NVIDIA GPUs in one sealed air tunnel, cooled by an exhaust fan beside a fanless CPU section, with ignition control and wall mounting on damping brackets.

Inside the Nuvo-8208GC is an LGA1151 socket for Intel Xeon E-2176G, E-2278GE or E-2278GEL, or 9th and 8th Gen Core i7, i5 and i3 processors. The C246 chipset supports AMT 12.0 and TPM 2.0, four SO-DIMM sockets take up to 128 GB of DDR4-2133 with or without ECC, and Intel UHD Graphics 630 drive VGA, DVI-D and a 4K DisplayPort output.

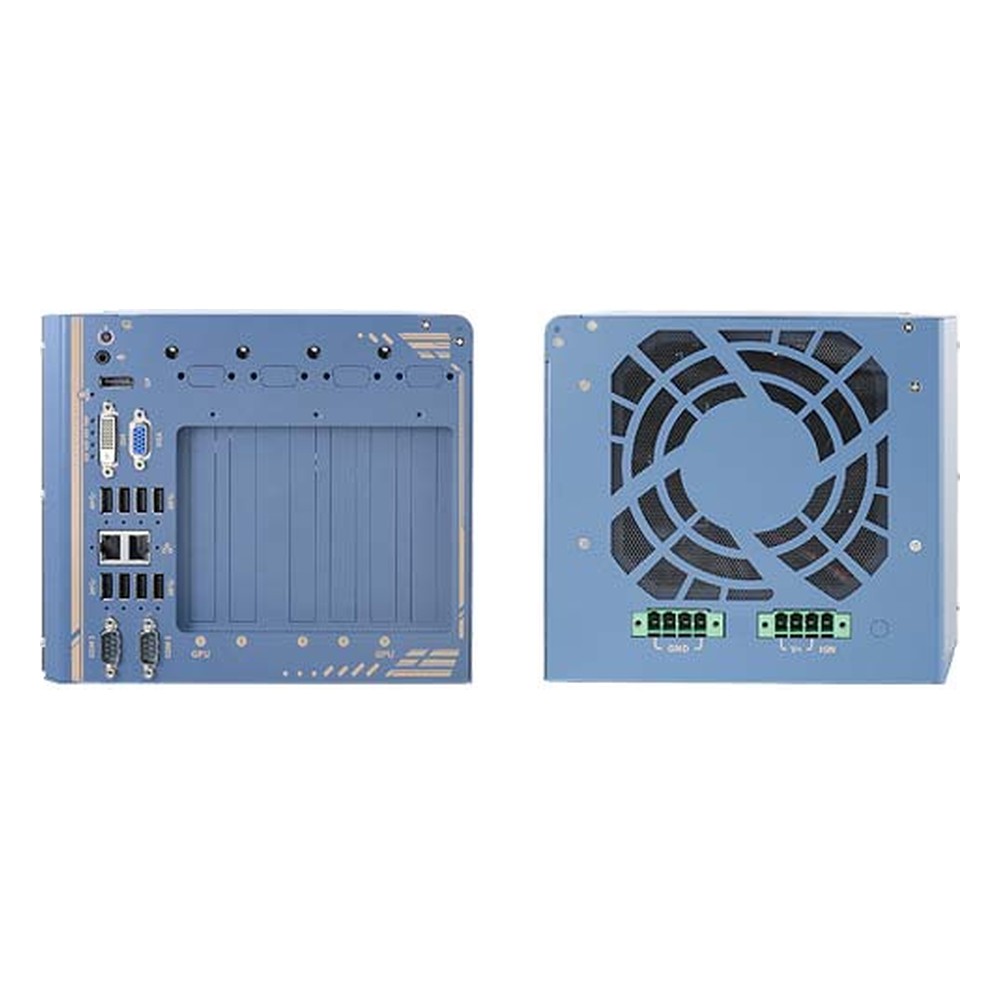

The expansion area has two PCIe x16 Gen3 slots with eight lanes for the GPUs, two PCIe x8 Gen3 slots with four lanes and a PCIe x4 Gen3 slot with one lane. The Nuvo-8208GC also carries two GbE ports by Intel I219-LM and I210-IT controllers, four USB 3.1 Gen 2 and four Gen 1 ports, two RS-232/422/485 ports, a mic-in and speaker-out jack, an M.2 NVMe socket on PCIe Gen3 x4, two mSATA sockets shared with two full-size mini PCIe sockets, and an M.2 B key socket with dual SIM for LTE, with two hot-swappable 2.5-inch trays.

Power is 8 to 35 V DC on two terminal blocks with ignition control, rising to 24 to 35 V for dual-GPU loads up to 1000 W. The system runs from -25 °C to 60 °C with a 35 W CPU and both GPUs at full load, meets MIL-STD-810G and 3 Grms for vibration and shock, and carries CE and FCC Class A. For one GPU, see the Nuvo-8108GC series, and for two data centre GPUs, the Nuvo-8240GC series.
