Neousys POC-960GC AMD Ryzen PRO 8640U Edge AI Box PCs with 70W NVIDIA GPU

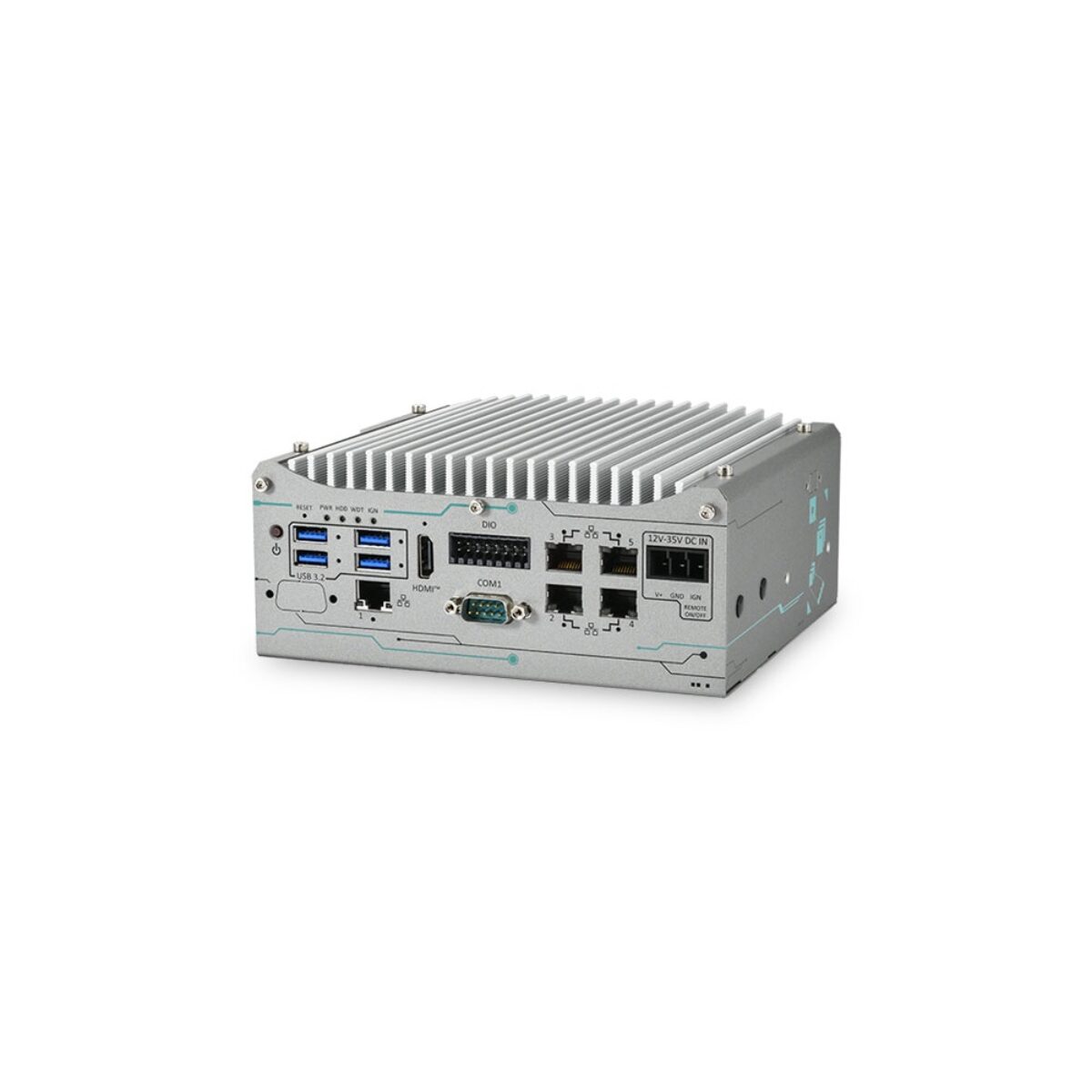

Space-constrained industrial sites often need GPU inference in a footprint that fits beside the machine, the camera pole or the kiosk it serves. The Neousys POC-960GC series addresses that with edge AI box PCs that pair the AMD Ryzen PRO 8640U and its integrated Ryzen AI NPU with a low-profile NVIDIA GPU up to 70 W, in a 175 x 159 x 77 mm wall-mount body weighing 1.8 kg. Neousys describes the POC-960GC as its first ultra-compact x86 GPU computer.

Every POC-960GC shares the same hybrid design. The Ryzen PRO 8640U runs six cores and twelve threads at 3.5 GHz, boosting to 4.9 GHz, within a 15 W to 30 W TDP, and its Radeon RDNA3 graphics drive HDMI 2.0b at 3840 x 2160 at 60 Hz, with 16 TOPS from the Ryzen AI NPU and 31 TOPS across the SoC. The CPU takes sensor data processing, device coordination and system control, while the GPU in the low-profile PCIe x16 slot, wired as Gen4 x8, takes image processing and deep learning inference; a bracket kit for the RTX PRO 2000 Blackwell is listed as an accessory. One SO-DIMM socket holds up to 32 GB of DDR5-5600 in ECC or non-ECC form. An M.2 2280 M key socket on PCIe Gen3 x4 holds the NVMe SSD, and dTPM 2.0 is supported.

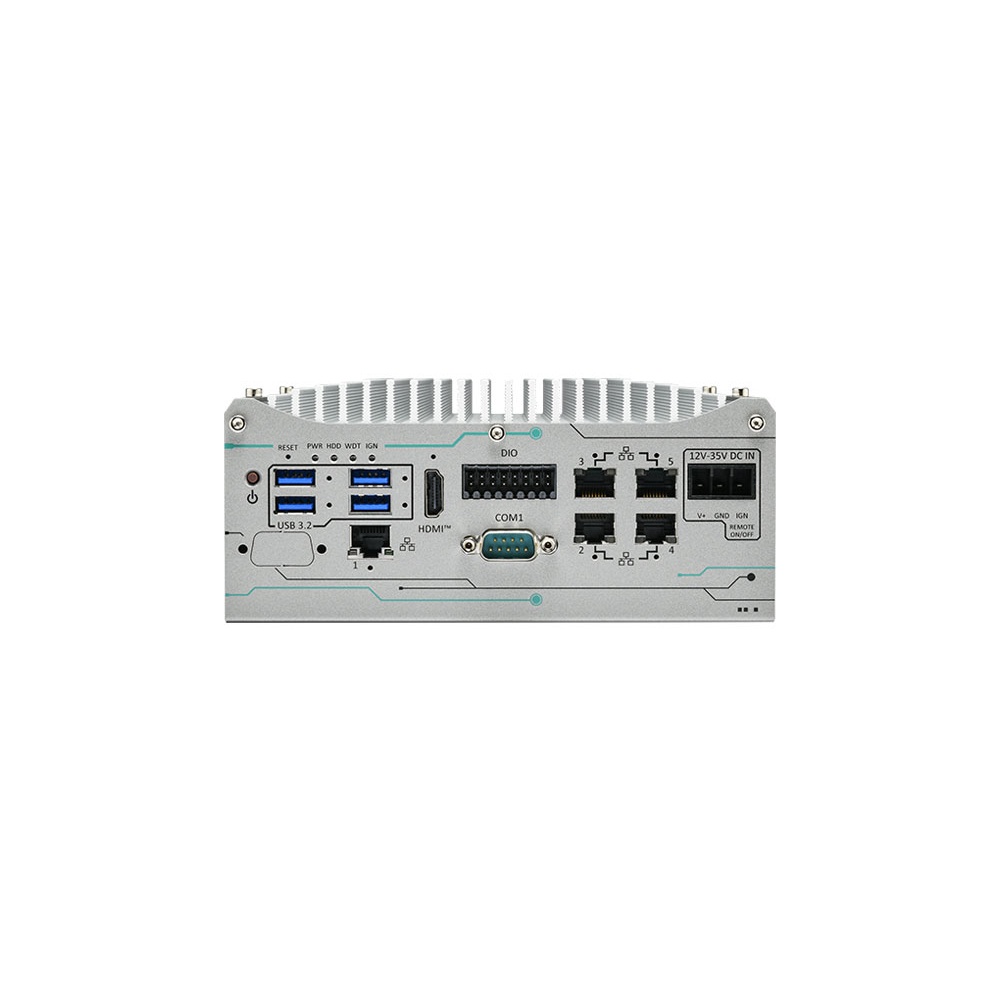

The two edge AI box PCs split on camera power. The POC-960GC carries four GbE ports by Intel I350-AM4 and one 2.5GbE port by Intel I226-V with wake-on-LAN, for cameras and uplinks that bring their own power. The POC-960GC-PoE adds IEEE 802.3at PoE+ on the four GbE ports from a 100 W total budget, so four IP cameras draw power and data over one cable each. Both carry four screw-lock USB 3.2 Gen 2 ports for USB3 cameras, one software-programmable RS-232/422/485 port, 4-channel isolated DI and DO, and two full-size mini-PCIe sockets with an internal micro SIM for wireless modules.

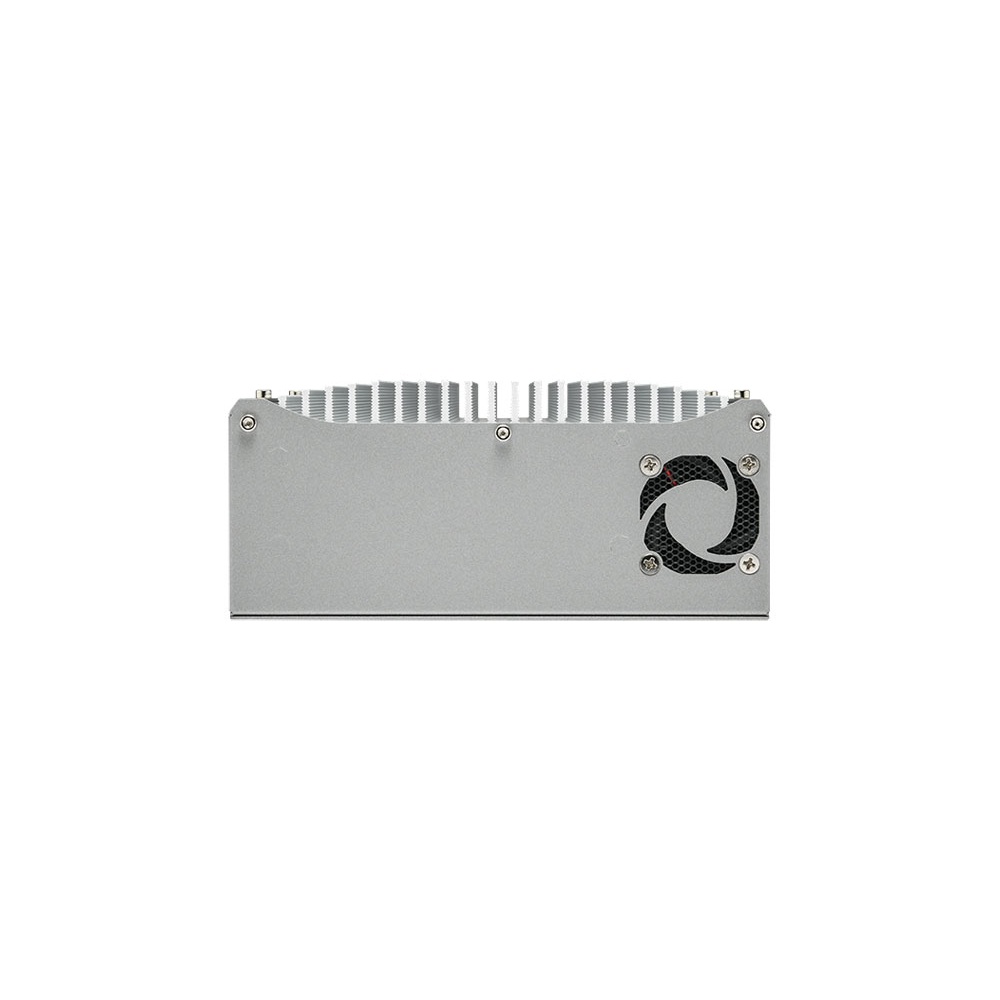

Power is a 3-pin terminal block for 12 V to 35 V DC with remote control or optional ignition power control. At 15 W TDP the series operates without a fan from -25 °C to 60 °C; at 30 W it reaches 45 °C without a fan or 60 °C with the optional 92 mm fan assembly. Vibration and shock are tested to MIL-STD-810H Method 514.8 and Method 516.8, with CE and FCC Class A EMC. Robotics, machine vision, smart city infrastructure and interactive edge AI systems are the applications Neousys names for the POC-960GC series.
