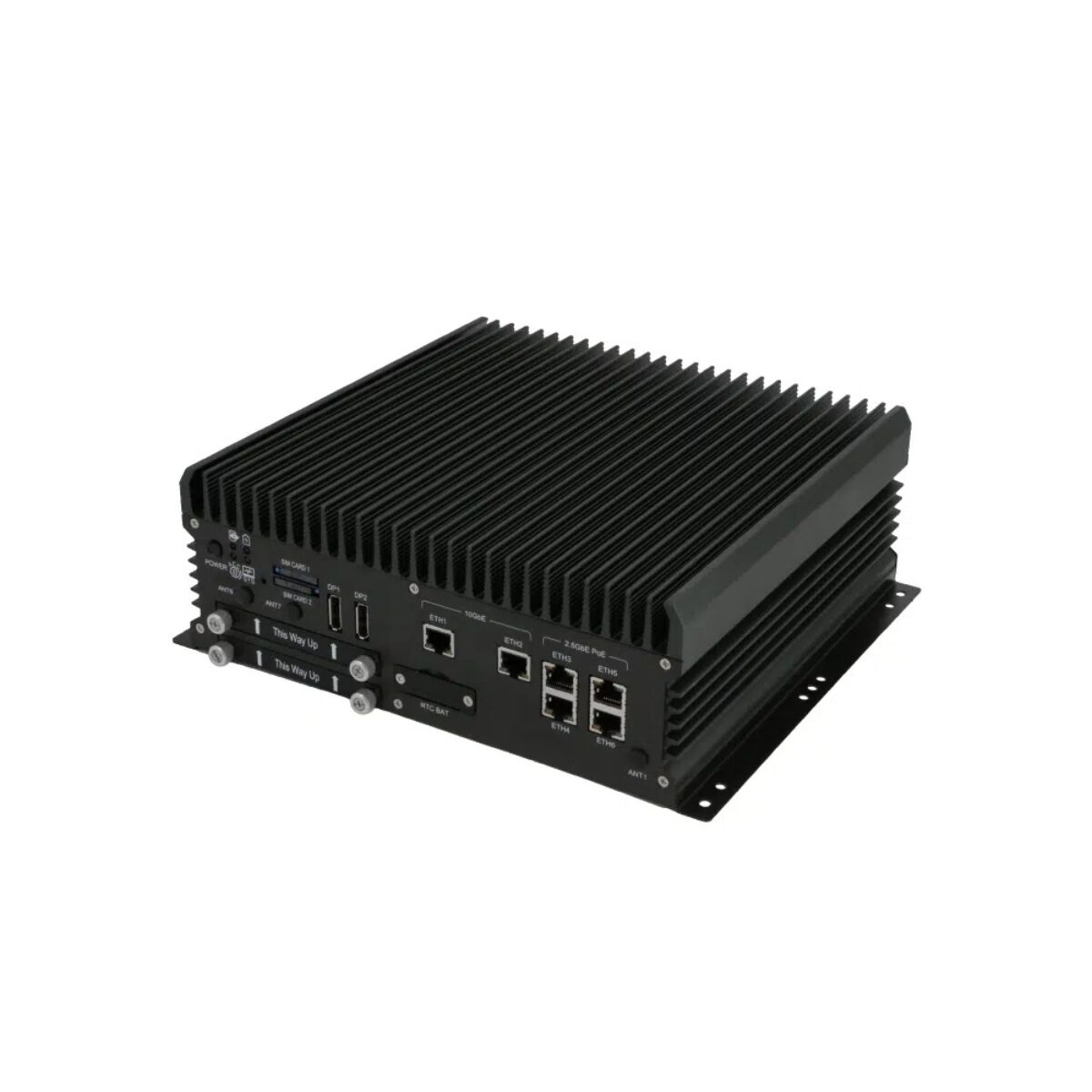

Sintrones ABOX-5221 Intel 14th Gen Core Industrial AI Computers with Dual 10GbE and MXM GPU Options

Once a system is taking several high-resolution camera streams, the uplink becomes the limit: GbE fills quickly, and sending video or results on to a server needs more headroom. The Sintrones ABOX-5221 series answers that with two 10GbE ports on Marvell AQC113 controllers alongside four Intel I226 2.5GbE ports, making these industrial AI computers a fit for multi-camera work on Intel 14th Gen Core processors, with an MXM GPU option when the models need more than processor graphics.

Compute is the Intel Core i9-14900T (24 cores, 32 threads), i7-14700T (20 cores, 28 threads) or i5-14500T (14 cores, 20 threads) on the R680E chipset, with up to 96 GB of DDR5-5600 across two SO-DIMM slots, ECC support with ECC memory, and TPM 2.0. The GPU option takes an NVIDIA RTX Embedded 5000 Ada, 3500 Ada or 2000 Ada module, or an Intel Arc A370E, for up to 682 AI TOPS (FP8) and two extra DP++ outputs beside the two HDMI 2.0b ports. Three M.2 2280 SSD slots (one also SATA) and two removable 2.5-inch SATA trays with RAID 0, 1 and 5 through Intel VMD keep the boot drive apart from recorded video.

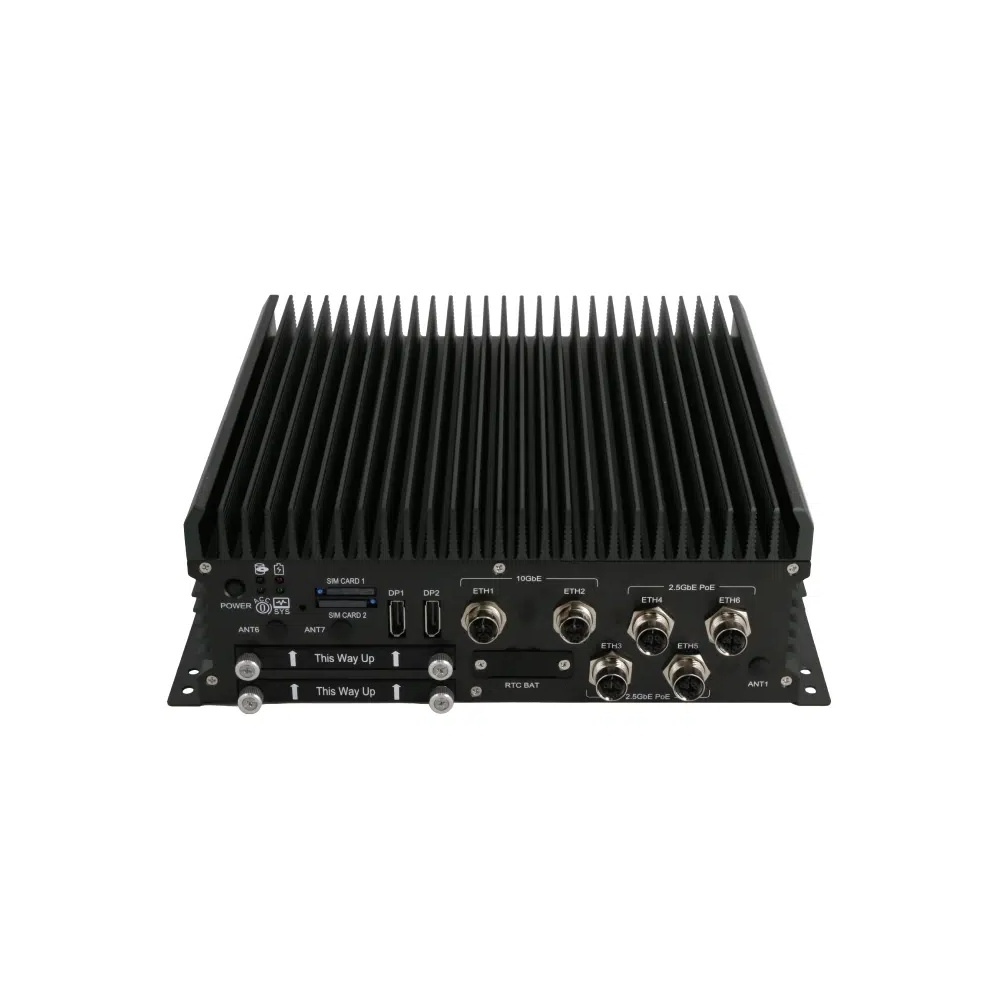

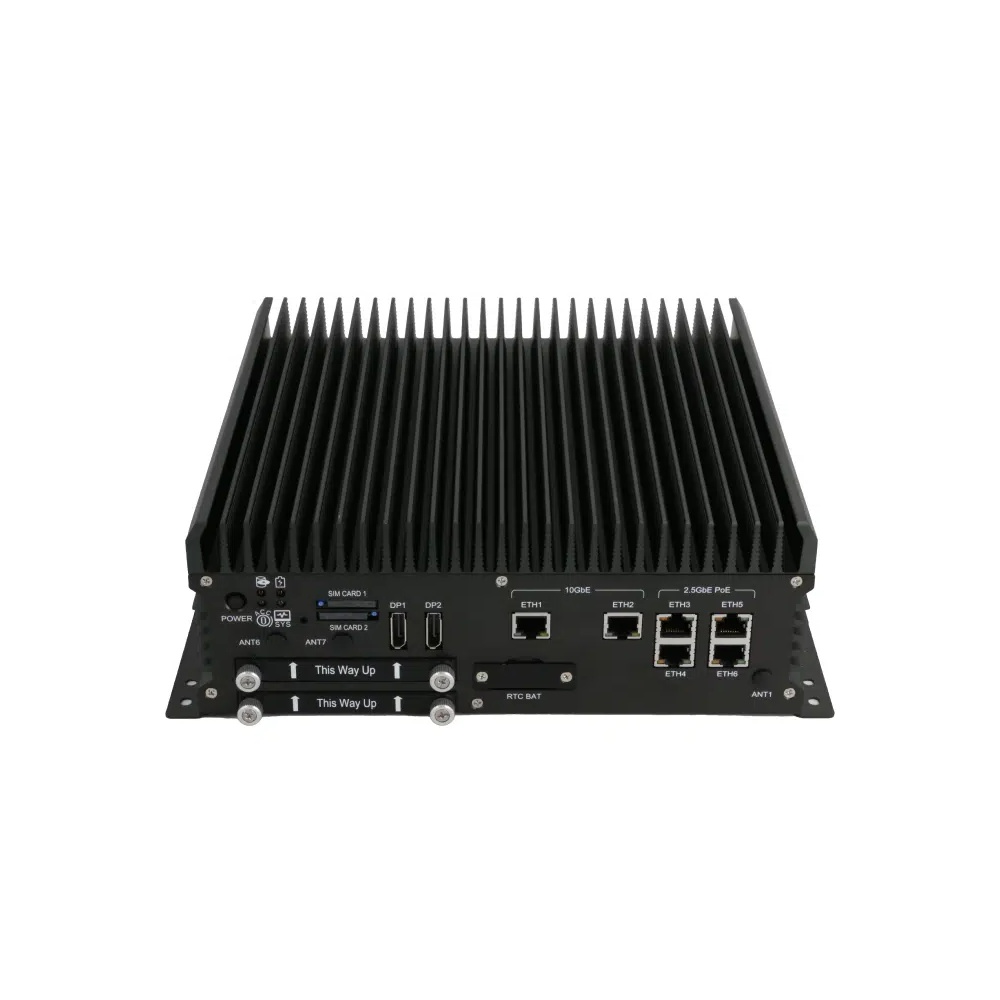

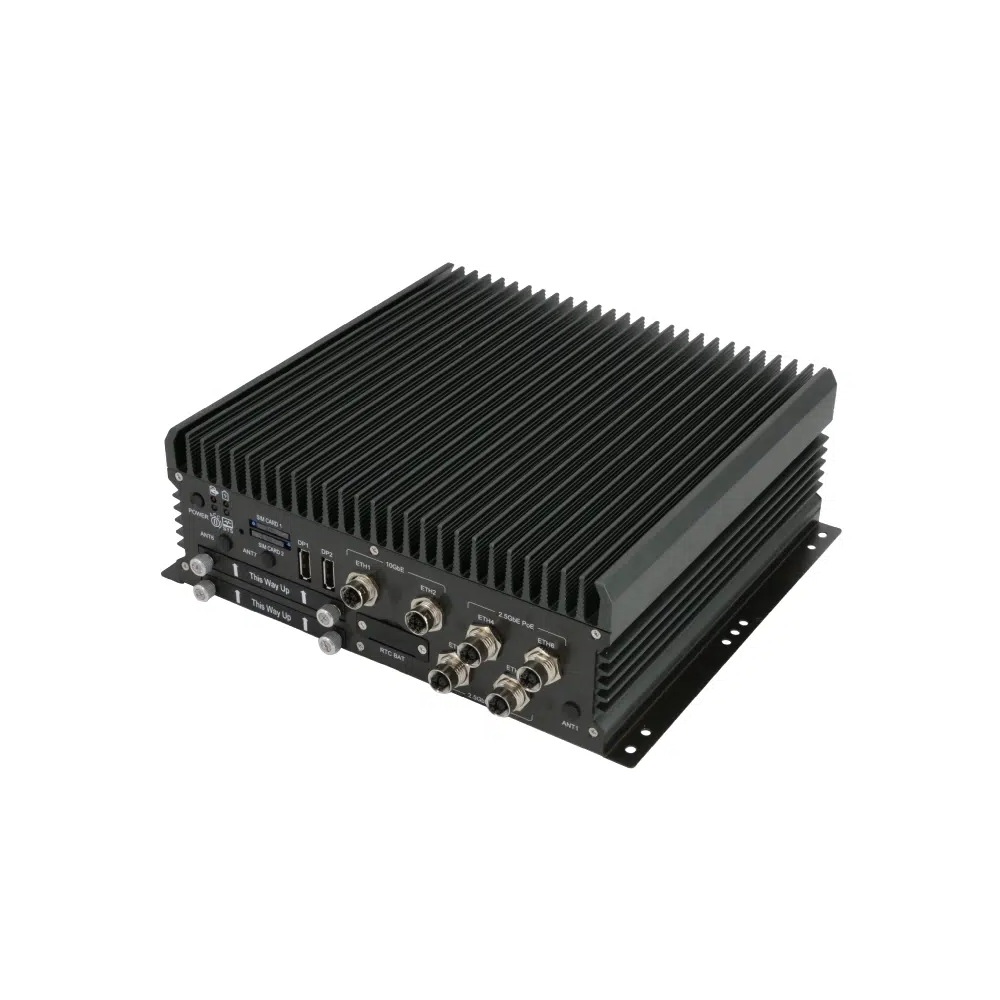

Eight versions come from three options. The ABOX-5221 is the base build with all six LAN ports on RJ45, and the ABOX-5221P adds PoE+ to the four 2.5GbE ports at 25.5 W each from a 120 W budget. The ABOX-5221G and ABOX-5221PG add the MXM GPU, which narrows system operation to 0 °C to 60 °C with the RTX 5000 or 3500 Ada and 0 °C to 70 °C with the RTX 2000 Ada or Arc A370E. The ABOX-5221-M12X, ABOX-5221P-M12X, ABOX-5221G-M12X and ABOX-5221PG-M12X put the 10GbE and 2.5GbE ports on locking M12 X-coded connectors. GPU and PoE builds need a nominal 24 V supply or higher.

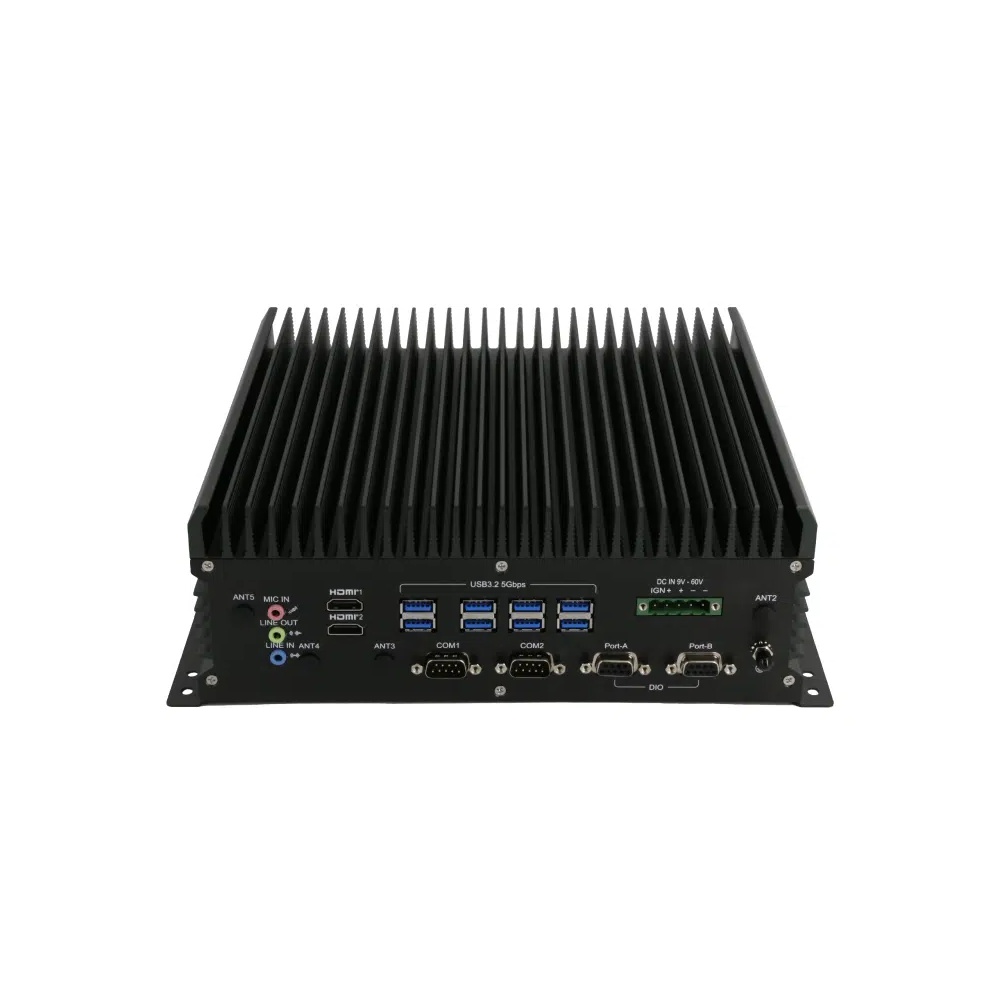

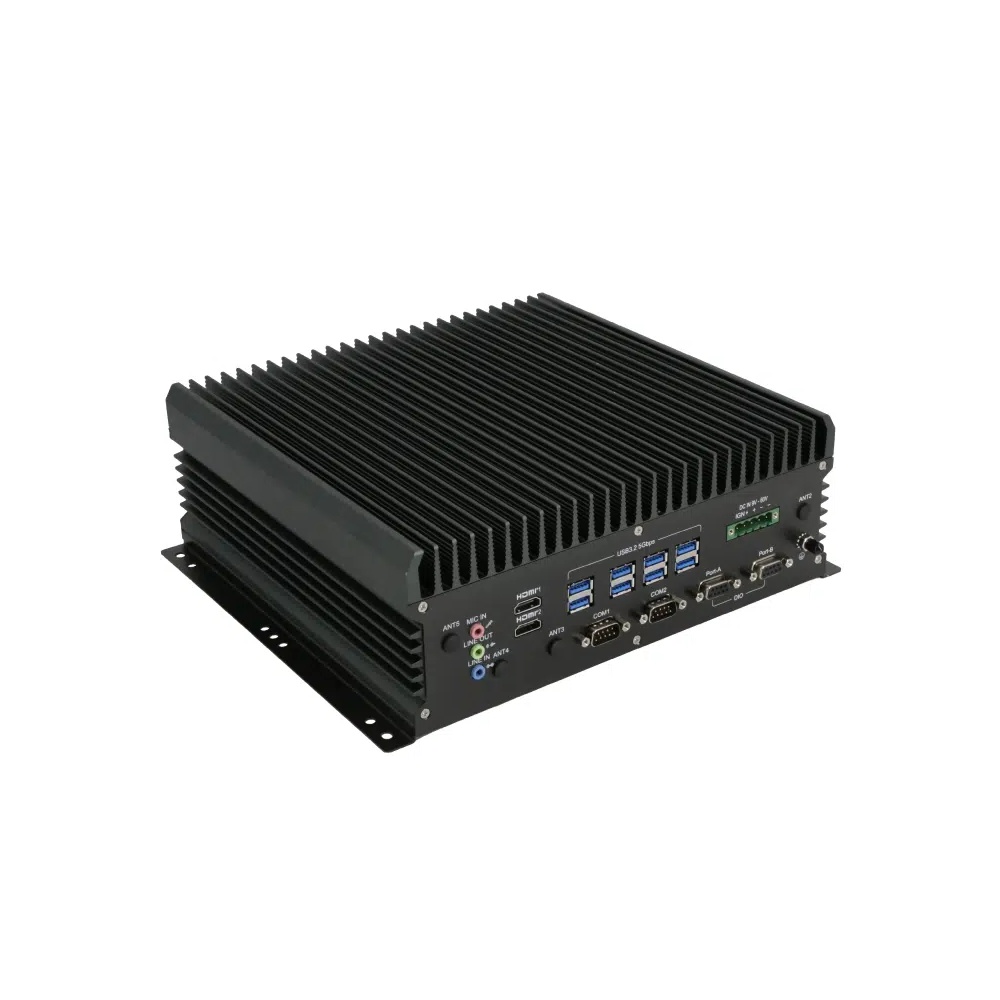

All versions share eight USB 3.2 Gen 2 ports, two RS-232/422/485 ports, eight digital inputs and eight outputs, an M.2 Key B slot for 4G or 5G with dual SIM, an M.2 Key E slot for Wi-Fi and two full-size Mini PCIe sockets for an optional CAN bus or GNSS module, plus a front tray for the RTC battery. Power is 9 to 60 V DC with ignition detection, and an optional battery backup unit covers up to 10 minutes. The ABOX-5221 series runs from -40 °C to 70 °C with 0.6 m/s airflow, is tested to MIL-STD-810H and EN 61373 for shock and vibration and carries EN 50155, EN 45545-2 (R25), E-Mark, UKCA, CE and FCC Class A compliance, which suits these Sintrones industrial AI computers to rail, fleet and factory sites that need 10GbE.
