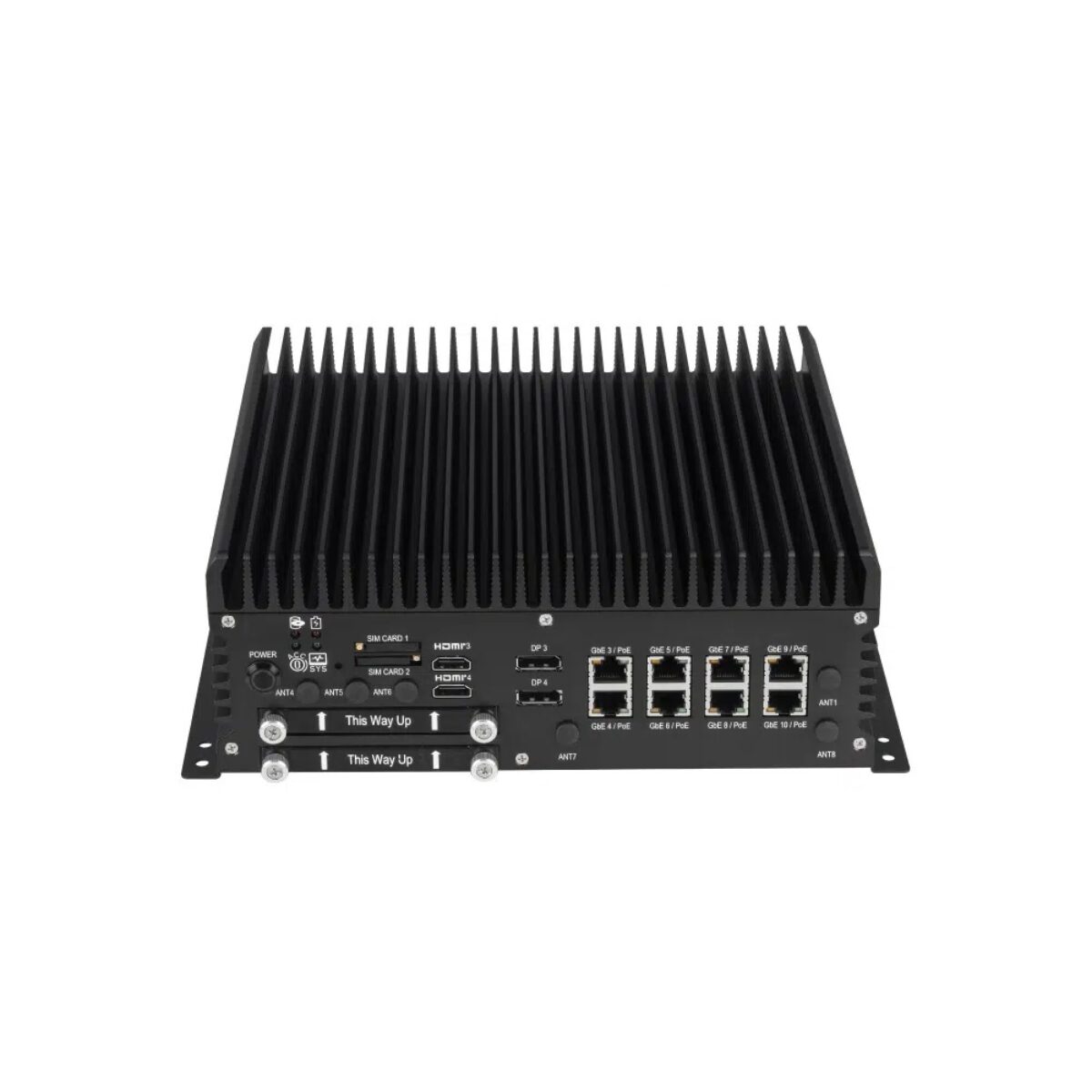

Sintrones ABOX-5220 Intel 14th Gen Core Rugged PCs with 10x LAN and MXM GPU Options

Some installations are defined by how many things they connect rather than how fast: separate camera, control and passenger networks, serial instruments, digital signals and cellular backhaul. The Sintrones ABOX-5220 series is built for that breadth, putting 10 LAN ports, four RS-232/422/485 ports and two WWAN slots into rugged PCs on Intel 14th Gen Core processors, with an MXM GPU option for AI inference.

Compute is the Intel Core i9-14900T (24 cores, 32 threads), i7-14700T (20 cores, 28 threads) or i5-14500T (14 cores, 20 threads) on the R680E chipset, with up to 96 GB of DDR5-5600, ECC support with ECC memory and TPM 2.0. Processor graphics drive two DP++ and two HDMI 2.0b outputs, and the GPU option, an NVIDIA RTX Embedded 5000, 3500 or 2000 Ada or an Intel Arc A370E, adds up to 682 AI TOPS and two more of each. Three M.2 2280 SSD slots and two removable 2.5-inch SATA trays with RAID 0, 1 and 5 hold the operating system and recorded video apart.

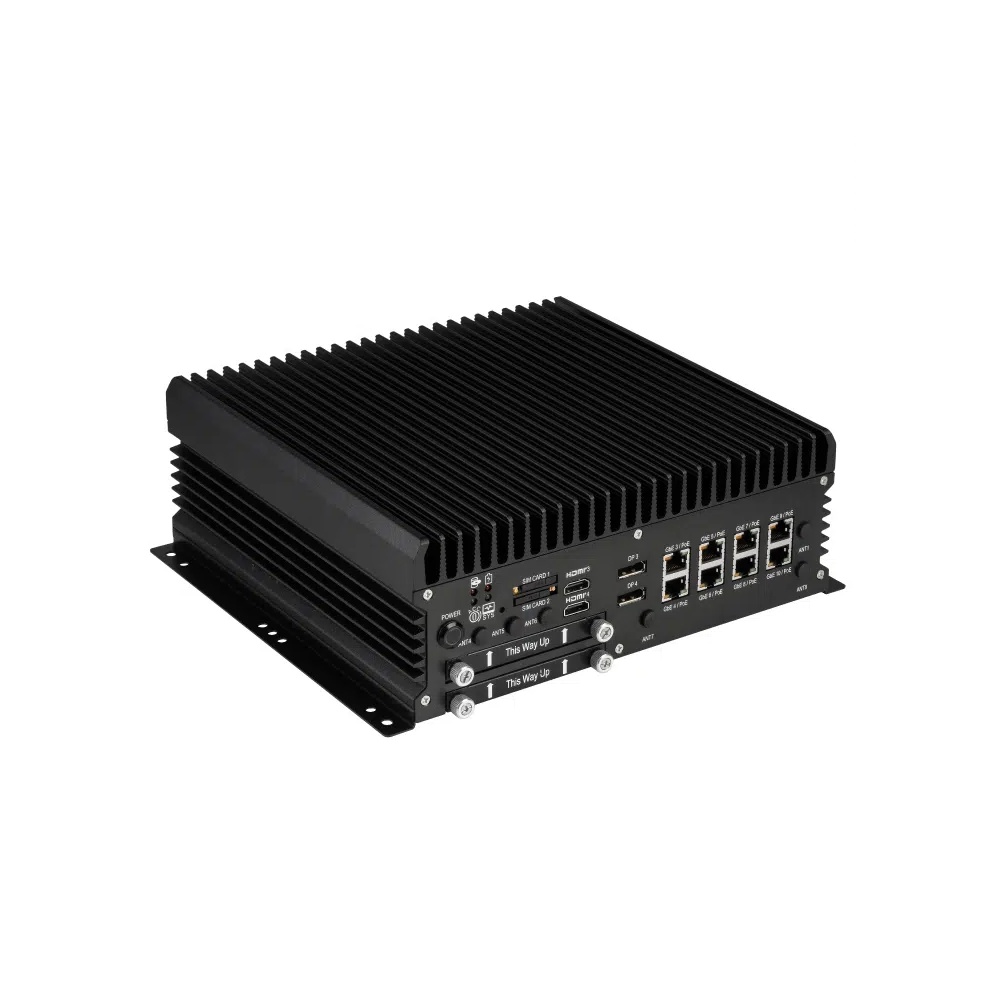

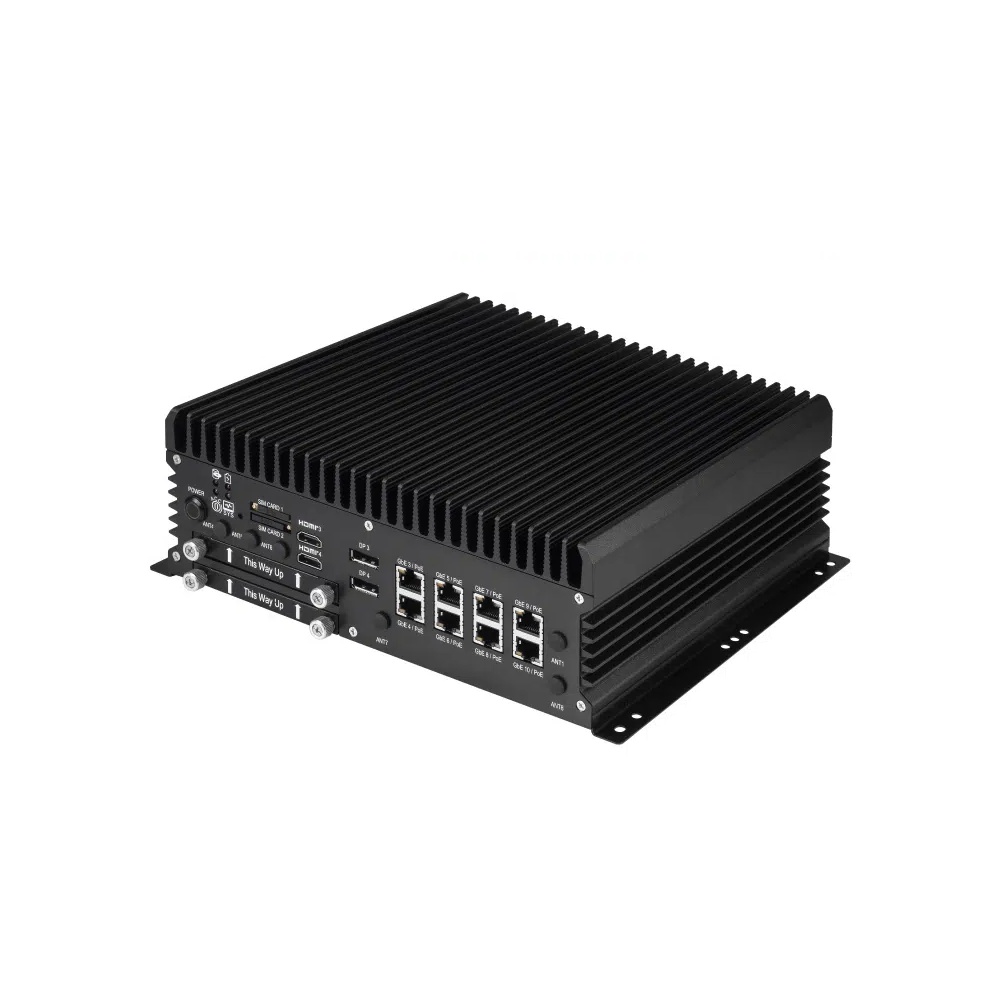

Eight versions come from three options. The ABOX-5220 is the base build on RJ45, and the ABOX-5220P adds PoE+ to the eight GbE ports at 25.5 W per port within a 120 W budget. The ABOX-5220G and ABOX-5220PG add the MXM GPU, which narrows system operation to 0 °C to 60 °C or 0 °C to 70 °C depending on the module. The ABOX-5220-M12X, ABOX-5220P-M12X, ABOX-5220G-M12X and ABOX-5220PG-M12X move the eight GbE ports to locking M12 X-coded connectors. GPU and PoE builds need a nominal 24 V supply or higher.

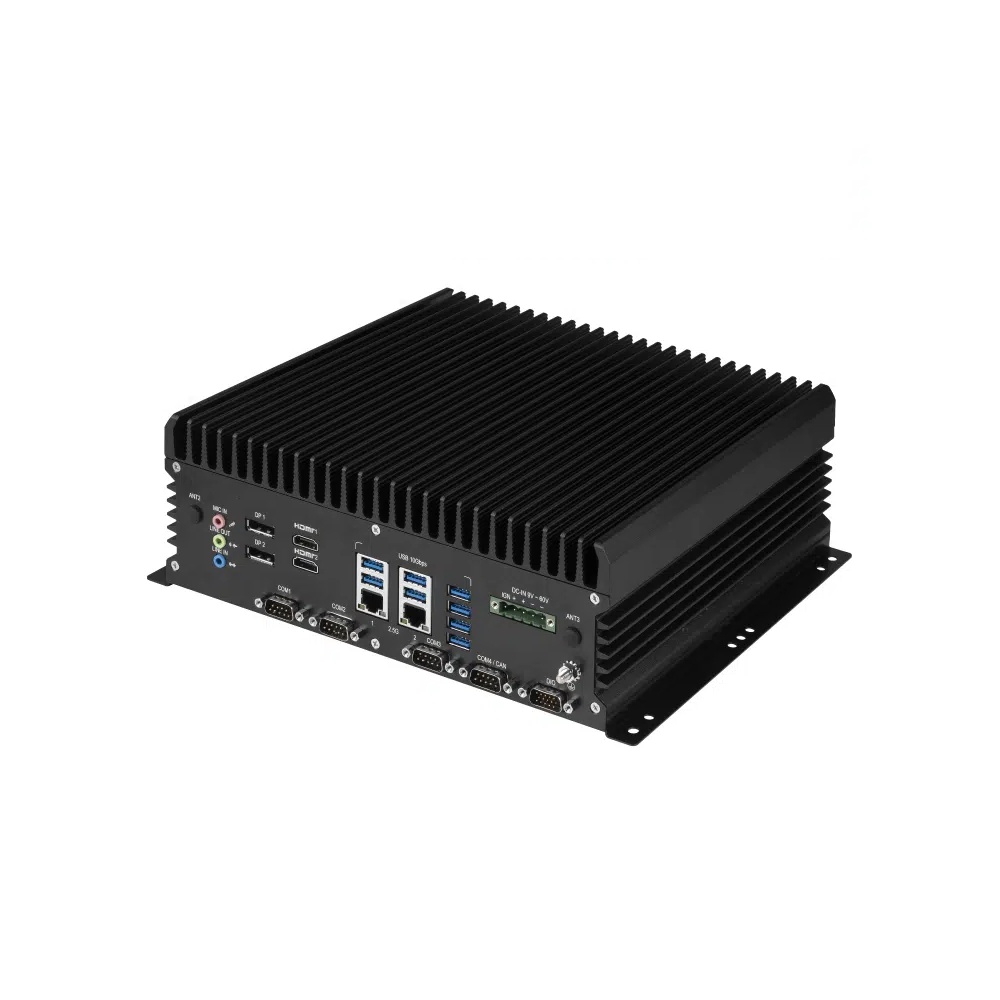

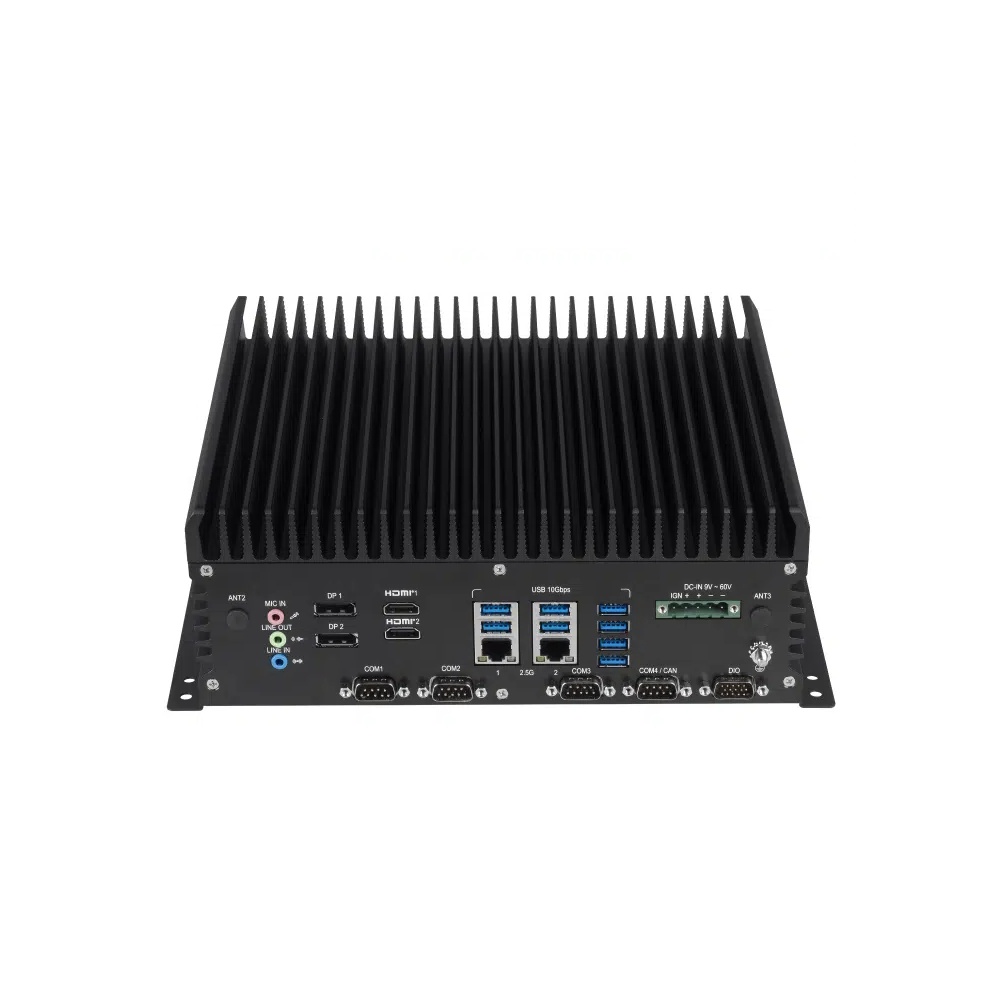

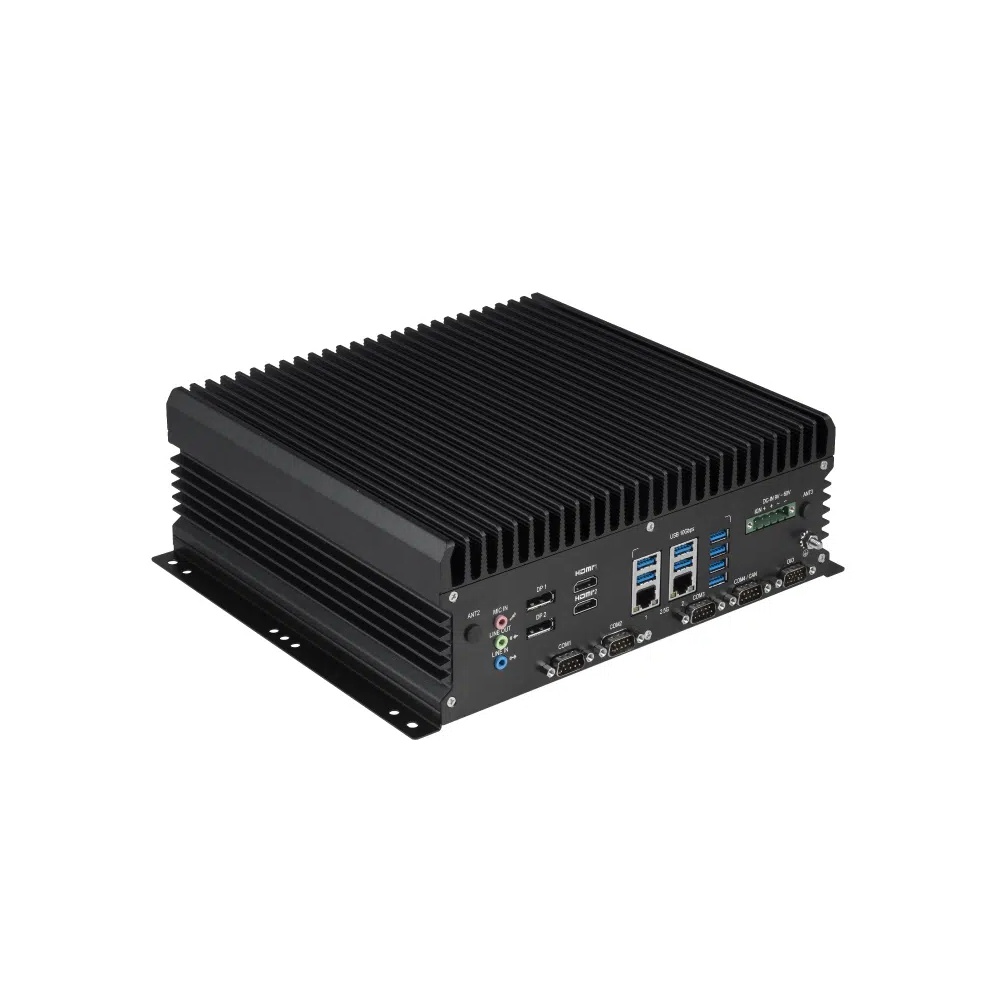

All versions share eight USB 3.2 Gen 2 ports, eight digital inputs, four digital outputs, two ADC inputs, an M.2 Key E slot for Wi-Fi and two full-size Mini PCIe sockets for an optional CAN bus or GNSS module. Power is 9 to 60 V DC with ignition detection, with an optional battery backup unit for up to 10 minutes. The ABOX-5220 series runs from -40 °C to 70 °C with 0.6 m/s airflow, is tested to MIL-STD-810H and EN 61373 and carries EN 50155, EN 45545-2 (R25), E-Mark, UKCA, CE and FCC Class A compliance, which suits these Sintrones rugged PCs to rolling stock, fleet vehicles and plant-floor gateways.
