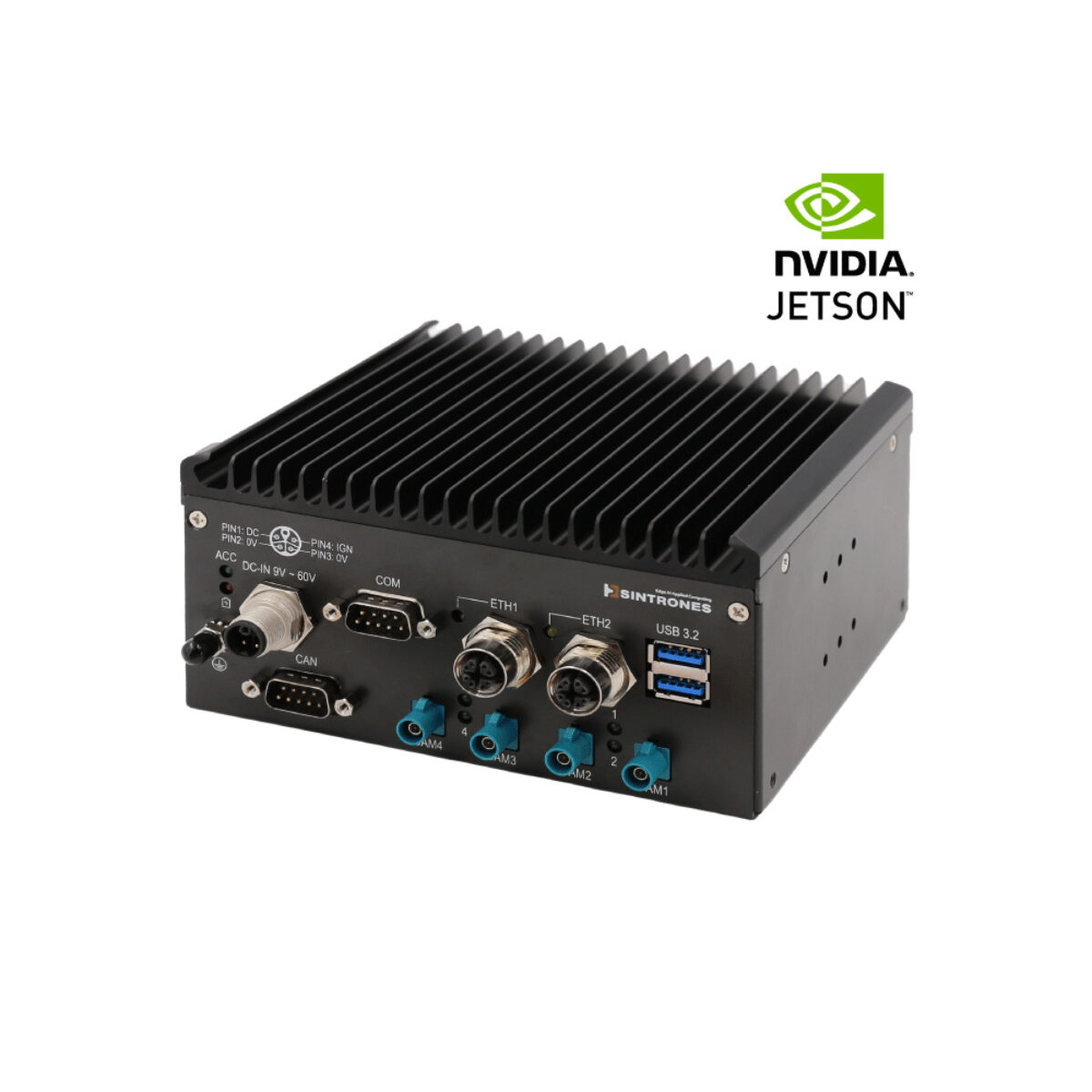

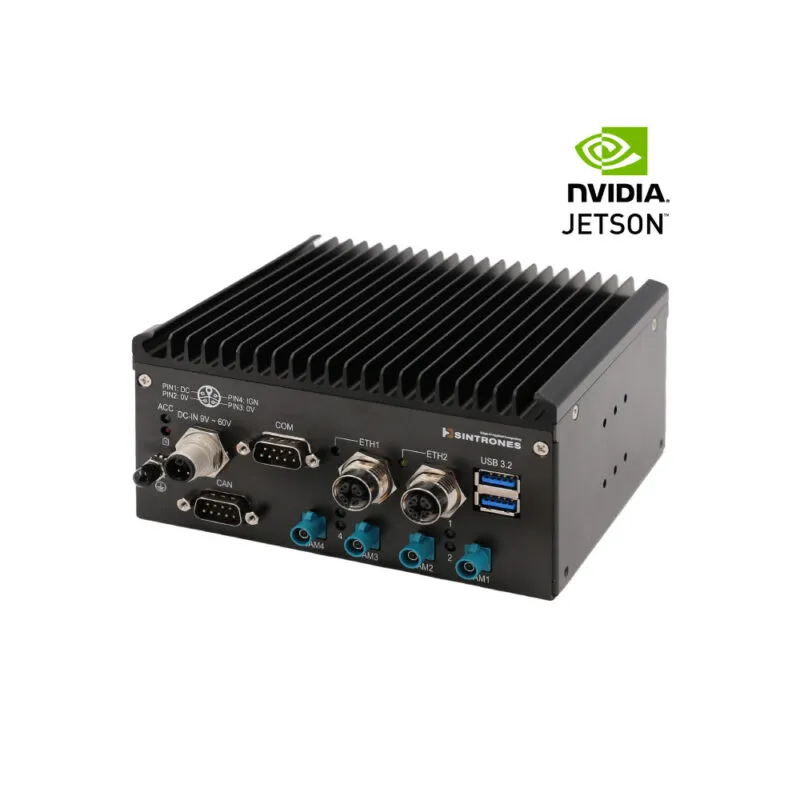

Sintrones IBOX-601-G2 NVIDIA Jetson Orin In-Vehicle Edge AI Computers with GMSL-2 Cameras

Getting synchronized camera data into vehicle compute is often the hardest part of an in-vehicle AI design: consumer camera links shake loose, add latency and were never meant for a wiring loom. The Sintrones IBOX-601-G2 series takes the automotive route instead. These fanless in-vehicle edge AI computers run NVIDIA Jetson Orin modules beside four GMSL-2 camera inputs on locking FAKRA-Z connectors, so perception runs next to the cameras rather than at the far end of a network.

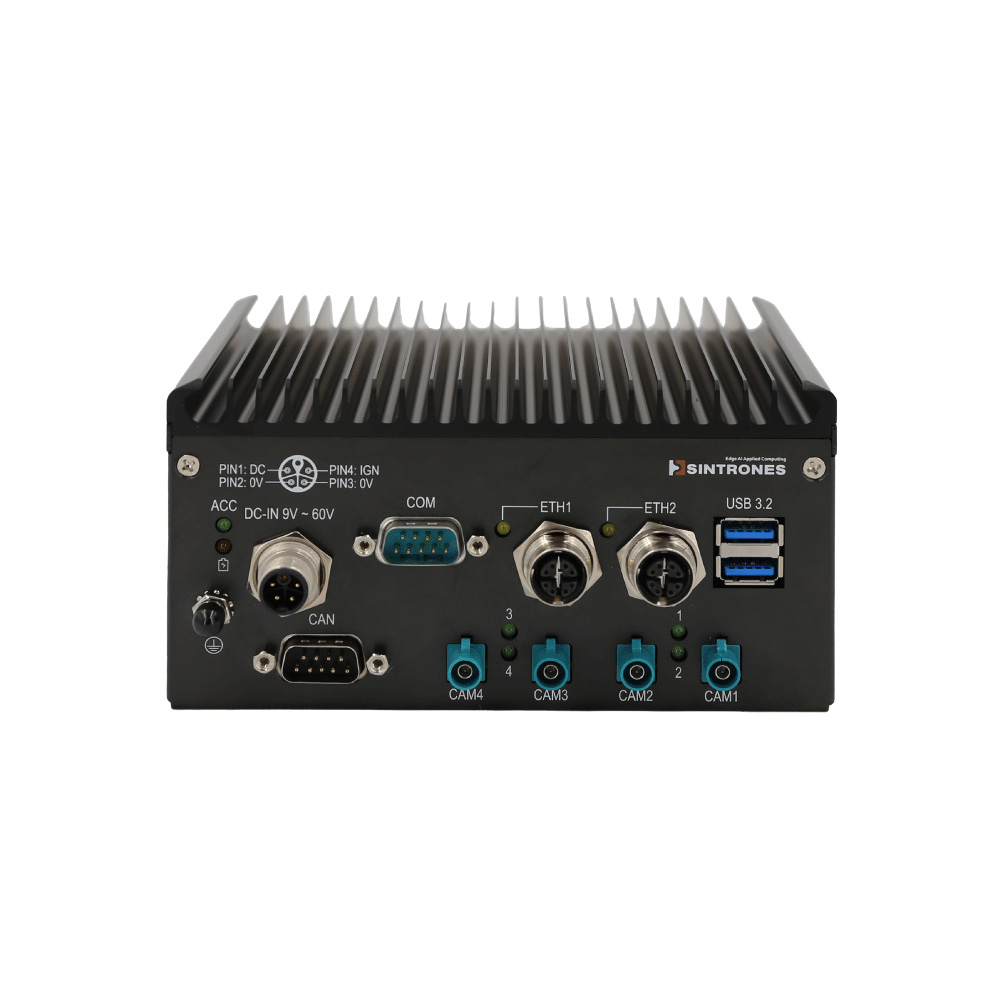

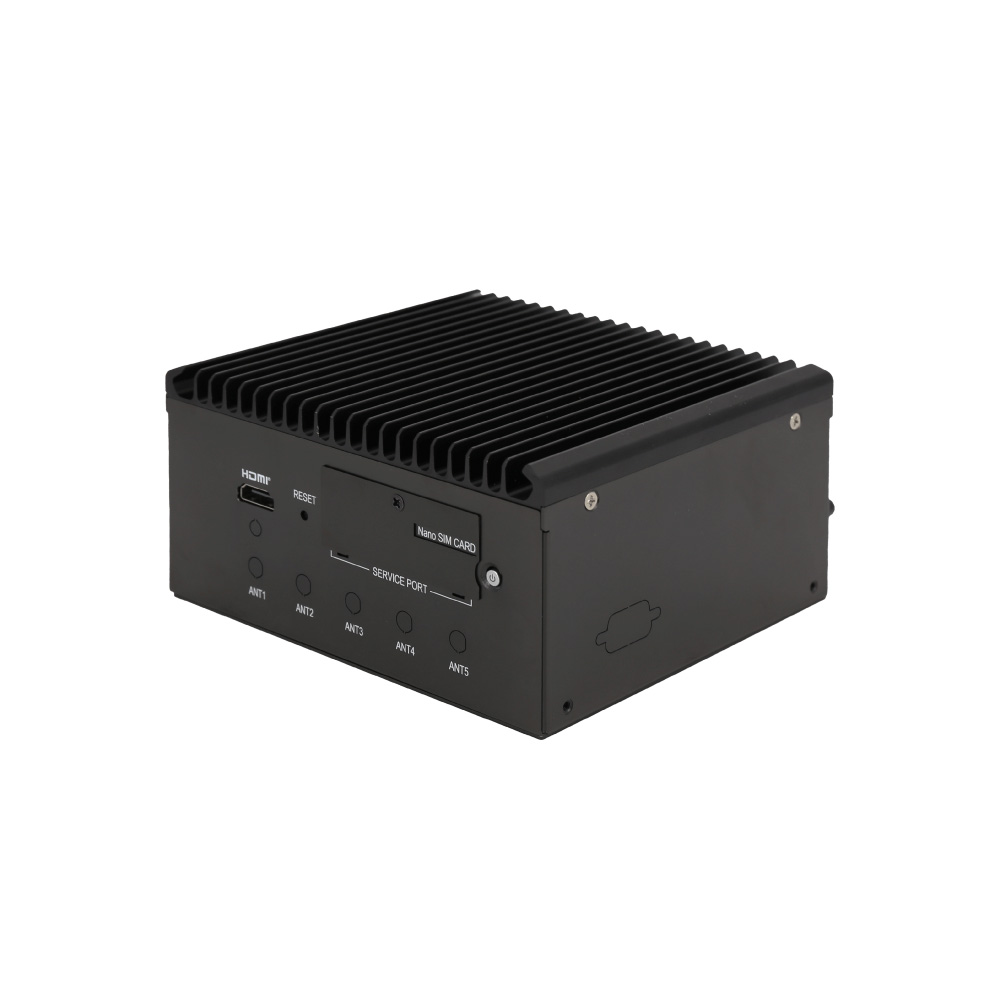

Every IBOX-601-G2 shares the same 150 x 135 x 77 mm aluminum enclosure and the same connectivity decisions. One 2.5GbE and one GbE port sit on M12 X-coded connectors that stay seated through shock and vibration, and Sintrones notes they can feed a PoE switch or a LiDAR. CAN FD and RS-232/422/485 on DB-9 connect vehicle networks and legacy sensors, two USB 3.2 ports share 10 Gbps, and HDMI drives a 4K display. Storage is an M.2 2280 NVMe SSD carrying the JetPack image, with M.2 Key B and nano SIM, M.2 Key E and full-size mPCIe slots for optional 4G or 5G, Wi-Fi and GPS.

The range is split by Jetson module, so buyers choose on compute and memory rather than I/O. The IBOX-601-G2-ONX16 carries the Orin NX 16GB module with an 8-core CPU and two NVDLA accelerators for the largest models and densest camera pipelines. The IBOX-601-G2-ONX8 keeps the 1024-core Ampere GPU with 8 GB of memory for leaner pipelines. The IBOX-601-G2-ON8 and IBOX-601-G2-ON4 move to Orin Nano 8GB and 4GB modules for single-model tasks such as driver monitoring and fleet pilots.

Across the range, power arrives on a 9-60 V DC M12 K-coded input with smart power and ignition management, so the computers follow the vehicle start and stop cycle and shut down cleanly. The in-vehicle edge AI computers operate fanless from -25 °C to 70 °C, are tested to MIL-STD-810G shock and vibration and IEC 60068-2-64, and carry E-Mark with EN 50155 and EN 45545-2 (R25) compliance for road and rail. Sintrones quotes Jetson Orin module availability through January 2032, which suits ADAS development fleets, bus and coach analytics, onboard rail monitoring and mobile robots.
