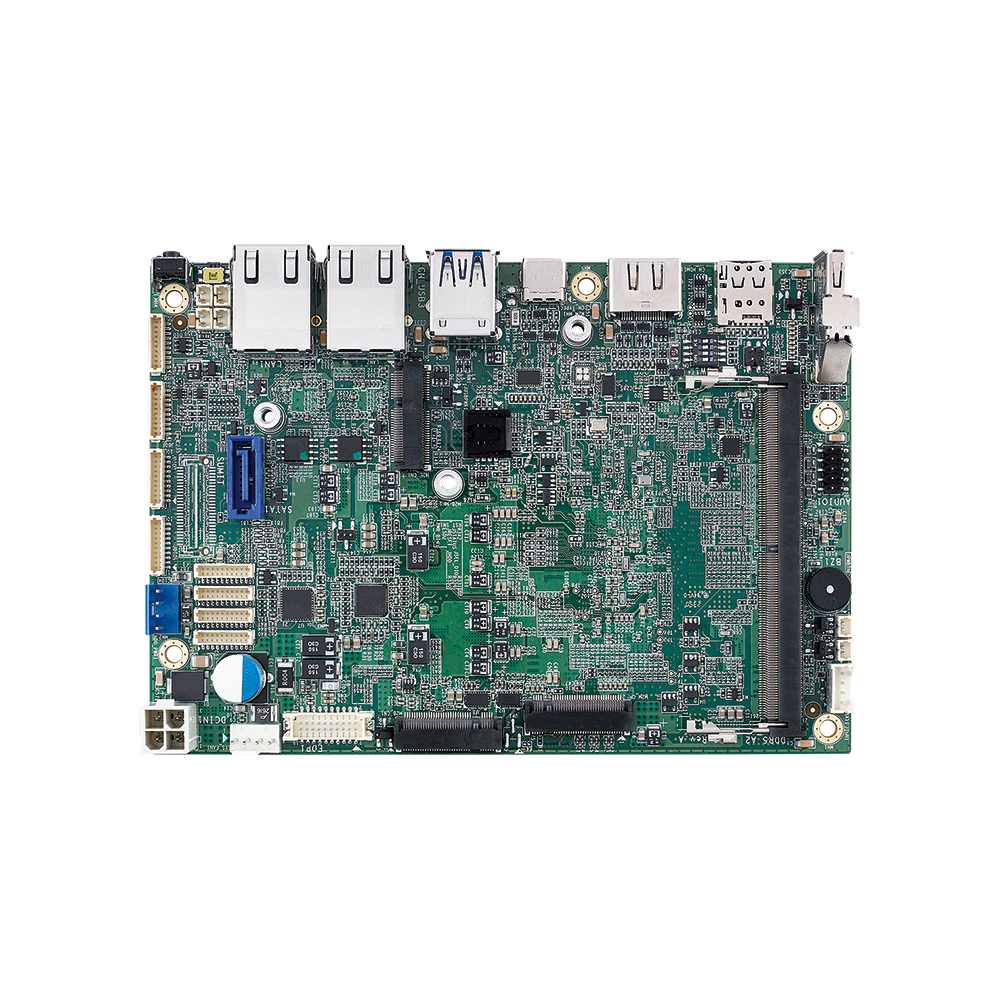

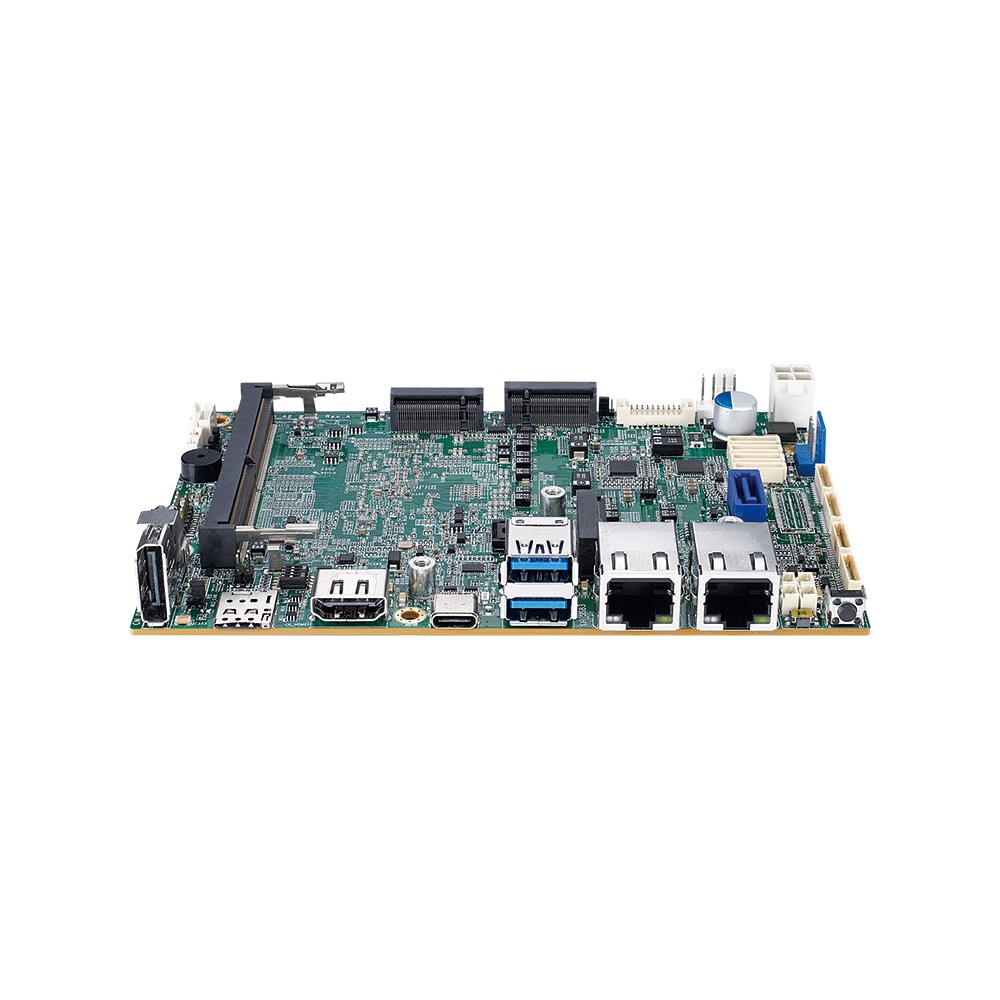

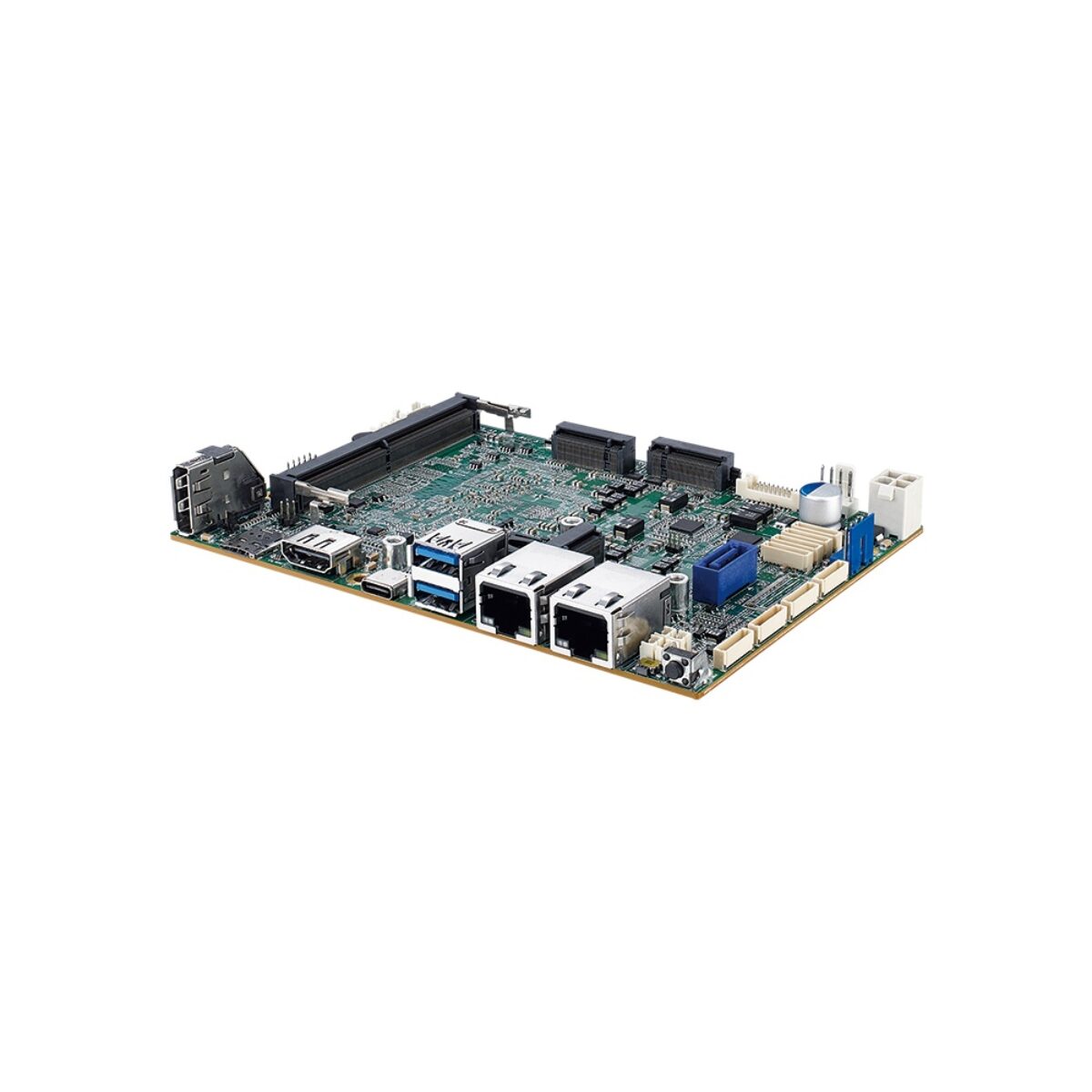

Vecow EMBC-7000 3.5" SBCs with Intel Core Ultra Processors, Dual 2.5GbE and NPU
The Vecow EMBC-7000 series is a family of 3.5 inch SBCs with Intel Core Ultra processors, an Intel AI Boost NPU, DDR5 up to 48 GB, up to four independent displays, dual 2.5GbE with TSN and a 9 to 55 V DC input with ignition control. The series suits robotic SLAM, intelligent vending and factory automation designs.
- Intel Core Ultra: Hybrid CPU, GPU and NPU processor, with the Intel AI Boost NPU rated at 11 TOPS by Vecow.
- DDR5 and PCIe 4.0: One DDR5 5600 SO-DIMM socket for up to 48 GB and an M.2 Key M socket on PCIe 4.0 x4.
- Four Independent Displays: HDMI 2.1, DisplayPort 1.4, DisplayPort over USB Type-C and eDP up to 3840 x 2400 at 120 Hz.
- Dual 2.5GbE with TSN: Two Intel I226 2.5GbE ports with Time Sensitive Networking, plus Intel vPro and TCC.
- 9 to 55 V DC with Ignition: Wide-range DC input with 16-mode software ignition control and -40 to 75 °C operation with airflow.
Intel- Linux
- Windows
Quad Display Support
2.5GbE
Type C
USB3- 3x M.2
- 1x SIM
- 4G
- 5G
- Wi-Fi
- NVMe SSD
- Ignition Control
- Fanless
- Extended Temp
- CE
- FCC
EMBC-7000 Description
AI inference is moving onto the same compact boards that run machine control, so designers need a processor with an NPU, fast networking and a wide power input in a 3.5 inch footprint. The Vecow EMBC-7000 series answers that with Intel Core Ultra processors, which combine CPU, GPU and NPU in one hybrid architecture, and optional SUMIT B expansion for extra networking.
Every EMBC-7000 has one DDR5 5600 SO-DIMM socket for up to 48 GB and Intel Graphics driving up to four independent displays: HDMI 2.1 and DisplayPort 1.4 up to 4096 x 2304, DisplayPort 1.4 over USB Type-C and eDP up to 3840 x 2400 at 120 Hz. Networking is two Intel I226 2.5GbE ports with Time Sensitive Networking, with Intel vPro and TCC support. I/O covers two USB 3.2 Gen 2 Type-A ports, a USB 3.2 Gen 2×2 Type-C, two USB 2.0, RS-232/422/485 headers, two 8-bit GPIO headers and HD audio. Storage is an M.2 Key M socket on PCIe 4.0 x4 plus SATA III, and M.2 Key B with SIM and M.2 Key E sockets take 5G, 4G and Wi-Fi modules.
The EMBC-7000E-165U pairs the 12-core Intel Core Ultra 7 165U with a SUMIT B connector, which takes 10G LAN, 10G SFP+ or 4G expansion. The ordering table also lists Core Ultra 7 and Core Ultra 5 builds without SUMIT, with Core Ultra 200U processors by request. Vecow rates the Intel AI Boost NPU at 11 TOPS and offers OpenVINO support for AI computing through an optional service.
Power is 9 to 55 V DC on an ATX 4-pin connector, with 16-mode software ignition control. The EMBC-7000 operates from -40 to 75 °C with airflow, stores from -40 to 85 °C and handles 5 to 95% humidity, non-condensing, with heat sink and heat spreader accessories available. A TPM 2.0 and a watchdog timer are on board, and the board carries CE, FCC and ICES marks. Wake on LAN, PXE and hardware monitoring with auto throttling are supported. It measures 146 x 102 mm and supports Windows 11, Windows 10 and Linux. Vecow names robotic SLAM, intelligent vending and factory automation as target applications.
EMBC-7000 Specifications
| Overview | |
|---|---|
| Brand & Model | Vecow EMBC-7000 |
| Features | Compact Embedded USB C |
| Performance | |
| Processor Series | Intel Core Ultra Series 1 Meteor Lake |
| Processor Models | See Variant Specifications |
| Performance Cores | 12 Cores |
| GPU / AI Accelerator | Intel NPU |
| AI Performance | 11 TOPS |
| Memory | 1x DDR5 5600MHz SO-DIMM Slot, 48GB |
| PCIe Gen Support | PCIe 4.0 |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 10 Windows 11 |
| Graphics | |
| Integrated GPU | Intel Graphics |
| Display Standards | Display Port 1.4a HDMI 2.1 |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x Display Port 1x eDP 1x HDMI 1x USB Type C |
| Audio | |
| Codec | Realtek ALC888S-VD, 7.1 Channel HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226 |
| USB | 5x USB Ports |
| 1x USB 3.2 Gen 2x2 [Type C] 2x USB 2.0 [Board] 2x USB 3.2 Gen 2 [Type A] | |
| Serial | 4x Serial Ports |
| 4x RS232/422/485 [Board] | |
| GPIO | GPIO [16-lines] |
| Remote Management | Intel vPro |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe x2/USB] [2242/3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4/SATA] [2280] | |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G/5G Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x SATA Port |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 9-55V DC Input [ATX Connector] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Optional Heat Spreader Optional Heatsink |
| Operating Temperature | -40°C to 75°C [-40°F to 167°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Certification | CE FCC IC (ICES-003) |
| Mechanical Properties | |
| Dimensions | 146mm x 102mm (5.75" x 4.02") |
No specifications match your search.
See product variants.
EMBC-7000 Variants
Vecow EMBC-7000E-165U 3.5″ SBC with Intel Core Ultra 7 165U, Dual 2.5GbE and SUMIT B Expansion
EMBC-7000 with Core Ultra 7 165U and SUMIT B expansion
| Overview | |
|---|---|
| Brand & Model | Vecow EMBC-7000E-165U |
| Performance | |
| Processor Models | Ultra 7 165U |
| Expansion | |
| 1x SUMIT B | |
| Overview | |
|---|---|
| Brand & Model | Vecow EMBC-7000-165U |
| Performance | |
| Processor Models | Ultra 7 165U |
| Overview | |
|---|---|
| Brand & Model | Vecow EMBC-7000-135U |
| Performance | |
| Processor Models | Ultra 5 135U |
