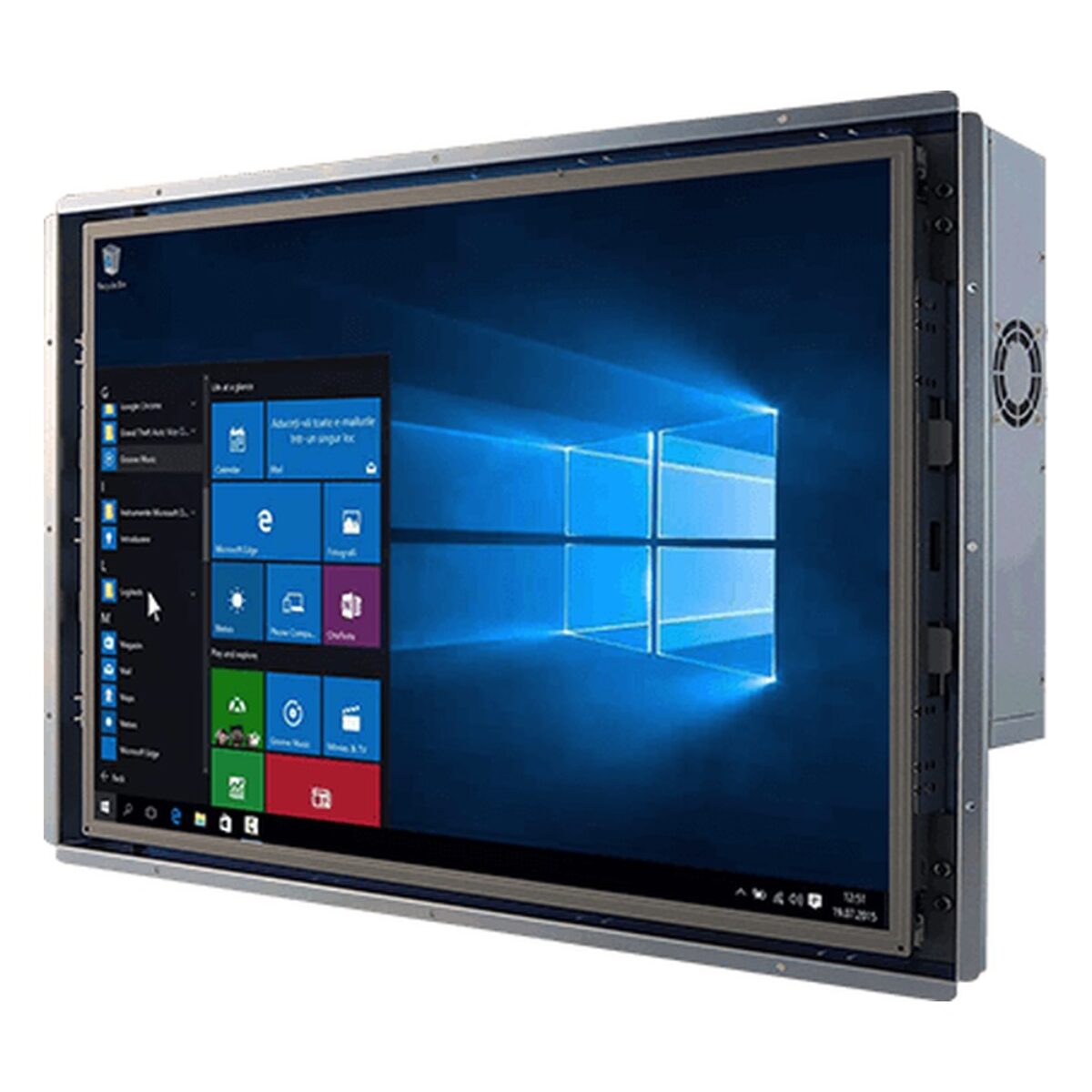

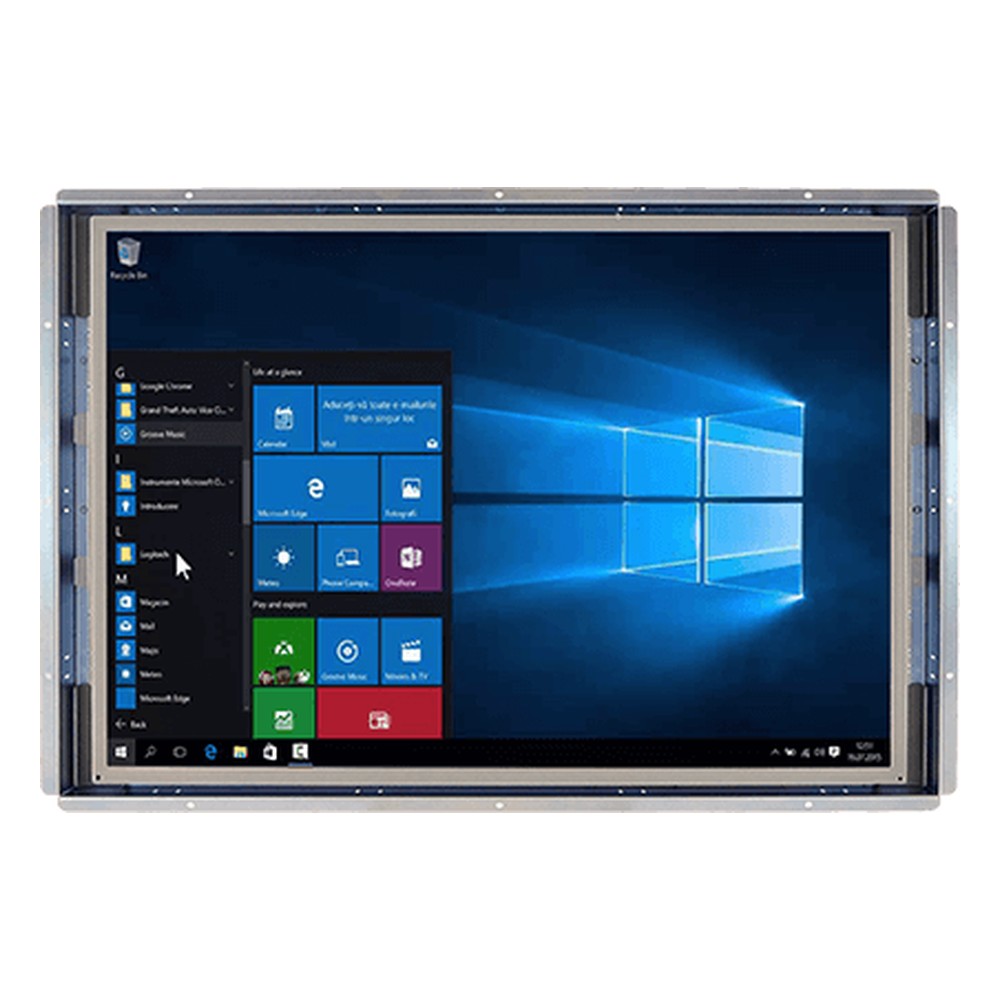

Winmate W18IP7T-OFA2 18.5″ Open Frame Panel PC with Intel Pentium N4200 and Resistive Touch

When the enclosure is part of the machine design, the touch computer inside it is best supplied as an open frame that the builder fixes in place. The W18IP7T-OFA2 is Winmate’s 18.5 inch open frame panel PC for OEM enclosures and machine fronts, with an Intel Pentium N4200 and a 18.5″ 1366 x 768 display at 450 nits with 1000:1 contrast, in a fanless metal housing. Resistive touch or plain protection glass are options.

The quad-core Intel Pentium N4200 runs at 1.1 GHz with burst to 2.5 GHz and Intel HD Graphics, typically enough for HMI runtimes and SCADA clients without a fan. Two DDR3L-1866 SO-DIMM sockets run in dual channel with up to 16 GB. A 128 GB SSD sits on an M.2 2242 B-key slot, with options to 1 TB, and two optional 2.5″ SATA III bays support RAID 0 or 1. TPM 2.0 is on board, with Windows or Linux Ubuntu 20.04.

Two Gigabit LAN ports on Intel controllers, four USB 3.2 Gen 1 Type-A ports and two DB9 serial ports (one RS-232/422/485, one RS-232) cover networks, peripherals and PLCs. DisplayPort 1.2 drives a second screen at up to 4096 x 2160 at 60 Hz, with HDMI 1.4 or VGA optional, plus mic-in, line-out and two speakers. Optional Wi-Fi and Bluetooth fit an M.2 E-key slot, and a PCIe 2.0 x1 slot takes a card. Within the Winmate range the W18IF7T-OFA2 is the 18.5 inch open frame model with 9th Gen Intel Core i3 to i7 processors, and the W18IP7T-CHA2 is the Pentium N4200 chassis version for VESA mounting.

Power is 12 V DC on a DIN 4-pin connector, with an 84 W AC adapter supplied. It runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, for indoor cabinets and control rooms. It mounts as an open frame by default, with panel and VESA mounting as options. It carries CE and FCC marks. We supply the W18IP7T-OFA2 configured, with the OS installed, and tested before dispatch.
