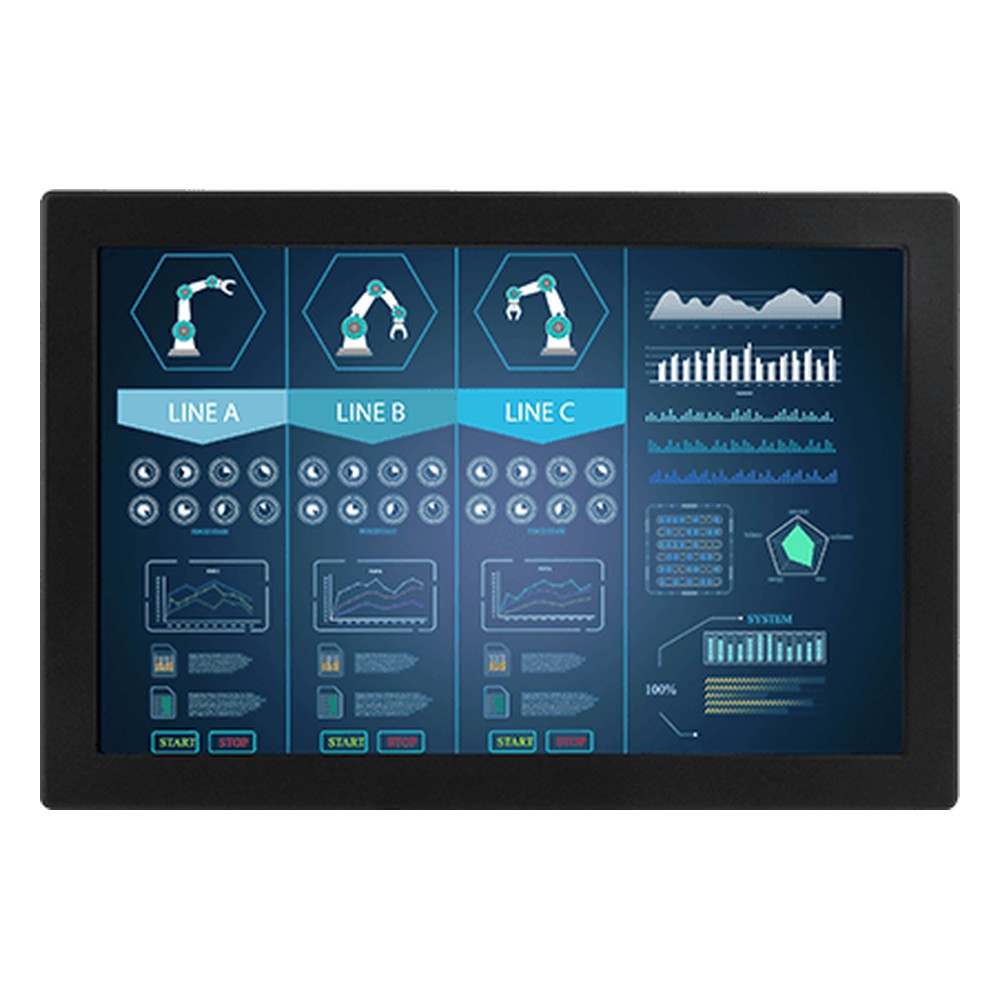

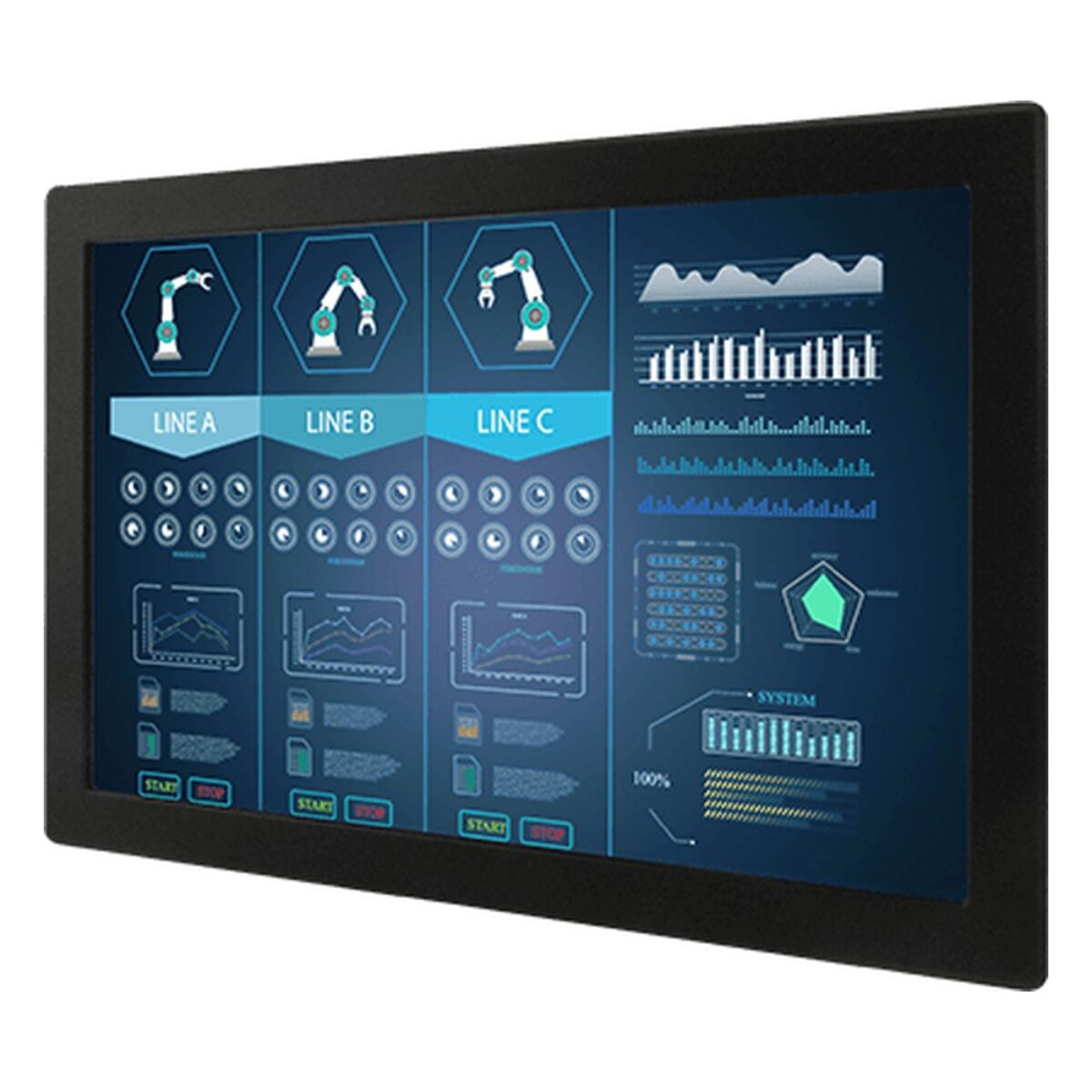

Winmate W32L300-PMA3 32″ Panel Mount Monitor with FHD LCD and 400 Nits

Control rooms and production halls often need one large shared screen for line status, alarms or camera feeds, mounted where everyone can see it. The W32L300-PMA3 is Winmate’s 32 inch panel mount monitor for that role, with a Full HD panel at 400 nits and 4000:1 contrast, and it connects to a separate PC or controller.

The 32″ panel shows 1920 x 1080 (FHD) at 400 nits, with 4000:1 contrast and viewing angles of 178 degrees horizontal and 178 degrees vertical. The front is protection glass without touch, which suits status, process and camera views that operators read rather than press. Five keys (minus, plus, power, Esc and Enter) handle the on-screen menu, and a remote controller is optional.

The W32L300-PMA3 connects to a separate industrial PC or controller over VGA as standard, with HDMI and DVI inputs available as options, and both a VGA and an HDMI cable come in the box. An audio line-in and two speakers are optional. Within the Winmate range the W32L300-OFA3 is the open frame version of this 32 inch FHD monitor for builders who fit their own bezel, and the W32L300-65A3 is the IP65 stainless steel model with M12 connectors.

Power is 12 V DC, with a 24 V DC input listed as an option, and an AC adapter and power cord are supplied. The fanless metal housing runs from 0 to 50 °C at 10 to 90% humidity, non-condensing, and stores from -10 °C to 60 °C. VESA mounting is standard and panel mounting is listed as an option, with VESA screws supplied. It carries CE and FCC marks. We supply the W32L300-PMA3 configured and tested before dispatch, and we can help pair it with the right host computer.
