Yuan PD570 PRO HDMI USB HDMI Capture Card with 1920 x 1200p60 Input
PD570 PRO HDMI Overview
Getting an HDMI feed into a laptop or small PC is awkward when there is no free slot for an internal capture card. The PD570 PRO HDMI is Yuan’s USB HDMI capture card: one HDMI input at up to 1920 x 1200 and 60 fps, delivered to the host over USB 3.0. It suits recording, streaming or analyzing a camera or computer output from a portable or desk-side system.
The HDMI input accepts video up to 1920 x 1200 at 60 or 50 fps, which covers 1080p60 cameras as well as UXGA computer desktops. Yuan’s ProAV scaler then offers the stream at a set of output sizes from 640 x 480 through 1280 x 720 and 1920 x 1080 up to 1920 x 1200, at 60, 50, 30, 25 or 24 fps, so capture software can ask for the size and rate it wants. Video is delivered in YUY2. Audio comes from the HDMI signal or a 3.5 mm analog stereo input, captured as 16-bit stereo at 48 kHz.

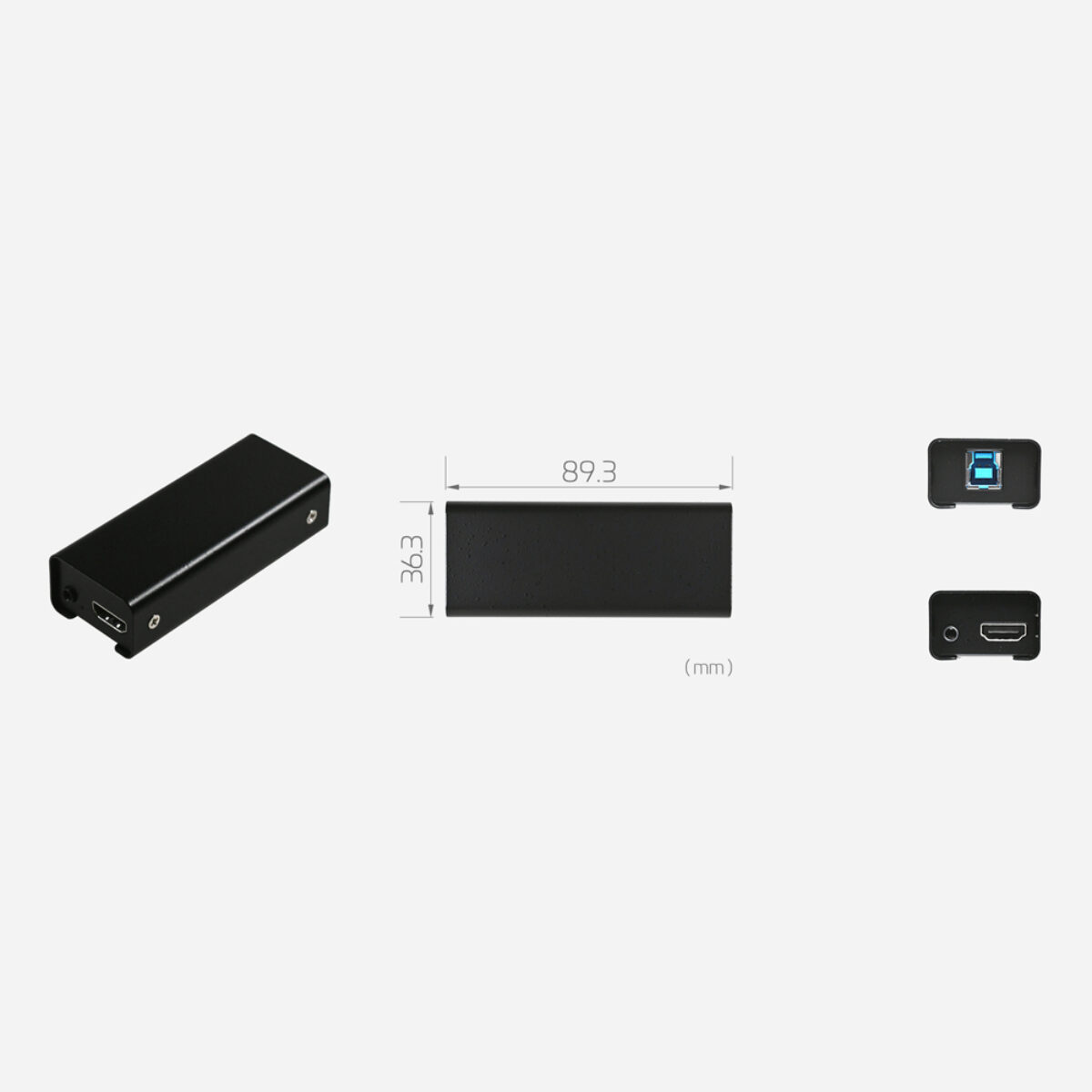

The capture card is an external USB unit that connects through a USB 3.0 Type B port and presents itself as a UVC device, so nothing has to be fitted inside the host. Where the source is SDI rather than HDMI, the PD570 PRO SDI is the same design with a BNC input, and the PD570 PRO HDMI2.0 HDR moves to HDMI 2.0 with 4K60 input.
Yuan lists support for Windows 7, Windows 8, Windows 8.1 and Windows 10 in 32-bit and 64-bit editions, together with Linux, macOS and Android. That lets the same capture card move between a Windows laptop, a Linux capture PC and a Mac without a hardware change. Yuan’s model page does not give dimensions or an operating temperature range, so ask us for both where the card will sit inside an enclosure or vehicle.
PD570 PRO HDMI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan PD570 PRO HDMI |
| Video Capture | |
| Host Interface | USB3.0 |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] UXGA60 [1920x1200 @ 60/50fps] |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] UXGA60 [1920x1200 @ 60/50/30/25/24fps] |
| Color Format | YUY2 |
| Audio Input | 1x 3.5mm Audio Input 1x Stereo Input |
Official Yuan USA Distributor
Things Embedded is an official Yuan USA distributor, supplying the PD570 PRO HDMI for USA capture and streaming projects. Within the Yuan range the PD575 HDMI is the USB HDMI capture card that adds 3840 x 2160 capture at 30 fps, and the UB570G PRO HDMI is another USB 3.0 capture model for a single HDMI source.
As a portable HDMI capture card the PD570 PRO HDMI sits among our USB video capture cards and our HDMI capture cards. Where a slot-less host needs one HDMI feed at up to 1920 x 1200 with scaled output sizes, this is the model to specify.
