US 12 Inch Panel PCs
12 Inch Industrial Touch Panel PCs for Machine HMIs and Control Cabinets
Twelve inch panel PCs are the 4:3 HMI machine builders standardized on for control cabinet doors and pendant arms. Available in the 12.1 inch 4:3 format with resistive or PCAP touch and a front IP65 bezel, they fit the established cut-out and run the same HMI layouts operators already know.
Options include panel-mount and VESA fixings, marine and stainless steel builds, and UL-listed models for control panel builders, suited to machine cabinets, packaging lines and process skids where the door is wiped down and the operator works in gloves.
Speak to a panel PC specialist to match the touch technology, sealing and fixings to your cabinet door.
Browse Our 12 Inch Touch Screen Computers
- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 32GB
- OS: Linux Ubuntu 22.04, Windows 10
- Display Outputs: 1x HDMI, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.0 [Type A]
- Serial: 1x RS232 [DB9], 4x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [USB/SATA] [2242], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 2x M.2 SSD
- Power: 24V DC
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: Front IP66
- Certification: CE, FCC
- Display: 12.1"[5:3, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 600
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Celeron J Series Apollo Lake
- Memory: 1x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Windows 10
- Display Outputs: 1x Display Port, 1x USB Type C
- Ethernet: 1x GbE LAN [RJ45] [PoE], 3x GbE LAN [RJ45]
- USB: 1x USB 3.0 [Type C], 2x USB 3.0 [Type A]
- Serial: 2x Isolated RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [SATA] [2242]
- Storage: 1x M.2 SSD
- Power: 18-32V DC Input [Terminal Block], Optional AC Power Supply
- Temp: -10°C to 55°C [14°F to 131°F]
- IP Rating: Front IP65
- Certification: CE, FCC, IEC 60945
- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Pentium N Series Apollo Lake
- Memory: 2x DDR3L 1866MHz SO-DIMM Slot, 8GB
- OS: Linux Ubuntu 20.04, Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x M.2 SSD
- Power: 12V DC, Optional AC Power Supply
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC

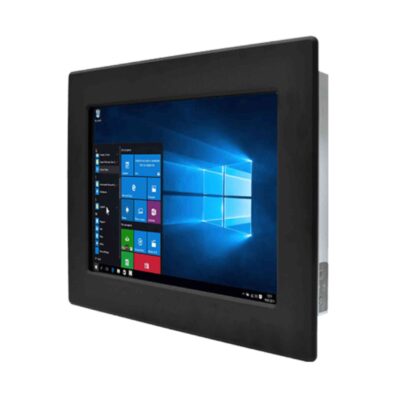

- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC, Optional AC Power Supply
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC

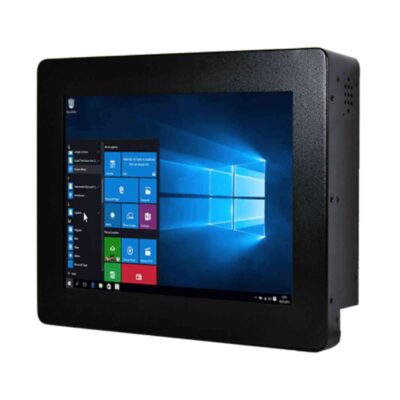

- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC, Optional AC Power Supply
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC

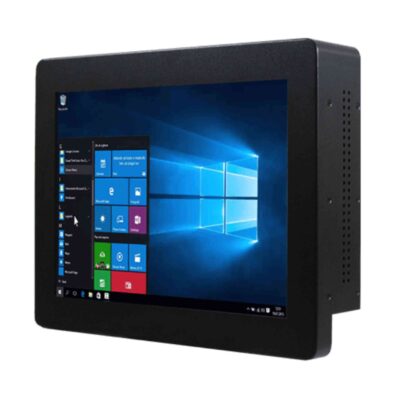

- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Optional Resistive Touch
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 20.04, Windows 10, Windows 11
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB/SATA] [2242]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 12V DC, Optional AC Power Supply
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 32GB
- OS: Windows 10
- Display Outputs: 1x Display Port
- Ethernet: 2x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB/SATA]
- PCIe: 1x PCIe [x16 Slot]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-29V DC Input
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: Front IP65
- Certification: UL Class 1 Division 2
-
DM-112P/PM-2000
DM-1XXP/PM-2000 with 12.1" 4:3 XGA PCAP display -
DM-110P/PM-2000
DM-1XXP/PM-2000 with 10.4" 4:3 XGA PCAP display -
DM-115P/PM-2000
DM-1XXP/PM-2000 with 15" 4:3 XGA PCAP display -
DM-115PW/PM-2000
DM-1XXP/PM-2000 with 15.6" 16:9 FHD PCAP display -
DM-117P/PM-2000
DM-1XXP/PM-2000 with 17" 5:4 SXGA PCAP display -
DM-119P/PM-2000
DM-1XXP/PM-2000 with 19" 5:4 SXGA PCAP display -
DM-121PW/PM-2000
DM-1XXP/PM-2000 with 21.5" 16:9 FHD PCAP display -
DM-124PW/PM-2000
DM-1XXP/PM-2000 with 24" 16:9 FHD PCAP display
- Touch: Projective Capacitive Touch
- Viewing Angle: Wide Viewing Angle
- CPU: Intel Celeron J Series Bay Trail
- Memory: 1x DDR3L 1600MHz SO-DIMM Slot, 8GB
- OS: Linux, Windows 10
- Display Outputs: 1x Display Port, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 4x USB 2.0 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- mPCIe: 1x mPCIe [SATA/USB], 1x mPCIe [USB]
- Storage: 1x 2.5" HDD/SSD, 1x mSATA
- Power: 9-48V DC Input, Terminal Block
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 70°C [-4°F to 158°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 12.1"[4:3, 1024 x 768, XGA]
- Brightness: 600
- Format: Standard
12 Inch Panel PC Ranges Configured by Things Embedded
We work with the leading manufacturers of 4:3 cabinet-door HMIs, so the ranges below are the ones we specify for control cabinets, pendant arms and vehicle terminals. Compare them by processor, sealing and fixings, then browse the models above or ask a panel PC specialist which range suits your cabinet.
IT3S Winmate Core-Class Panel Mount PCs
Fanless flush-mount HMIs on Intel Core i5 Tiger Lake from 10.4 to 23.8 inches, in standard and front IP65 builds, for control cabinets and consoles that need Core-class performance behind the screen.
IT7T and IF7T Winmate Chassis-Mount Touch Computers
VESA and wall-mount units from 12.1 to 23.8 inches on Intel Pentium, Core i5 Tiger Lake or Core i3 to i7 Coffee Lake, with resistive touch and wide-temperature options, for arms, desks and walls.
IE3S Winmate Compact Celeron HMIs
Small panel-mount and chassis touch PCs from 6.5 to 12.1 inches on Intel Celeron N6210, with resistive or PCAP touch, for machine guards, cabinet doors and pendant arms.
Winmate Vehicle Mount Rugged Computers
In-cab touch computers from 8.4 to 15 inches on Intel Celeron or Core i5, with sunlight-readable high-bright options and wide-range DC input, for forklifts, cabs and mobile machinery.
Winmate ATEX and Class I Div 2 Panel PCs
Certified HMIs from 12.1 to 23.8 inches on Intel Atom, Celeron and Core i5, carrying UL Class I Division 2 with ATEX Zone 2 on selected models, for operator stations inside classified areas.
IT3S Winmate Marine Touch Computers
Front IP66 console computers on Intel Core i7 Tiger Lake from 12.1 to 24 inches, designed for bridge and engine room consoles.
GOT700 Axiomtek EN 50155 Railway and Vehicle Computers
Fanless 10.4 to 15 inch cab computers on Intel Atom with resistive touch, a front IP65 bezel and M12 connectors, certified to EN 50155 for driver desks and crew terminals, plus a vehicle-mount variant.
VIO C&T Solution Modular Touch Computers
Modular HMIs that pair a VIO display with a fanless Intel Celeron compute module behind a front IP65 bezel, with resistive or PCAP touch, so the computer can be upgraded without changing the cabinet cut-out.
DM Arestech Modular Panel PCs
Two-part systems built from a DM display and a PM-2000 Intel Celeron compute module, with PCAP touch and a front IP65 bezel, for panel or chassis mounting from 10.4 to 24 inches.
PPC-120T Nexcom Flush-Mount Panel PC
A 12.1 inch front IP65 flush-mount touch computer on Intel Celeron with PCAP touch and PoE power, for panel, VESA or open-frame mounting.
Not sure which range fits? Tell us the application and we will recommend the right model.
12 Inch Panel PC Innovation & Control Cabinet Insights
Speak to a Panel PC Specialist.
Tell us where the panel PC will be mounted, what it needs to run and connect to and the sealing the area needs, and we will recommend the right size and touch technology, then configure, image and test it before it ships.
