Displaying of 248 items

View All

R15IAD3S-PPC3 15″ Panel Mount HMI with Intel Core i5-1235U and PCAP Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R15IAD3S-PPC315″ Panel Mount HMI with Intel Core i5-1235U and PCAP Touch

Datasheet

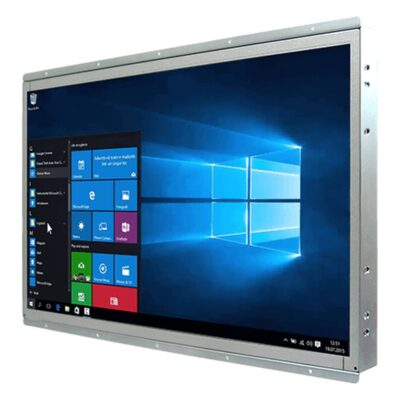

W15IAD7T-OFA2 15.6″ Open Frame Panel PC with Intel Core i3 to i9 LGA1700 and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 15.6"[8:5, 1366 x 768, WXGA]
Touch: Optional Resistive Touch
Brightness: 400
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Intel Core 14th Gen Raptor Lake Refresh
Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Display Port
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 4x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
Power: 12V DC [4-Pin], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

W15IAD7T-OFA215.6″ Open Frame Panel PC with Intel Core i3 to i9 LGA1700 and Resistive Touch

Datasheet

R10IAD3S-PPT2 10.4″ Panel Mount HMI with 12th Gen Intel Core i5 and PCAP Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Standard
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R10IAD3S-PPT210.4″ Panel Mount HMI with 12th Gen Intel Core i5 and PCAP Touch

Datasheet

W12IAD3S-VMM9(HB) 12.1″ Vehicle Mount Panel PC with Intel Core i5-1235U and MIL-STD-810G

CPU: Intel Core 12th Gen Alder Lake
Display: 12.1"[5:3, 1280 x 800, WXGA]
Touch: Optional Resistive Touch
Brightness: 400
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Optional HDMI
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD
Power: 9-36V DC Input [Terminal Block]
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W12IAD3S-VMM9(HB)12.1″ Vehicle Mount Panel PC with Intel Core i5-1235U and MIL-STD-810G

Datasheet

R15IAD3S-GCC3(HB) 15″ G-WIN Front IP65 Panel PC with Intel Core i5-1235U and MIL-STD-810G

CPU: Intel Core 12th Gen Alder Lake
Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 12V DC
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R15IAD3S-GCC3(HB)15″ G-WIN Front IP65 Panel PC with Intel Core i5-1235U and MIL-STD-810G

Datasheet

R19IAD3S-SPM169-P1 19″ Stainless Steel IP69K Panel PC with Intel Alder Lake Core i5-1235U and PCAP Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 19"[5:4, 1280 x 1024, SXGA]
Touch: Multi Touch PCAP
Brightness: 250
Viewing Angle: Wide Viewing Angle
Format: Standard
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x HDMI
Ethernet: 2x GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 1 [Type A]
Serial: 1x RS232/422/485 [DB9]
Storage: 1x 2.5" HDD/SSD
Power: 12V DC
Temp: 0°C to 45°C [32°F to 113°F]
IP Rating: IP69K
Certification: CE, FCC

Winmate

R19IAD3S-SPM169-P119″ Stainless Steel IP69K Panel PC with Intel Alder Lake Core i5-1235U and PCAP Touch

Datasheet

W22IAD7T-GPA3 21.5″ Edge AI Panel PC with Intel Alder Lake-S/Raptor Lake Core and NVIDIA RTX Ada GPU Option

CPU: Intel Core 12th Gen Alder Lake
Display: 21.5"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 250
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Intel Core 14th Gen Raptor Lake Refresh
GPU / AI Accelerator: Discrete GPU (PCIe), Hailo-8 AI Accelerator
GPU: RTX 4000E Ada, NVIDIA RTX A1000, NVIDIA RTX 2000E Ada
AI Performance: 26–142 TOPS
OS: Linux Ubuntu 24.04, Windows 11
Display Outputs: 1x Display Port
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 4x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230]
Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
Power: 80-264V AC
Temp: 0°C to 55°C [32°F to 131°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W22IAD7T-GPA321.5″ Edge AI Panel PC with Intel Alder Lake-S/Raptor Lake Core and NVIDIA RTX Ada GPU Option

Datasheet

W22IAD3S-SPA3 21.5″ Stainless Steel Panel PC with Intel Core i5-1235U and M12 Connectors

CPU: Intel Core 12th Gen Alder Lake
Display: 21.5"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 250
Viewing Angle: Wide Viewing Angle
Format: Widescreen
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 1x GbE LAN [RJ45]
USB: 2x USB 2.0 [M12]
Serial: 1x RS232 [M12]
Storage: 1x 2.5" HDD/SSD
Power: 12V DC [M12]
Temp: 0°C to 45°C [32°F to 113°F]
IP Rating: IP65
Certification: CE, FCC

Winmate

W22IAD3S-SPA321.5″ Stainless Steel Panel PC with Intel Core i5-1235U and M12 Connectors

Datasheet

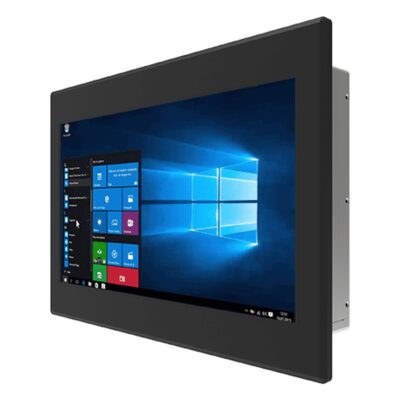

W15IAD3S-IPA2 15.6″ Front IP65 Panel PC with Intel Alder Lake Core i5-1235U and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 15.6"[8:5, 1366 x 768, WXGA]
Touch: Optional Resistive Touch
Brightness: 400
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 12V DC [Barrel Connector], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W15IAD3S-IPA215.6″ Front IP65 Panel PC with Intel Alder Lake Core i5-1235U and Resistive Touch

Datasheet

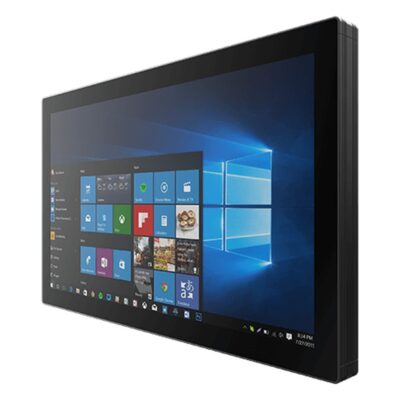

W32IAD7T-PCA3 32″ PCAP Touch Panel PC with Intel Core i3 to i9 LGA1700 and PCAP Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 32"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 400
Viewing Angle: Wide Viewing Angle
Format: Widescreen
CPU: Intel Core 14th Gen Raptor Lake Refresh
OS: Linux Ubuntu 24.04, Windows 11
Display Outputs: 1x HDMI
Ethernet: 2x GbE LAN [RJ45]
USB: 4x USB 3.2 Gen 1 [Type A]
Serial: 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD
Power: 24V DC
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

W32IAD7T-PCA332″ PCAP Touch Panel PC with Intel Core i3 to i9 LGA1700 and PCAP Touch

Datasheet

W18IAD3S-MLA3FP 18.5″ Defense Panel PC with 12th Gen Intel Core i5, MIL-STD-810H and MIL-STD-461

CPU: Intel Core 12th Gen Alder Lake
Display: 18.5"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Widescreen
OS: Linux Ubuntu 22.04, Windows 11
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 100-240V AC, 9-36V DC Input [MIL-STD]
Temp: -20°C to 60°C [-4°F to 140°F]
Certification: CE, FCC, MIL-STD-461, MIL-STD-810

Winmate

W18IAD3S-MLA3FP18.5″ Defense Panel PC with 12th Gen Intel Core i5, MIL-STD-810H and MIL-STD-461

Datasheet

R19IAD3S-RKA3ML 19″ Rack Mount Defense Panel PC with Intel Alder Lake Core i5-1235U, MIL-STD-810H and MIL-STD-461

CPU: Intel Core 12th Gen Alder Lake
Display: 19"[5:4, 1280 x 1024, SXGA]
Touch: Optional 5-Wire Resistive Touch
Brightness: 350
Viewing Angle: Wide Viewing Angle
Format: Standard
OS: Linux Ubuntu 22.04, Windows 11
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 100-240V AC, 9-36V DC Input [MIL-STD]
Temp: -20°C to 60°C [-4°F to 140°F]
Certification: CE, FCC, MIL-STD-461, MIL-STD-810

Winmate

R19IAD3S-RKA3ML19″ Rack Mount Defense Panel PC with Intel Alder Lake Core i5-1235U, MIL-STD-810H and MIL-STD-461

Datasheet

R15IAD3S-VMC3(HB) 15″ Vehicle Mount Panel PC with Intel Alder Lake Core i5-1235U and MIL-STD-810G

CPU: Intel Core 12th Gen Alder Lake
Display: 15"[4:3, 1024 x 768, XGA]
Touch: Optional Resistive Touch
Brightness: 1000, 300
Viewing Angle: Wide Viewing Angle
Format: Standard
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Display Outputs: 1x Optional HDMI
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x M.2 SSD
Power: 9-36V DC Input [Terminal Block]
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 55°C [14°F to 131°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R15IAD3S-VMC3(HB)15″ Vehicle Mount Panel PC with Intel Alder Lake Core i5-1235U and MIL-STD-810G

Datasheet

R10IAD3S-OFT2 10.4″ Open Frame Panel PC with Intel Alder Lake Core i5-1235U and Resistive Touch

CPU: Intel Core 12th Gen Alder Lake
Display: 10.4"[4:3, 1024 x 768, XGA]
Touch: Optional Resistive Touch
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Standard
Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 2x 2.5 GbE LAN [RJ45]
USB: 2x USB 3.2 Gen 2 [Type A]
Serial: 1x RS232 [DB9], 1x RS232/422/485 [DB9]
M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
Power: 12V DC [Barrel Connector], AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

R10IAD3S-OFT210.4″ Open Frame Panel PC with Intel Alder Lake Core i5-1235U and Resistive Touch

Datasheet

W22IAD3S-SPA369 21.5″ Stainless Steel IP69K Panel PC with Intel Alder Lake Core i5-1235U and M12 Connectors

CPU: Intel Core 12th Gen Alder Lake
Display: 21.5"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 250
Viewing Angle: Wide Viewing Angle
Format: Widescreen
OS: Linux Ubuntu 22.04, Windows 11
Ethernet: 1x GbE LAN [RJ45]
USB: 2x USB 2.0 [M12]
Serial: 1x RS232 [M12]
Storage: 1x 2.5" HDD/SSD
Power: 12V DC [M12]
Temp: 0°C to 45°C [32°F to 113°F]
IP Rating: IP69K
Certification: CE, FCC

Winmate

W22IAD3S-SPA36921.5″ Stainless Steel IP69K Panel PC with Intel Alder Lake Core i5-1235U and M12 Connectors

Datasheet

Displaying of 248 items

View All

Beyond Alder Lake: Intel Processors

All IntelBack to the full range

Intel Elkhart LakeAtom x6000E, Celeron and Pentium for the edge Intel Raptor Lake13th and 14th Gen Core on LGA1700 Intel Processor NN97, N150 and i3-N305 at 6 to 15 W Intel Amston LakeAtom x7000E and x7000RE, 2 to 8 cores Intel Bartlett LakeCore Series 2 edge processors for LGA1700 Intel Core UltraCore Ultra with an on-chip NPU Intel Wildcat LakeCore Series 3 with Xe3 graphics and an NPU

// Intel Industrial Computing Specialists

Speak to an Intel Alder Lake Specialist.

Tell us where the system will be installed, the approvals it must meet and the interfaces you need to connect. We will recommend the right form factor, then configure, image and test it before it ships.

Phone · USA +1 407 214 9446

Email sales@things-embedded.com
