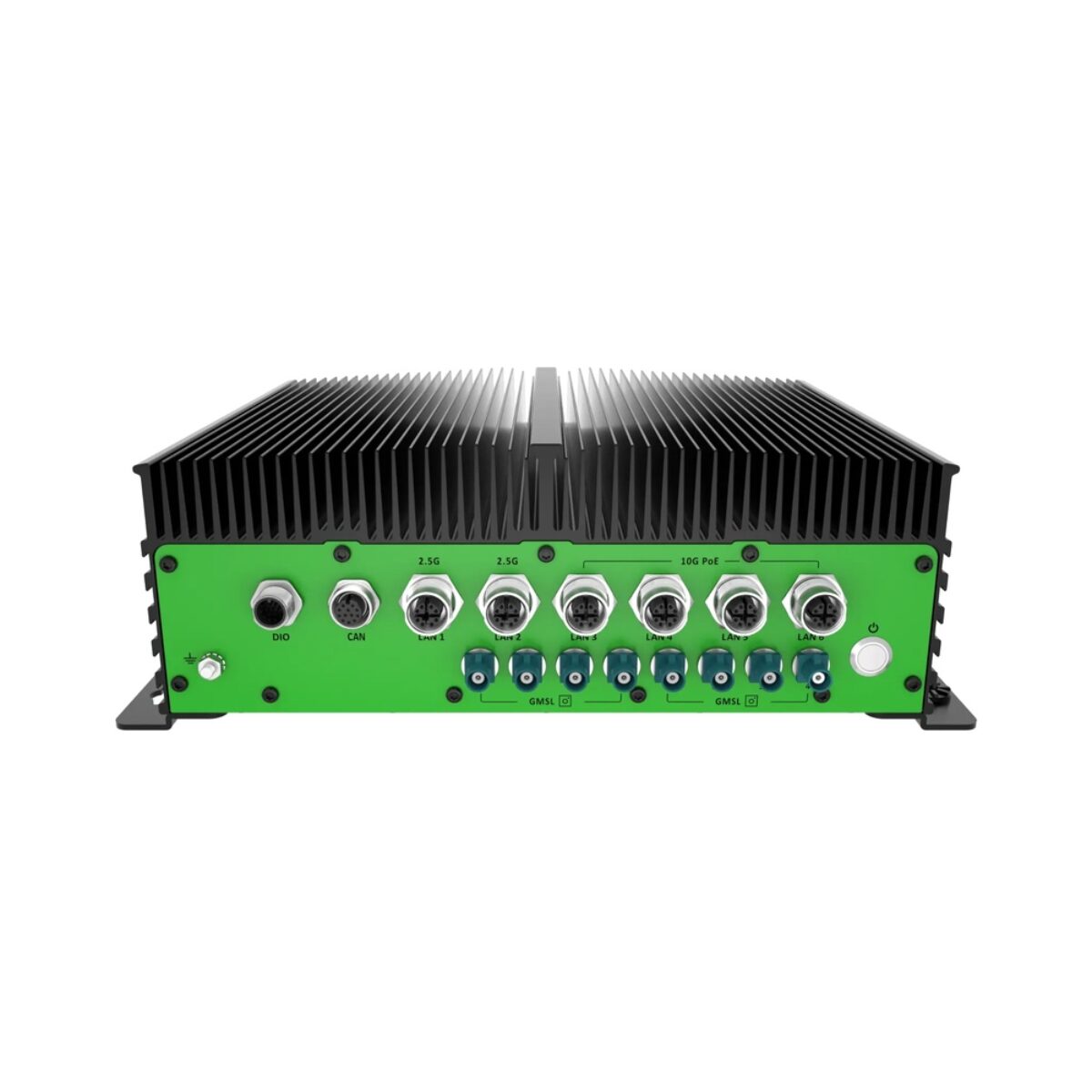

Premio WCO-6000-THR-A-T5000 NVIDIA Jetson AGX Thor T5000 Wide Temperature IP66 Computer with 4x 10GbE M12

Sensor fusion on a moving machine tends to be limited by memory and bandwidth before anything else, especially when lidar, radar and several cameras arrive at once. The WCO-6000-THR-A-T5000 is the NVIDIA Jetson AGX Thor T5000 wide temperature IP66 computer with 4x 10GbE M12 in the Premio WCO-6000-THR-A series, and it puts the largest module and all four 10GbE ports to work without the PoE module. It runs Ubuntu 24.04 with JetPack 7.2, so WCO-6000-THR-A-T5000 builds can start from NVIDIA’s standard software stack.

The T5000 module combines a 14-core Arm Neoverse-V3AE 64-bit CPU with 128 GB of LPDDR5X and is rated at up to 2070 FP4 sparse TFLOPS at 120 W. That memory headroom can hold several large perception and language models at once, which is useful when a vehicle runs detection, tracking and planning on the same computer. Premio lists two thermal modes: 77 W TDP from -20 °C to 50 °C and 120 W TDP from -20 °C to 40 °C, both with a 120 W PoE load.

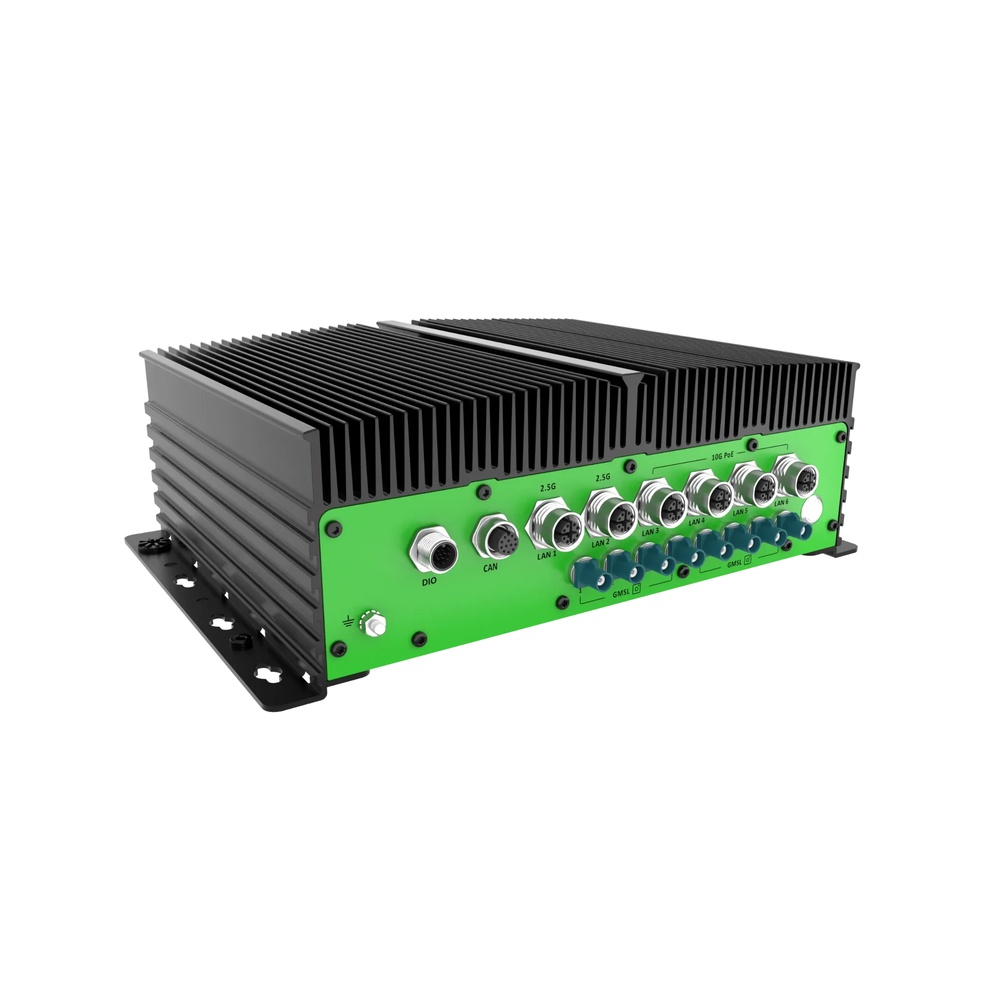

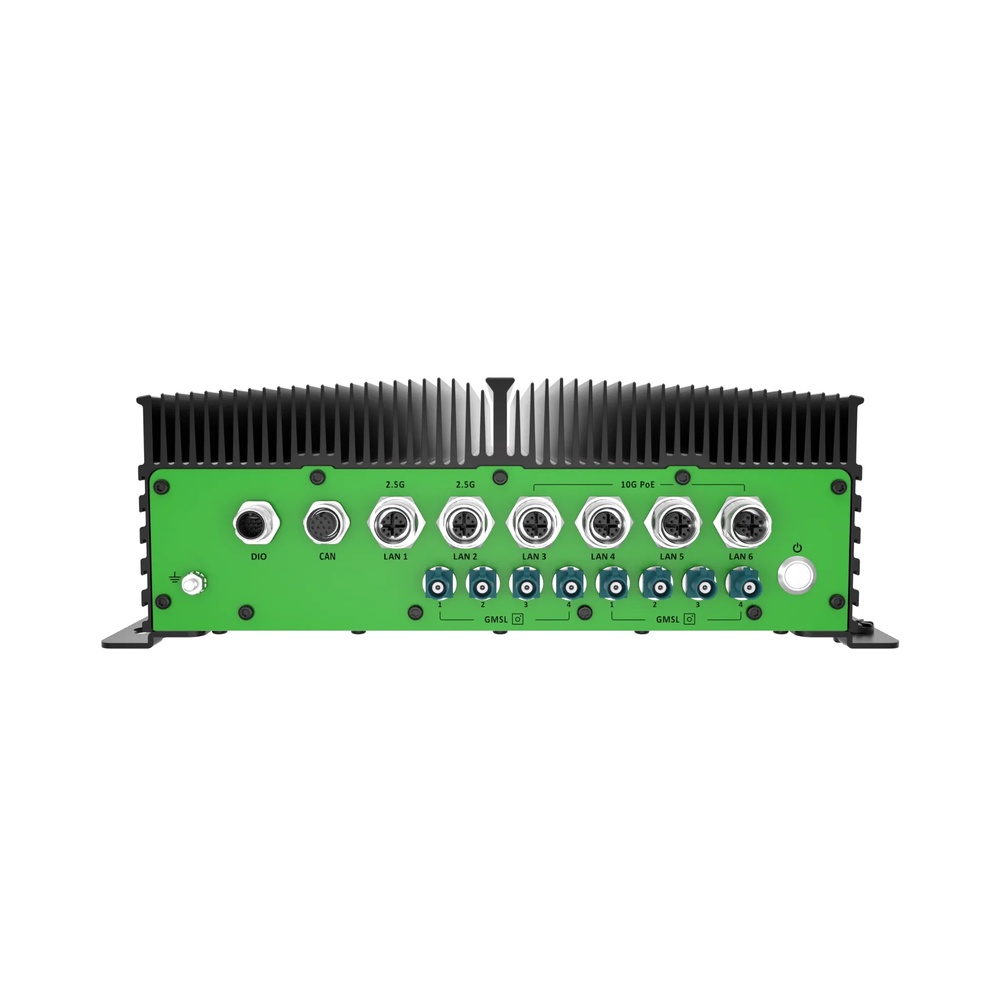

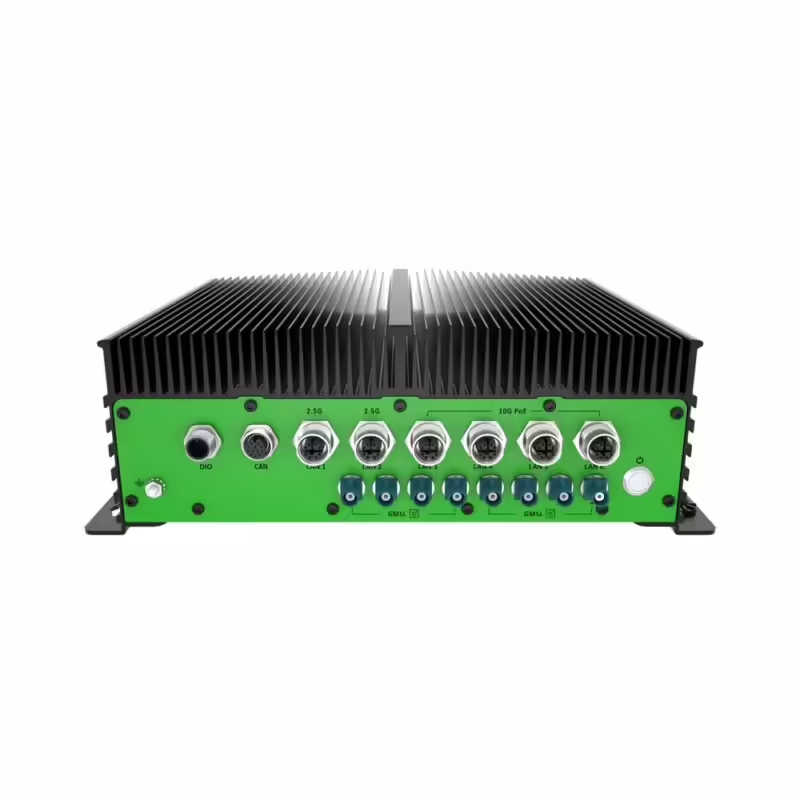

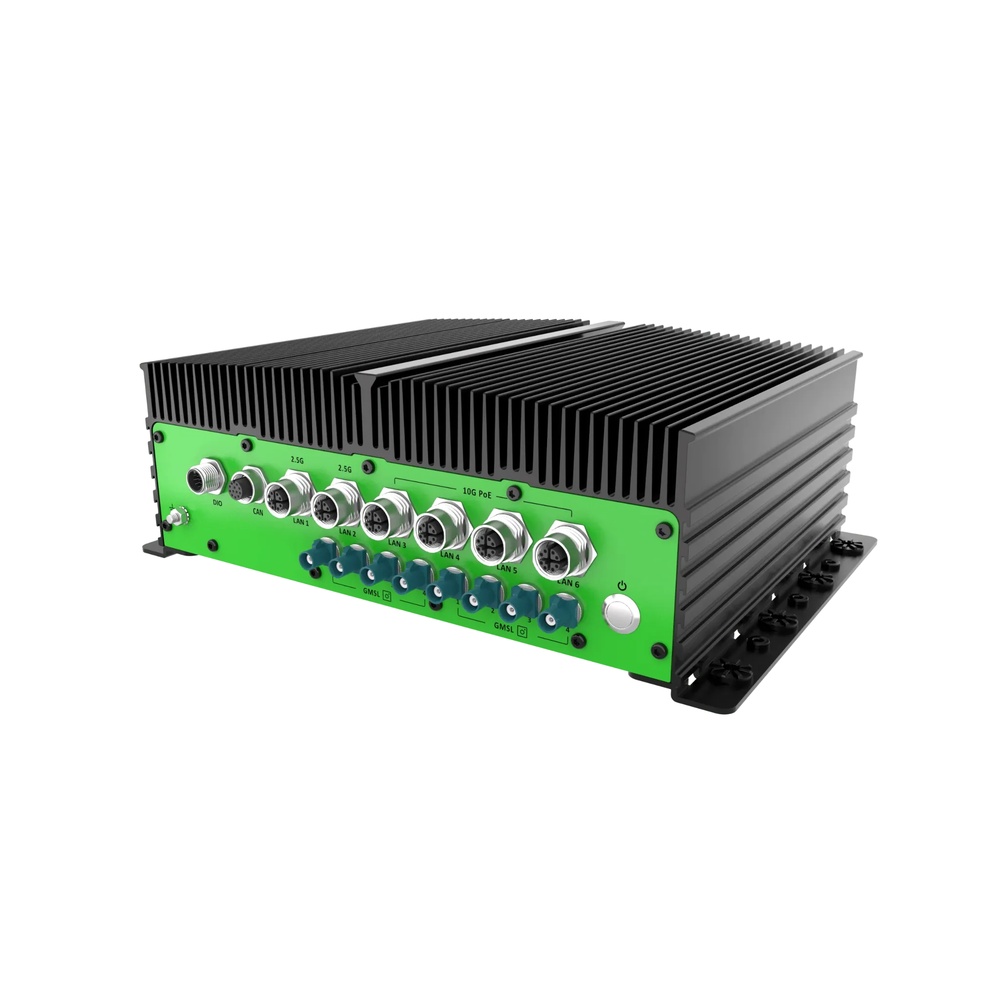

Networking is all M12 X-coded: four 10GbE ports on Marvell AQR113 controllers, left unpowered for self-powered sensors, plus two 2.5GbE ports on Intel i226. Eight waterproof Fakra-Z connectors accept optional GMSL2 cameras, and two RS-232/422/485 ports and 7 in/7 out isolated DIO use M12 A-coded connectors, alongside four CAN FD ports for vehicle buses. A 2280 NVMe SSD sits in the M.2 M-key slot, while M.2 B-key and E-key slots with a dual SIM socket take 4G/5G and Wi-Fi/Bluetooth modules.

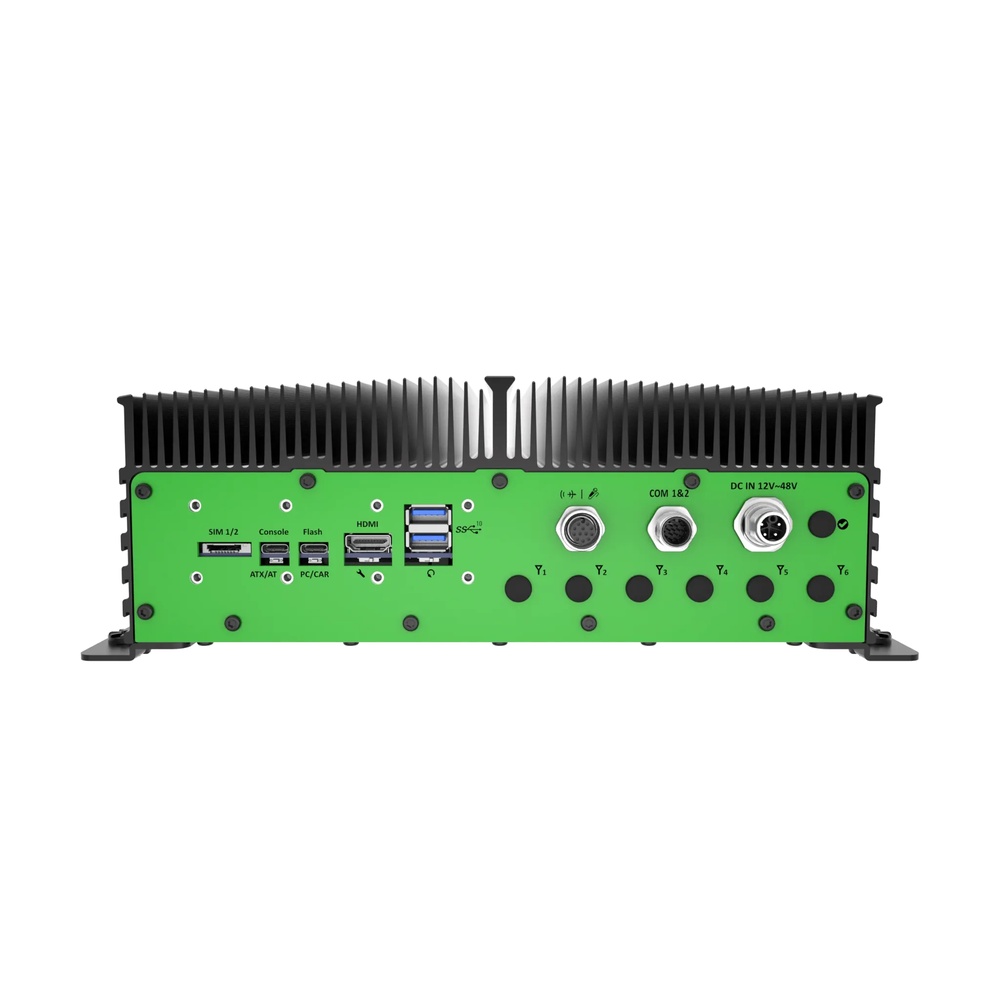

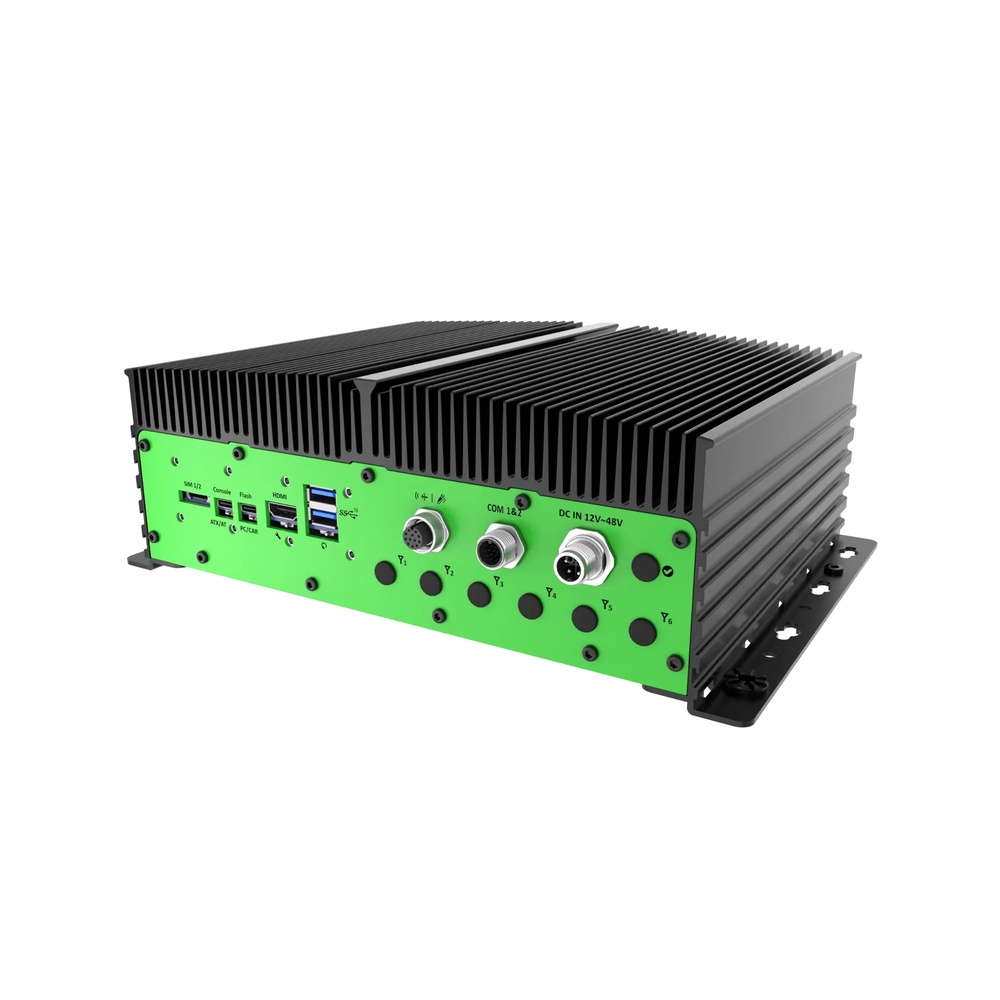

Power arrives at 24 to 48 V DC through an M12 K-coded connector, with ignition sensing, AT/ATX modes and over-voltage, over-current and reverse protection. The WCO-6000-THR-A-T5000 is IP66 rated, fanless, and designed to comply with MIL-STD-810H for shock and vibration, with UL 62368-1, FCC Class B and CE listed plus EMC conformity with EN 50155 and EN 50121-3-2. If cameras need power over the cable, the WCO-6000-THR-A-T5000-PoE adds 25 W PoE+ to the same four ports, while the WCO-6000-THR-A-T4000 uses the T4000 module with three 10GbE ports.
