HDMI Video Capture Cards for Recording, Streaming and Vision PCs
An HDMI capture card brings a camera, computer or medical source into a PC so software can record, stream or analyze it, without a separate recorder. Available as internal PCIe, M.2 and Mini PCIe cards and as USB units, from single-input 1080p60 capture to HDMI 2.0 and HDMI 2.1 models at 4K60 and up to 8K.
Options include multi-channel cards with up to eight HDMI inputs, loop-through outputs for a local monitor, embedded audio and Windows and Linux SDKs, suited to surgical recording, broadcast, control rooms and machine vision where the HDMI frame grabber sits inside the system.
Speak to a video capture specialist to match the inputs, resolution and host interface to your system.
Browse Our HDMI Frame Grabbers
- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 2
- Video Input: 2x HDMI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
- Recording Mode: Hardware Compression
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: PCIe [x1, Gen1]
- Simultaneous Video Inputs: 1
- Video Input: 1x Composite, 1x DVI-I, 1x HDMI, 1x S-Video, 1x SDI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
- Recording Mode: Hardware Compression
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12

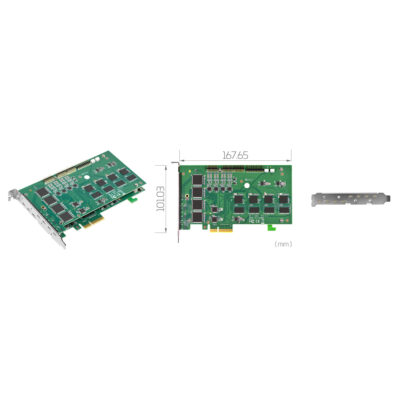

- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 8
- Video Input: 8x HDMI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 2
- Video Input: 2x HDMI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 2x HDMI
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x Composite, 1x DVI-I, 1x HDMI, 1x S-Video, 1x SDI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: PCIe [x1, Gen1]
- Simultaneous Video Inputs: 1
- Video Input: 1x Composite, 1x HDMI, 1x S-Video, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x Composite, 1x HDMI, 1x S-Video, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-I, 1x HDMI, 1x SDI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
- Video Output: 1x SDI
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
- Recording Mode: Hardware Compression
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-I, 1x HDMI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
- Recording Mode: Hardware Compression
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI, 1x SDI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-I, 1x HDMI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-A, 1x DVI-I, 1x HDMI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI, 1x SDI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-I, 1x HDMI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-I, 1x HDMI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Color Formats: NV12, RGB24, RGB32, YUY2, YV12
HDMI Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of HDMI capture cards, so the ranges below are the ones we specify for recording, streaming and inspection systems. Compare them by input count, resolution and host interface, then browse the models above or ask a video capture specialist which range suits your system.
SC400 and SC410 Yuan Capture Cards
HDMI, 3G-SDI, 6G-SDI and TVI capture on PCIe, M.2 and Mini PCIe, from single-input all-in-one cards to four-channel 4K30 models.
SC540 and SC542 Yuan HD Capture Cards
One to eight channels of HDMI, SDI, DVI-I and analog capture at up to 1080p on PCIe, M.2 and Mini PCIe.
SC550 Yuan HD Capture Cards
One to eight channels of HDMI, 3G-SDI and DVI capture at 1080p60 on PCIe, M.2 and Mini PCIe, with GPIO on selected cards.
SC5A0 Yuan HD Frame Grabbers
One to eight channels of HDMI, SDI, DVI and analog capture on PCIe, M.2 and Mini PCIe for recording and monitoring PCs.
SC5C0 Yuan HD Capture Cards With H.26X Encoding
One to eight channels of HDMI, 3G-SDI and DVI capture at up to 1080p60 with on-card H.264 and H.265 encoding on selected models.
SC710, SC720 and SC750 Yuan 4K and 8K Capture Cards
HDMI 2.0, HDMI 2.1, 12G-SDI, DisplayPort 1.4a and SDVoE capture at 4K60 and up to 8K on PCIe and M.2.
PD570, PD575 and UB5 Yuan USB Capture Cards
External USB 3.0 capture for HDMI, SDI and TVI sources, from 1080p60 to HDMI 2.0 and 2.1 4K models, working as UVC devices.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in an HDMI Capture Card
Our video capture specialists specify every HDMI capture card against the sources, the host system and the software that will use the video. These are the choices we work through with you before recommending a range.
Inputs and Channels
Count the sources: single-input cards for one camera, four and eight-input cards for multi-camera recording.
Resolution and Frame Rate
1080p60 covers most cameras; HDMI 2.0 and 2.1 cards take 4K60 and higher for medical and ProAV sources.
Host Interface
PCIe for desktop and rack PCs, M.2 for compact embedded systems, USB where no slot is free.
Software and SDK
Check Windows, Linux and SDK support for the capture application before the design is fixed.
Explore Video Capture Cards by Signal and Form Factor
Compare every video capture category by signal, SDI and HDMI standard or form factor, and jump straight to the cards that fit your sources and host system.
HDMI Capture Innovation & Video Integration Insights
Speak to an HDMI Capture Specialist.
Tell us the sources you need to capture, the PC or embedded system the card goes into and the software that will record or process the video. We will recommend the right capture card, then configure and test it with your system before it ships.
