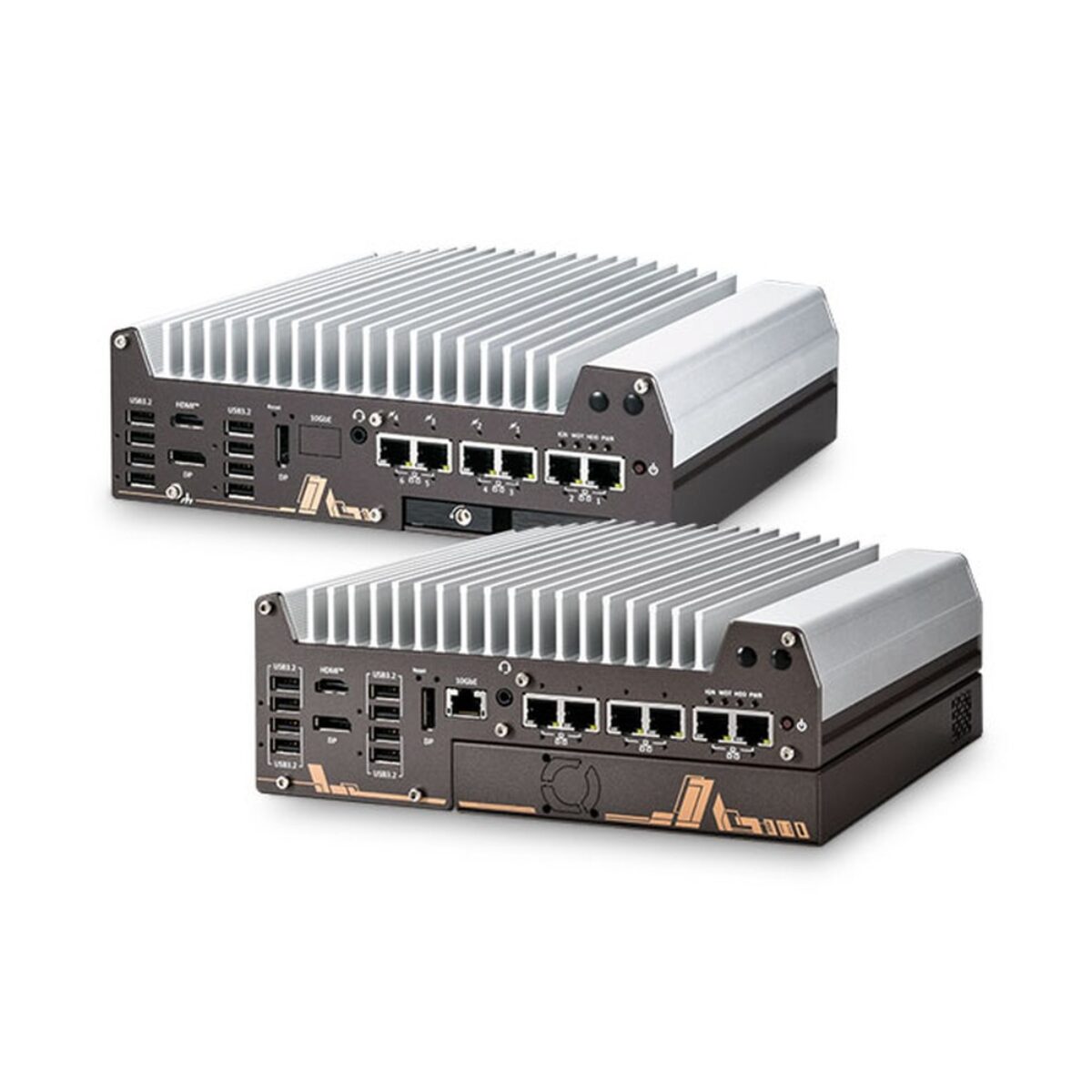

Neousys Nuvo-11002LP Intel Core Ultra 200S Low-Profile Rugged Industrial Computer with 2.5″ SSD Tray
Intel
Linux
Windows
Triple Display Support
2.5GbE
USB3
2x mPCIe
RAID
Ignition Control
Extended Temp
CE
FCCNuvo-11002LP Overview
On data-logging and recording installs, the removable drive often matters more than a card slot, and cabinet depth is limited. The NUVO-11002LP is a rugged industrial computer in the Neousys NUVO-11000 series that replaces the Cassette with a hot-swap 2.5″ drive tray and keeps the height to 79 mm.
The two-port builds use the Intel H810 chipset and take the same Core Ultra 9 285, Core Ultra 7 265 and Core Ultra 5 245 processors and their 35W T versions, with up to 128 GB of DDR5-6400 in two SODIMM slots. The integrated NPU and Xe graphics give up to 36 TOPS of AI compute, so the NUVO-11002LP can add inference to an existing vision or control application without a separate accelerator.
Networking is one Intel I226-IT 2.5GbE port and one I219-LM GbE port with screw-lock retention, and USB is two USB 3.2 Gen2, two USB 3.2 Gen1 and four USB 2.0 ports. In place of a Cassette, a front-access hot-swap tray takes a 7 mm 2.5″ drive and pairs with an internal SATA port for RAID 0 or 1. HDMI and two DisplayPort outputs at 3840 x 2160, two RS-232/422/485 and two RS-232 ports, 4-channel isolated DI and DO, two mini-PCIe sockets and a MezIO port for extra COM, DIO, LAN or ignition modules complete the I/O.
Power is 8 to 48V DC through a pluggable terminal block with optional ignition control, so the NUVO-11002LP suits 12V and 24V vehicles as well as 24V and 48V cabinets. It runs fanless from -25°C to 70°C with 35W CPUs, or to 50°C with a 65W CPU at full TDP, and is tested to MIL-STD-810H for vibration and shock. The enclosure measures 240 x 225 x 79 mm and weighs 3.36 kg, with wall mounting as standard and DIN-rail mounting optional. Related builds are the NUVO-11006LP and NUVO-11002E.
Nuvo-11002LP Specifications
| Overview | |
|---|---|
| Brand & Model | Neousys Nuvo-11002LP |
| Features | Embedded Fanless Industrial Low Profile Rugged |
| Performance | |
| Processor Series | Intel Core Ultra Series 2 Arrow Lake-S |
| Processor Models | Intel Core Ultra 5 245: 3.5~5.1GHz, 14 Cores, 14 Threads, 24MB Cache, 65W Intel Core Ultra 5 245T: 2.2~5.1GHz, 14 Cores, 14 Threads, 24MB Cache, 35W Intel Core Ultra 7 265: 2.4~5.3GHz, 20 Cores, 20 Threads, 30MB Cache, 65W Intel Core Ultra 7 265T: 1.5~5.3GHz, 20 Cores, 20 Threads, 30MB Cache, 35W Intel Core Ultra 9 285: 2.5~5.6GHz, 24 Cores, 24 Threads, 36MB Cache, 65W Intel Core Ultra 9 285T: 1.4~5.4GHz, 24 Cores, 24 Threads, 36MB Cache, 35W |
| Performance Cores | 14 Cores 20 Cores 24 Cores |
| GPU / AI Accelerator | Intel NPU |
| AI Performance | 13 TOPS |
| Memory | 2x DDR5 6400MHz SO-DIMM Slot, 64GB |
| Chipset | Intel H810 |
| PCIe Gen Support | PCIe 4.0 |
| BIOS | UEFI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 10 Windows 11 |
| Graphics | |
| Display Standards | Display Port 1.4a HDMI 2.0 |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x HDMI 2x Display Port |
| Audio | |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45] | |
| LAN Controllers | Intel I219LM Intel I226IT |
| USB | 8x USB Ports |
| 2x USB 3.2 Gen 1 [Type A] 2x USB 3.2 Gen 2 [Type A] 4x USB 2.0 [Type A] | |
| Serial | 4x Serial Ports |
| 2x RS232 [DB9] 2x RS232/422/485 [DB9] | |
| Digital I/O | Isolated DIO [4-in, 4-out] |
| Expansion | |
| mPCIe | 2x mPCIe Slots |
| 2x mPCIe [PCIe/USB] | |
| Storage | |
| Storage | 1x 2.5" HDD/SSD [SATA] |
| Front Accessible Storage | Front Accessible Storage |
| Hot Swap SSD Support | Hot Swappable SSD Support |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) |
| Power | |
| Power Input | 8-48V DC [Terminal Block] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Ignition Sensing | Supports Ignition Control |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | -25°C to 70°C [-13°F to 158°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 10-90% (Non-condensing) |
| Shock | MIL-STD-810H |
| Vibration | MIL-STD-810H |
| EMC | EN55032 EN55035 |
| Certification | CE EN55032 FCC |
| Mechanical Properties | |
| Weight | 3.36 Kg (7.41 Lbs) |
| Chassis Material | Aluminum |
| Dimensions | 240mm x 225mm x 79mm (9.45″ x 8.86″ x 3.11″) |
| Mounting Options | DIN Mount Wall Mount |
Nuvo-11002LP MezIO Modules
Add serial, digital I/O, Ethernet, USB, storage or ignition control to the Nuvo-11002LP with a Neousys MezIO module. We fit and test the module inside the system before it ships. Each system takes one MezIO module.
Official Neousys USA Distributor
Things Embedded is an official Neousys USA distributor, working with Neousys on vision, automation and edge AI projects in the USA. If the NUVO-11002LP is not the exact fit, the NUVO-9000 offers the same LP and Cassette layouts on Intel 14th/13th/12th Gen Core. The NUVO-11501 keeps Core Ultra 200S compute in a smaller, simpler box, and the NUVO-11531/11588 fits a swappable 2.5" SSD tray and 4x 2.5GbE into a 63 mm high enclosure.
Across categories, the NUVO-11002LP is listed with our wide-temperature computers for cabinets and machines that see -25°C to 70°C ambient temperatures. Within the NUVO-11000 series, the LP builds trade the Cassette for removable storage, and the six-port NUVO-11006LP adds PoE+, 10GbE and Gen5 NVMe options. When the base I/O falls short, MezIO modules add up to 16 isolated DI and 16 isolated DO channels, eight more COM ports or four more GbE ports. The NUVO-11000 series page compares all five builds.
