3G-SDI and HD-SDI Capture Cards

// LOADING...

Browse Our 3G-SDI Frame Grabbers

Video Capture

Displaying of 69 items

View All

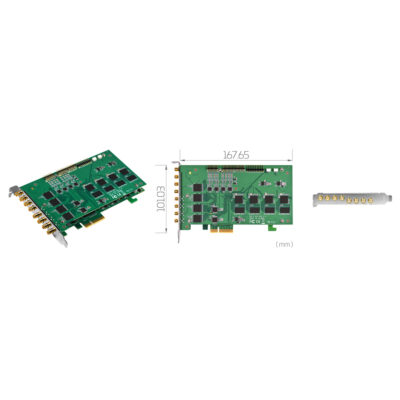

SC542N8 SDI PCIe SDI Video Capture Card with 8 x SDI Inputs at 1080p60

Video Input: 8x SDI
Host: PCIe [x4, Gen2]
Simultaneous Video Inputs: 8
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC542N8 SDIPCIe SDI Video Capture Card with 8 x SDI Inputs at 1080p60

SC542N6 HYBRID PCIe SDI and DVI Frame Grabber with 6-Channel Capture at 1080p60

Video Input: 5x SDI
Host: PCIe [x4, Gen2]
Simultaneous Video Inputs: 1, 5
Video Input: 1x DVI-I
Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC542N6 HYBRIDPCIe SDI and DVI Frame Grabber with 6-Channel Capture at 1080p60

SC542N4 HYBRID PCIe SDI and DVI Frame Grabber with 4-Channel Capture at 1080p60

Video Input: 4x SDI
Host: PCIe [x4, Gen2]
Simultaneous Video Inputs: 1, 4
Video Input: 1x DVI-I
Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC542N4 HYBRIDPCIe SDI and DVI Frame Grabber with 4-Channel Capture at 1080p60

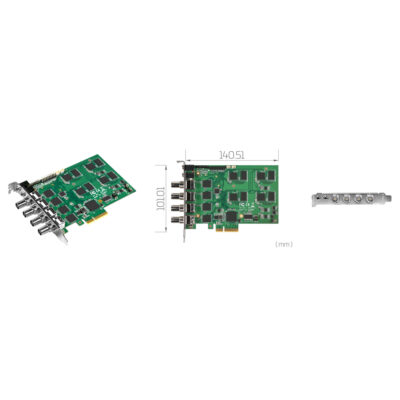

SC542N4 SDI PCIe SDI Capture Card with 4 x SDI Inputs at 1080p60

Video Input: 4x SDI
Host: PCIe [x4, Gen2]
Simultaneous Video Inputs: 4
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC542N4 SDIPCIe SDI Capture Card with 4 x SDI Inputs at 1080p60

SC542N4-L SDI PCIe SDI Video Capture Card with 4 x SDI Inputs at 1080p60

Video Input: 4x SDI
Host: PCIe [x4, Gen2]
Simultaneous Video Inputs: 4
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC542N4-L SDIPCIe SDI Video Capture Card with 4 x SDI Inputs at 1080p60

SC542N2-L Hybrid PCIe SDI and DVI Frame Grabber with 2-Channel Capture at 1080p60

Video Input: 1x SDI
Host: PCIe [x1, Gen2]
Simultaneous Video Inputs: 1
Video Input: 1x DVI-I
Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC542N2-L HybridPCIe SDI and DVI Frame Grabber with 2-Channel Capture at 1080p60

SC542N2-L SDI PCIe SDI Capture Card with 2 x SDI Inputs at 1080p60

Video Input: 2x SDI
Host: PCIe [x1, Gen2]
Simultaneous Video Inputs: 2
Max Input Resolution: HD30 [1920x1080p @ 30/25fps]
Video Output: 2x SDI
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC542N2-L SDIPCIe SDI Capture Card with 2 x SDI Inputs at 1080p60

SC542N1 PCIe HDMI, SDI and DVI Capture Card with 1080p60 Input

Video Input: 1x SDI
Host: PCIe [x1, Gen2]
Simultaneous Video Inputs: 1
Video Input: 1x CVBS, 1x DVI-I, 1x HDMI, 1x S-Video, 1x YPbPr
Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC542N1PCIe HDMI, SDI and DVI Capture Card with 1080p60 Input

SC542N1-L SDI PCIe SDI Frame Grabber with 1080p60 Input

Video Input: 1x SDI
Host: PCIe [x1, Gen1]
Simultaneous Video Inputs: 1
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Video Output: 1x 3G-SDI
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC542N1-L SDIPCIe SDI Frame Grabber with 1080p60 Input

SC540N1-L PCIe SDI and DVI Frame Grabber with 1080p30 Capture

Video Input: 1x SDI
Host: PCIe [x1, Gen1]
Simultaneous Video Inputs: 1
Video Input: 1x DVI-I
Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
Color Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC540N1-LPCIe SDI and DVI Frame Grabber with 1080p30 Capture

PD570 PRO SDI USB SDI Frame Grabber with 1080p60 Input

Video Input: 1x SDI
Host: USB3.0
Simultaneous Video Inputs: 1
Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50/30/25/24fps]
Color Formats: YUY2

Yuan

PD570 PRO SDIUSB SDI Frame Grabber with 1080p60 Input

PD575 SDI USB SDI Capture Card with 1080p60 Input

Video Input: 1x SDI
Host: USB3.0
Simultaneous Video Inputs: 1
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12, YUY2

Yuan

PD575 SDIUSB SDI Capture Card with 1080p60 Input

SC710N1 M2 12G-SDI QL M.2 SDI Video Capture Card with 12G-SDI Input at 4K60

Video Input: 2x 3G-SDI
Host: M.2 [3080, M-Key]
Simultaneous Video Inputs: 4
Video Input: 1x 12G-SDI, 1x 6G-SDI
Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

Yuan

SC710N1 M2 12G-SDI QLM.2 SDI Video Capture Card with 12G-SDI Input at 4K60

SC400N4 M2 SDI M.2 SDI Frame Grabber with 4 x 3G-SDI Inputs at 1080p60

Video Input: 4x 3G-SDI
Host: M.2 [2280, M-Key]
Simultaneous Video Inputs: 4
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

Yuan

SC400N4 M2 SDIM.2 SDI Frame Grabber with 4 x 3G-SDI Inputs at 1080p60

SC400N2 M2 AIO M.2 HDMI and SDI Video Capture Card with 2-Channel Capture at 1080p60

Video Input: 1x 3G-SDI
Host: M.2 [2280, B-Key/M-Key]
Simultaneous Video Inputs: 1
Video Input: 1x HDMI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Color Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit

Yuan

SC400N2 M2 AIOM.2 HDMI and SDI Video Capture Card with 2-Channel Capture at 1080p60

Displaying of 69 items

View All

// Video Capture Specialists

Speak to a 3G-SDI Specialist.

Tell us the cameras or sources you need to capture, how long the cable runs are and what records the video. We will recommend the right frame grabber, then configure and test it with your system before it ships.

Phone · USA +1 407 214 9446

Email sales@things-embedded.com
