PCAP Touch Monitors

// LOADING...

Browse Our Capacitive Touch Screen Monitors

Display

I/O

Expansion

Power

Environmental Conditions

Mechanical Properties

Displaying of 188 items

View All

TPM-3212 12.1″ PCAP Industrial Touch Monitor with 450 Nit XGA LCD and IP54 Panel Mount

TPM-3212P12.1″ PCAP Industrial Touch Monitor with 450 Nit XGA LCD and IP54 Panel Mount

Display: 12.1"[4:3, 1024 x 768, XGA]
Brightness: 450
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x VGA Input
Power: 12-24V DC [Terminal Block]
Temp: -20°C to 60°C [-4°F to 140°F]
IP Rating: IP54
Certification: CE, FCC

Touch: Projective Capacitive Touch

Arestech

TPM-321212.1" XGA Industrial Touch Monitors with IP54 Panel Mount and PCAP or Resistive Touch

Available in 2 variations

Datasheet

Select TPM-3212 Variant

R12L100-PCM2OD 12.1″ Outdoor PCAP Touch Monitor with XGA Display, Front IP65 and 1000 Nit Option

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC
Temp: -10°C to 60°C [14°F to 140°F], -25°C to 60°C [-13°F to 140°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R12L100-PCM2OD12.1″ Outdoor PCAP Touch Monitor with XGA Display, Front IP65 and 1000 Nit Option

SM-112(P)(R)/VM-2100 12″ PCAP Sunlight Readable Touch Monitor with 1,500 Nit XGA LCD and Front IP65

SM-112P/VM-210012″ PCAP Sunlight Readable Touch Monitor with 1,500 Nit XGA LCD and Front IP65

Display: 12.1"[4:3, 1024 x 768, XGA]
Brightness: 1500
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input
Power: 9-48V DC Input, Terminal Block, Optional AC Power Supply
Ignition Sensing: Supports Ignition Control
Temp: -10°C to 60°C [14°F to 140°F]
IP Rating: Front IP65
Certification: CE, FCC

Touch: Projective Capacitive Touch

Touch: Resistive Touch

Arestech

SM-112(P)(R)/VM-210012" 1,500 Nit Sunlight Readable Monitors with Front IP65 Bezel

Available in 3 variations

Datasheet

Select SM-112(P)(R)/VM-2100 Variant

ARC-1200 12.1″ PCAP Industrial Touch Monitor with 600 Nit XGA LCD and Front IP65 Bezel

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 600
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Display Port Input, 1x HDMI 1.4, 1x VGA Input
Power: 12V DC
Temp: -10°C to 50°C [14°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Avalue

ARC-120012.1″ PCAP Industrial Touch Monitor with 600 Nit XGA LCD and Front IP65 Bezel

Datasheet

R12L100-PCM2-POE 12.1″ PoE Powered PCAP Touch Monitor with 500 Nit XGA Display and Front IP65

Display: 12.1"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 500
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x Ethernet Input, 1x Optional HDMI Input, 1x VGA Input
Power: PoE Powered Device (PD) [RJ45]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

R12L100-PCM2-POE12.1″ PoE Powered PCAP Touch Monitor with 500 Nit XGA Display and Front IP65

Datasheet

W12L100-POB1 12.3″ PCAP Open Frame Monitor with 1000 Nit 1920 x 720 Display and 1000:1 Contrast

Display: 12.3"[, 1920 x 720, FHD]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Stretched
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

W12L100-POB112.3″ PCAP Open Frame Monitor with 1000 Nit 1920 x 720 Display and 1000:1 Contrast

Datasheet

W12L100-PPB1 12.3″ PCAP Panel Mount Monitor with 1000 Nit 1920 x 720 Display and 1000:1 Contrast

Display: 12.3"[, 1920 x 720, FHD]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Stretched
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W12L100-PPB112.3″ PCAP Panel Mount Monitor with 1000 Nit 1920 x 720 Display and 1000:1 Contrast

Datasheet

W12L100-GSB1 12.3″ Full IP65 PCAP Touch Monitor with MIL-STD-810G and 1000 Nit 1920 x 720 Display

Display: 12.3"[, 1920 x 720, FHD]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Stretched
Display Inputs: 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -15°C to 55°C [5°F to 131°F]
IP Rating: IP65
Certification: CE, FCC, MIL-STD-810

Winmate

W12L100-GSB112.3″ Full IP65 PCAP Touch Monitor with MIL-STD-810G and 1000 Nit 1920 x 720 Display

Datasheet

W12L100-GCB1 12.3″ G-WIN Front IP65 PCAP Touch Monitor with MIL-STD-810G and 1000 Nit 1920 x 720 Display

Display: 12.3"[, 1920 x 720, FHD]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Stretched
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W12L100-GCB112.3″ G-WIN Front IP65 PCAP Touch Monitor with MIL-STD-810G and 1000 Nit 1920 x 720 Display

Datasheet

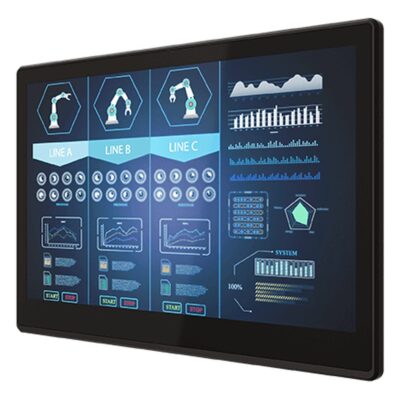

W14L100-EHA1 14″ PCAP Panel Mount Monitor with FHD LCD and 700 Nits

Display: 14"[16:9, 1920 x 1080, FHD]
Touch: Multi Touch PCAP
Brightness: 700
Viewing Angle: Wide Viewing Angle
Format: Widescreen
Display Inputs: 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W14L100-EHA114″ PCAP Panel Mount Monitor with FHD LCD and 700 Nits

Datasheet

W15L100-PPB2 14.9″ PCAP Panel Mount Monitor with 1920 x 720 LCD and 950 Nits

Display: 14.9"[, 1920 x 720, FHD]
Touch: Multi Touch PCAP
Brightness: 950
Viewing Angle: Wide Viewing Angle
Format: Stretched
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC

Winmate

W15L100-PPB214.9″ PCAP Panel Mount Monitor with 1920 x 720 LCD and 950 Nits

Datasheet

W15L100-POB2 14.9″ PCAP Open Frame Monitor with 1920 x 720 LCD and 950 Nits

Display: 14.9"[, 1920 x 720, FHD]
Touch: Multi Touch PCAP
Brightness: 950
Viewing Angle: Wide Viewing Angle
Format: Stretched
Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
Power: 12V DC, AC Power Supply Included
Temp: 0°C to 50°C [32°F to 122°F]
Certification: CE, FCC

Winmate

W15L100-POB214.9″ PCAP Open Frame Monitor with 1920 x 720 LCD and 950 Nits

Datasheet

R15L100-67C3POD 15″ Full IP67 Rugged Monitor with MIL-STD-810G and M12 Connectors

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 1000
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x HDMI Input, 1x VGA Input
Power: 9-36V DC Input [M12]
Temp: -10°C to 55°C [14°F to 131°F], -25°C to 60°C [-13°F to 140°F]
IP Rating: IP67
Certification: CE, FCC

Winmate

R15L100-67C3POD15″ Full IP67 Rugged Monitor with MIL-STD-810G and M12 Connectors

Datasheet

R15L600-PTC3-C 15″ USB-C PCAP Touch Monitor with XGA LCD and 250 Nits

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 250
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x USB Type C
Power: 5V [USB-C]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R15L600-PTC3-C15″ USB-C PCAP Touch Monitor with XGA LCD and 250 Nits

Datasheet

R15L600-GCC3-C 15″ USB-C PCAP Touch Monitor with XGA LCD and 300 Nits

Display: 15"[4:3, 1024 x 768, XGA]
Touch: Multi Touch PCAP
Brightness: 300
Viewing Angle: Wide Viewing Angle
Format: Standard
Display Inputs: 1x USB Type C
Power: 5V [USB-C]
Temp: 0°C to 50°C [32°F to 122°F]
IP Rating: Front IP65
Certification: CE, FCC
Mounting Options: VESA Mount

Winmate

R15L600-GCC3-C15″ USB-C PCAP Touch Monitor with XGA LCD and 300 Nits

Datasheet

Displaying of 188 items

View All

Beyond PCAP: Touchscreen Monitors

All Touchscreen MonitorsEvery touchscreen monitor we supply, from PCAP multi-touch and resistive screens to SAW glass displays.

Resistive Touch MonitorsResistive touch monitors that work with gloves or a stylus, for workshops, plant floors and labs.SAW Touch MonitorsSAW touch monitors with plain glass and no film layer, keeping the image bright for kiosks and signage.
