Intel Industrial Edge Computing
Intel has designed x86 processors in Santa Clara since 1968, and its embedded line runs from low-power Atom and Processor N parts to Core Ultra with a neural processing unit on the chip. Embedded E, RE and TE processors are planned for longer availability than desktop parts, with in-band ECC, Time Coordinated Computing and extended temperature ratings on selected SKUs, and the same x86 software runs across every generation.
01 Intel Generations
Intel Embedded Processors by Generation
Eleven Intel generations, oldest to newest, with every series and model we carry on each. Pick the generation that matches the job, from low power and extended temperature to multi-display graphics, GPU computing or an on-chip NPU, then the board or system built on it.
Intel Elkhart Lake Boards and Systems
Intel's first edge-only Atom platform, sold as Atom x6000E, Celeron and Pentium processors, running rail computers, stainless steel panel PCs and small embedded boards.
Suited to
RailIn-VehicleWashdown Panel PCsEmbedded Boards
Elkhart Lake
Atom x6000E, Celeron and Pentium
- Atom x6000E
- x6211E · x6413E · x6425E · x6425RE
- Celeron
- J6412 · N6210 · N6211
- Pentium
- J6426 · N6415
- Cores
- 2 to 4
- Power
- 4.5 to 12 W
- Graphics
- Intel UHD, up to 3 displays
- AI
- No NPU
- Edge Features
- In-band ECC and TCC on selected SKUs · -40 to 85 °C on RE parts
Series and Models on This Generation
11th Gen Intel Core Tiger Lake Panel PCs, Boards and Systems
The 11th Gen Core generation built into embedded boards, panel PCs and compact systems, with Iris Xe graphics for multi-display HMI and signage.
Suited to
HMI and Panel PCsDigital SignageMarineMission Computers
11th Gen Core Tiger Lake
UP3 With Iris Xe Graphics
- Processors
- Core i3, i5 and i7 UP3 · Celeron 6305E
- Embedded Parts
- i7-1185G7E · i5-1145G7E · i7-1185GRE
- Cores
- 2 to 4, up to 8 threads
- Power
- 12 to 28 W
- Graphics
- Iris Xe, 4 independent displays
- AI
- No NPU
- Edge Features
- In-band ECC and TCC on E and GRE parts · extended temperature on GRE
Series and Models on This Generation
12th Gen Intel Core Alder Lake Systems and Boards
The first Intel hybrid generation, with P-cores for real-time and compute work and E-cores for background tasks. Socketed parts run fanless and GPU systems; mobile P and U parts run NUC PCs and vehicle computers.
Suited to
Machine VisionIn-VehicleRailFactory Automation
12th Gen Core Alder Lake
The First Intel Hybrid Generation
- Socketed
- LGA1700 · i3-12100E to i9-12900E (65 W) · TE parts (35 W)
- Mobile
- Alder Lake-P and U, e.g. i5-1235U
- Cores
- Up to 16 (8P + 8E), 24 threads
- Memory and I/O
- DDR5 or DDR4 · PCIe Gen5 on LGA1700
- Graphics
- Intel UHD, up to 4 displays
- AI
- No NPU; GPU or Hailo add-in
- Edge Features
- ECC on W680 boards · vPro on Q670 boards
Series and Models on This Generation
13th and 14th Gen Intel Core Raptor Lake Systems
Raptor Lake keeps the LGA1700 socket and adds E-cores. Most of our rugged systems take 12th, 13th and 14th Gen parts in the same chassis, so the processor is chosen for the workload and the power budget.
Suited to
GPU Edge AIIn-VehicleRailDefenseMarine
13th and 14th Gen Core Raptor Lake
Up to 24 Cores on LGA1700
- Socketed
- LGA1700 · i3-13100E to i9-13900E · 14th Gen i5-14400 to i9-14900
- Mobile
- i3-1315UE · i5-1345UE · i7-1365UE
- Cores
- Up to 24 (8P + 16E), 32 threads
- Power
- 35 W TE · 65 W E
- Graphics
- Intel UHD, up to 4 displays
- AI
- No NPU; NVIDIA RTX, L4 or MXM GPU, or Hailo-8
- Edge Features
- ECC on W680 boards · vPro on Q670 boards
Series and Models on This Generation
Intel Processor N and Core i3-N Computers and SBCs
Low-power processors built from efficient cores only, for small fanless computers where power, heat and size matter more than peak performance.
Suited to
GatewaysDigital SignageKiosksPoE Camera Recording
Processor N and Core i3-N
Alder Lake-N and Twin Lake
- Processors
- N50 · N97 · N150 (Twin Lake) · Core i3-N305
- Cores
- 2 (N50) · 4 (N97, N150) · 8 (i3-N305)
- Power
- 6 to 15 W
- Memory
- Single-channel DDR4 or DDR5
- Graphics
- Intel UHD, up to 3 displays
- AI
- No NPU; CPU and GPU inference
- Edge Features
- Fanless ultra-compact, IP67 and wide-temperature builds by system
Series and Models on This Generation
Intel Amston Lake Edge Computers and SBCs
The successor to Elkhart Lake: Atom x7000E and x7000RE processors with up to eight efficient cores for fanless DIN-rail, railway and ultra-compact computers.
Suited to
RailDIN-Rail AutomationEnergyTransport
Amston Lake
Atom x7000E and x7000RE
- Processors
- x7211RE · x7425E · x7433RE · x7835RE
- Cores
- 2 to 8
- Power
- 6 to 12 W
- Graphics
- Intel UHD
- AI
- No NPU; Hailo-8 on selected systems
- Edge Features
- In-band ECC and TCC on selected SKUs · extended temperature on RE parts
Series and Models on This Generation
Intel Core Series 2 Bartlett Lake Edge Computers
Intel Core Series 2 for the edge: newer Core 3 to Core 9 processors for the LGA1700 socket, launched for industrial and embedded systems rather than desktops, so a proven platform can take a newer processor.
Suited to
Factory AutomationMachine VisionTest SystemsTransport
Core Series 2 Bartlett Lake
Edge Processors for LGA1700
- Processors
- Core 3 201E · Core 5 211E to 223PE · Core 7 251E and 253PE · Core 9 273PE
- Socket
- LGA1700, the same as 12th to 14th Gen Core
- Power
- 35 W TE · 65 W E
- Memory
- DDR5
- AI
- No NPU; GPU or Hailo add-in
- Edge Features
- Planned for longer availability than desktop parts
Series and Models on This Generation
Intel Core Ultra Edge AI Computers and SBCs
Core Ultra puts a neural processing unit beside the CPU cores and graphics, so vision and AI models run on the processor at low power.
Suited to
Machine VisionRetail AnalyticsRoboticsQuality Inspection
Core Ultra
Meteor Lake, Arrow Lake and Panther Lake With an NPU
- Series 2 (Arrow Lake)
- Ultra 5 245 · Ultra 7 265 · Ultra 9 285 · T parts at 35 W
- Series 1 (Meteor Lake)
- Ultra 5 135U · Ultra 7 165U
- Cores
- Up to 24 (8P + 16E) on the Ultra 9 285
- Socket
- LGA1851 (Series 2 desktop parts)
- Graphics
- Integrated Intel graphics
- AI
- On-chip NPU · OpenVINO across CPU, GPU and NPU
- Edge Features
- 35 W T parts for fanless builds
Series and Models on This Generation
Core Series 3 Wildcat Lake
Core Series 3 Wildcat Lake brings up to six cores and Xe3 graphics at 15 W to compact boards, for small fanless designs that need more graphics and compute than Atom or Processor N.
Series and Models on This Generation
Xeon Scalable
Xeon Scalable processors bring server core counts, registered ECC memory and wide PCIe expansion to edge servers, vision systems and imaging workstations, on single-socket ATX and dual-socket EATX server boards.
Series and Models on This Generation
Xeon D
Xeon D-2700 and D-2800 processors put server cores, ECC memory, built-in Ethernet and Intel QuickAssist on one chip, for edge servers that need data-centre features in a short chassis close to the cameras and machines.
Series and Models on This Generation
Intel Coffee Lake Boards and Systems
Intel's 8th and 9th Gen Core and Xeon E processors on the LGA1151 socket, still specified for machines and vehicles validated on this generation: rugged box PCs, GPU computers, in-vehicle and IP67 military systems, and industrial boards.
Series and Models on This Generation
// LOADING...
Browse Intel Industrial Computers and Boards
- Display: 15.6"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 800
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- OS: Windows 11
- Display Outputs: 1x USB Type C, 2x Optional HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 3.0 [Type C], 3x USB 3.0 [Type A]
- Storage: 1x Micro SD
- Power: 19V DC, AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP65
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 8"[8:5, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 800
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Core Series 1 Raptor Lake, Intel Core 12th Gen Alder Lake
- OS: Windows 11
- Display Outputs: 2x USB Type C
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 3.0 [Type A], 2x USB 3.2 Gen 1 [Type C]
- Power: 20V [USB-C], AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66
- Certification: CE, FCC, MIL-STD-461, MIL-STD-810
- Display: 14"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 800
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- OS: Windows 11
- Display Outputs: 2x USB Type C
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type C], 4x USB 3.2 [Type A]
- Power: 20V [USB-C], AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP65
- Certification: CE, FCC, MIL-STD-810
- Display: 14"[16:9, 1920 x 1080, FHD]
- Touch: Multi Touch PCAP
- Brightness: 500
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Core 12th Gen Alder Lake
- OS: Windows 11
- Display Outputs: 2x USB Type C
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 1 [Type C], 4x USB 3.2 [Type A]
- Power: 20V [USB-C], AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP65
- Certification: CE, FCC, MIL-STD-810
- CPU: Intel Core Ultra Series 1 Meteor Lake
- GPU / AI Accelerator: Intel NPU
- AI Performance: 11 TOPS
- OS: Windows 11
- Display Outputs: 1x Display Port, 1x DVI, 1x Optional HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 3.0 [Type C], 4x USB 3.0 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe] [2280]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- Power: 9-36V DC Input, AC Power Supply Included
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, DNV GL, FCC, IACS E10, IEC 60945
- Mounting Options: Desktop

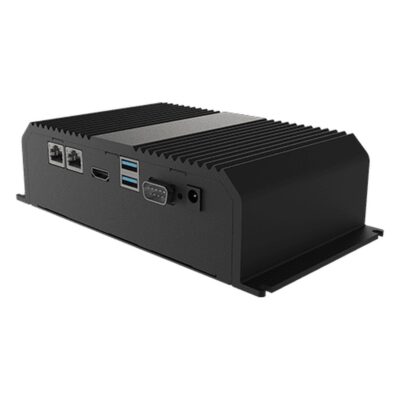

- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 8GB Soldered On-board
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Optional HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 2.0 [Board], 2x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 B-Key [2242]
- Storage: 1x M.2 SSD, 32GB eMMC
- Power: 9-36V DC Input [Terminal Block]
- Temp: 0°C to 55°C [32°F to 131°F]
- IP Rating: IP30
- Certification: CE, FCC
- Mounting Options: Desktop, Wall Mount
- CPU: Intel Core 12th Gen Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux Ubuntu 24.04, Windows 11
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [M12]
- USB: 2x USB 2.0 [M12]
- Serial: 1x RS232/422/485 [M12]
- M.2: 1x M.2 E-Key [2230], 1x M.2 M-Key [PCIe] [2280]
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 45°C [14°F to 113°F]
- IP Rating: IP65
- Certification: CE, FCC
- Mounting Options: Desktop
- Display: 8"[8:5, 1280 x 800, WXGA]
- Touch: Multi Touch PCAP
- Brightness: 800
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Atom X Series Amston Lake, Intel Atom X Series Elkhart Lake
- OS: Windows 11
- Storage: 1x Micro SD
- Power: 10-60V DC Input
- Ignition Sensing: Supports Ignition Control
- Temp: -30°C to 60°C [-22°F to 140°F]
- IP Rating: IP65
- Certification: CE, FCC
- CPU: Intel Core Ultra Series 1 Meteor Lake
- GPU / AI Accelerator: Intel NPU
- AI Performance: 11 TOPS
- OS: Windows 11
- Display Outputs: 1x Display Port, 1x Optional HDMI
- Ethernet: 6x GbE LAN [RJ45]
- USB: 1x USB 3.0 [Type C], 4x USB 3.0 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe] [2280]
- Storage: 1x M.2 SSD, 2x 2.5" HDD/SSD
- Power: 9-36V DC Input, AC Power Supply Included
- Temp: -15°C to 55°C [5°F to 131°F]
- Certification: CE, DNV GL, FCC, IACS E10, IEC 60945
- Mounting Options: Desktop
- Display: 12.1"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 400, 800
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Atom X Series Amston Lake, Intel Atom X Series Elkhart Lake
- OS: Windows 11
- Storage: 1x Micro SD
- Power: 10-60V DC Input
- Ignition Sensing: Supports Ignition Control
- Temp: -30°C to 60°C [-22°F to 140°F]
- IP Rating: IP65
- Certification: CE, EN60950-1, FCC, IC (ICES-003), PTCRB, UL60950-1

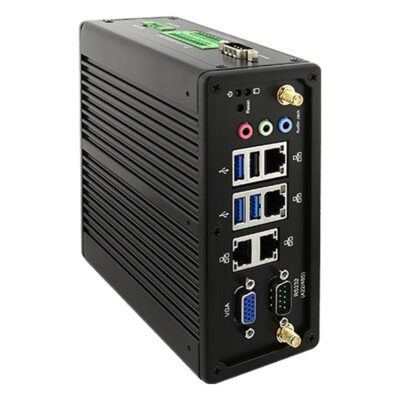

- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 SO-DIMM Slot, 8GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x VGA
- Ethernet: 4x 2.5 GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [2242], 1x M.2 E-Key [2230]
- Storage: 1x 2.5" HDD/SSD, 1x M.2 SSD
- Power: 9-36V DC Input [Terminal Block], AC Power Supply Included
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CAN/CSA C22.2, CE, FCC, IC (ICES-003), UL 62368-1
- Mounting Options: DIN Mount
- Display: 7"[17:10, 1024 x 600, WSVGA]
- Touch: Multi Touch PCAP
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Widescreen
- CPU: Intel Atom X Series Elkhart Lake
- OS: Linux Ubuntu 22.04, Windows 11
- Ethernet: 1x GbE LAN [M12]
- Serial: 1x RS232/422/485 [M12]
- M.2: 1x M.2 Slot
- Storage: 1x M.2 SSD
- Power: 9-36V DC Input [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP65
- Certification: CE, FCC
- CPU: Intel Atom X Series Elkhart Lake
- GPU / AI Accelerator: Hailo-8 AI Accelerator
- AI Performance: 26 TOPS
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Optional HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [2242]
- Storage: 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 55°C [32°F to 131°F]
- Certification: CE, FCC
- Mounting Options: Desktop
- Display: 10.4"[4:3, 1024 x 768, XGA]
- Touch: Multi Touch PCAP
- Brightness: 400, 800
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- CPU: Intel Atom X Series Amston Lake, Intel Atom X Series Elkhart Lake
- OS: Windows 11
- Storage: 1x Micro SD
- Power: 10-60V DC Input
- Ignition Sensing: Supports Ignition Control
- Temp: -30°C to 60°C [-22°F to 140°F]
- IP Rating: IP65
- Certification: CE, EN60950-1, FCC, IC (ICES-003), PTCRB, UL60950-1
- CPU: Intel Celeron N Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 16GB
- OS: Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x Optional HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [2242], 1x M.2 E-Key [2230]
- Storage: 1x M.2 SSD
- Power: 12V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 55°C [32°F to 131°F]
- Certification: CE, FCC
- Mounting Options: Desktop
Shop by Form Factor
Shop by Generation
Intel Elkhart LakeAtom x6000E, Celeron and Pentium for the edgeIntel Alder Lake12th Gen Core, the first hybrid generationIntel Raptor Lake13th and 14th Gen Core on LGA1700Intel Processor NN97, N150 and i3-N305 at 6 to 15 WIntel Amston LakeAtom x7000E and x7000RE, 2 to 8 coresIntel Bartlett LakeCore Series 2 edge processors for LGA1700Intel Core UltraCore Ultra with an on-chip NPUIntel Wildcat LakeCore Series 3 with Xe3 graphics and an NPU
02 Guides
Intel Edge Computing Guides
Longer reads from our engineers on the processors above and how they are chosen for industrial edge systems.
Intel Core Ultra Explained
Intel Core Ultra is the biggest change to Intel's processor branding in over a decade — it dropped the "i" and added an on-chip NPU for AI. This guide covers what it is, how the naming works, and where it fits in industrial computing.
Intel Alder Lake for Power and Efficiency in Compact Rugged Computers
Built with a hybrid architecture consisting of Performance (P-cores) and Efficient (E-cores), we take a look at the computational capabilities of our latest small form factor rugged computers configured with Intel Alder Lake-N and Alder Lake-S CPUs.
P Core vs E Core and Intel Hybrid CPU Architecture Explained
Intel’s latest processors feature a ground-breaking hybrid architecture, separating cores for efficiency and performance.
What Is an NPU? Neural Processing Units for Edge AI
An NPU is a dedicated AI accelerator built into a processor to run machine-learning inference efficiently. It is the hardware behind on-device AI — now across Intel Core Ultra, AMD Ryzen AI and NVIDIA Jetson.
CPU Generations and Embedded Processors Explained
For a consumer PC, the CPU generation is shorthand for speed. For an industrial system it tells you far more — and the newest is rarely the right answer.
Processor Base Power: Which CPU TDP For Performance, Efficiency & Reliability?
What is CPU TDP (processor base power)? How thermal design power affects performance, efficiency and reliability when choosing a processor for an industrial system.
// Intel Industrial Edge
Speak to an Edge Computing Specialist.
Things Embedded configures, images and tests Intel-based boards and systems from our partners in the USA. Tell us the workload, the displays or cameras and the environment, and we will point you to the right Intel generation and the board or system built on it.
Phone · USA
+1 407 214 9446
