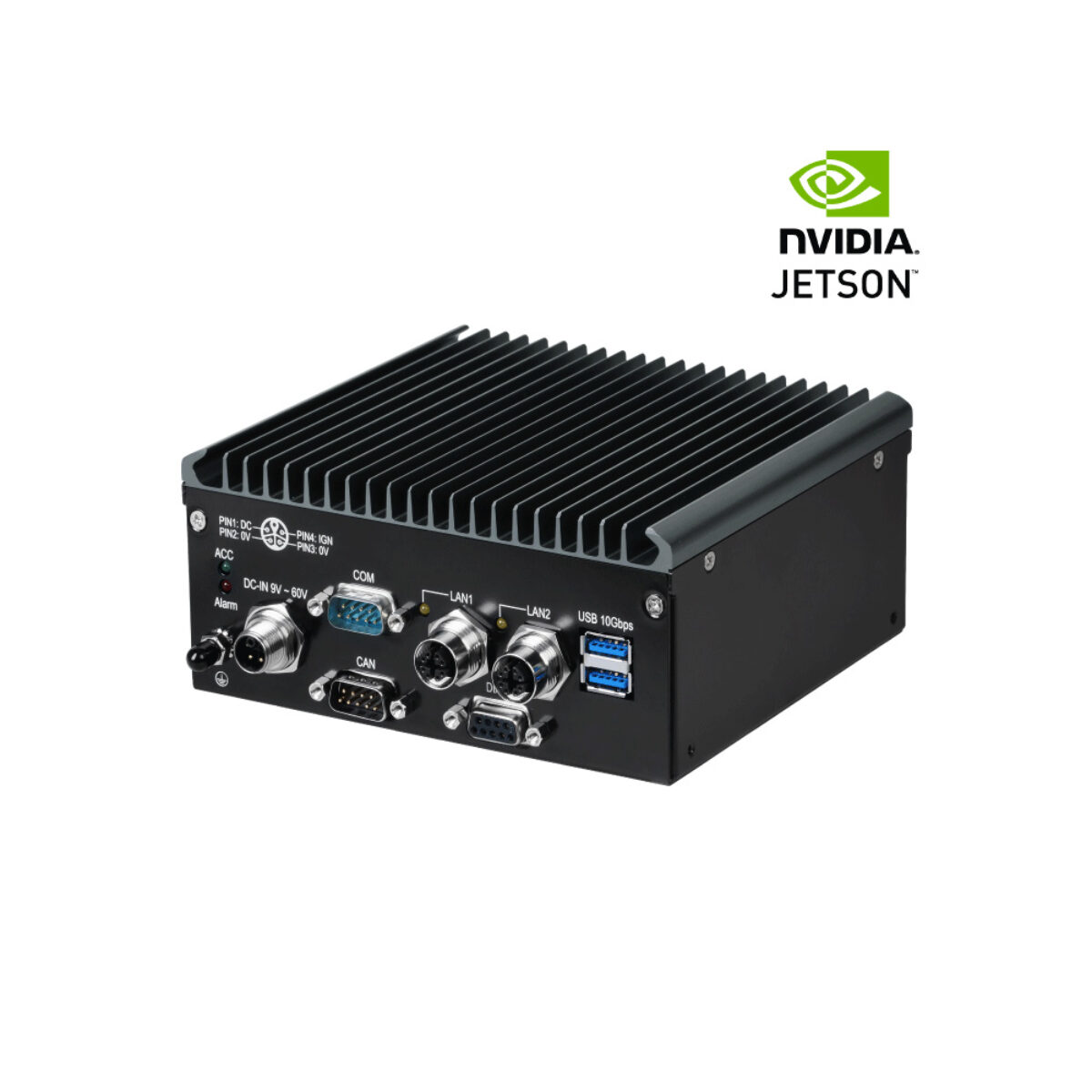

Sintrones IBOX-600 NVIDIA Jetson Orin NX and Orin Nano Compact Rugged Embedded PCs

Compact edge AI often fails on the installation rather than the compute: the cabinet is shallow, the supply is a vehicle battery, and the project file asks for rail and road compliance. The Sintrones IBOX-600 series answers that brief with rugged embedded PCs that package NVIDIA Jetson Orin NX and Orin Nano modules into a fanless 150 x 135 x 69 mm aluminum enclosure weighing 1.37 kg, small enough for dashboards, equipment bays and DIN-rail cabinets.

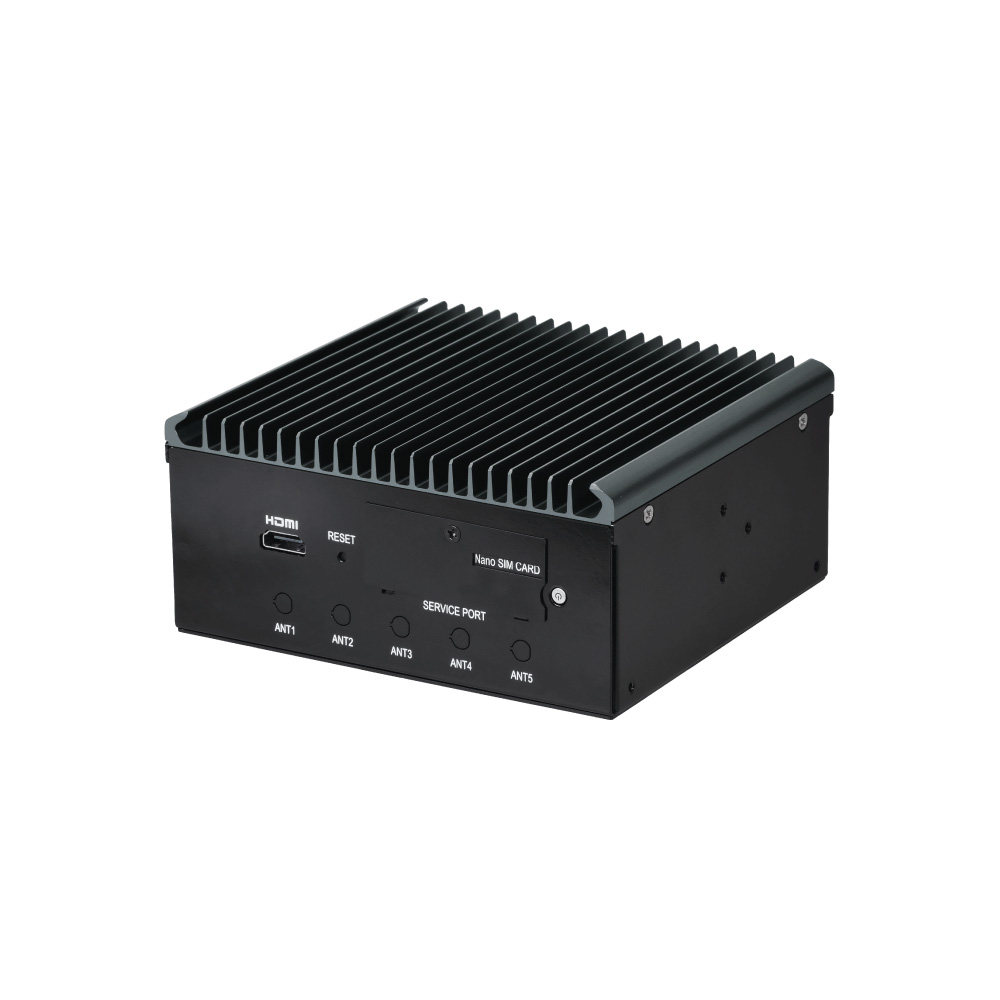

Every IBOX-600 shares the same architecture. The Jetson module runs NVIDIA JetPack with JetPack 6.2 Super Mode support, and an M.2 2280 NVMe SSD holds the operating system and local recordings. Networking pairs an Intel 2.5GbE port with a GbE port, and the control side covers CAN FD, RS-232/422/485, four digital inputs and four outputs, and HDMI with 4K output. An M.2 Key B slot with Nano SIM, an M.2 Key E slot and a full-size mPCIe slot add LTE or 5G, Wi-Fi and GPS. Smart power management accepts 9-60 V DC with ignition sensing and configurable on and off delays.

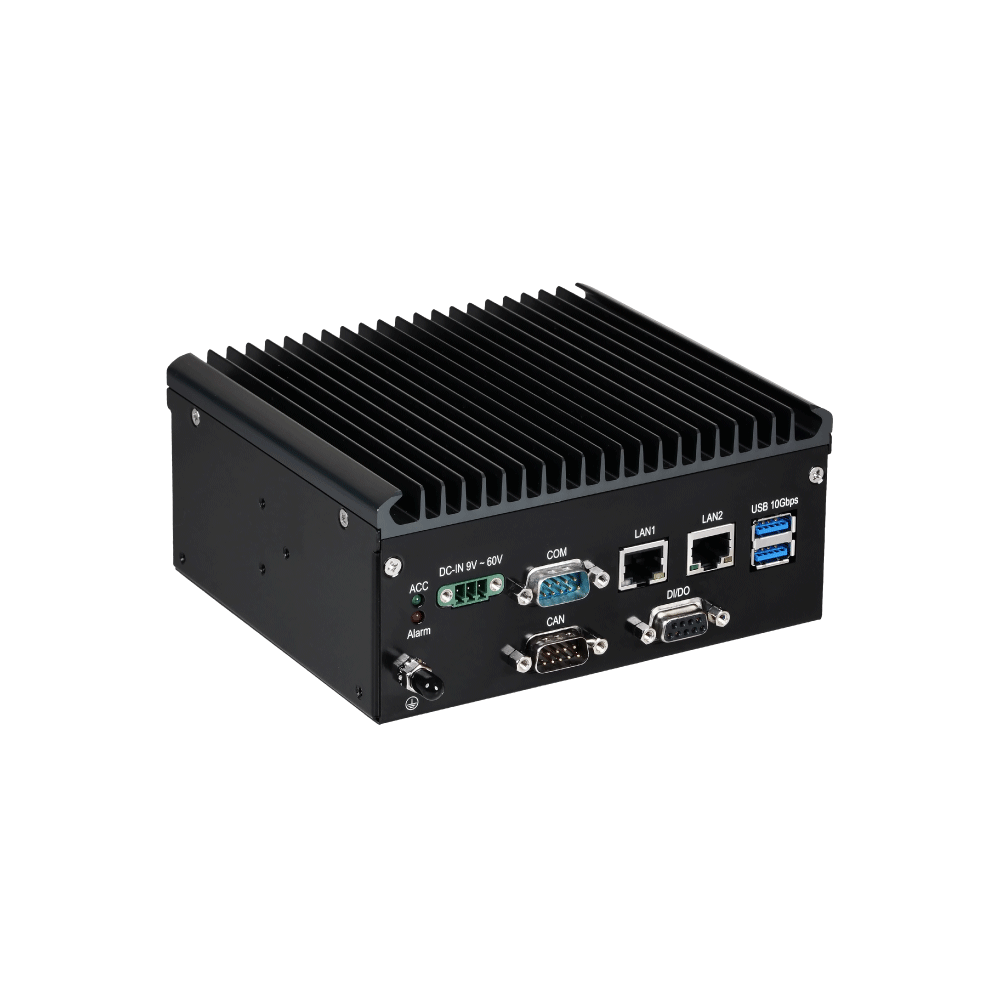

The range splits on module tier and connector build. On RJ-45 LAN and a terminal-block power input, the IBOX-600-ONX16 and IBOX-600-ONX8 carry the Jetson Orin NX at 16GB and 8GB with NVDLA deep learning acceleration, while the IBOX-600-ON8 and IBOX-600-ON4 use the Orin Nano at 8GB and 4GB for mainstream and entry workloads. The M12X builds, the IBOX-600-M12X-ONX16, IBOX-600-M12X-ONX8, IBOX-600-M12X-ON8 and IBOX-600-M12X-ON4, keep the same four modules but move LAN to M12 X-coded and power to M12 K-coded connectors for installations where vibration could loosen an RJ-45 plug or terminal block.

Across the family the operating envelope is the same: fanless operation from -25 °C to 70 °C ambient with 0.6 m/s airflow, IEC 60068-2-64 and MIL-STD-810G vibration testing, and MIL-STD-810G shock testing at 15 G. Compliance with EN 50155, EN 45545-2 (R25) and E-Mark, alongside CE and FCC Class A, supports rolling stock and road vehicle projects, and Sintrones lists Jetson Orin module availability through January 2032. These rugged embedded PCs also suit machine vision, industrial automation and security installations that benefit from the transport-grade build.
