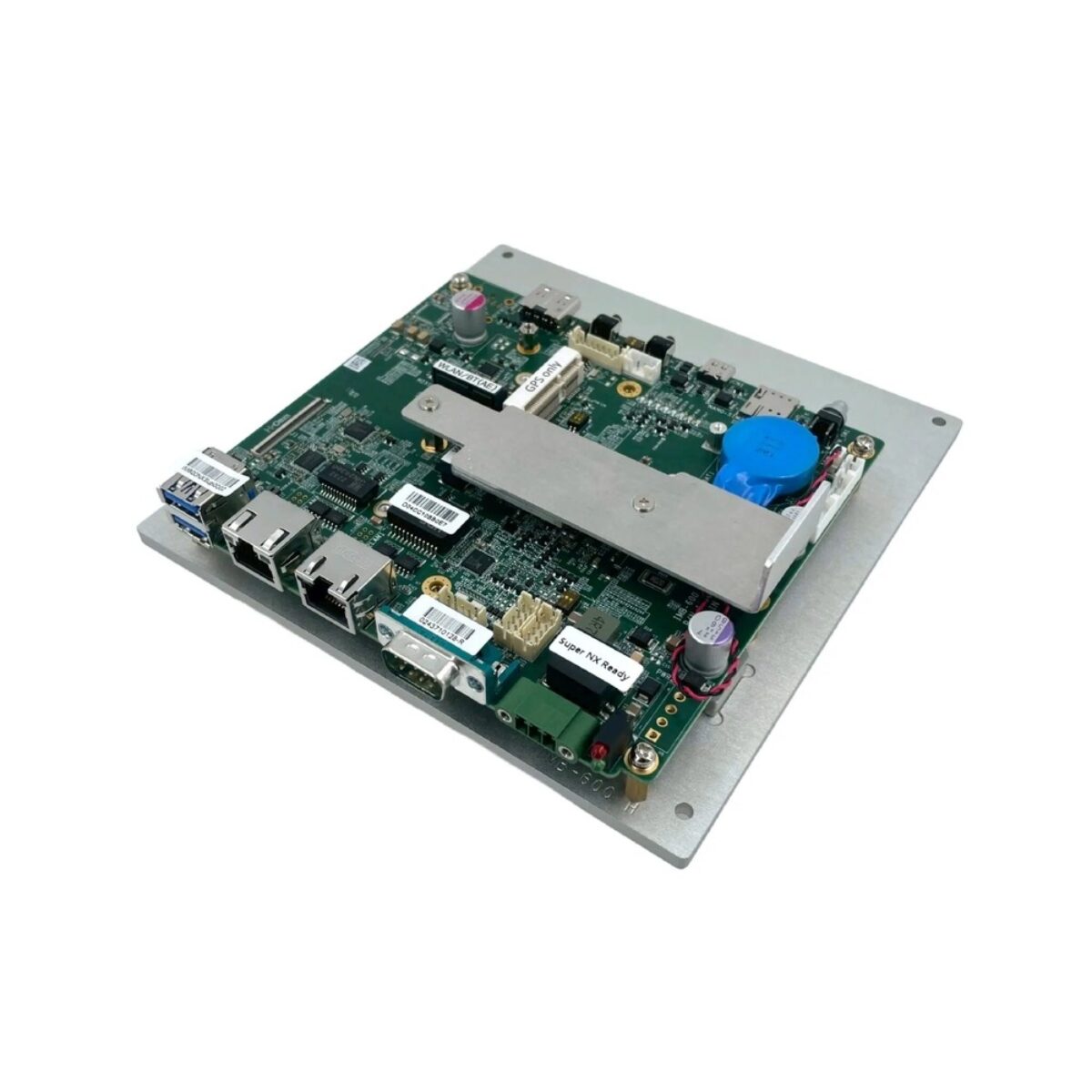

Sintrones IMB-600 NVIDIA Jetson Orin NX Mini-ITX Edge AI Developer Kits

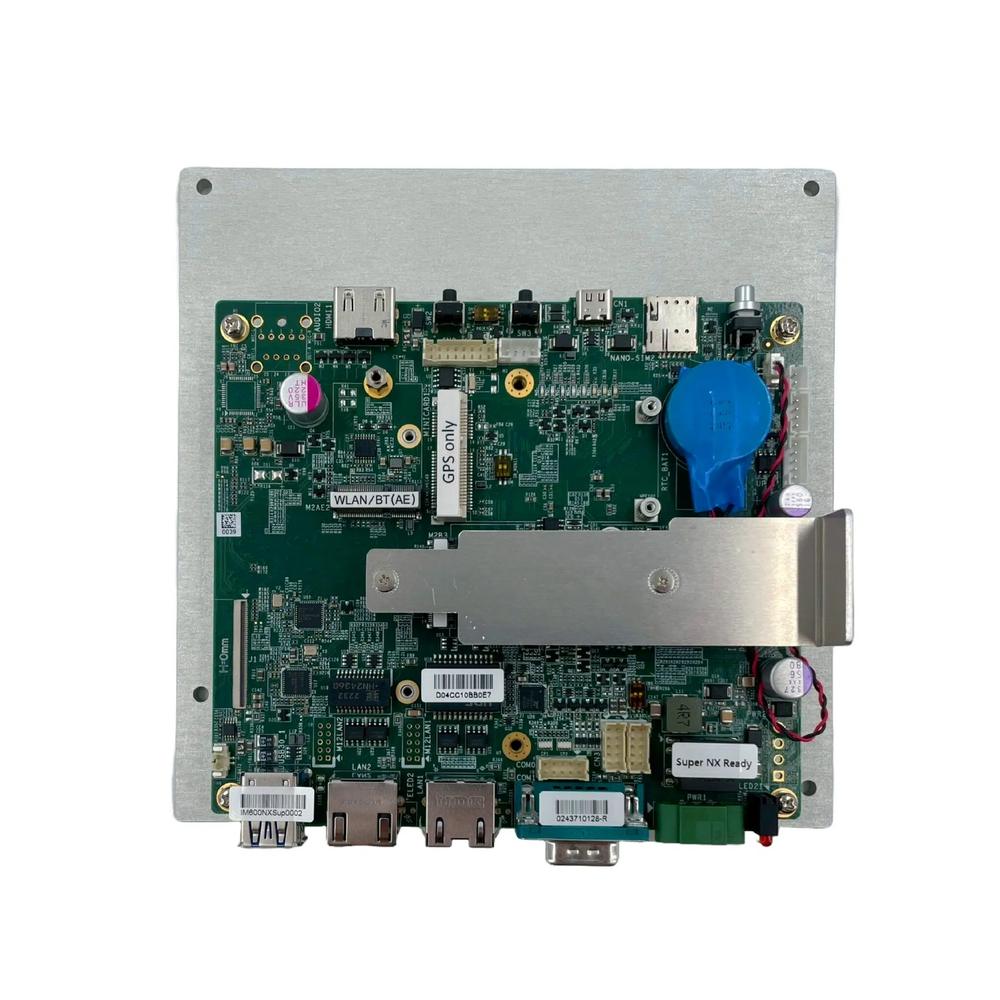

Most edge AI projects do not stall at the model stage; they stall in the gap between a desktop development board and the vehicle-grade system the model eventually ships on. The Sintrones IMB-600 series closes that gap with a family of Mini-ITX edge AI developer kits that put the NVIDIA Jetson Orin NX system-on-module on a 170mm x 170mm carrier with the wide-range power, ignition sensing and vehicle I/O of a deployment system. Teams prototype against the interfaces they will deploy with, rather than discovering integration problems after the enclosure has been specified.

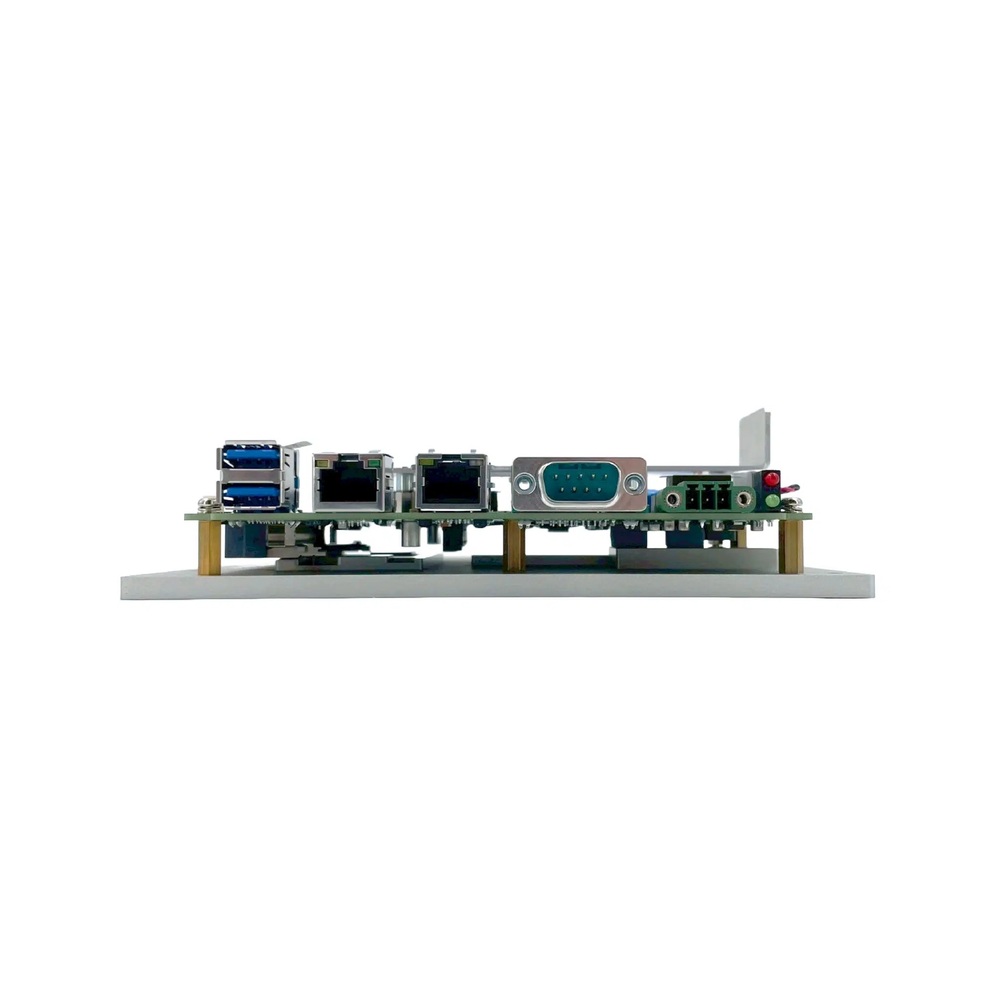

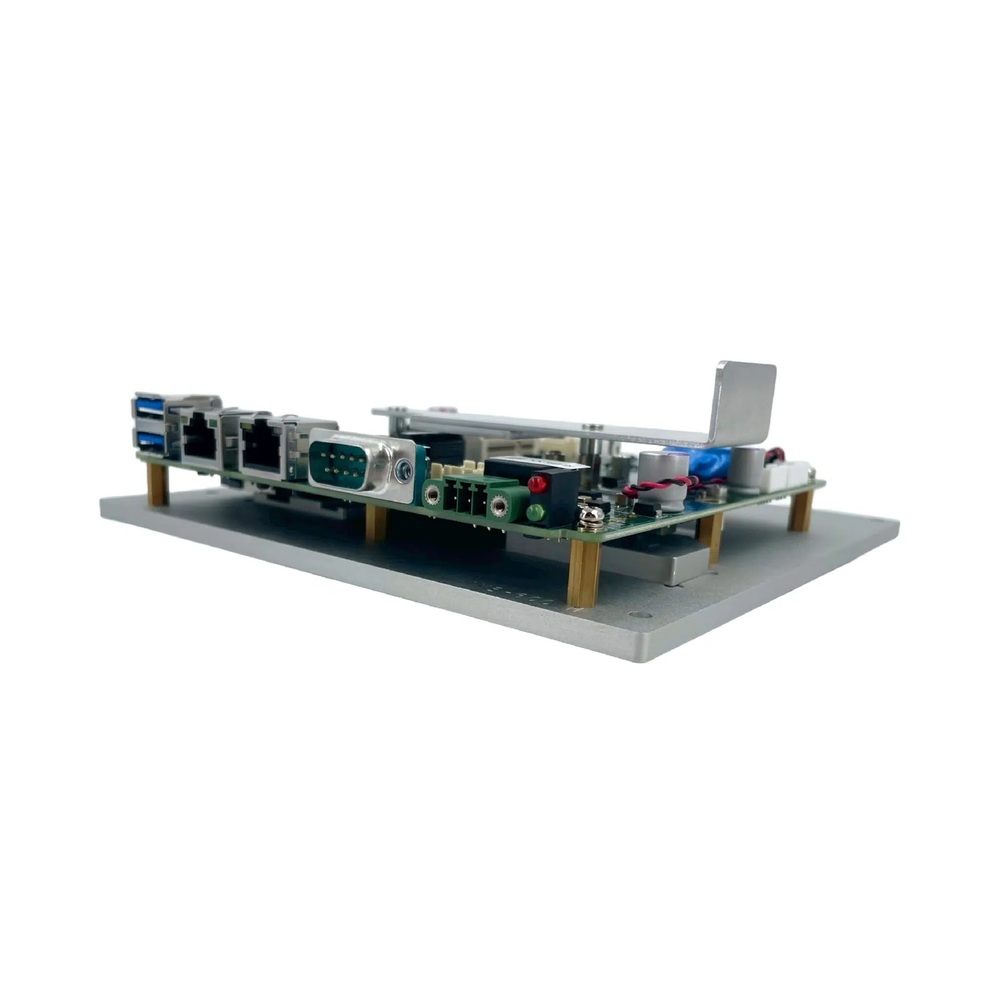

The architecture is shared across the IMB-600 range. Expansion runs through three M.2 slots: an M-key 2280 slot with four lanes of PCIe Gen4 for NVMe storage, plus B-key 3042/3052 and E-key 2230 slots joined by a full-size mPCIe socket, so optional 4G/5G, GPS/GLONASS and WiFi/Bluetooth modules fit without external adapters. Networking pairs a 2.5GbE port with a GbE port, both on Intel I226 controllers, alongside two USB 3.2 Gen 2 Type-A ports, a USB 2.0 Type-C port and an HDMI output. For sensors and machine interfaces, each board carries an 8-lane MIPI CSI-2 camera connector, CAN FD, an RS232/422/485 serial port and 4-in/4-out digital I/O, all running JetPack 6.2 on Linux.

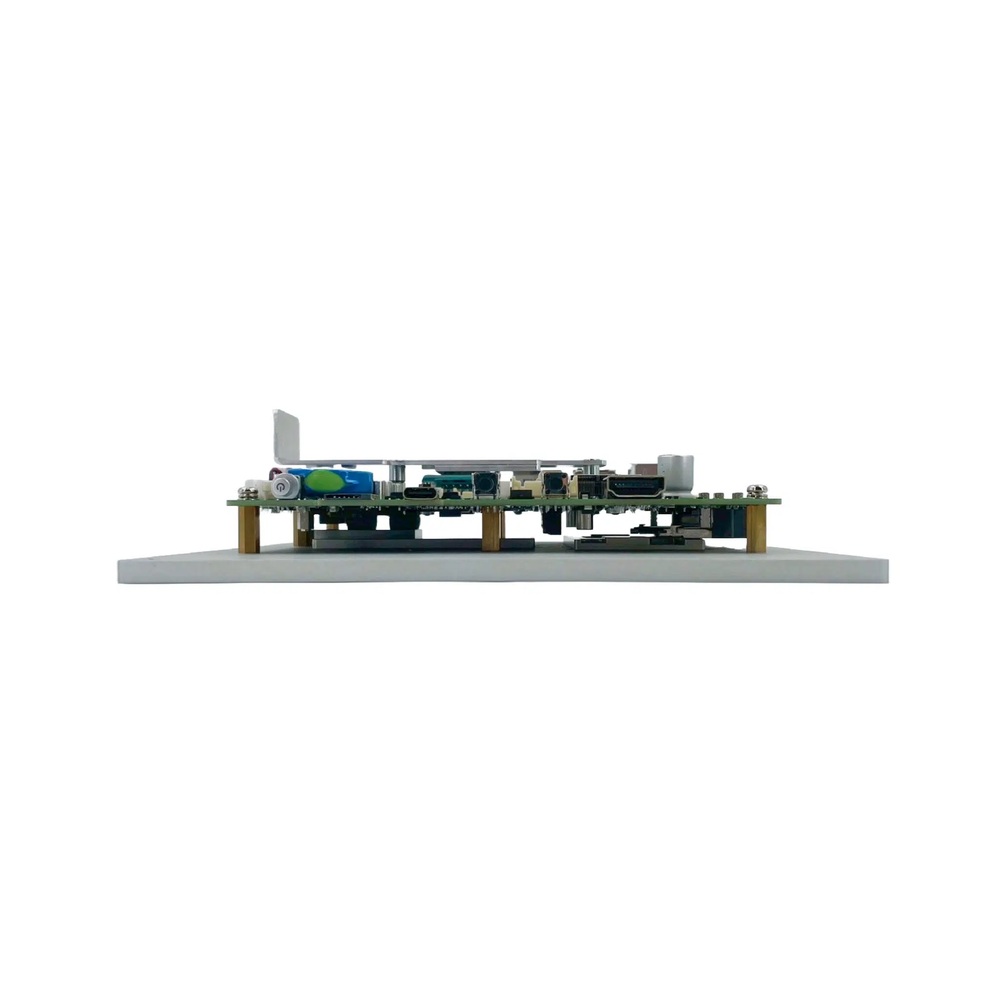

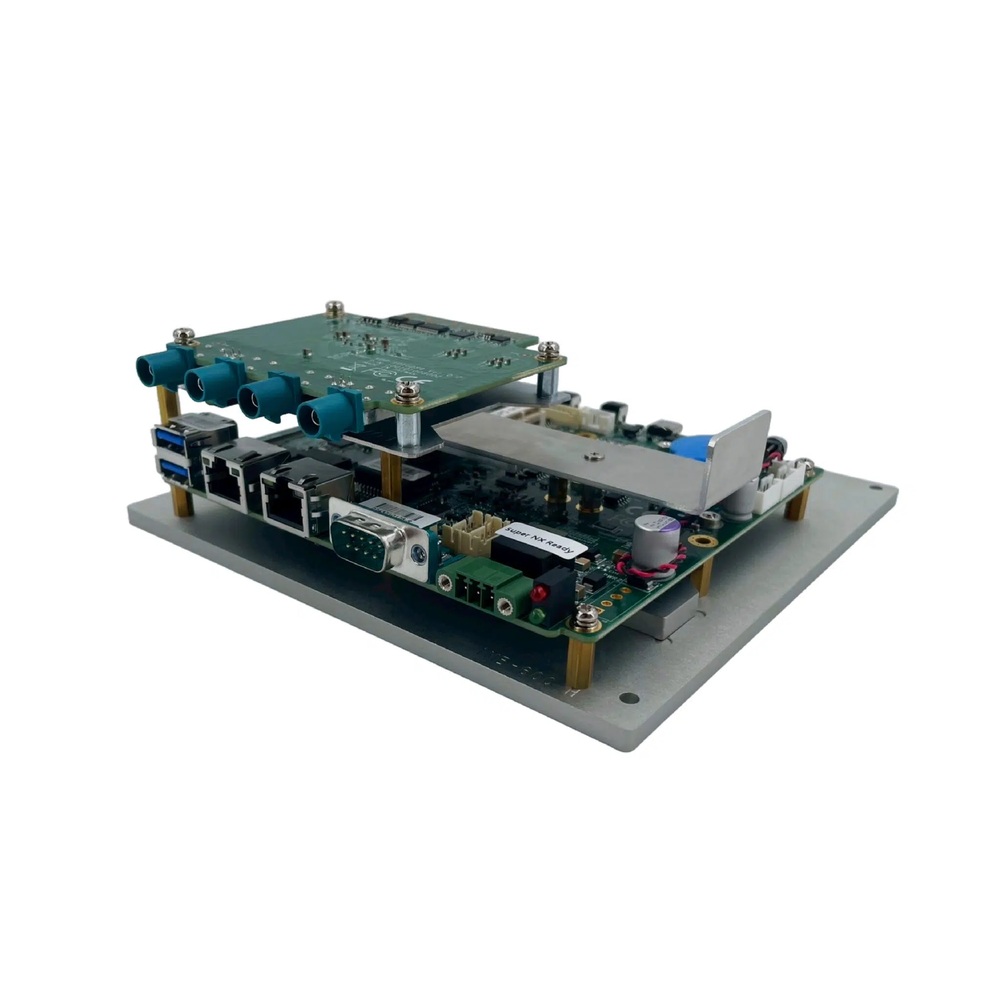

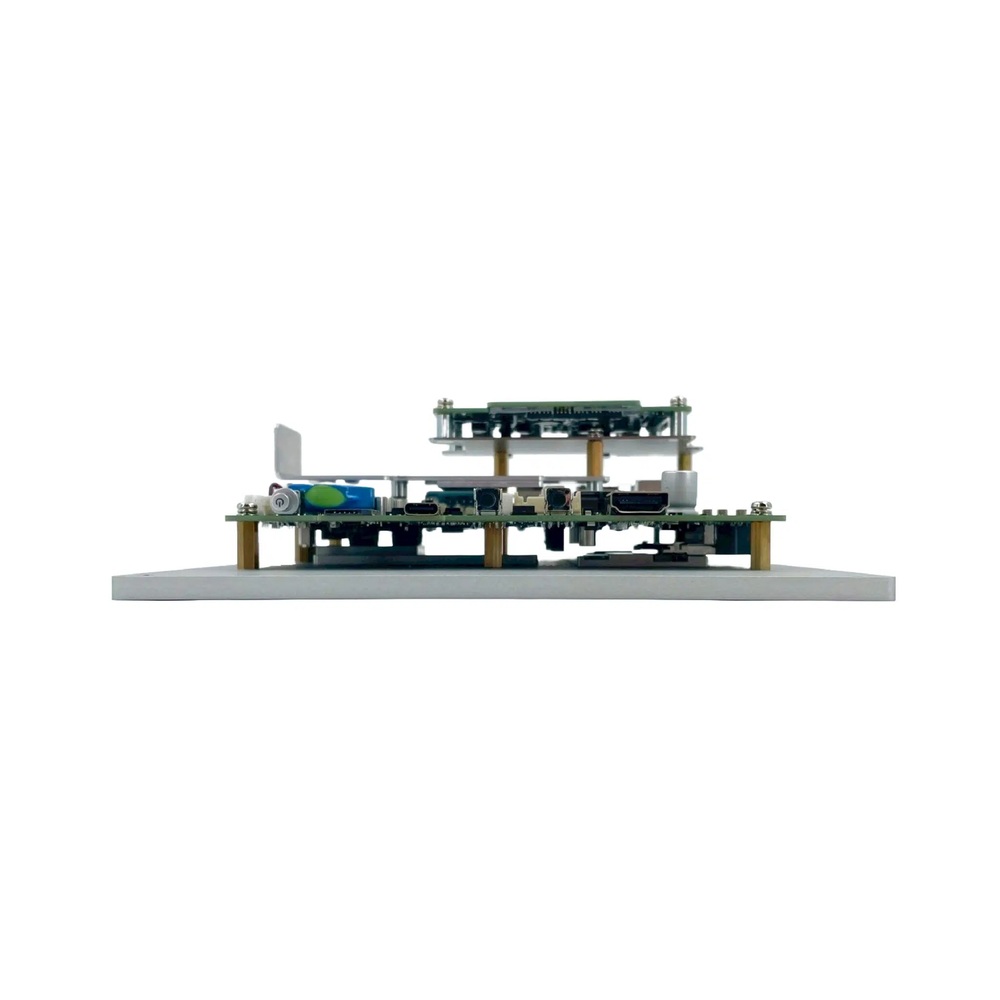

Four configurations cover the range. The IMB-600-ONX16-DEV-KIT pairs the Orin NX 16GB module with the low-profile 35.4mm build, while the IMB-600-ONX8-DEV-KIT offers the same board with the Orin NX 8GB module for workloads that fit a smaller memory budget. The Plus kits, IMB-600-ONX16-DEV-KIT-PLUS and IMB-600-ONX8-DEV-KIT-PLUS, add four GMSL-2 automotive camera inputs on FAKRA-Z connectors, raising the build to 59.4mm and bringing multi-camera capture to the development bench.

Across the IMB-600 series, the power and environmental envelope reads like deployment hardware rather than a desk accessory: 9-60V DC input on a terminal block, AT and ATX power modes, ignition control, and fanless operation from -25°C to 50°C in an aluminum build weighing 0.9kg, with CE, FCC and UKCA marks. That makes the IMB-600 kits a practical first stage for machine vision, in-vehicle AI and edge inference projects, where work proven on the bench can move onto sealed and rugged Sintrones systems built around the same Orin NX modules.
