US 19 Inch Industrial Monitors
19 Inch 5:4 Industrial Displays for Control Rooms and Racks
Nineteen inch industrial monitors put a full-size 5:4 screen in front of the operator for control rooms, operator stations and washdown lines, matching the format a generation of control software was drawn for. Available in 19 inch 5:4 and 18.5 inch widescreen, in panel mount, chassis, open frame and rack mount builds with resistive, PCAP or SAW touch.
Options include IP66 and IP69K stainless steel builds, 1,600 nit sunlight-readable panels, marine, military and railway displays and SDI inputs, suited to control rooms, SCADA stations, washdown lines and equipment racks.
Speak to a display specialist to match the format, touch and mounting to your control room.
Browse Our 19" Touch Screen Monitors
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Resistive Touch
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- IP Rating: Front IP65
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI 1.4, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: Front IP66
- Certification: CE, DNV GL, FCC, IACS E10, IEC 60945
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Resistive Touch
- Brightness: 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Composite, 1x S-Video, 1x VGA Input, 1xDVI-D
- Power: 9-36V DC Input
- Temp: -15°C to 55°C [5°F to 131°F]
- IP Rating: Front IP66
- Certification: CE, DNV GL, FCC, IACS E10, IEC 60945
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Optional Resistive Touch, Optional Surface Acoustic Wave Touch
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Optional Resistive Touch, Optional Surface Acoustic Wave Touch
- Brightness: 300
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Optional Resistive Touch, Optional Surface Acoustic Wave Touch
- Brightness: 1000
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Optional Resistive Touch, Optional Surface Acoustic Wave Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x DVI Input, 1x HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Projective Capacitive Touch
- Brightness: 1000, 400
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional HDMI Input, 1x VGA Input
- Power: 9-36V DC Input [M12]
- Temp: -10°C to 55°C [14°F to 131°F], -40°C to 70°C [-40°F to 158°F]
- IP Rating: IP67
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Multi Touch PCAP
- Brightness: 250
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x Optional DVI Input, 1x Optional HDMI Input, 1x VGA Input
- Power: 12V DC
- Temp: 0°C to 50°C [32°F to 122°F]
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x HDMI Input, 1x VGA Input
- Power: 12-24V DC [M12]
- Temp: -20°C to 60°C [-4°F to 140°F]
- IP Rating: IP66, IP69K
- Certification: CE, FCC
- Touch: 5-Wire Resistive Touch
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Touch: Projective Capacitive Touch
- Brightness: 350
- Viewing Angle: Wide Viewing Angle
- Format: Standard
- Display Inputs: 1x VGA Input, 1x Wireless
- Power: 12V DC [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 50°C [14°F to 122°F]
- Certification: CE, FCC
-

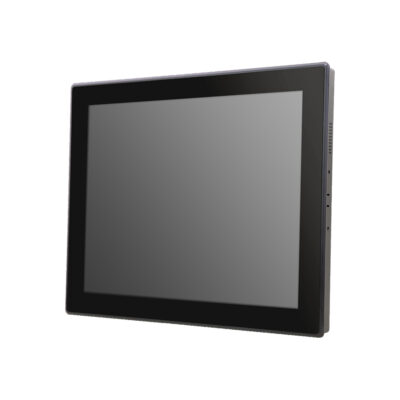

DM-119P/VM-2100
DM-1XXP/VM-2100 with 19" 5:4 SXGA PCAP display -
DM-110P/VM-2100
DM-1XXP/VM-2100 with 10.4" 4:3 XGA PCAP display -
DM-112P/VM-2100
DM-1XXP/VM-2100 with 12.1" 4:3 XGA PCAP display -
DM-115P/VM-2100
DM-1XXP/VM-2100 with 15" 4:3 XGA PCAP display -
DM-115PW/VM-2100
DM-1XXP/VM-2100 with 15.6" 16:9 FHD PCAP display -
DM-117P/VM-2100
DM-1XXP/VM-2100 with 17" 5:4 SXGA PCAP display -
DM-121PW/VM-2100
DM-1XXP/VM-2100 with 21.5" 16:9 FHD PCAP display -
DM-124PW/VM-2100
DM-1XXP/VM-2100 with 24" 16:9 FHD PCAP display
- Touch: Projective Capacitive Touch
- Viewing Angle: Wide Viewing Angle
- Display Inputs: 1x Display Port Input, 1x DVI Input, 1x VGA Input
- Power: 9-48V DC Input, Terminal Block, Optional AC Power Supply
- Ignition Sensing: Supports Ignition Control
- Temp: -10°C to 60°C [14°F to 140°F]
- Certification: CE, FCC
- Display: 19"[5:4, 1280 x 1024, SXGA]
- Brightness: 350
- Format: Standard
- IP Rating: Front IP65
All Industrial MonitorsBack to the full range
7 Inch Industrial Monitors5.7, 6.5, 7, 8 and 8.4 inch · 4:3 and 17:10
10 Inch Industrial Monitors10.1 and 10.4 inch · 4:3 and 5:3
12 Inch Industrial Monitors12.1 inch · 4:3
15 Inch Industrial Monitors15 and 15.6 inch · 4:3 and 16:9
17 Inch Industrial Monitors17 inch · 5:4
21.5 Inch Industrial Monitors21.3 and 21.5 inch · 16:9
24 Inch Industrial Monitors23.8 and 24 inch · 16:9
27 Inch Industrial Monitors26 and 27 inch · 16:9
32 Inch Industrial Monitors32 inch · 16:9
Large Format Industrial Monitors40, 42.5 and 55 inch · 16:919 Inch Monitor Ranges Configured by Things Embedded
We work with the leading manufacturers of 19 inch displays, so the ranges below are the ones we specify for control rooms, operator stations and racks. Compare them by mounting, touch and brightness, then browse the models above or ask a display specialist which range suits your control room.
Winmate Open Frame Monitors
Housing-free modules from 5.7 to 42.5 inches with resistive or SAW touch and high-brightness options, built into kiosk, signage and machine enclosures.
Winmate Rack Mount Monitors
19 inch rack screens from 15 to 32 inches with resistive or SAW touch, for control consoles and equipment cabinets.
Winmate Rugged Waterproof Monitors
Fully sealed screens from 7 to 19 inches, IP65 with M12 connectors or IP67, with optical bonding and stainless options on selected models.
Winmate Marine Monitors
Bridge and engine room screens from 10.1 to 32 inches with a front IP66 bezel, designed to DNV and IEC 60945 requirements, with sunlight-readable options.
Winmate Military Rack and Console Displays
Defense screens from 8.4 to 55 inches for rack, console and vehicle mounting, with PCAP or resistive touch and 4K options.
Winmate Outdoor and G-WIN Chassis Displays
PCAP touch screens from 7 to 55 inches with a front IP65 face, in high-bright outdoor and PoE builds, for kiosks, gates and outdoor control points.
Winmate Stainless Steel Washdown Displays
Chassis-mount screens from 10.4 to 32 inches in stainless steel with PCAP touch, sealed to IP65 or IP69K, for food, beverage and pharmaceutical lines.
Winmate PCAP Open Frame Displays
Multi-touch projected capacitive modules from 7 to 32 inches, including USB Type-C models, for kiosks and OEM enclosures.
Winmate Stainless Panel Mount Monitors
Flush stainless fronts from 15 to 21.5 inches with a front IP65 bezel and PCAP or resistive touch.
Winmate Outdoor Panel Mount Displays
Sunlight-readable PCAP screens from 7 to 23.8 inches with a front IP65 bezel, for cabinet doors, dispensers and outdoor enclosures.
TPM-36 Arestech IP66/IP69K Stainless Steel Displays
Washdown screens from 10.1 to 23.8 inches in stainless steel, sealed to IP66 and IP69K, with PCAP or resistive touch and wireless options for hygienic lines.
SM Arestech 1,600 Nit Sunlight Readable Monitors
High-brightness screens from 10.4 to 24 inches with a 1,600 nit panel and a front IP65 bezel, in PCAP, resistive or non-touch builds for panel or chassis mounting.
DM Arestech Modular Displays
PCAP touch screens from 10.4 to 24 inches with a front IP65 bezel, the display half of the DM modular panel PC, for panel or chassis mounting.
TPM Arestech Panel Mount Touch Monitors
Cabinet-door HMI screens from 12.1 to 21.5 inches with PCAP or resistive touch and an IP54 or front IP65 face.
APPD Nexcom Flush-Front Monitors
4:3 resistive touch screens from 12.1 to 19 inches with a flush IP65 front, for machines and control cabinets.
P Series Axiomtek Railway Monitors
Driver desk touch screens and open frame passenger information panels from 10.4 to 18.5 inches for rolling stock.
Not sure which range fits? Tell us the application and we will recommend the right model.
19 Inch Display Innovation & Control Room Insights
Speak to a Display Specialist.
Tell us where the display will be installed, the approvals it must meet and the video inputs you need to connect. We will recommend the right size, brightness and mounting, then configure and test it before it ships.
